  • Page 1 BG-ADAMO-4KND 4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/NDI|HX3 Live Streaming PTZ Camera with Tally Lights User Manual...
  • Page 2 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Package List Specifications Installation and Handling Caution Camera Interface RS-232 Interface VISCA Networking Mounting Wall Mounting Ceiling Mounting Operation Instructions Power on and Self-Check Remote Remote Buttons Introduction...

  • Page 4: Statement

    ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.

  • Page 5: Introduction

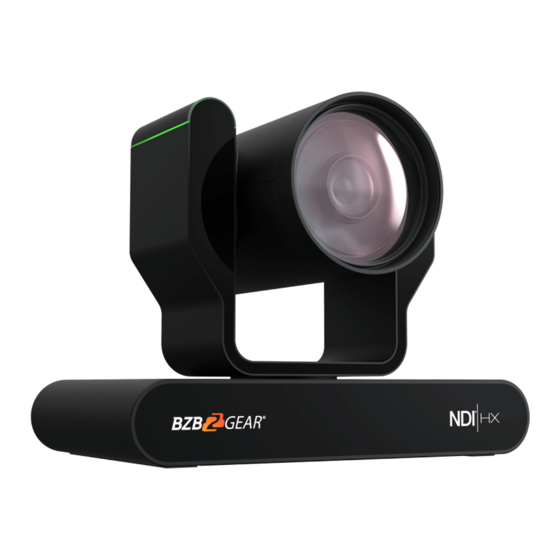

    PRODUCT MANUAL Introduction The BZBGEAR BG-ADAMO-4KND is an ultra-high-definition PTZ camera that delivers 4K resolution video at 60fps Available with either the 12x optical zoom lens with an 80.4° wide-angle, or the 25x optical zoom lens with a 59.2° wide-angle. Featuring USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI video connections.

  • Page 6: Package List

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Packing List • • 1 x BG-ADAMO-4KND 1 x RS232 Control Cable • • 1 x IR Remote Control 1 x User Manual • 1 x 12V/1.5A Power Supply Specifications Camera Parameters Optical Zoom f=3.85 mm～ 43.06 mm ±5% f=7.1 mm～...
  • Page 7 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ≥50dB Interface Product Interfaces HDMI, 12G-SDI, LAN NDI|HX3 (supports POE), USB2.0, A-IN, USB3.0, TF,RS232-IN, RS232-OUT,RS422 (compatible with RS485), DC12V, Power Switch LAN Interface: H.264, H.265 Video Compression USB 2.0 Interface: MJPG, H264, YUY2, NV12 Format USB3.0 Interface: YUY2 Audio Input Interface Stereo 3.5mm AUX...

  • Page 8: Installation And Handling Caution

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Installation and Handling Caution ● Do not manually rotate the camera head as it could cause mechanical failure. ● Place the camera on a stable table or horizontal surface. Installing on a slanted surface will result in a slanted image.

  • Page 9: Camera Interface

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Camera Interface 1. Remote-control IR Indicator 7. USB 2.0 13. RS232 Control Interface (In) 2. Camera Lens 8. 12G-SDI Output 14. RS232 Control Interface (Out) 3. Tally Lights 9. HDMI Output 15. LAN/PoE 4. Mounting Hole 10.
  • Page 10 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR OUT IR Commander Signal No Connection RS-232 (BD9) Port Connections Port Definition Definition Data Carrier Detect...

  • Page 11: Visca Networking

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL VISCA Networking Mounting Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall. Mounting to plasterboard is not recommended for safety reasons. OUNTING 1/4-20UNC Bolt Limited Post Anti-vibrate Cushion M6 Swelling Bolts...

  • Page 12: Ceiling Mounting

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL EILING OUNTING · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 13: Operation Instructions

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Operation Instructions OWER ON AND CHECK 1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of the camera. or connect to a PoE enabled network switch using a category cable.

  • Page 14: Remote

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL EMOTE One-to-One Code Matching: Out of the box the remote is automatically paired with the camera. Should the camera need to be re-pair with the remote, perform the steps below. 1. Press the "set" and " * " keys combined for 3 seconds. The LED indicator will start flashing.
  • Page 15 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL 3. Pan/Tilt Control Up: press Down: press Left: press Right: press Return to middle position: press 【HOME】 Press and hold the up, down, left, or right button to pan/tilt the camera. The camera will continue to move in the arrow direction until either the button is released or the camera has reached its full range of motion.
  • Page 16 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL 6. Auto Tracking Buttons F1: Turn off auto tracking F2: Turn on auto tracking F3: Switch auto tracking modes F4: Switch auto tracking to follow a different person 7. Key Combinations 【#】+【#】+【#】: Cancel all preset positions 【*】+【#】+ Manual: IP, username, password restore to...
  • Page 17 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL 8. Main Menu · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 18: Network Connection

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Network Connection Connection Mode ● Direct connection: Connect the camera directly to the computer using an ethernet cable. ● Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN).
  • Page 19 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ● Right-click on your connection and select “Status". Then click “B” Take note of your current IPv4 Address and Default Gateway as you will need this information later. Close the Details and Status windows. ● Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”.
  • Page 20 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL For the following steps refer to the diagram below. ● Click on the bubble for “Use the following IP address” ● In the IP address field, enter a non-conflicting IP address on the same subnet as the camera.

  • Page 21: Web Client Login

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Web Client Login ● Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as the administrator (Default Username/Password: admin). Users can preview and configure in the Web Client. ● When logged in as a normal user (Default Username/Password: user1 or user2), users can only preview with no options for configuration.
  • Page 22 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Navigate to Configuration -> DNS ● In the “Preferred DNS Server” type 8.8.8.8 ● In the “Alternative DNS Server” type 8.8.4.4 ● Click “Save” and reboot the camera once more. ● Once you have completed the camera network setup, repeat the steps on your computer to adjust the “Internet Protocol Version 4 (TCP/IPV4) Properties.”...

  • Page 23: Sd Card

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ● Preview After successfully logging into the management interface, the web portal will enter the video preview interface. In the preview screen, users can control pan/tilt, zoom, focus, video capture, sound, focus, full screen and set the preset position, run, delete and other operations. Recorded video can be saved on an SD Card when one is inserted by using the buttons on the lower left of the interface.

  • Page 24: Auto-Tracking Configuration

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Auto-Tracking Configuration To set up or enable auto-tracking, select “Track Configuration” on the top right corner. Select “On” under the option for Monocular Tracking. You have 2 modes for tracking: Presenter: The camera will continuously follow the subject until either the subject moves beyond the camera’s physical range of motion,...

  • Page 25: Zone Tracking Setup

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL RACKING ETUP ● Zone tracking must be set up using the web interface. However, it can be activated using the remote once the setup process has been completed. ● Using either the remote or web interface, adjust the camera to the desired shot.

  • Page 26: General Configuration

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL General Configuration To access system settings select “Configuration” in the top left corner of the web interface. Menu Explanation Includes audio compression formats, Audio sampling frequency, sampling Configure precision, compressing code rate settings etc. Video Includes video encoding, video Configure...

  • Page 27: Streaming

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Streaming IDEO TREAM APTURE Navigate to Configuration -> Video Encode Configure the parameters according to the network environment. Note: stream name - live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. To obtain the RTSP video stream, see below: rtsp://192.168.5.163:554/live/av0（av0 main stream)

  • Page 28: Live Stream Publish

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL TREAM UBLISH Navigate to Configuration -> Audio Configure Ensure the check box next to “Enable” is toggled. ● Select AAC as the “Encode Type.” ● Change “Bit Rate” to 128Kbps. Click Save and Reboot the ●...

  • Page 29: Ndi

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ● The BG-ADAMO-4KND has NDI enabled by default. ● Change the NDI Name and NDI Group on this screen. Note: Please consult your streaming software instructions on how to connect to the NDI stream from the camera.

  • Page 30: Visca Protocol List

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL VISCA Protocol List VISCA P ROTOCOL ETURN OMMAND Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z= camera address + 8...

  • Page 31: Visca Protocol Control Commands

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL VISCA P ROTOCOL ONTROL OMMANDS Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF...
  • Page 32 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Function Command packet Note Command Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM _RGain Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF...
  • Page 33 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Function Command packet Note Command Direct 8x 01 04 51 00 00 00 0p FF CAM_WDRStrength (cont.) p: WDR Level Position CAM_NR（2D） 8x 01 04 53 0p FF P=0-7 0:OFF CAM_NR（3D） 8x 01 04 54 0p FF P=0-8 0:OFF p = 0 –...

  • Page 34: Visca Protocol Inquiry Commands

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Function Command packet Note Command P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A：1080P59.94 Set camera video 8x 01 06 35 00 0p FF CAM_VideoSystem 3:1080i50 B：1080i59.94 system 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25...
  • Page 35 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 00 FF Auto y0 50 01 FF 3000K y0 50 02 FF 4000K y0 50 03 FF One Push Mode y0 50 04 FF 5000K y0 50 05 FF...
  • Page 36 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF SYS_MenuModeInq 8x 09 06 06 FF y0 50 03 FF Off y0 50 02 FF CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 03 FF Off...

  • Page 37: Pelco-D Protocol Command List

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL -D P ELCO ROTOCOL OMMAND Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed...

  • Page 38: Pelco-P Protocol Command List

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL -P P ELCO ROTOCOL OMMAND Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Value High Query Zoom Position 0x00 0x5D Value Low Byte 0xFF Address Response Byte 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF...

  • Page 39: Maintenance And Troubleshooting

    BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Maintenance and Troubleshooting AINTENANCE ● Turn the camera off and disconnect the power adapter when not in use for an extended period. ● Use a soft cloth or tissue to clean the camera cover. ● Wipe the camera lens with a soft, dry cloth when cleaning. Gently wipe the lens with a mild detergent if needed.

  • Page 40: Tech Support

    BZBGEAR delivers quality products designed with users in mind. Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form.
