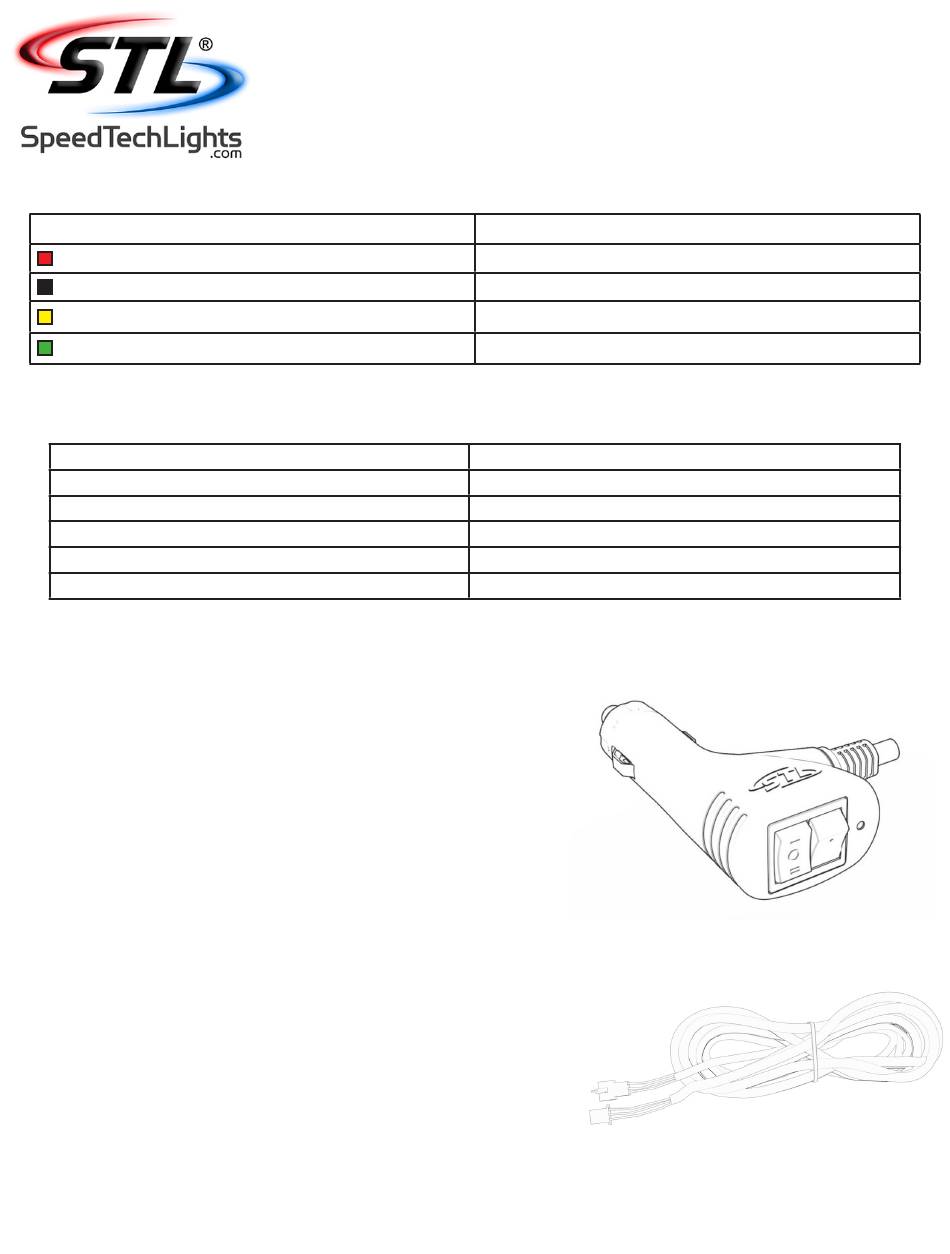

Wiring Diagram

Wire Color
Red*
Black*
Yellow
*
Green
* Indicates a main power cable.

Specifications

Voltage
Amps
Optic
LED Count
Cable Length
Flash Patterns
Cigarette Lighter Plug Switch Operation (Sold Separately)
On/Off/On Switch:
• Top On Position: Turns on the Light Bar in Memory Mode 1.
• Off Position: Turns off the Light Bar.
• Bottom On Position: Turns on the Light Bar in Memory Mode 2.
Flash Pattern Button:
• Cycles to the next flash pattern with each press.
• Non-Volatile memory recalls the last flash pattern selected.
• Hold for 3 seconds to toggle Steady Burn mode.
• Hold for 5 seconds to toggle Random pattern mode.
Extension Cable (Sold Separately)
• If you have an extension cable with connectors, connect the corresponding ends to one
another. Use the connector at the end of the cable to plug into the control box.
• If you have an extension cable with one connector, you will need to cut the connector off
of the main cable harness coming out of the Light Bar. Save it as a spare part. You will
solder and heat shrink each wire within the cable harness to each wire in the extension
cable harness. DO NOT cross connect wires. Use the connector at the end of the
extension cable to plug into the control box.
• If you have an extension cable with no connectors, you will need to cut in the middle
of the main cable harness coming out of the Light Bar. You will solder and heat shrink
each wire within the cable harness to each wire in the extension cable harness. DO
NOT cross connect wires. Use the reattached connector from the end of the main cable
harness to plug into the control box.
• NOTE: DO NOT leave connectors, cables, solder points exposed to heat, moisture, or
debris.
4
K-FORCE MICRO 14 LINEAR
®
MINI LIGHT BAR
Function
Positive- Memory Mode 1
Negative
Flash Pattern
Positive- Memory Mode 2
NOTE: All cables except Negative contact +12 VDC.
12 VDC
< 4.2
Linear
72
11' Light Bar Cable, 1.5' Cig Plug Cable (Sold Separately)
40
