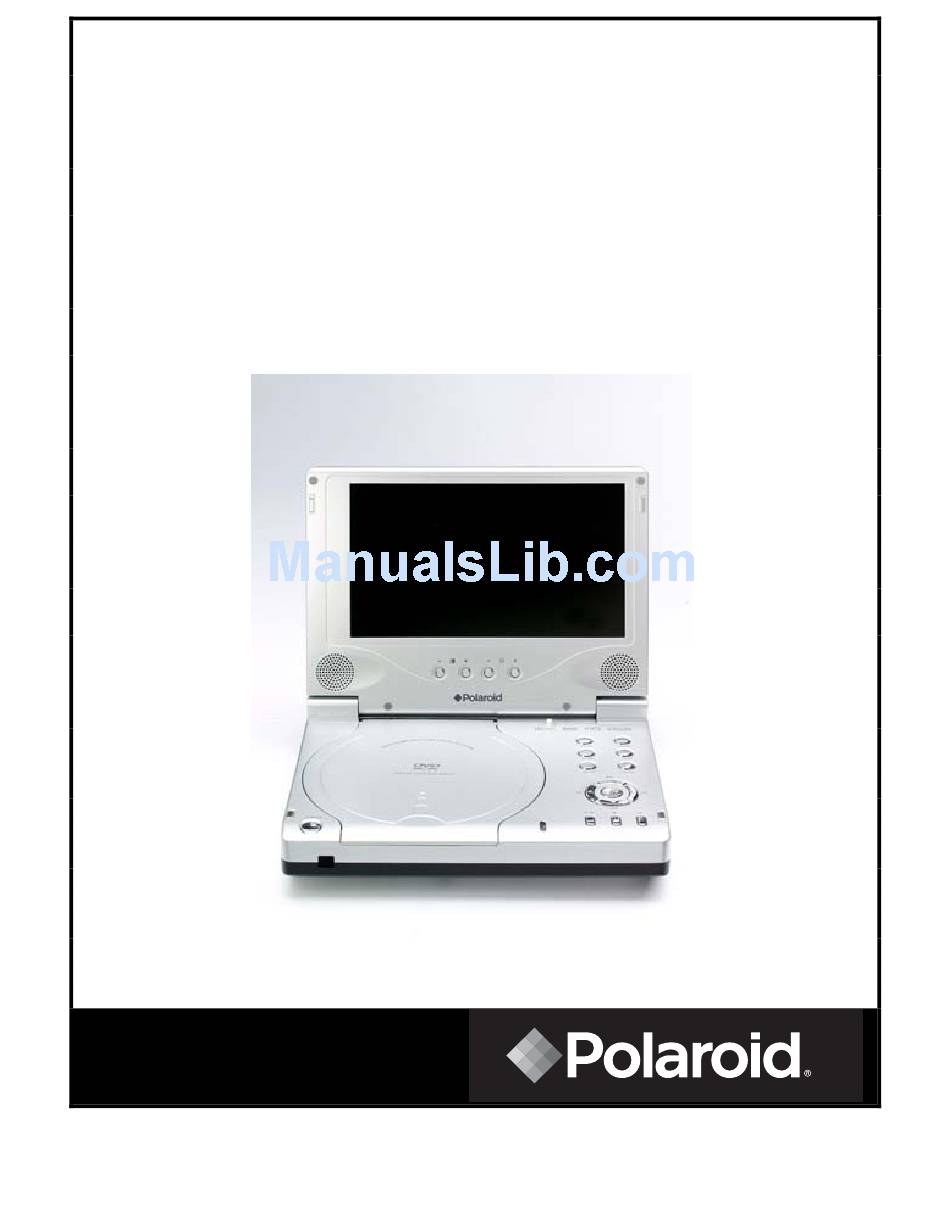

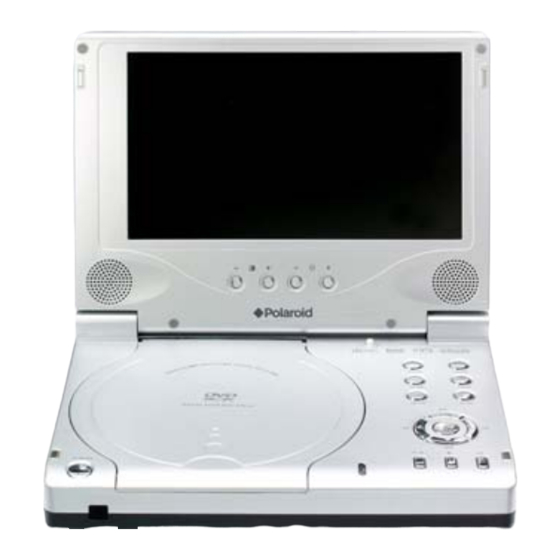

  • Page 1 7” Portable DVD Player PDV-0713A Operation Manual 20040928 - 1 -...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions... 3 Precautions with Moisture ... 5 Function Features ... 6 Disc Formats Supported... 7 Description ... 8 Connecting to a TV... 10 Connecting to an Amplifier ... 11 Using the AC Adapter... 12 Using the Battery Pack... 13 Detatching the Battery Pack...

  • Page 3: Important Safety Instructions

    Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 4 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do not put product on bed, sofa or anything that blocks ventilation.

  • Page 5: Precautions With Moisture

    Precautions Under the following circumferences, moisture may appear on the lens of the product, which is the most sensitive part of the DVD player. - The DVD player is suddenly moved from a cold place to a warm place. - A room is heated while the DVD player starts operating, or the DVD is placed by an air-conditioner.

  • Page 6: Function Features

    Function Features 1. EXCELLENT SOUND Dolby Digital delivers great sound. 2. HIGH RESOLUTION MPEG2 decoding format achieves more than 500 lines of horizontal resolution. 3. SPECIAL FUNCTIONS Supports excessive language caption. 4. COMPATIBILITY Plays DVD, CD, CD-R, CD-RW, PICTURE CD and MP3 discs. 5.

  • Page 7: Disc Formats Supported

    Disc Formats Supported by this Player T he unit can play discs bearing any of the following logos: DISC LOGO The operating method of some DVD discs is specified by the software maker. Please refer to the instruction manual of the disc. The DVD Player will play most recordable (CD-R) or erasable (CD-RW) CDs, but playback of CD-R or CD-RW discs created on a computer requires proper formatting and finalization of the disc for audio playback.

  • Page 8: Description

    Description - Front Panel Front View 1. OPEN Press to open the disc cover. 2. DISC COVER Press to select menu items. During playback, press to search backward. 4. ENTER Press to confirm the items or setting. 5. A-B Press to mark a segment to repeat between A and B.
  • Page 9 15. MODE During playback, press to change the aspect ratio on the screen. 16. ZOOM Press to cycle through zoom function. Description Right View 1. EARPHONE/SPEAKER VOLUME KNOB 2. EARPHONE JACK 3. AUDIO IN/OUT 4. VIDEO IN/OUT 5. AV IN/OUT SWITCH 6.

  • Page 10: Connecting To A Tv

    Connecting to a TV Audio/video connections 1. Always ensure that the DVD player, TV and any other electrical equipment you are connecting the DVD player to is switched off and unplugged from the power supply. 2. The easiest way to connect the DVD player to a television is via the supplied Audio/Video connections.

  • Page 11: Connecting To An Amplifier

    Connecting to an Amplifier The DVD player can be connected to an AV amplifier. Please refer to your Audio equipment’s manual before connecting. Note: When connecting to an audio amplifier, set the “Dynamic” to “Off”. - 11 -...

  • Page 12: Using The Ac Adapter

    Using the AC adapter Usage of Adapter The player is supplied with a switching power adapter. 1. Connect AC adaptor to the side of the DVD player in the slot marked “DC 9.5V IN”. 2. Connect the rabbit joint end of the AC adaptor to the power cord. 3.

  • Page 13: Using The Battery Pack

    Using the Battery Pack Using and Charging the Battery Pack Charge the Battery Pack before using it the first time. Charging time is normally between 4-5 hours. Do not charge the Battery Pack more than 8 hours as it could reduce service life.
  • Page 14 Using Battery Pack 3. Charging the Battery Pack Plug the Power Adapter into the Player’s DC 9.5V IN Jack (located on Right Side of Player). Plug the other end of the Power Cord into a household wall Power Outlet. Recommended Recharging and Charging Times Your new battery should be fully charged before it is used for the first time.

  • Page 15: Detaching Battery Pack

    Detaching Battery Pack Detaching Battery Pack from the unit: If the player is not going to be used for a long period of time, we recommend that you detach the Battery Pack. Even if the unit is powered down, the unit is still consuming some power in STANDBY mode.

  • Page 16: Using Headphones

    Using Headphones Using Headphones while you are in a quiet area: Connecting Headphone Connector into right side of the unit’s Headphone Jack: Quick Tips • Excessive loud usage of headphones could damage your hearing. • Turn down the Volume before you connect the headphones, then raise the volume to suit your level.

  • Page 17: Disc Playback

    Disc Playback Please read these instructions carefully before using your DVD player first time. Turn on the player’s power by switching the POWER switch on the side of the player to “ON”. Press OPEN button on front panel to open the disc cover. Load disc with the label facing up to prevent damage to the player or disc.

  • Page 18: Previous And Next

    Disc Previous and Next Press the button on the control panel, and playback will start from the previous track. Press the button on the control panel, and playback will start from the next track. Fast Forward & Rewind Press the buttons to fast forward or rewind.

  • Page 19: Picture Cd Playback

    Disc Picture CD Playback Previewing Contents Of A Folder Open the disc tray, insert the JPEG disc and close the tray. The disc contents are displayed (JPEG may be in a folder). To preview a picture, use the direction button to move the highlight over a folder entry.

  • Page 20: System Setup

    System Setup GENERAL SET-UP You can change the default settings to customize performance to your own preference. 1. Remove the disc from the DVD drive and press the SETUP button on the control panel, the settings menu will appear. It includes General Setup, Speaker Setup, Dolby Digital Setup, Video Setup and Preference Setup.

  • Page 21: Speaker Setup

    System Setup 3. Captions You can choose captions on or off on screen during playback. 4. Screen Saver When activated the screen saver automatically works if there has been no operation for a period of time. Speaker Setup 1. Down Mix Select “LT/RT”...

  • Page 22: Preference Page

    System Setup Preference Page 1. Audio, Subtitle, Disc Menu This setting allows you to hear or read subtitles of a DVD in your choice of English, Spanish or French etc. 2. Default Reset Use this function to reset all the settings. 3.

  • Page 23: Care Of Discs

    Care of Discs How to hold discs When loading or removing discs, try not to touch their playing surfaces. Cleaning Fingerprints or other dirt on the disc may affect sound and picture quality. To clean your discs, use a soft clean cloth to wipe them. If necessary, moisten a soft cloth with diluted neutral detergent to remove heavy dirt or fingerprints.

  • Page 24: About Rechargeable Battery

    About Rechargeable Battery Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the bottom of the player. 1. Under normal working conditions, the battery can be charged and discharged over 300 times. 2. The properties of the rechargeable battery are: 7.4 Volts, interior lithium ionic electric circuit protection for recharge and discharge.

  • Page 25: Carrying Case

    Carrying Case INSTRUCTIONS FOR ATTACHING YOUR PORTABLE DVD PLAYER CASE IN A VEHICLE Please read and follow these instructions carefully when attaching this case inside your vehicle. For ease of installation, do not place the DVD player into the case until after the case is attached inside the vehicle. 1.
  • Page 26 To attach the DVD Player Case to a seat back (Photos 1 & 2): Unzip the main compartment that holds the player; locate the set of rings tucked inside the top edge of the case (A) Locate the 2 straps with hooks on each end Hook one end of each strap to the rings at the top of the case (A) Criss-cross the straps around the front of the headrest (B) and hook the straps to a second set of rings on the lower part of the case (C)

  • Page 27: Troubleshooting

    Do not touch any metal objects to the battery connectors, as it will put the battery in standby mode. To get out of standby mode please connect the battery and portable DVD player to AC or DC power. Others possibilities: Static or other external interference may cause the player to function abnormally.

  • Page 28: Specifications

    Specifications TFT screen size Laser Wavelength Video System Frequency Response Audio Signal-to-noise Rate Audio distortion + noise Channel Separation Dynamic Range Audio Out Analog Audio Out Video Out Video Out Power AC100-240V～50/60Hz Power Consumption ＜25W Dimension 195.5mm x 143mm x 25mm Weight 1.154kg Conformidad con FCC, FDA - los UL enumeraron E209155...
  • Page 29 US call 1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443. “Polaroid” is a registered trademark of Polaroid Corporation of Waltham, MA USA and licensed for use on the PDV-0713A to Petters Consumer Brands, LLC. - 29 -...
