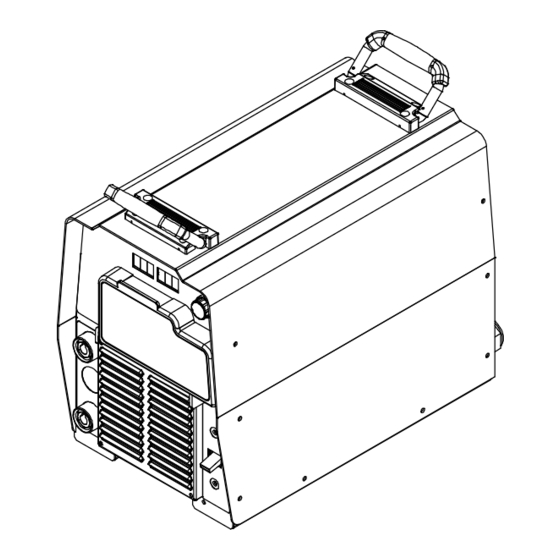

OM-252 340G
2014−01
Processes
Multiprocess Welding
Description
Arc Welding Power Source
R
XMT 350 VS
Auto-Line
™
w/WCC
File: MULTIPROCESS
Visit our website at
www.MillerWelds.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XMT 350 VS Auto-Line w/WCC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miller XMT 350 VS Auto-Line w/WCC

Summary of Contents for Miller XMT 350 VS Auto-Line w/WCC

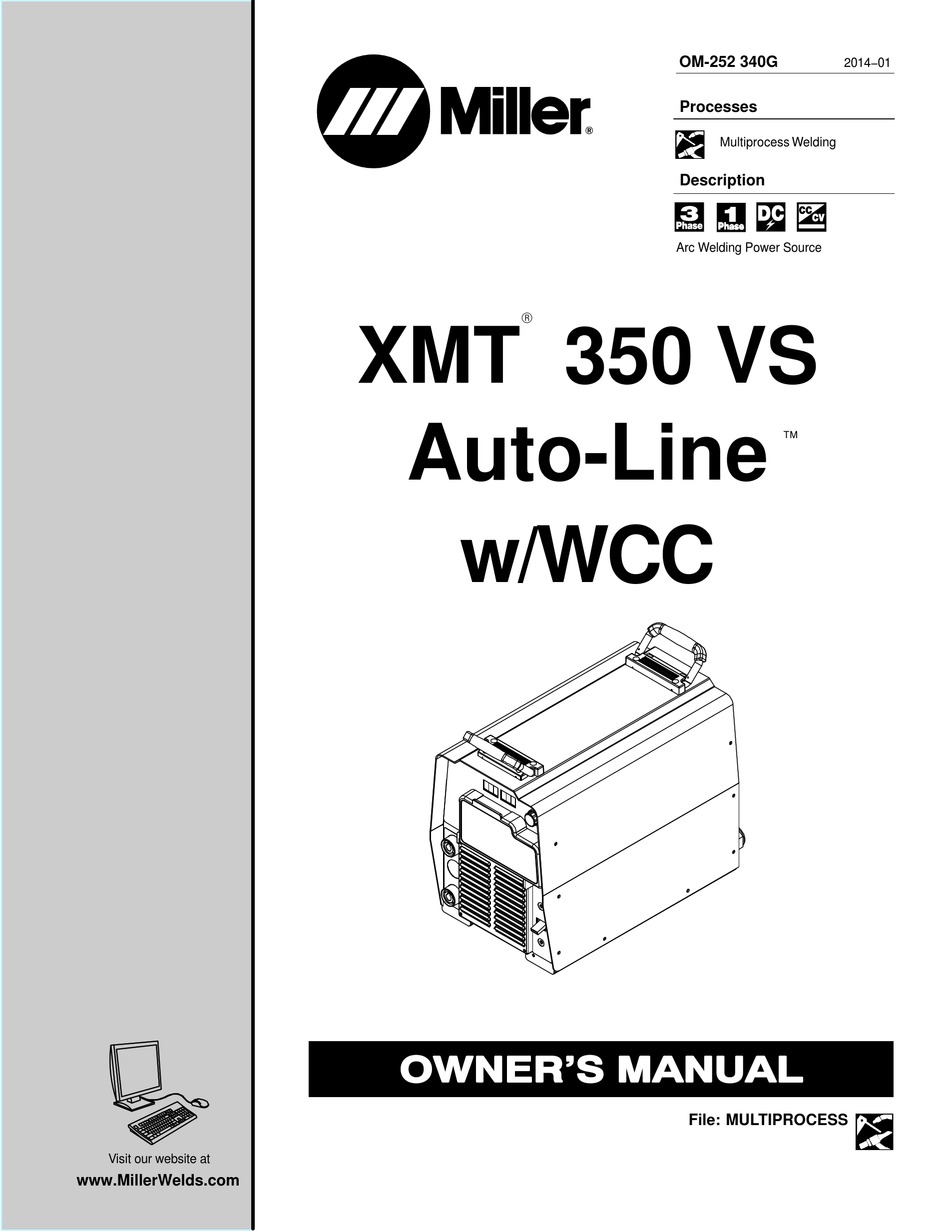

  • Page 1 OM-252 340G 2014−01 Processes Multiprocess Welding Description Arc Welding Power Source XMT 350 VS Auto-Line ™ w/WCC File: MULTIPROCESS Visit our website at www.MillerWelds.com...
  • Page 2 We know you don’t have time to do it any other way. That’s why when Niels Miller first started building arc welders in 1929, he made sure his products offered long-lasting value and superior quality.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING ....... . . 1-1.

  • Page 5: Section 1 − Safety Precautions - Read Before Using

    SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING som 2013−09 Protect yourself and others from injury — read, follow, and save these important safety precautions and operating instructions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if Indicates special instructions.
  • Page 6 D Remove stick electrode from holder or cut off welding wire at FUMES AND GASES can be hazardous. contact tip when not in use. D Wear body protection made from durable, flame−resistant material Welding produces fumes and gases. Breathing (leather, heavy cotton, wool). Body protection includes oil-free these fumes and gases can be hazardous to your clothing such as leather gloves, heavy shirt, cuffless trousers, high health.

  • Page 7: Additional Symbols For Installation, Operation, And Maintenance

    1-3. Additional Symbols For Installation, Operation, And Maintenance FIRE OR EXPLOSION hazard. MOVING PARTS can injure. D Do not install or place unit on, over, or near D Keep away from moving parts such as fans. combustible surfaces. D Keep all doors, panels, covers, and guards D Do not install unit near flammables.

  • Page 8: California Proposition 65 Warnings

    1-4. California Proposition 65 Warnings Welding or cutting equipment produces fumes or gases This product contains chemicals, including lead, known to which contain chemicals known to the State of California to the state of California to cause cancer, birth defects, or other cause birth defects and, in some cases, cancer.

  • Page 9: Section 2 − Consignes De Sécurité − Lire Avant Utilisation

    SECTION 2 − CONSIGNES DE SÉCURITÉ − LIRE AVANT UTILISATION fre_som_2013−09 Pour écarter les risques de blessure pour vous−même et pour autrui — lire, appliquer et ranger en lieu sûr ces consignes relatives aux précautions de sécurité et au mode opératoire. 2-1.
  • Page 10 D Ne pas raccorder plus d’une électrode ou plus d’un câble de D Avoir recours à des écrans protecteurs ou à des rideaux pour masse à une même borne de sortie de soudage. Débrancher le protéger les autres contre les rayonnements les éblouissements câble pour le procédé...

  • Page 11: Dangers Supplémentaires En Relation Avec L'installation, Le Fonctionnement Et La Maintenance

    DES PIECES DE METAL ou DES LES BOUTEILLES peuvent exploser si elles sont endommagées. SALETES peuvent provoquer des blessures dans les yeux. Les bouteilles de gaz comprimé contiennent du gaz sous haute pression. Si une bouteille est D Le soudage, l’écaillement, le passage de la endommagée, elle peut exploser.
  • Page 12 LES CHARGES ÉLECTROSTATI- RAYONNEMENT HAUTE QUES peuvent endommager les cir- FRÉQUENCE (H.F.) risque cuits imprimés. provoquer des interférences. D Établir la connexion avec la barrette de terre D Le rayonnement haute fréquence (H.F.) peut avant de manipuler des cartes ou des pièces. provoquer des interférences avec les équi- D Utiliser des pochettes et des boîtes antista- pements de radio−navigation et de com-...

  • Page 13: Proposition Californienne 65 Avertissements

    2-4. Proposition californienne 65 Avertissements Les équipements de soudage et de coupage produisent des Ce produit contient des produits chimiques, notamment du fumées et des gaz qui contiennent des produits chimiques plomb, dont l’État de Californie reconnaît qu’ils provoquent dont l’État de Californie reconnaît qu’ils provoquent des mal- des cancers, des malformations congénitales ou d’autres formations congénitales et, dans certains cas, des cancers.
  • Page 14 OM-252 340 Page 10...

  • Page 15: Section 3 − Definitions

    SECTION 3 − DEFINITIONS 3-1. Additional Safety Symbols And Definitions Some symbols are found only on CE products. Warning! Watch Out! There are possible hazards as shown by the symbols. Safe1 2012−05 When power is applied failed parts can explode or cause other parts to explode. Safe89 2012−07 3-2.

  • Page 16: Section 4 − Specifications

    SECTION 4 − SPECIFICATIONS 4-1. Serial Number And Rating Label Location The serial number and rating information for this product is located on the rear panel. Use rating label to determine input power requirements and/or rated output. For future reference, write serial number in space provided on back cover of this manual. 4-2.

  • Page 17: Duty Cycle And Overheating

    4-4. Duty Cycle And Overheating Duty Cycle is percentage of 10 min- utes that unit can weld at rated load without overheating. If unit overheats, output stops, a Help message is displayed and cooling fan runs. Wait fifteen min- utes for unit to cool. Reduce amper- age or voltage, or duty cycle before welding.

  • Page 18: Volt-Ampere Curves

    4-5. Volt-Ampere Curves Volt-ampere curves show minimum A. CC Mode and maximum voltage and amper- age output capabilities of welding power source. Curves of other set- tings fall between curves shown. SMAW GTAW SMAW GTAW CONTROL 100% AMPERAGE B. CV Mode 5 00 AMPERAGE 217 836-A / 217 837-B...

  • Page 19: Section 5 − Installation

    SECTION 5 − INSTALLATION 5-1. Selecting a Location Lifting Handles Movement Use handles to lift unit. Hand Cart Do not move or operate unit Use cart or similar device to move where it could tip. unit. 10 Line Disconnect Device Locate unit near correct input power supply.

  • Page 20: Equipment Setup

    5-3. Equipment Setup process is taking place the decimal While welding, due to voltage drops in During WCC operation, preset weld points on the wire feeder voltage display the weld cable, voltage displays at wire voltage and wire feed speed are set at the will blink.

  • Page 21: Weld Output Terminals And Selecting Cable Sizes

    **Weld cable size (AWG) is based on either a 4 volts or less drop or a current density of at least 300 circular mils per ampere. ( ) = mm for metric use ***For distances longer than those shown in this guide, call a factory applications rep. at 920-735-4505 (Miller) or 1-800-332-3281 (Hobart). Ref. S-0007-K 2013−10 OM-252 340 Page 17...

  • Page 22: Electrical Service Guide

    5-5. Electrical Service Guide Elec Serv 2014−01 NOTICE − INCORRECT INPUT POWER can damage this welding power source. Phase to ground voltage shall not exceed +10% of rated input voltage. NOTICE − Actual input voltage should not be 10% less than minimum and/or 10% more than maximum input voltages listed in table. If actual input voltage is outside this range, output may not be be available.
  • Page 23 Notes OM-252 340 Page 19...

  • Page 24: Connecting 1-Phase Input Power

    5-6. Connecting 1-Phase Input Power =GND/PE Earth Ground Tools Needed: Ref. 804 532-A input 2012−05 − 803 766-C OM-252 340 Page 20...
  • Page 25 5-6. Connecting 1-Phase Input Power (Continued) nected to any input power between 208 and Disconnect Device (switch shown in the Installation must meet all National and 575 VAC without removing cover to relink the OFF position) Local Codes − have only qualified per- power source.

  • Page 26: Connecting 3-Phase Input Power

    5-7. Connecting 3-Phase Input Power = GND/PE Earth Ground Tools Needed: Ref. 804 532-A / input 2012−05 − 803 766-C OM-252 340 Page 22...
  • Page 27 5-7. Connecting 3-Phase Input Power (Continued) voltage available at site. This unit can be con- Input Conductors (L1, L2 And L3) Installation must meet all National and nected to any input power between 208 and Local Codes − have only qualified per- Disconnect Device Line Terminals 575 VAC without removing cover to relink the sons make this installation.

  • Page 28: Optional Gas Valve Operation And Shielding Gas Connection

    ‘ 5-8. Optional Gas Valve Operation And Shielding Gas Connection Obtain gas cylinder and chain to running gear, wall, or other station- ary support so cylinder cannot fall and break off valve. Cylinder Regulator/Flowmeter Install so face is vertical. Gas Hose Connection GAS IN Fitting has 5/8-18...

  • Page 29: Section 6 − Operation

    SECTION 6 − OPERATION 6-1. Front Panel Controls Power Switch Mode switch setting determines both the pro- When set at maximum, short-clearing amper- cess and output On/Off control (see Section age is increased at low arc voltage to assist 6-3). with arc starts as well as reduce sticking while The fan motor is thermostatically welding.

  • Page 30: Meter Functions

    6-2. Meter Functions The meters display the actual weld output values for approximately three seconds after the arc is broken. Mode Meter Reading At Idle Meter Reading While Welding Scratch 71.7 10.3 Start TIG Actual Volts (OCV) Preset Amps Actual Volts Actual Amps 13.6 10.3...

  • Page 31: Lift-Arc Tig Procedure

    6-4. Lift-Arc TIG Procedure With Process Switch in the Lift-Arc TIG position, start an arc as follows: TIG Electrode Workpiece Touch tungsten electrode to work- piece at weld start point, hold electrode to workpiece for 1-2 seconds, and slowly lift electrode. An arc will form when electrode is lifted.

  • Page 32: Section 7 − Maintenance & Troubleshooting

    SECTION 7 − MAINTENANCE & TROUBLESHOOTING 7-1. Routine Maintenance Disconnect power Maintain more often before maintaining. during severe conditions. 3 Months Repair Or Replace Replace Cracked Replace Damaged Or Torch Body Cracked Unreadable Cables Labels Repair Or Replace Cracked Cables And Cords Clean Tighten Weld...

  • Page 33: Help Displays

    7-3. Help Displays All directions are in reference to the front of the unit. All circuitry referred Help 1 Display to is located inside the unit. HE.L P−1 Indicates a malfunction in the primary power circuit. If this display is shown, contact a Fac- tory Authorized Service Agent.

  • Page 34: Section 8 − Electrical Diagram

    SECTION 8 − ELECTRICAL DIAGRAM Figure 8-1. Circuit Diagram OM-252 340 Page 30...
  • Page 35 266 473-A OM− 252 340 Page 31...

  • Page 36: Section 9 − Parts List

    SECTION 9 − PARTS LIST Ref. 258 057-D Figure 9-1. Parts Assembly OM-252 340 Page 32...
  • Page 37 Item Dia. Part Mkgs. Description Quantity Figure 9-1. Parts Assembly ....216 034 Wrapper (Includes Insulators and Safety Labels) ....
  • Page 38 Item Dia. Part Mkgs. Description Quantity Figure 9-1. Parts Assembly (Continued) ....229 325 Foot, Mtg Unit ..........
  • Page 39 Effective January 1, 2014 (Equipment with a serial number preface of ME or newer) This limited warranty supersedes all previous Miller warranties and is exclusive with no other guarantees or warranties expressed or implied. Warranty Questions? LIMITED WARRANTY − Subject to the terms and conditions below, 6 Months —...
  • Page 40 Contact the Delivering Carrier to: File a claim for loss or damage during shipment. For assistance in filing or settling claims, contact your distributor and/or equipment manufacturer’s Transportation Department. © ORIGINAL INSTRUCTIONS − PRINTED IN USA 2014 Miller Electric Mfg. Co. 2014−01...
