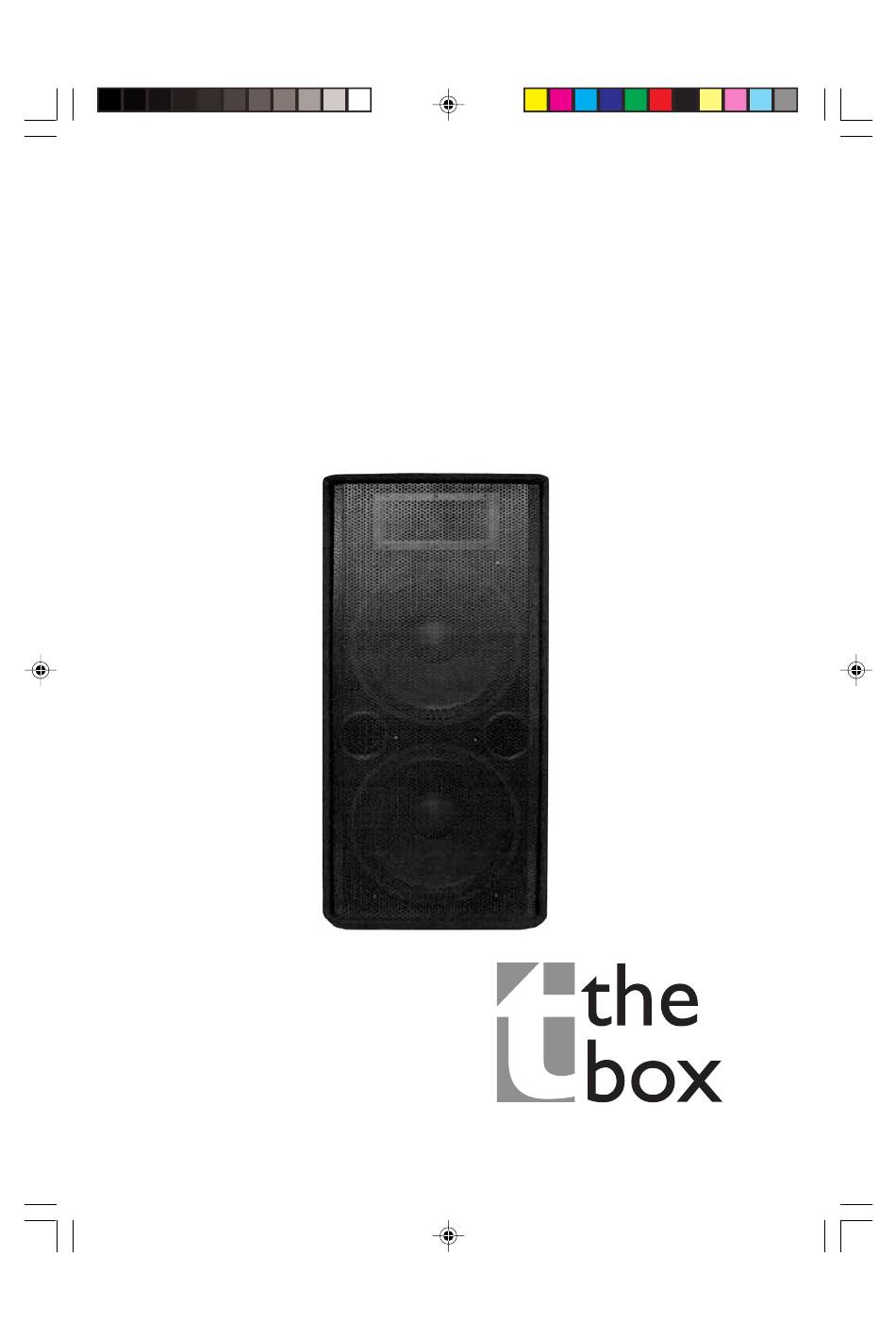

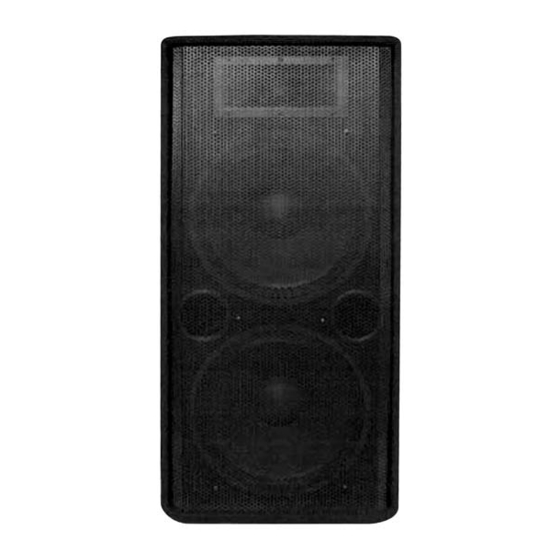

- Page 1 PA 252 Professional 900-Watt PA Speaker with 2 x 15" Woofers and 1.75" Titanium-Diaphragm Compression Driver User’s manual DATA-MANFULL_PA252_ENG_Rev_A.PMD 20.02.2006, 14:30...
-
Page 2: Safety Instructions
PA 252 SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this device near water. 6) Clean only with a dry cloth. 7) Be sure to mount your speakers on a solid, stable and level base or stand. Vibrating floors do not provide reliable support for speaker enclosures or stacks. - Page 3 PA 252 1. CONNECTIONS Connections Two ¼“ loudspeaker inputs are wired in parallel. You can alternatively connect one of the connectors to the output on your power amp and tap into the signal from the amp once again on the second connector, in order to feed this signal into an additional loudspeaker.
-
Page 4: Power Amp Rating
In the following example, the main output signal of a mixing console is connected to a power amplifier. Both the outputs and inputs are stereo. A PA 252 is connected to each of the amp outputs, and these speakers reproduce the entire frequency range (full range). -
Page 5: Specifications
PA 252 4. SPECIFICATIONS ` U@HÃ96U6 Q6Ã!$! Type 2-way full-range speaker Frequency response 45 Hz - 20 kHz Power rating (Peak program) 900 W Impedance Sound pressure level (1 W @ 1 m) 98 dB (Full Space) Dispersion 90° x 40°...
