Truper HILA-1500 Manual

Truper HILA-1500 Manual

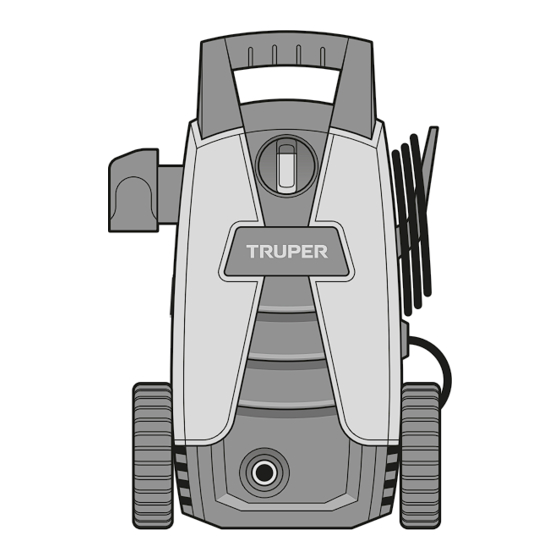

Electric pressure washer

Advertisement

Quick Links

Manual
Electric
Pressure
Washer
HILA-1500
CAUTION
Read this manual thoroughly
before using the tool.
1 500 PSI
Applies for:
Code
Model
101593
HILA-1500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HILA-1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Truper HILA-1500

  • Page 1 Manual Electric Pressure Washer 1 500 PSI Applies for: Code Model 101593 HILA-1500 HILA-1500 Read this manual thoroughly CAUTION before using the tool.
  • Page 2: Table Of Contents

    Manual before using the tool. Parts Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference only. They might be different from the real tool. Maintenance Troubleshooting Authorized Service Centers Warranty Policy HILA-1500 ENGLISH...
  • Page 3: Technical Data

    Technical Data HILA-1500 Code 101593 Description Electric Pressure Washer Maximum Pressure 1 500 PSI Minimum and Maximum Water Input Pressure 14 PSI - 50 PSI Maximum Flow Rate 1.2 GPM Maximum inlet temperature 113 ºF Voltage Frequency 127 V 60 Hz...
  • Page 4: General Power Tools Safety Warnings

    General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
  • Page 5: Safety Warnings For Using Pressure Washers

    Safety Warnings for using Pressure Washers Before operating de pressure washer • A certified electrician shall carry out the connection to the power supply. It is recommended to include in said supply CAUTION • Pressurized spray is very powerful and a residual current device to interrupt the power supply if dangerous if misused.
  • Page 6: Parts

    Parts Handle Power cable support High-pressure gun support Switch Power cord Accessories support High pressure Water input water outlet Fast connector High-pressure gun Water filters Detergent tank High-pressure hose Nozzle cleaner ENGLISH...
  • Page 7: Assembly

    Assembly • Remove the packaging caps in the device water inlet and outlet. • Assemble the external filters (B) and (G) as indicated in the image and fix into the water inlet of the pressure washer (A). CAUTION Before disconnecting the garden hose, leave the water running through to expel any object inside it.
  • Page 8: Start Up

    Start Up Turning ON • Open the water faucet. Keep it open while using the pressure washer. • Completely untangle the power cable and connect the plug into the power supply. In this step, do not turn ON the pressure washer. •...
  • Page 9: Maintenance

    Maintenance WARNING Water filter Disconnect the power cable from the power supply before carrying adjustments, service or • Any foreign particle entering the pressure washer pump maintenance to the pressure washer. can damage it. To prevent this possibility, the pressure Cleaning and care washer is built with a water filter.
  • Page 10: Troubleshooting

    Troubleshooting Problem Possible Cause Solution The pressure washer • Pressure washer is not connected. • Connect the pressure washer. is not starting. • Faulty power supply. • Use a different power supply. • Blown fuse. • Replace the fuse. Turn OFF other machines. •...
  • Page 11: Authorized Service Centers

    Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center.
  • Page 12: Warranty Policy

    . Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
