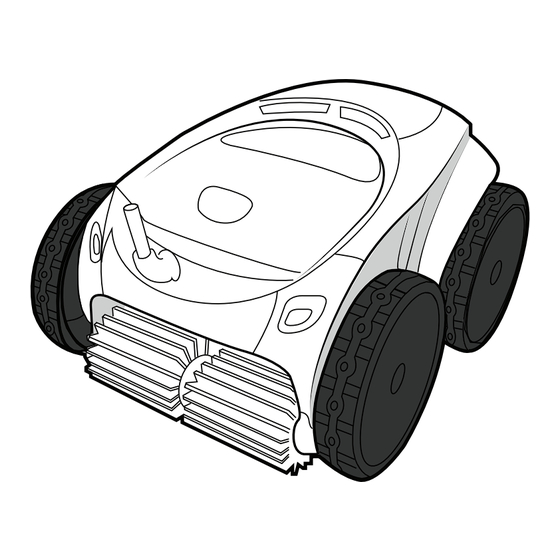

Astralpool VIRON QT 1050 Owner's Manual

Robotic pool cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
FOR YOUR SAFETY - For anything other than the routine cleaning and maintenance described in this manual,
this product must be serviced by a pool technician who is licensed and qualified in pool equipment by the
jurisdiction in which the product will be installed where such state or local requirements exist. In the event no
such state or local requirement exists, the maintainer must be a professional with sufficient experience in pool
equipment installation and maintenance so that all of the instructions in this manual can be followed exactly.
Improper installation and/or operation will void the warranty.
viron™ QT 1050
robotic pool cleaner
WARNING
TYPE EC15-
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIRON QT 1050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Astralpool VIRON QT 1050

Summary of Contents for Astralpool VIRON QT 1050

  • Page 1 OWNER’S MANUAL viron™ QT 1050 robotic pool cleaner TYPE EC15- WARNING FOR YOUR SAFETY - For anything other than the routine cleaning and maintenance described in this manual, this product must be serviced by a pool technician who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist.
  • Page 2 VIRON™ QT 1050 robotic cleaner owner’s Manual...

  • Page 3: Table Of Contents

    VIRON™ QT 1050 robotic cleaner owner’s Manual Table of Contents Section 1. Important Safety Instructions ..4 Section 6. iAquaLink Control ..... 12 ™ iAquaLink™ Control Home Screen ........12 Section 2. Cleaner Specifications ....5 Start / Stop Cleaning and Adjust Cleaning Time ..12 Set Cleaning Mode ...............

  • Page 4: Section 1. Important Safety Instructions

    Section 1. Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS Congratulations on purchasing the AstralPool Robotic Cleaner. Please read through the entire manual before installing your new robotic pool cleaner. Your cleaner must be installed and operated as specified. WARNING Failure to comply with the following warnings can increase risk of fire or electrocution which can result in property damage and serious injury, including loss of life.

  • Page 5: Section 2. Cleaner Specifications

    Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. AstralPool Group Australia Pty Ltd is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.

  • Page 6: Section 3. Assembly

    VIRON™ QT 1050 robotic cleaner owner’s Manual Section 3. Assembly Assemble the Transport Caddy Unscrew the handnut from the base. Contents The packaging should contain the following items: • Cleaner and floating cable • Control unit • Manual, Quick Start Guide, and Warranty Card •...

  • Page 7: Attach The Control Unit To The Caddy

    VIRON™ QT 1050 robotic cleaner owner’s Manual Align cleaner hook pins with the top holes in the handle tube and snap into place. Figure 4. Twist Handnut to Secure Frame Snap two (2) support blocks into place. Slide axle and hubcap piece through center of wheel and attach to base unit.

  • Page 8: Connect To A Power Source

    VIRON™ QT 1050 robotic cleaner owner’s Manual Press control unit onto the caddy hook until it snaps Unscrew the protective cap for the floating cable and locks into position. from the side of the control unit by turning counter- clockwise. Grip the notched end of the floating power cable, insert into the control unit, and turn clockwise to tighten.

  • Page 9: Section 4. General Cleaner Operation

    Spread out the floating cable ensuring there are no programmed to drive the cleaner in reverse and back kinks or coils in the cable. into the pool when the impeller is out of the water. AstralPool recommends not exceeding 3 cleaning cycles per week.

  • Page 10: Control Unit

    VIRON™ QT 1050 robotic cleaner owner’s Manual Recommended cleaner cleaner caddy / control unit cleaner cleaner Recommended entry point WARNING: Do not use an extension cord Floating Cable Length Figure 13. Pool Entry Point for Optimal Patterning Control Unit SMART The control unit can be used to initiate basic cleaning Button Functions features and to connect the device to home Wi-Fi.

  • Page 11: Start / Stop Cleaning And Adjust Cleaning Time

    VIRON™ QT 1050 robotic cleaner owner’s Manual Start / Stop Cleaning and Adjust retrieval, release the button. Cleaning Time Cleaner will drive forward and up the wall it is facing. It will wait at the water line to be retrieved. The factory default cleaning mode is SMART Cycle (Floor, Wall, Waterline).

  • Page 12: Sign Up And Log In

    VIRON™ QT 1050 robotic cleaner owner’s Manual MODE SMART Configure the System iAquaLink™ Control Home Screen MODE SMART Start/Stop Cleaning Dirty Canister Indicator On the My Systems page, click in the upper right- hand corner to add a system. Choose “Robotic Cleaner” from the list and choose your model type.

  • Page 13: Set Cleaning Mode

    VIRON™ QT 1050 robotic cleaner owner’s Manual IMPORTANT: Only use Remote Control when in view of the permanently. cleaner. Repeat steps 2-4 to program additional days. From the main screen, select the Remote tab. NOTE: It is still recommended to remove and clean the NOTE: When in remote control mode, the control box filter canister after every cleaning cycle.

  • Page 14: In-App Error Messages And Troubleshooting

    VIRON™ QT 1050 robotic cleaner owner’s Manual Section 7. Storage & Maintenance Recommended WARNING cleaner cleaner caddy / control unit To avoid electric shock and other hazards which cleaner cleaner could result in permanent injury or death, Recommended disconnect (unplug) the cleaner from the power entry point source before performing any cleaning and maintenance.

  • Page 15: Clean The Filter Canister

    VIRON™ QT 1050 robotic cleaner owner’s Manual Figure 19. Lift the Cleaner Cover Figure 17. Unplug Remove the fi lter canister assembly from the cleaner body and separate the two canisters. Remove the cleaner from the pool and untangle all kinks and coils in the power cable.

  • Page 16: Store The Cleaner When Not In Use

    VIRON™ QT 1050 robotic cleaner owner’s Manual Store the Cleaner When Not in Use Separate the fi lter canister from the fi lter support. The cleaner must be cleaned regularly using slightly soapy clean water. Do not use solvents such as trichlorethylene or its equivalent.
  • Page 17 VIRON™ QT 1050 robotic cleaner owner’s Manual raised groove becomes partially flattened, indicating excessive wear Figure 27. Undo the Tabs of the Brush Figure 25. Worn Brush Indicator To install the new brush, position the new brush on the roller with the cleaning blades facing away from To maintain cleaner performance at its best you need the roller.

  • Page 18: Replacing Tyres

    VIRON™ QT 1050 robotic cleaner owner’s Manual Use a pair of scissors to cut the tabs 3/4 inch from the heel so that they are no higher than the cleaning blade. Repeat the procedure to install the second brush. Towards Body Figure 33.
  • Page 19 VIRON™ QT 1050 robotic cleaner owner’s Manual Section 8. Troubleshooting Information about the cleaner status and any relevant condition will be displayed on the control unit and/or in the iAquaLink app. ™ Error Codes Control Unit Display In-App Display Suggested Solution Pump Motor Check for corrosion or bent pins in the floating cable connection area.

  • Page 20: General Troubleshooting

    Disconnect the unit power and reconnect after 20 seconds. If the problem is not resolved, contact your local retailer to request a diagnostic review or contact AstralPool Consumer Care 1300 186 875. The floating cable has Too much cable in the water.

  • Page 21: Dismissing An Error Code

    VIRON™ QT 1050 robotic cleaner owner’s Manual Message Possible Cause Solution The cleaner is not cleaning the Filter canister is full or dirty. Dispose of debris and thoroughly clean the filter pool effectively. canister with mild soap and a soft brush. Then, re-submerge the cleaner (see: Clean the Filter Canister).

  • Page 22: Iaqualink ™ Troubleshooting

    VIRON™ QT 1050 robotic cleaner owner’s Manual Common iAquaLink Troubleshooting ™ Remember, if you get a new Wi-Fi Router, reset the defaults of your current Wi-Fi Router or simply change your Wi-Fi network password, you will have to re-establish the connection between your cleaner and the router. (See: Configure the System.) User Issue Possible Cause...

  • Page 23: Conformity

    The manufacturer reserves the right to modify these specifications without notice. Although the cleaning robots have been tested in a large variety of swimming pools, AstralPool cannot be held responsible in the case of a non- perfect adaptation of the robot to a particular swimming pool.
  • Page 24 For full warranty terms and conditions and to register your warranty, visit www.astralpool.com.au/warranty and complete your details. Or scan the QR code to go directly to the registration page Record your cleaner details here for quick reference: Model No. : ____________________________________ Serial No.
