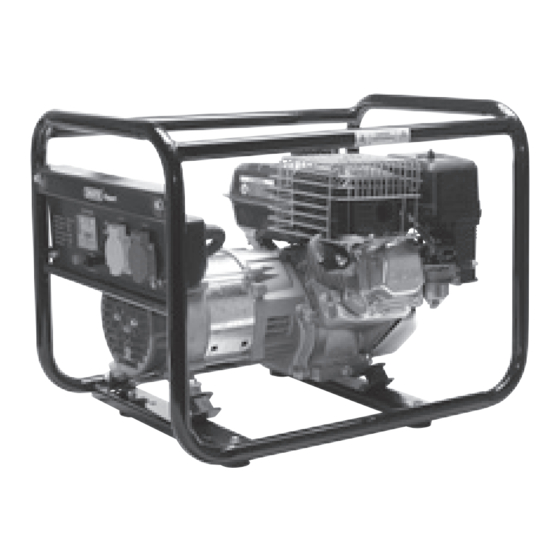

2.2kva/2.0kw petrol generator

Advertisement

Quick Links

INSTRUCTIONS FOR
2.2kVA/2.0kW
Petrol Generator
Stock No.87059
Part No.PG252F
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG252F and is the answer not in the manual?

Questions and answers

Summary of Contents for Draper PG252F

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &...
  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.
  • Page 5: Introduction

    A. Unscrew the fuel tank cap, remove the filter screen and empty the fuel tank into an approved petrol container using a commercially available hand siphon (Draper Stock No.43650), re-install the filter screen and fuel tank cap. B. Loosen the carburettor drain screw and drain the carburettor into a suitable container.
  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR GENERATOR USE NOTE: Generators are designed to give safe and dependable service if operated according to instructions. Read and understand this owners manual fully before operating this generator. You can help prevent accidents by being familiar with the generators controls and by observing safe operating procedures.
  • Page 7 HEALTH & SAFETY INFORMATION WARNING!: DO NOT OPERATE THIS MACHINE IN ANY HAZARDOUS LOCATION Such areas include when there is a risk of an explosion of petrol fumes, leaking gas or explosive dust. CAUTION: ENGINE SPEED HAS BEEN FACTORY SET TO PROVIDE SAFE OPERATION Tampering with the engine speed adjustment could result in overheating of attachments and could cause a fire.
  • Page 8: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Fuel tank. AC circuit breaker Fuel tank cap. 12V DC outlet. Frame. Oil filler cap. Choke lever. Main engine switch. Spark plug cover. Recoil starter. Air filter. Fuel tap. Earth terminal. Exhaust/muffler. 230V socket. 110V socket.
  • Page 9: Main Component Descriptions

    TECHNICAL DESCRIPTION 6.2 MAIN COMPONENT DESCRIPTIONS 2. Used to fill the fuel tank, also covers the fuel filter/strainer. 5. Choke lever, used to aid cold starting. 6. Remove this cover to access the spark plug. 7. Air filter housing, remove to access air filter. 8.
  • Page 10: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.
  • Page 11: Setting The Generator

    SETTING THE GENERATOR 8.1 AUTOMATIC VOLTAGE REGULATOR FIG.1 (AVR) This generator has been equipped with AVR technology which provides automatic voltage regulated power for continuous uninterrupted stable power supply. The AVR maintains a regulated AC output and reacts substantially quicker to rapid surges in voltage, therefore, preventing the possibility of damage to the generator and attached equipment.
  • Page 12: Checking The Engine Oil

    SETTING THE GENERATOR 8.4 CHECKING THE ENGINE OIL - FIGS. 5 - 6 The motor of this generator is not filled with oil. Prior to starting the motor ensure the crank case is filled with SAE 30/10W-40 4 stroke oil. Damage to the motor is not covered under warranty if the motor is run without oil.
  • Page 13: Starting The Generator

    SETTING THE GENERATOR 8.5 STARTING THE GENERATOR - FIGS. 7 - 10 FIG.7 Step1: Turn on the fuel tap (Fig.7). Step 2: Turn on the engine switch (Fig.8). Step 3: Move choke lever to the start (closed position. The choke may not be needed if the engine is warm.
  • Page 14: Ac Circuit Breakers

    SETTING THE GENERATOR NOTE: In most cases, operating the generator with both the 240V AC and the 12V DC at the same time, the DC Circuit breaker may open circuit. When charging batteries, only use the 12V DC outlet and leave the plug removed from the 240V AC outlet. WARNING: Prior to connecting any appliance to the generator, check the rating label of the appliance.
  • Page 15: Safety Switch Tripping

    SETTING THE GENERATOR 8.9 SAFETY SWITCH TRIPPING If the safety switch has tripped and cuts off the power, it may be due to substantial overloading. Marginal overloading may not switch off the safety switch but it will shorten the service life of the generator. Be sure that all appliances are in good working order before connecting them to the generator.
  • Page 16: Maintenance

    Make sure that the generator is not running when carrying out maintenance work. The ‘Draper’ generator has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper machine care, regular cleaning and by following the periodic maintenance schedule.
  • Page 17: Periodic Maintenance

    MAINTENANCE 9.4 PERIODIC MAINTENANCE Pre- Item Remarks Initial 1 Every 3 Every 6 Every 12 operation months months months months check or 20Hr or 50Hr or 100Hr or 300Hr (daily) Check condition, adjust gap Spark plug and clean. Replace if necessary. Check oil level.
  • Page 18: Risk Of Electrocution And Fire

    MAINTENANCE 9.5 RISK OF ELECTROCUTION AND FIRE HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Extension cord can come into contact with Remove extension cord from the generator Improper storage of hot engine parts resulting in damage. and store separately away from generator. extension cord.
  • Page 19: Risk Of Fire

    MAINTENANCE 9.6 RISK OF FIRE HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Attempting to fill the Fuel and fuel vapours can become ignited Turn engine off and allow it to cool before fuel tank while the by coming in contact with hot components adding fuel to the tank.
  • Page 20: Risk Of Injury And Property Damage When Transporting Generator

    MAINTENANCE 9.7 RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Fire, inhalation, damage Fuel or oil can leak or spill and could result The generator is equipped with a fuel drain to vehicle surfaces in fire or breathing hazard, serious injury or valve, turn the valve to the off position...
  • Page 21: Risk Of Moving Parts

    MAINTENANCE 9.11 RISK OF MOVING PARTS HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Contact with moving Never operate generator with guarding or The generator contains parts which rotate parts can result in at high speed during operation. These parts cover plates removed.
  • Page 22: Troubleshooting

    10. TROUBLESHOOTING TROUBLE POSSIBLE CAUSE SUGGESTED REMEDY Contact with moving 1. Add fuel or oil 1. Low on fuel or oil content parts can result in 2. Turn the ignition to the ‘START’ position 2. Ignition switch in “Off” position serious injury.
  • Page 23: Explanation Of Symbols/Pictograms

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Warning! Do not use in the wet. Read the instruction manual For outdoor use only. Caution! Do not expose to rain. Engine and exhaust Danger! become hot during use; Highly flammable liquid do not touch.
  • Page 24: Disposal

    12. DISPOSAL 12.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 25 NOTES...
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST KCMC0116...
