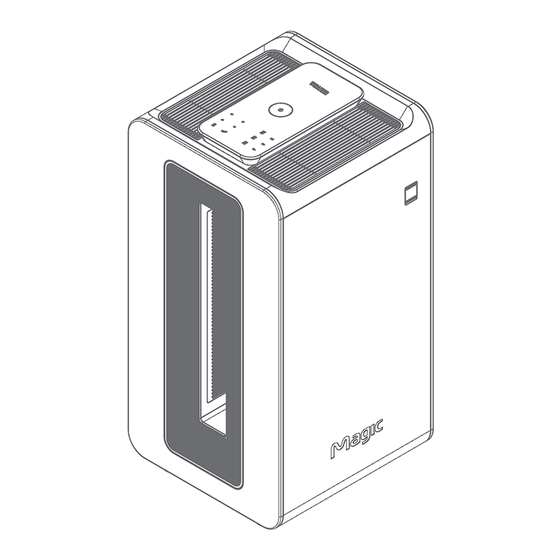

- Page 1 Air Purifier ACL-V32...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS Read the safety instructions before using this product. •Product Features Pg. 3 •Safety and Cautions Pgs. 4-9 •Parts Overview Pg. 10 •Air Purification Process Pg. 11 •Before Using the Appliance Pg. 12 •Control and Display Panel: Functions Pgs. -
Page 3: Product Features
(Operates in Auto mode) 4. Quick Cleaning With the maximum fan speed, the appliance performs air purification in 30 minutes. 5. IoT Function You can remotely control the appliance with SK magic application in your smart phone and check the indoor air condition. -
Page 4: Safety And Cautions
Safety and Cautions • The following instructions are intended to prevent unexpected danger or damage by using the product safely and correctly. • Precautions related to safety are classified as following depending on the degree of risk and damage caused by misuse, and the urgency of the risk. •... - Page 5 Safety and Cautions Warning If you find water enters the power Do not use the appliance for a connection, unplug the appliance special purpose (i.e., preservation immediately and do not use until it is of art works or academic artifacts, completely dry.
- Page 6 Safety and Cautions Warning Do not place the appliance on another Do not install the appliance in wet electronic appliance (e.g., electric surroundings. • It may cause electric shock, short circuit heater, television). and/or fire hazard. • It may cause fire hazard, electric shock, and/or malfunction of the appliance.
- Page 7 Safety and Cautions Warning Do not let inflammable substances (e.g., Do not decompose, repair, or insecticide, air freshener) enter the air modify the appliance by yourself. • It may cause malfunction oriented intakes. electric shock, bodily injury, and/or fire • It may cause fire hazard and/or degradation of hazard.
- Page 8 Safety and Cautions Caution Clean the pre-filter regularly with water Do not operate without filter. • Operating without parts (filter, front and use when completely dry. cover, etc.) may cause malfunction. Install the appliance on stable and even After cleaning, ensure to follow the surface.
- Page 9 Safety and Cautions Caution Do not apply immoderate force or shock Ensure to secure more than 30cm on the appliance. (left and right), 1m (above) around • It may cause the appliance. damage • If too close, walls and the on the ceiling may be appliance.
-
Page 10: Parts Overview
Parts Overview < Front > Air outlets Control Panel Gas Sensor Clean Lamps Air Intakes (front) Microfiber Pre-filter Mid-filter Deodorization Filter HEPA Filter < Rear > < Side > Air Outlets (upper part) PM Sensor Handle Wheels Power Cords... -
Page 11: Air Purification Process
Air Purification Process Air Purification Removes relatively large particulates, human and animal hairs. ● Microfiber Pre-filter : Filters thick- to mid-sized particulates. ● Mid Filter : Remove harmful gases, bad odor from daily activities. ● Deodorization Filter : Removes PMs (including ultrafine PMs smaller than PM1.0) in the air. ●... -
Page 12: Before Using The Appliance
Before Using the Appliance Installing Filters 1) Remove the side cover by pulling down the locking handle and gently pulling forward. Locking handle 2) Remove the plastic packaging and assemble filters in the following order. Mid Filter Deodorization Filter HEP A Filter 3) Assemble in this order: (1) HEPA filter, (2) Deodorization filter, (3) Mid filter, (4) Microfiber pre-filter. -
Page 13: Control And Display Panel: Functions
Control and Display Panel: Functions Control and Display Panels on the Top • When the appliance first powers up, the preliminary run will stabilize the sensor operation for 1 minute. • It takes about 30 seconds for the fan to turn on as it powers up. [Power] Button •... - Page 14 Fi] Bu tton • Press the button to activate WiFi mode. ※ Please refer to loT guides in SK magic Application for the details of this mode. ※ LED light on the WiFi button even when the appliance is turned off as standby for remote control.
- Page 15 Control and Display Panel: Functions Control and Display Panels on the Top ● Check General Air Quality • The General Air Quality indicates the current air condition according to 4 levels (good, normal, bad, and very bad) •PM10: PM in the air smaller than 10㎛ Note •Ultrafine PM (PM2.5): PM in the air smaller than 2.5 ㎛...
-
Page 16: Care And Maintenance
Care and Maintenance • Ensure to unplug before cleaning. • Do not use organic solvents (e.g., solvent, thinner, etc.), bleaching agent, detergents containing chloride and/or an abradant. Caution • Do not apply water or immerse the appliance in water when cleaning. [Product Body] Cleaning (2-4 weeks) Wipe the product with a soft, dry cloth. - Page 17 Care and Maintenance [Microfiber Pre-filter] Cleaning (2-4 weeks) •Ensure to unplug before cleaning. •You can wash or remove particulates from the pre-filter. •If not regularly cleaned, performance of the appliance will be degraded. Note • Do not wash DUST filter, Deodorization filter, and HEPA filter as they are not washable.
-
Page 18: Filter Replacement
• When assembling the filter, ensure to check the front side of the filter (where label is located) • For the optimal performance, please use the original filter by SK magic only. Caution • Unplug the power before replacing the filter. -
Page 19: Troubleshooting
Troubleshooting Problem(s) What You need to Check Possible Solutions Plug the power into 220-240V, •Is the power plugged in? 50Hz/60Hz. The air does not Press the power button to select desired •Are all indicators turned off? come out. function. •Did not power outage? Use the product after power is turned on. - Page 20 Troubleshooting Problem(s) What You need to Check Possible Solutions • Didn't install the product where The clean lamp contamination is not easily • Move the main product. contamination detected? level continues to be low. • It is normal to change the clean lamp (does not change •...
-
Page 21: Unit Specifications
Unit Specifications ※ The appearance and product specifications may be changed to improve the product performance. Product Name Air Purifier Model No. ACL-V32 220-240V, 50Hz/60Hz, Single Phase Power Voltage Power Rate Insulating Class Class 2 Mechanical PM Collection PM Collection Method... - Page 23 Cold water Regarding the Service (For home use) Product Warranty SK magic Co., Ltd. provides the warranty for the product as under according to the Period 1 year Consumer Dispute Resolution Standards by item (Fair Trade Commission Notice). Part Preservation A designated partner shall provide services when requested.
- Page 24 SK magic Customer Service Center 1800-18-7878 www.skmagic.com.my...
