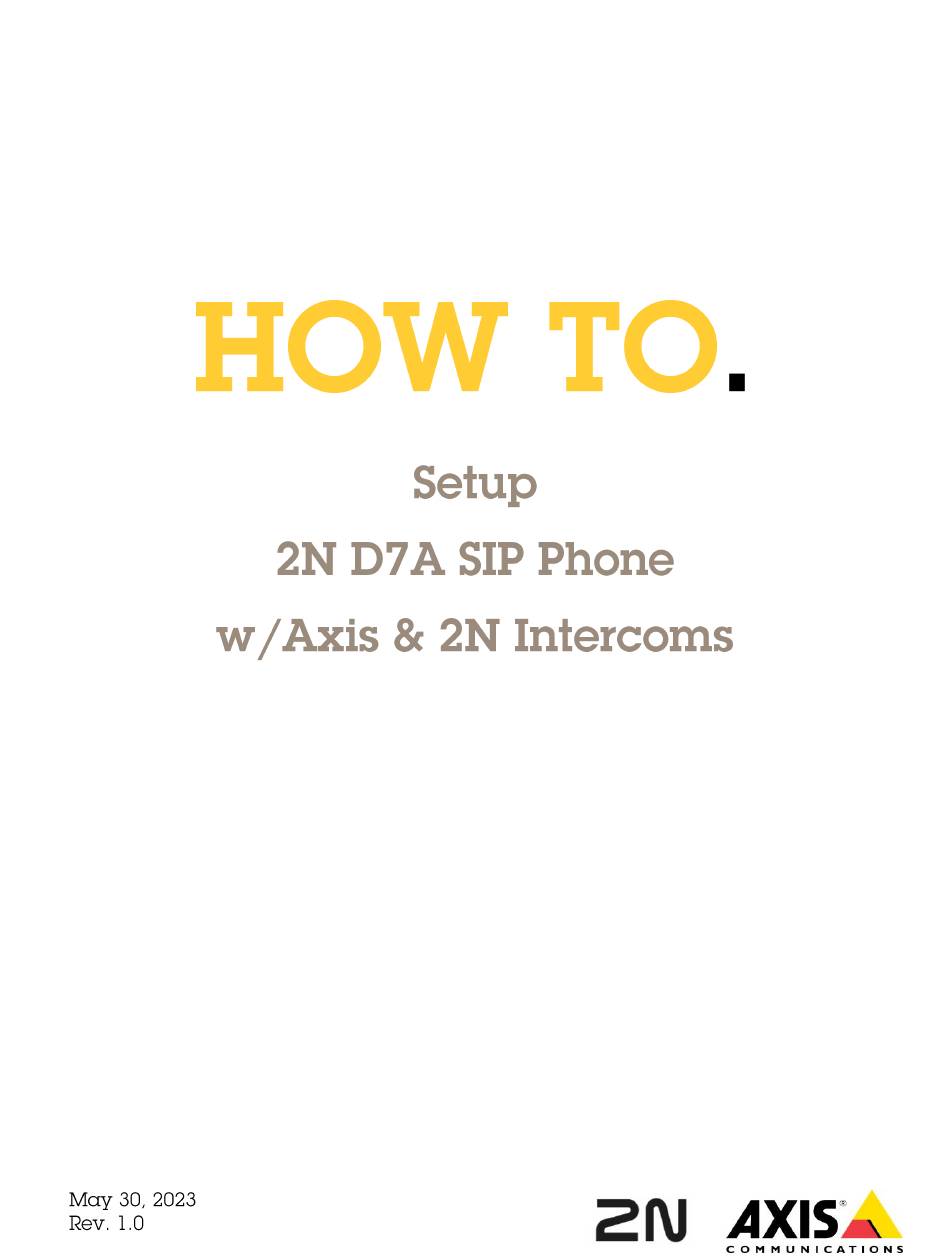

  • Page 1 ©Axis Communications AB and 2N...

  • Page 2: Table Of Contents

    2N D7A SIP Phone Setup Cable Connections Wi-Fi (optional) Find the IP Address Connect to the web GUI of the phone Set the Date & Time Unlock the Door Call an Axis or 2N Intercom View an Axis or 2N Intercom Camera...
  • Page 3 2N D7A SIP Phone Setup...

  • Page 4: Cable Connections

    2N D7A SIP Phone Setup Cable Connections 1. Connect the handset cable to the handset & the Handset port on the back of the phone. 2. Connect the Network cable to your network and to the Internet port on the back of the phone (this supports POE).

  • Page 5: Connect To The Web Gui Of The Phone

    2N D7A SIP Phone Setup Connect to the web GUI of the phone The next step is done through the web browser on your computer 1. Type the IP Address (WAN IP noted from previous step) of the phone into your web browser.

  • Page 6: Set The Date & Time

    2N D7A SIP Phone Setup Set the Date & Time The following steps are completed through the phone’s web GUI via your computer’s browser 1. Go under Settings → Time&Date 2. Adjust the Time Zone drop down from +1 to the appropriate zone o For example if in New York, change it to: ▪...
  • Page 7 1. Go under Features → Door Phone 2. Verify Door Phone List has Door Phone 1 selected 3. Update Display Name with the name or location of your Axis or 2N Intercom o For example: Front Door 4. Update Phone Number with the IP Address of the Axis or 2N Intercom...
  • Page 8 (as the DTMF Event ID). If there is no DTMF sequence, then create one. o While in the interface of the Axis Intercom, verify you have an DTMF event rule created. This is found under System → Events (and allows the DTMF sequence to trigger the relay) o If there is no DTMF event rule, add one ▪...
  • Page 9 Codes. o For 2N Intercoms, you may need to append an * after the Unlock Pin in the 2N D7A. 6. When on a call with the Intercom, an Open Door Icon will appear on the bottom left of the touch screen on the 2N D7A phone.

  • Page 10: Unlock The Door

    The above action triggers relay 1 (port 4) for 5000 milliseconds (5 seconds) on the I8016- LVE. If you have a different model Axis Intercom, you can verify the Relay 1 port number under System → Accessories in the Axis GUI (firmware 11.x).

  • Page 11: Call An Axis Or 2N Intercom

    2N D7A SIP Phone Setup Call an Axis or 2N Intercom The following steps are performed in the web GUI of the 2N D7A Phone 1. Click on Dsskey then Line Key 2. Set the key type o Type = Speed Dial 3.

  • Page 12: View An Axis Or 2N Intercom Camera

    2N D7A SIP Phone Setup View an Axis or 2N Intercom Camera The following steps are performed in the web GUI of the 2N D7A Phone 1. Click on Dsskey then Line Key 2. Set the key type o Type = Video Monitoring...
  • Page 13 2N D7A SIP Phone Setup →...
