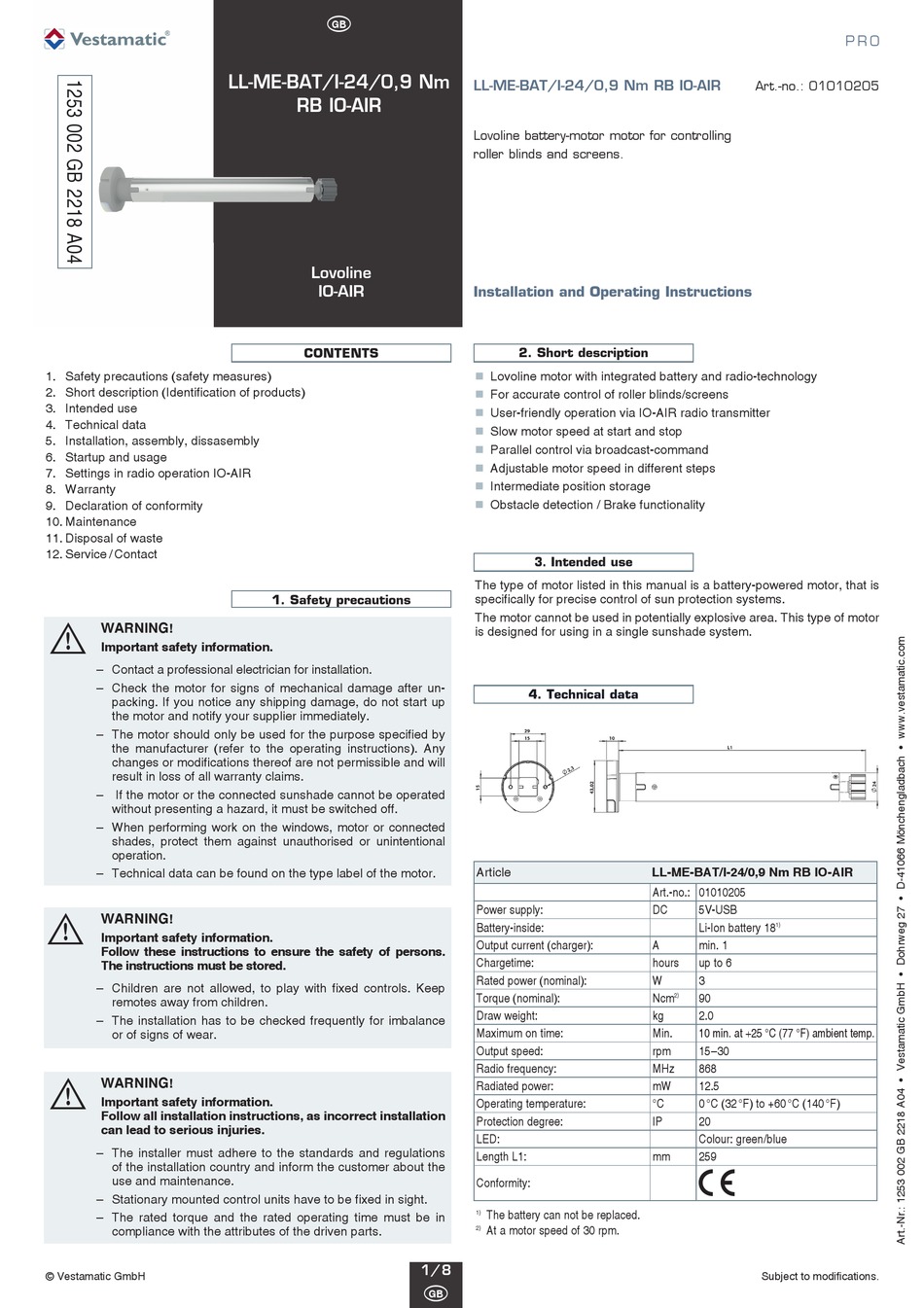

Vestamatic LL-ME-BAT/I-24/0,9 Nm RB IO-AIR Installation And Operating Instructions Manual

1. Safety precautions (safety measures)

2. Short description (Identification of products)

3. Intended use

4. Technical data

5. Installation, assembly, dissasembly
6. Startup And Usage
7. Settings in radio operation IO-AIR
8. Warranty
9. Declaration of conformity
10. Maintenance
11. Disposal Of Waste
12. Service / Contact
Ä WARNING
!
Important safety information.
– Contact a professional electrician for installation.
– Check the motor for signs of mechanical damage after un-
packing. If you notice any shipping damage, do not start up
the motor and notify your supplier immediately.
– The motor should only be used for the purpose specified by
the manufacturer (refer to the operating instructions). Any
changes or modifications thereof are not permissible and will
result in loss of all warranty claims.
– If the motor or the connected sunshade cannot be operated
without presenting a hazard, it must be switched off.
– When performing work on the windows, motor or connected
shades, protect them against unauthorised or unintentional
operation.
– Technical data can be found on the type label of the motor.
Ä WARNING
!
Important safety information.
Follow these instructions to ensure the safety of persons.
The instructions must be stored.
– Children are not allowed, to play with fixed controls. Keep
remotes away from children.
– The installation has to be checked frequently for imbalance
or of signs of wear.
Ä WARNING
!
Important safety information.
Follow all installation instructions, as incorrect installation
can lead to serious injuries.
– The installer must adhere to the standards and regulations
of the installation country and inform the customer about the
use and maintenance.
– Stationary mounted control units have to be fixed in sight.
– The rated torque and the rated operating time must be in
compliance with the attributes of the driven parts.
© Vestamatic GmbH
G
LL-ME-BAT/I-24/0,9 Nm
RB IO-AIR
Lovoline
IO-AIR
CONTENTS
1. Safety precautions
P R O · LL-ME-BAT/I-24/0,9 Nm RB IO-AIR

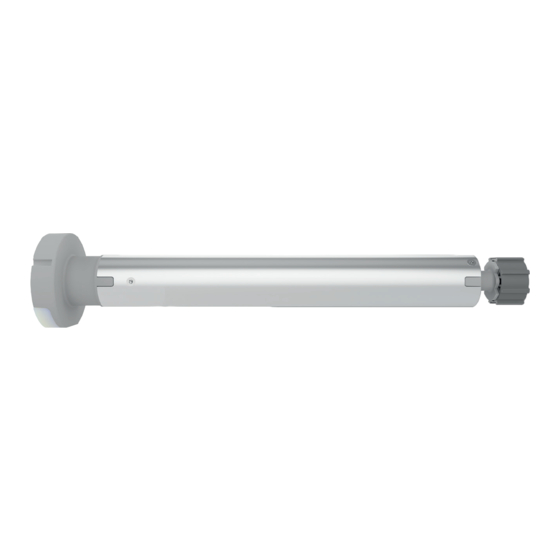

LL-ME-BAT/I-24/0,9 Nm RB IO-AIR
Lovoline battery-motor motor for controlling
roller blinds and screens.
Installation and Operating Instructions
2. Short description
Lovoline motor with integrated battery and radio-technology

For accurate control of roller blinds/screens

User-friendly operation via IO-AIR radio transmitter

Slow motor speed at start and stop

 Parallel control via broadcast-command
 Adjustable motor speed in different steps
 Intermediate position storage
 Obstacle detection / Brake functionality
3. Intended use
The type of motor listed in this manual is a battery-powered motor, that is
specifically for precise control of sun protection systems.
The motor cannot be used in potentially explosive area. This type of motor
is designed for using in a single sunshade system.
4. Technical data
Article
Power supply:
Battery-inside:
Output current (charger):
Chargetime:
Rated power (nominal):
Torque (nominal):
Draw weight:
Maximum on time:
Output speed:
Radio frequency:
Radiated power:
Operating temperature:
Protection degree:
LED:
Length L1:
Conformity:
The battery can not be replaced.
1)
At a motor speed of 30 rpm.
2)
1/8
G
Art.-no.: 01010205
LL-ME-BAT/I-24/0,9 Nm RB IO-AIR
Art.-no.: 01010205
DC 5V-USB
Li-Ion battery 18
1)
A min. 1
hours up to 6
W 3
Ncm 90
2)
kg 2.0
Min. 10 min. at +25 °C (77 °F) ambient temp.
rpm 15 – 30
MHz 868
mW 12.5
°C 0 °C (32 °F) to +60 °C (140 °F)
IP 20
Colour: green / blue
mm 259
p
Subject to modifications.
