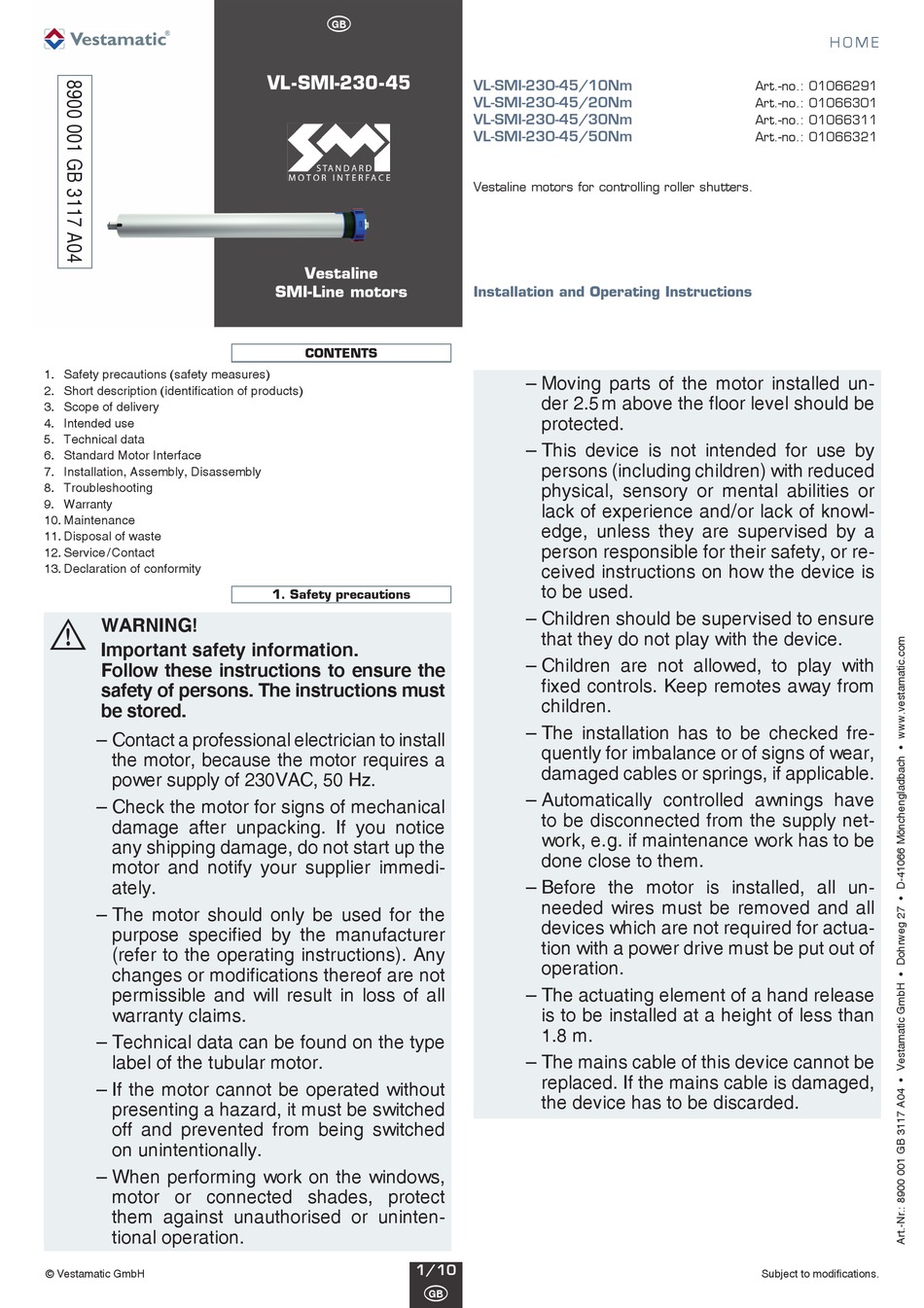

Vestamatic Vestaline SMI Series Installation And Operating Instructions Manual
Vestamatic Vestaline SMI Series Installation And Operating Instructions Manual

Vestamatic Vestaline SMI Series Installation And Operating Instructions Manual

Motors for controlling roller shutters

Advertisement

1. Safety precautions (safety measures)
2. Short description (identification of products)
3. Scope of delivery
4. Intended use
5. Technical data
6. Standard Motor Interface
7. Installation, Assembly, Disassembly
8. Troubleshooting
9. Warranty
10. Maintenance
11. Disposal of waste
12. Service / Contact
13. Declaration of conformity
WARNING!
Ä
Important safety information.
Follow these instructions to ensure the
safety of persons. The instructions must
be stored.
– Contact a professional electrician to install
the motor, be cause the motor requires a
power supply of 230VAC, 50 Hz.
– Check the motor for signs of mechanical
damage after un packing. If you notice
any shipping damage, do not start up the
motor and notify your supplier immedi-
ately.
– The motor should only be used for the
purpose specified by the manufacturer
(refer to the operating instructions). Any
changes or modifications thereof are not
permissible and will result in loss of all
warranty claims.
– Technical data can be found on the type
label of the tubular motor.
– If the motor cannot be operated without
presenting a hazard, it must be switched
off and prevented from being switched
on unintentionally.
– When performing work on the windows,
motor or connected shades, protect
them against unauthorised or uninten-
tional operation.
© Vestamatic GmbH
G
VL-SMI-230-45
Vestaline
SMI-Line motors
CONTENTS
1. Safety precautions
1/10
G
VL-SMI-230-45/10Nm
VL-SMI-230-45/20Nm
VL-SMI-230-45/30Nm
VL-SMI-230-45/50Nm
Vestaline motors for controlling roller shutters.
Installation and Operating Instructions
– Moving parts of the motor installed un-
der 2.5 m above the floor level should be
protected.
– This device is not intended for use by
persons (including children) with reduced
physical, sensory or mental abilities or
lack of experience and / or lack of knowl-
edge, unless they are supervised by a
person responsible for their safety, or re-
ceived instructions on how the device is
to be used.
– Children should be supervised to ensure
that they do not play with the device.
– Children are not allowed, to play with
fixed controls. Keep remotes away from
children.
– The installation has to be checked fre-
quently for imbalance or of signs of wear,
damaged cables or springs, if applicable.
– Automatically controlled awnings have
to be disconnected from the supply net-
work, e. g. if maintenance work has to be
done close to them.
– Before the motor is installed, all un-
needed wires must be removed and all
devices which are not required for actua-
tion with a power drive must be put out of
operation.
– The actuating element of a hand release
is to be installed at a height of less than
1.8 m.
– The mains cable of this device cannot be
replaced. If the mains cable is damaged,
the device has to be discarded.
H O M E · VL-SMI-230-45
H O M E
Art.-no.: 01066291
Art.-no.: 01066301
Art.-no.: 01066311
Art.-no.: 01066321
Subject to modifications.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vestaline SMI Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vestamatic Vestaline SMI Series

  • Page 1 – When performing work on the windows, motor or connected shades, protect them against unauthorised or uninten- tional operation. 1/10 © Vestamatic GmbH Subject to modifications.
  • Page 2 Rated current 0,55 0,72 0,99 0,99 awning is fully extended. By using as Running time Min. an awning system the extended awning Protection degree must mainain a minimum height of 1.8 m. Length L1 2/10 © Vestamatic GmbH Subject to modifications.
  • Page 3 If SMI drives wired in parallel are supplied with electrical power from dif- ferent phases, the SMI I+ and I - wires must be laid in a separate cable. Fig. 4.1 Fig. 4.2 Fig. 4.3 Fig. 4.4 Fig. 4.5 3/10 © Vestamatic GmbH Subject to modifications.
  • Page 4 SMI drives on different AC phases Ä ATTENTION! Parallel connection to the control lines I+ and I- while supplying pow- er to the drives from different phases, is only permissible in telegram operating mode. 4/10 © Vestamatic GmbH Subject to modifications.
  • Page 5 Switch on the power supply. – The installation tool is not suitable for continuous operation and has only been used for set the limit position. 5/10 © Vestamatic GmbH Subject to modifications.
  • Page 6: Motor Control

    “Change turning direction” is used. Blinking when “Change motor turning direction” Button Change motor turning direction. programming sequence is in progress. Lit solid when “Change motor turning direction” programming sequence has completed. 6/10 © Vestamatic GmbH Subject to modifications.
  • Page 7 Change turning The motor will give a feedback (short up /down move ment) direction to confirm that the installation procedure has ended. figure 1 7/10 © Vestamatic GmbH Subject to modifications.
  • Page 8 The motor will give a feedback (short up / down movement) DOWN movement) to confirm that the installation procedure has to confirm that the installation procedure has ended. green ended. Change turning direction figure 4 figure 5 8/10 © Vestamatic GmbH Subject to modifications.
  • Page 9 Remedy action: – Removing the obstacle. – Check the mechanical parts of the sunshade system. – Use the correct tubular motor (rated torque – tractive power) according the spezification of the sunshade system. 9/10 © Vestamatic GmbH Subject to modifications.
  • Page 10: Troubleshooting

    – Modifications to the product. 10. Maintenance 12. Support / Contact Vestamatic GmbH The motor is maintenance-free. Dohrweg 27 41066 Mönchengladbach Germany info@vestamatic.com Phone: +49 2161 / 29 408-0 10/10 © Vestamatic GmbH Subject to modifications.
