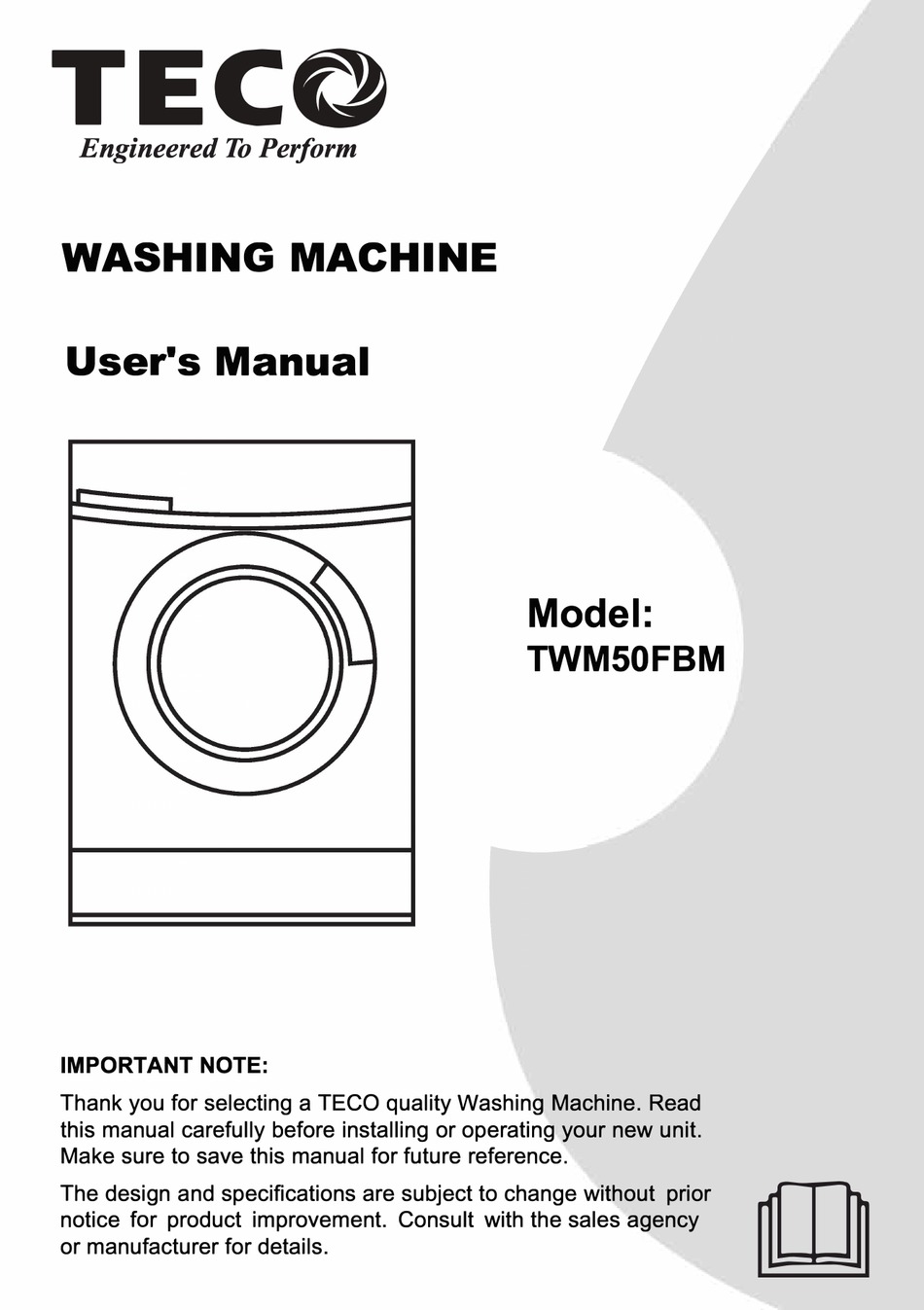

TECO
Engineered To Perform
WASHING MACHINE
User's Manual
IMPORTANT NOTE:
Thank you for selecting a TECO quality Washing Machine. Read
this manual carefully before installing or operating your new unit.
Make sure to save this manual for future reference.
The design and specifications are subject to change without prior
notice for product improvement. Consult with the sales agency
or manufacturer for details.
Model:
TWM50FBM
w
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TECO TWM50FBM
Summary of Contents for TECO TWM50FBM
- Page 1 Model: TWM50FBM IMPORTANT NOTE: Thank you for selecting a TECO quality Washing Machine. Read this manual carefully before installing or operating your new unit. Make sure to save this manual for future reference. The design and specifications are subject to change without prior notice for product improvement.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes............Washing Programmes Table ........MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety, the information in this manual must be followed to minimise the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! ！... - Page 4 SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Before any maintenance the device, unplug the appliance from the mains. • Always unplug the machine and turn off the water supply after use.
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation, very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
- Page 6 SAFETY INSTRUCTIONS • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of damaging appliance! • Your product is only for home use and is only designed for the textiles suitable for machine washing. •...
- Page 7 SAFETY INSTRUCTIONS • Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine. • Please check whether the water inside the drum has been drained before opening its door.
-
Page 8: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Supply hose Drain hose support Owner’s manual... -
Page 9: Installation
INSTALLATION Installation Installation area Warning! ！ • Stability is important to prevent the product from wandering! • Make sure that the product does not stand on the power cord. W> 20mm Before installing the machine, the location characterised follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 10 INSTALLATION Levelling the washing machine Warning! ！ • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 11 INSTALLATION Drain Hose Warning! Warning! ！ ！ • Do not kink or protract the drain hose. • Position drain hose properly , otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough.
-
Page 12: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing the first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 13: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be (0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 14: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Cotton Eco 40 °C Spin Only... -
Page 15: Control Panel
OPERATIONS Control Panel Note! • The chart is for reference only, Please refer to real product as standard. Start/Pause Product is switched off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. -
Page 16: Other Functions
OPERATIONS Option Prewash: The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; you need to put detergent into the Case (I ) when selected. Ext ra Rinse: T he laundry w ill undergo extra rinse once after you select it. - Page 17 OPERATIONS Child Lock To avoid mis operation by children. E xtra R inse S pin Press [E xtra R inse] and [N o S pin] Start Choose the Programme 3 sec. until buzzer beep. Caution! • Press the two button 3sec. also to release the function. •...
-
Page 18: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. -
Page 19: Washing Programmes Table
OPERATIONS Washing Programmes Table Programme Load(kg) Temp. Default Time(H) (°C) Default Cotton Eco 40 °C 1:39 Cotton Eco 60 °C 4:54 Cold 1:35 Cotton Cotton 20 °C 1:19 Cotton 30 °C 1:20 Cotton 40 °C 1:40 Cotton 60 °C 1:45 Cotton 90 °C 2:40 Cold... -
Page 20: Maintenances
MAINTENANCES Cleaning And Care Warning! ！ • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 21 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 22 MAINTENANCES Cleaning The Drain Pump Filter Warning! ！ • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 23: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... - Page 24 MAINTENANCES Description Reason Solution Prewash Extra Rinse Restart after the door is closed No Spin Door is not closed properly Check if the clothes is stuck Pause/Start FLASH Child Lock Door Lock FLASH Prewash Extra Rinse Check if the water pressure is Water injecting FLASH No Spin...
-
Page 25: Technical Specifications
MAINTENANCES Technical Specifications Model TWM50FBM Rated Capacity Rated Power 1950 W Classification of use Indoor use only Washing Type Drum Water Connection Cold Rated Total Water Consumption (L) Voltage (V) 220-240 V Frequency (Hz) 50 Hz Max. Current 10 A Water Pressure 0.05MPa - 1MPa... -
Page 26: Repairs, Service & Warranty
If you have a problem, and the problem persists after you have made the checked mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon-Friday AEST). For warranty details please visit www.teco.com.au Service email: had.service@teco.com.au... - Page 27 Did you know? TECO Australia’s product range also includes: Top Load Clothes Washers Front Load Clothes Washers Auto Sensing Vented Clothes Dryers Refrigerators Chest and Vertical Freezers Bar Fridges Televisions Air Curtains Air Conditioners Visit www.teco.com.au for our full range.
- Page 28 HBI-V1 www.teco.com.au...
