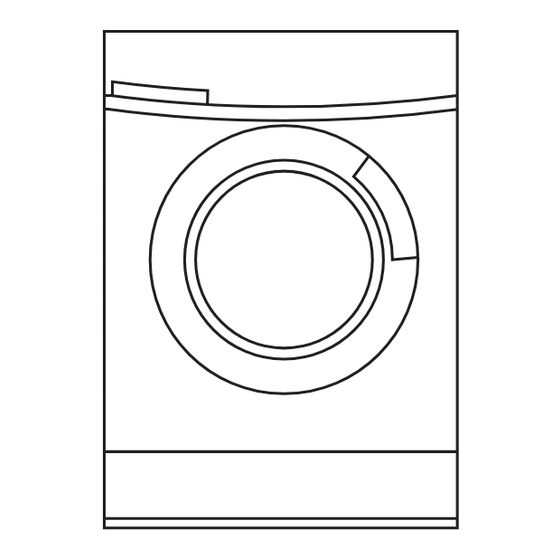

5kg front load clothes washer

Advertisement

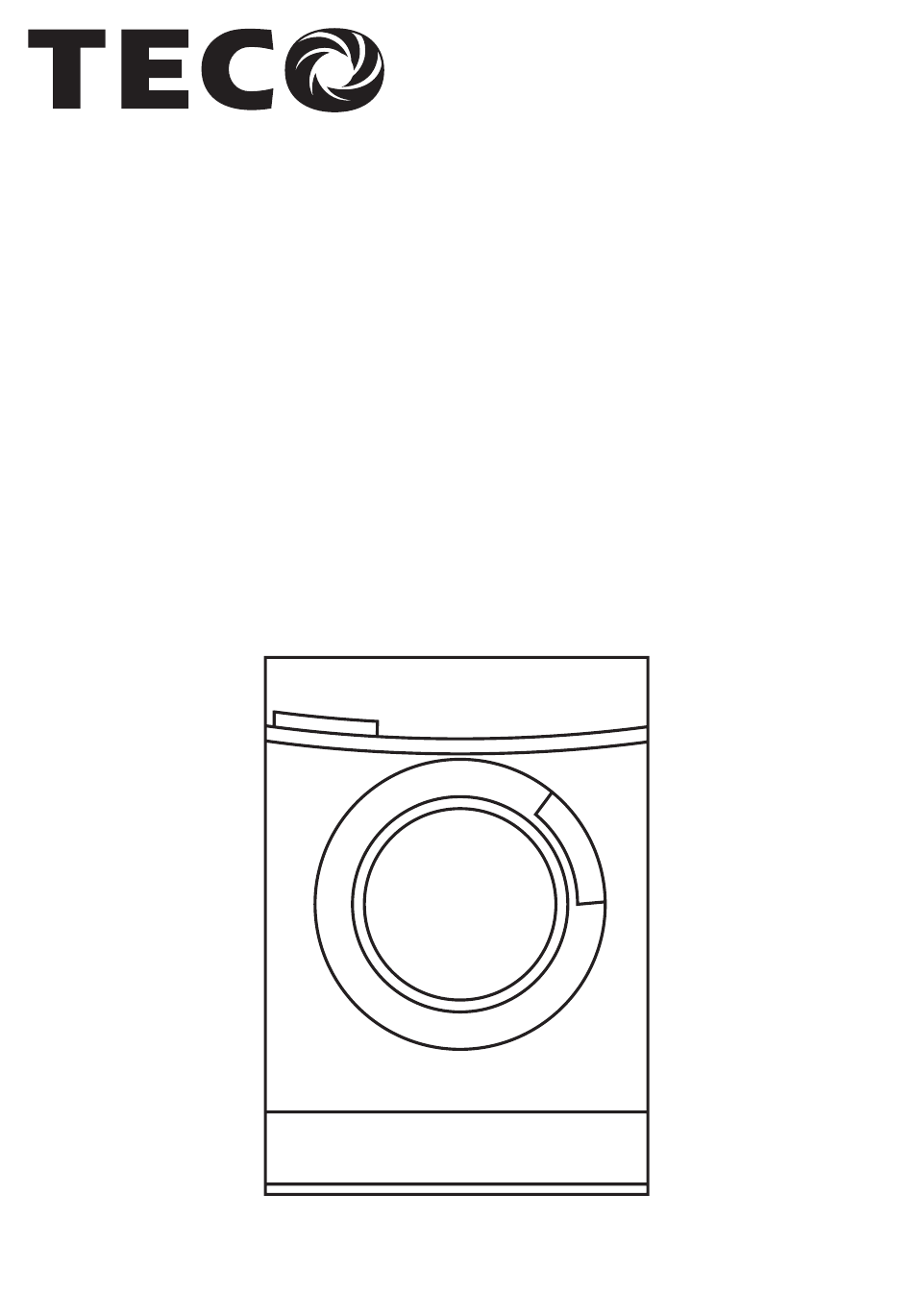

Engineered To Perform
5Kg FRONT LOAD
CLOTHES WASHER
USER'S MANUAL
Model : TWM50FA
To ensure proper use and your safety, please read the following user manual completely before operating this
appliance. Please keep this manual in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWM50FA and is the answer not in the manual?

Questions and answers

Summary of Contents for TECO TWM50FA

  • Page 1 Engineered To Perform 5Kg FRONT LOAD CLOTHES WASHER USER’S MANUAL Model : TWM50FA To ensure proper use and your safety, please read the following user manual completely before operating this appliance. Please keep this manual in a safe place for future reference.
  • Page 2: Safety Precautions

     If any trouble arise, do not fi x it yourself or hand it to the after sales service centre which have not been authorised. Please contact TECO service on 1300 660 037 (9am ~ 4pm AEST Mon - Fri).
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Precautions ....Table Of Contents ....Identifying Washer Parts ....Quick Start Guide ....Installation ....5 - 6 Pre Wash Checklist ....7 - 8 Control Panel ....Wash Programs & Functions ....Loading Detergent ....
  • Page 4: Identifying Washer Parts

    IDENTIFYING WASHER PARTS Detergent Dispenser Control Panel Power Button START/PAUSE Button Program Selection Dial Drum Cabinet Door Service Panel Adjustable Feet (x4) Detergent Dispenser Cold Water Drain Hose Shipping Bolt Inlet Hose x1 Support x1 Caps x4...
  • Page 5: Quick Start Guide

    QUICK START GUIDE 1. Install the clothes 9. Press the washer START/PAUSE button 2. Load the laundry 8. Select a wash program 3. Add washing 7. Connect the power plug detergent Press the power button 6. Turn on the water tap 4.
  • Page 6: Installation

    INSTALLATION Unpacking Instructions 1. Remove the clothes washer from the carton. NOTE: Please dispose of packaging and plastic bags responsibly. 2. Open the washer door and remove the accessories from inside the washer. 3. Remove the four shipping bolts from the rear of the washer prior to use.
  • Page 7: Installation

    Installing the Drain Hose When placing the drain hose, ensure it is above 600mm and below 1000mm. Otherwise, the washer may not drain correctly and an error will occur. Ensure the drain hose is placed in a drain with a diameter of at least 30mm to meet minimum drainage fl...
  • Page 8: Pre Wash Checklist

    PRE WASH CHECKLIST Before starting each wash, please check the following:  Level the clothes washer by adjusting the feet. Adjust the feet by turning clockwise to extend or anti clockwise to shorten. Slightly tilt the clothes washer back to access the adjustable feet. Ensure all four corners are fl...
  • Page 9 PRE WASH CHECKLIST  Open the mains water supply Ensure the water mains are in the open position and a steady water supply is available to the clothes washer.  Position the drain hose Ensure the drain hose is correctly mounted between 600 and 1000mm above the ground.
  • Page 10: Control Panel

    CONTROL PANEL 1200 No Spin Program Dial Power Button Turn this dial to select a wash Press this button to program. Choose between switch the washer Cotton, Synthetic, Wool, on and off. Press Underwear, Cotton Intensive, Spin once to switch on. and Drum Clean.
  • Page 11: Wash Programs & Functions

    WASH PROGRAM & FUNCTIONS NOTE: The clothes washer will not start a wash cycle if the selected water level can not be reached. Please refer to Page 14 for troubleshooting instructions. Cotton You can select this program with any water temperature (20 C, 40 C, 60...
  • Page 12: Wash Program Information

    WASH PROGRAM INFORMATION PLEASE NOTE: Total time includes fi lling and draining of water. The times mentioned above are based on averages and can be effected by water pressure and drainage speed.
  • Page 13: Cleaning & Maintenance

    CLEANING & MAINTENANCE  Always disconnect the clothes washer from the mains power and water source before performing any maintenance or cleaning of the appliance. CAUTION For optimal performance, regular maintenance and cleaning is  highly recommended. Regular maintenance and cleaning will extend the service life of the ...
  • Page 14: Troubleshooting

    If the clothes washer does not perform as expected, malfunctions or an alarm is sounding, please check the following list of possible solutions. If a solution can not be found or the problem persists, please contact TECO service (refer to Page 16).
  • Page 15: Troubleshooting

    Drain pump is blocked Wash drain pump filter time exceeds 3 minutes Please call TECO service if problem persists. For all other issues and error codes, please contact TECO service (refer to Page 15). LEGEND: Indicator is FLASHING Indicator is OFF...
  • Page 16: Repairs, Service & Warranty

    If you have a problem, and the problem persists after you have made the checks mentioned above, contact: TECO Australia’s Service on 1300 660 037 (9am to 4pm AEST Mon to Fri) For warranty details please visit www.teco.com.au Complete and retain the following information:...
  • Page 17: Specifi Cations

    SPECIFICATIONS TWM50FA Model Rated Motor Input 2100W Power Classifi cation of use Indoor use only Rated Total Gross Volume (L) Voltage (V) Frequency (Hz) Washing Type Drum Water Pressure 0.05MPa - 1MPa Max. Spin Speed 1200 RPM Height Dimensions Width...
  • Page 18 CBE-PV...
