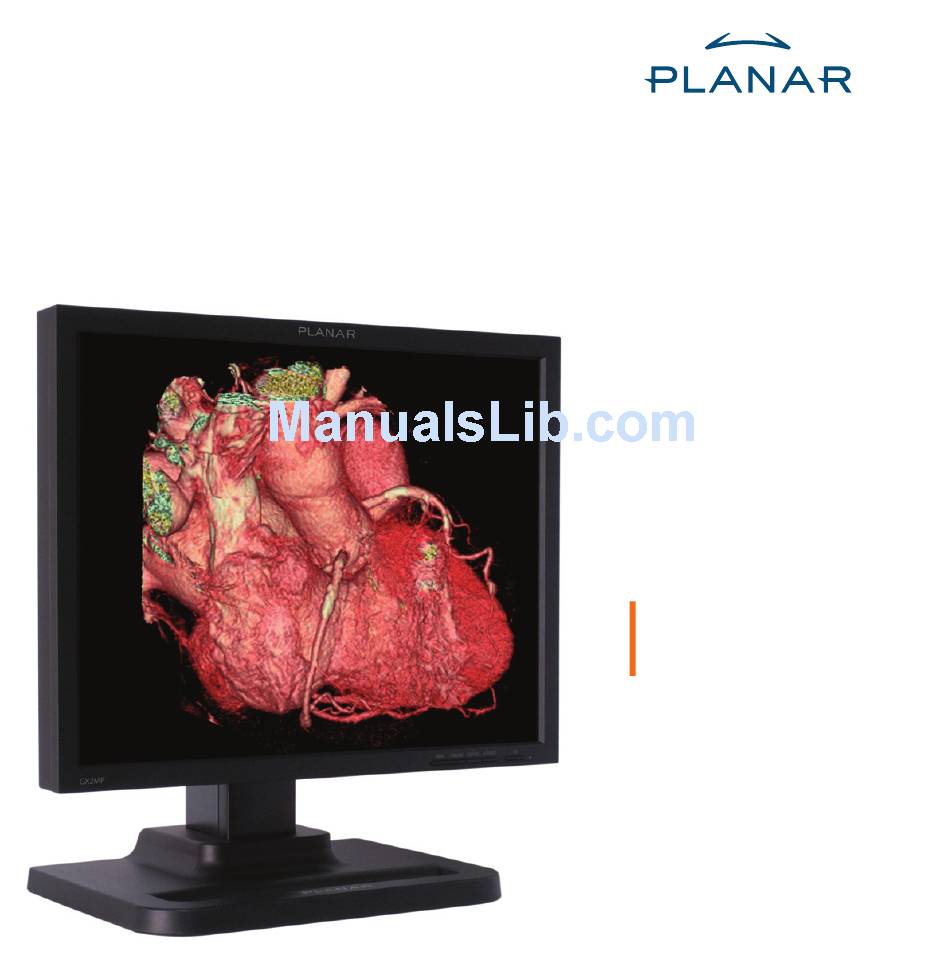

  • Page 1 GX2MP Display Quick Reference Windows XP Windows 2000...
  • Page 2 Windows XP Service Pack 2 or Windows 2000 Service Pack 4 Although the GX2MP display can be used in either digital or analog video mode, the instructions herein relate to the use of the display in digital mode. Both the graphics board and the Dome CXtra software in the display package require the DVI-D interface.

  • Page 3: Unpacking The Display

    Check the contents of your display package for all the items shown here. Save the original packaging materials for storage and shipping. Video card DVI cable GX2MP display Power cord Display driver CD and Calibration software CD Also included: VGA cable.

  • Page 4: Display Components

    Display Components The 1600x1200 panel is sized to a 541 mm (20.1 in.) display screen. The onscreen menu controls, power button, and LED indicator are located on the front of the unit. The input power and video ports are located on the back of the unit.
  • Page 5 Back view Legend Input power port. DVI input port. Supports DVI-D digital video signal. Requires DVI connector. VGA input port. Supports analog video signal. Requires an HD15 D-sub or VGA connector. USB-B port. USB-A port (2).

  • Page 6: Installing The Display Controller

    Installing the Display Controller Remove any existing graphics card and its driver from your computer system before you install the controller and driver. Also disable any onboard graphics capability on the motherboard. See safety precautions on page 2. To install the controller 1 Turn off your computer and all peripherals.

  • Page 7: Connecting The Display

    Connecting the Display Use only the video cable and power cord supplied with your display. To connect the display 1 Plug one end of the DVI cable into the digital video port on the display. Secure the connection. 2 Plug the power cord into the input port. 3 Plug the other end of the DVI cable into the video port on the installed controller.

  • Page 8: Installing The Display Driver

    4 Click Yes to the license agreement. The installation starts. 5 Follow the onscreen instructions to complete the installation. Planar recommends that you select the Express installation option. 6 When the Setup complete message appears, select Yes, I want to restart my computer now and click Finish.

  • Page 9: Adjusting The Display Properties

    1 Right-click the desktop and select Properties > Settings. 2 Select the monitor that you want to change. Then click Advanced. 3 Click the Monitor tab. Make sure the check box for Hide modes that this monitor cannot display is empty (unchecked).
  • Page 10 Using Menu Controls Use the onscreen menu to make adjustments to display settings such as bright- ness, contrast, position, and language. (Refer to GX2MP User’s Guide for complete information on the onscreen menu.) You can access the menu whenever both the computer and display are on.
  • Page 11 Making Screen Adjustments IMPORTANT: Allow the display to stabilize for at least 30 minutes before making screen adjustments. Logic of onscreen menu controls To make screen adjustments 1 Press the MENU button. The main menu appears. 2 Use the MINUS or PLUS button to access a control. 3 Press the AUTO/SET button when the icon you want is highlighted.

  • Page 12: Product Information

    Product Information The design of the GX2MP display takes into account every known measure to ensure your personal safety. Improper use of the display can result in electric shock, fi re, or damage to components. Intended use The GX2MP display is intended as a general-purpose display for use in clinical environments where DICOM conformance is desired.

  • Page 13: Handling The Display

    Handling the Display • Set up your display on a stable, level surface away from any direct light or heat source, but near a grounded AC outlet. • Choose a well-ventilated location with an adequate amount of space. Do not block the vents on the back of the display.

  • Page 14: Cleaning The Lcd Screen

    Cleaning the LCD Screen Do not spray or use acetone, toluene, or harsh solvents on the display case or screen. Use a dry, clean, lint-free cotton cloth to remove surface dust from the display screen. Do not use chemically treated dust cloths. To remove contaminants 1 Disconnect the power supply from the unit.

  • Page 15: Safety Certifications

    Safety Certifi cations U.S. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Canada and the United States European Union China Compulsory Certifi cation Japan Voluntary Control Council for Interference Korea Ministry of Information and Communications Germany TÜV Rheinland GS Mark Warranty •...
  • Page 16 E-mail: medicalsupport@planar.com Call (866) PLANAR1 © 2007 Planar Systems, Inc. Planar, the Planar logo, Dome, and Dome CXtra are either registered trademarks or trademarks of Planar Systems, Inc. Technical information in this document is subject to change without notice. 020-0545-00A...
