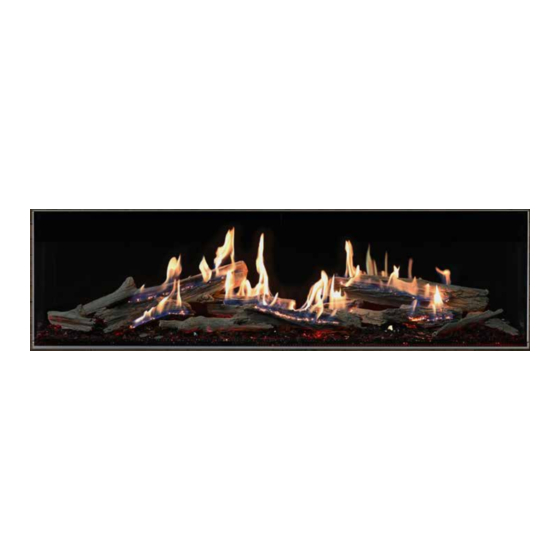

BEDROCK TRADITIONAL BURNER
INSTALLATION AND OPERATION MANUAL
Nat. Gas Model #
LDBT48L-EN
LDBT60L-EN
LDBT72L-EN
WARNING: If the information in this
manual is not followed exactly, a
fire or explosion may result causing
property damage, personal injury,
or loss of life.
FOR YOUR SAFETY: Do not store
or use gasoline or other flammable
vapors and liquids in the vicinity of
this or any other appliance.
INSTALLER: Leave this manual with appliance. CONSUMER: Retain this manual for future reference.
Certified to the Canadian and American National Standards: CSA 2.26 and ANSI Z21.60 for decorative gas appliances for installation in solid-Fuel burning fireplaces.
3515 East Atlanta Avenue, Phoenix, Arizona 85040 | 602-344-4217 | grandcanyongaslogs.com
WITH GLOWFIRE LOGS
Propane Model #
WARNING
WHAT TO DO IF YOU SMELL GAS
– Installation and service must be performed by a
Report # F23-120
FOR INDOOR OR OUTDOOR PATIO USE
Grand Canyon Gas Logs
LDBT48L-EP
LDBT60L-EP
LDBT72L-EP
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
qualified installer, service agency, or the gas suppli
Log Model #
LDBT-DW48
LDBT-DW60
LDBT-DW72
er.
07-00040 052023_V1
Advertisement
Table of Contents
Related Manuals for Grand Canyon Gas Logs LDBT48L-EN
Summary of Contents for Grand Canyon Gas Logs LDBT48L-EN
- Page 1 FOR INDOOR OR OUTDOOR PATIO USE Certified to the Canadian and American National Standards: CSA 2.26 and ANSI Z21.60 for decorative gas appliances for installation in solid-Fuel burning fireplaces. Grand Canyon Gas Logs 3515 East Atlanta Avenue, Phoenix, Arizona 85040 | 602-344-4217 | grandcanyongaslogs.com...
-
Page 2: Warning - Safety Information
SAFETY INFORMATION p WARNING • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fire or injury. • This appliance is hot when operated and can cause severe burns HOT GLASS WILL if contacted. - Page 3 SAFETY INFORMATION p WARNING • Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water. •...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Warning - Safety Information ............2-3 General Instructions and Information ........5-7 Parts List ..................8-9 Wiring Diagram, Pre-Installation ..........10 Pre-Installation Steps .............. 11-12 Installation Steps ..............13-14 Log Placement ................ 15-20 Outdoor Installation Requirements ........21-22 Multifunction Remote Operating Instructions ....... -
Page 5: General Instructions And Information
GENERAL INSTRUCTIONS DO NOT REMOVE THIS LABEL TESTED & LINE VOLTAGE See installation & operating instructions for this model. LISTED BY: ANSI-Z21 60-2017 Contact local building officials about restrictions and CSA 2.26-2017 installation specifications in your area. Decorative gas appliances for installation in solid-fuel burning fireplaces. - Page 6 GENERAL INSTRUCTIONS Damper Stop Installation The damper must be permanently locked in position to prevent full closure and to provide a minimum flue opening. Various methods for locking the damper may be used but may be restricted from region to region and it is important to know the specifics that apply to your area.
- Page 7 Height LDB48L LDB60L LDB72L BURNER SPECIFICATIONS NATURAL GAS MODELS Rated Rated Rated Rated Rated Manifold Inlet Inlet NG Models High Pressure LDBT48L-EN 62000 45000 10.5 LDBT60L-EN 95000 60000 10.5 LDBT72L-EN 95000 60000 10.5 LIQUID PROPANE MODELS Rated Rated Rated Rated...
-
Page 8: Parts List
PARTS LIST 15/16 REVISIONS DESCRIPTION DATE APPROVED RELEASED FOR PROTOTYPEING 11/13/21 7/19/2022 NOTE: MANUFACTURER: SIT, GROUP. P/N: 0.584.042 PROFLAME 2, REMOTE CONTROL REVISIONS ZONE REV. DESCRIPTION DATE APPROVED RELEASED FOR PRODUCTION 07/23/21 7/19/2022 LED REMOTE 01-00054-01 E SPECIFIED: NAME DATE DRAWN 11/11/21 INCHES... - Page 9 Burning Logs: 7 (1-7) PARTS LIST Static Logs: 8 (8-15) LOG #3 – 05-00177 LOG #1 – 05-00175 LOG #2 – 05-00176 LOG #5 – 05-00179 LOG #6 – 05-00180 LOG #4 – 05-00178 LOG #8 – 05-00182 LOG #9 – 05-00183 LOG #7 –...
-
Page 10: Wiring Diagram, Pre-Installation
WIRING DIAGRAM System Configuration: PRE-INSTALLATION Before you begin Thank you for purchasing Grand Canyon Gas Log’s Bedrock Traditional Burner with Glowfire™ Logs. This product has been designed to provide you with safe, trouble-free operation. Please read this manual throughly before beginning the installation. It has information which is important for safe installation and operation. Please inspect your shipment for completeness and any damage. - Page 11 PRE-INSTALLATION 4. Check all joints of gas supply piping system. Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. 5. Correct all leaks at once. 6. Reconnect appliance and equipment shutoff valve to gas supply. Check reconnected fittings for leaks. Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa) 1. Close equipment shutoff valve (see Figure C).
- Page 12 PRE-INSTALLATION For Massachusetts Residents Only: Installation of this gas log set as a vented indoor appliance in the Commonwealth of Massachusetts requires the damper be permanently removed or welded in the fully open position. You must install the damper clamp accessory. This will ensure vented operation. The damper clamp will keep damper open. For minimum permanent flue opening you must provide.
-
Page 13: Installation Steps
INSTALLATION STEPS STEP 1 Place Bedrock burner in your fireplace centering the base front to back and side to side. Centering the base allows the deck to easily sit on the top of the base. (Figure 1) Make sure gas has been ran & access to electrical is provided. - Page 14 INSTALLATION STEPS Figure 4.1 Place batteries in the battery holder and both remotes. Remotes are synced at factory prior to shipping. To re-sync the ProFlame II remote review the remote section of the manual. Pages 22-25. Figure 4.2 Screw Screw Place decking and secure screws to the base.
-
Page 15: Log Placement
LOG PLACEMENT 48" BURNER AND GLOWFIRE™ WESTERN DRIFTWOOD LOG PLACEMENT GUIDE 05-00176 05-00178 05-00176 05-00175 05-00175 05-00176 05-00176 05-00179 05-00178 05-00178 05-00175 05-00175 05-00177 05-00177 05-00176 05-00176 05-00188 05-00179 05-00179 05-00178 05-00183 05-00182 05-00178 BEDROCK TRADITIONAL WITH GLOWFIRE™ LOGS BURNER INSTALLATION & OPERATION MANUAL GRANDCANYONGASLOGS.COM - 05_2023... - Page 16 LOG PLACEMENT BEDROCK TRADITIONAL WITH GLOWFIRE™ LOGS BURNER INSTALLATION & OPERATION MANUAL GRANDCANYONGASLOGS.COM - 05_2023...
- Page 17 LOG PLACEMENT 60" BURNER AND GLOWFIRE™ WESTERN DRIFTWOOD LOG PLACEMENT GUIDE 05-00176 05-00176 05-00180 05-00176 05-00176 05-00180 05-00181 05-00181 05-00180 05-00178 05-00175 05-00175 05-00180 05-00180 05-00176 05-00176 05-00179 05-00181 05-00181 05-00178 05-00178 05-00177 05-00177 05-00175 05-00175 05-00180 05-00180 05-00176 05-00176 05-00179 05-00181 05-00181...
- Page 18 LOG PLACEMENT BEDROCK TRADITIONAL WITH GLOWFIRE™ LOGS BURNER INSTALLATION & OPERATION MANUAL GRANDCANYONGASLOGS.COM - 05_2023...
- Page 19 LOG PLACEMENT 72" BURNER AND GLOWFIRE™ WESTERN DRIFTWOOD LOG PLACEMENT GUIDE 05-00176 05-00176 05-00180 05-00176 05-00176 05-00180 05-00180 05-00178 05-00181 05-00181 05-00176 05-00176 05-00180 05-00179 05-00180 05-00178 05-00175 05-00178 05-00175 05-00181 05-00181 05-00177 05-00177 05-00176 05-00176 05-00180 05-00180 05-00178 05-00175 05-00179 05-00178 05-00175...
- Page 20 LOG PLACEMENT BEDROCK TRADITIONAL WITH GLOWFIRE™ LOGS BURNER INSTALLATION & OPERATION MANUAL GRANDCANYONGASLOGS.COM - 05_2023...
-
Page 21: Outdoor Installation Requirements
OUTDOOR INSTALLATION REQUIREMENTS Bedrock Traditional from Grand Canyon Gas Logs have been tested and approved for installation outdoors under a patio cover and away from direct water contact or direct sun light. Grand Canyon Gas Logs standard warranty applies if installed per instructions. All electrical wiring shall be to local building codes. - Page 22 OUTDOOR INSTALLATION REQUIREMENTS Side Protection: Side distance (SD) must be 50% (or more) of the height (H). If: H=6’ Then: SD=3’ minimum (6’ x 50%=3’) Note: H taken from bottom of fireplace. OVERHANG HEIGHT (H) SIDE DISTANCE SIDE DISTANCE FIREPLACE (SD) (SD) BEDROCK TRADITIONAL WITH GLOWFIRE™...
-
Page 23: Multifunction Remote Operating Instructions
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS BEDROCK TRADITIONAL WITH GLOWFIRE™ LOGS BURNER INSTALLATION & OPERATION MANUAL GRANDCANYONGASLOGS.COM - 05_2023... - Page 24 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Initializing the System for the First time (Re-Sync/Synchronize) 5. With the batteries already installed in the Transmitter, push the ON button. The receiver will beep four times to indicate the 1. Remove the wall cover. Open the wall mounted battery back-up transmitter's command is accepted and sets to the matching code holder.
- Page 25 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS 7.6. Figure 7.8 Figure 7.9 7.7 through 7.10. Figure 7.10 Figure 7.7 BEDROCK TRADITIONAL WITH GLOWFIRE™ LOGS BURNER INSTALLATION & OPERATION MANUAL GRANDCANYONGASLOGS.COM - 05_2023...
- Page 26 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS See Figure 7.13. Figure 7.11 and 7.12. Figure 7.13 Figure 7.11 See Figure 7.14 Figure 7.12 Figure 7.14 Using the Fireplace without a Remote Control Lockout State Definition The fireplace can be turned ON (HI only) and OFF with wall switch. To prevent damage to the fireplace, IFC board will automatically The fireplace flame ON/OFF is the only function that will operate;...
-
Page 27: Wi-Fi Multifunction Remote Operating Instructions
Wi-Fi APP MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Download to your mobile device BEDROCK TRADITIONAL WITH GLOWFIRE™ LOGS BURNER INSTALLATION & OPERATION MANUAL GRANDCANYONGASLOGS.COM - 05_2023... -
Page 28: Intermittent Pilot Instructions
INTERMITTENT PILOT INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING p WARNING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. BEFORE LIGHTING smell all around the B. -
Page 29: Maintenance
MAINTENANCE p WARNING • Turn off the gas and electrical power before servicing the appliance. • Appliance may be hot. Do not service until appliance has cooled. • Do not use abrasive cleaners on glass. • Do not paint the pilot assembly. This appliance and its venting system should be inspected before use and at least annually by a qualified service person. -
Page 30: Troubleshooting
TROUBLESHOOTING Symptom Problem Test Solution Pilot will not light and / Battery. – Check batteries. or makes noise with no Wiring. – Verify the wire for the sensor and the wire for the spark at pilot burner. igniter are connected to the correct terminals (not reversed) on the module. - Page 31 TROUBLESHOOTING Symptom Problem Test Solution Continues to spark and Short or loose connection in – Verify all connections. Verify the connections pilot lights, but main sensor rod. from the pilot assembly are tight; also verify these burner will not light. connection are not grounding out to any metal.
-
Page 32: Warranty
Batteries are not covered under this warranty. ODS pilot assemblies carry a (1) year warranty. WARRANTY CARD Please fill this warrant card and mail it to Grand Canyon Gas Logs to receive a warranty claim Purchased from (Showroom name) __________________________________________________________________ City __________________________________________________________ State____________________________... - Page 33 DO NOT RETURN TO STORE! STOP CALL US FIRST For immediate help with installation, product information or if your product arrives damaged, please call our toll free number at: 1-602-344-4217 (Monday - Friday, 8:00AM - 5:00PM, AZ Mountain Time) or email us at: customerservice@grandcanyongaslogs.com OUR STAFF IS READY TO PROVIDE ASSISTANCE Copyright 2023 All rights reserved U.S.A, and Foreign Patents Pending.
