- Page 1 TL ONE Installation Guide TL ONE Electronic Thermostat...

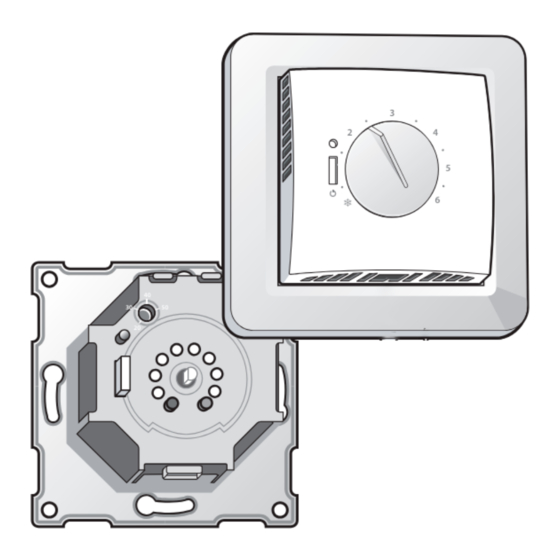

- Page 3 Disposal Instruction ....12 Introduction TL ONE is an electronic thermostat provided with a 2-pole switch and a room sensor to measure and control the surface-mounted.
- Page 4 TL ONE Operation voltage 220-240 V~, 50 Hz Standby power consump- Max 0.25 W tion Relay: Resistive load Max 15 A / 3450 W @ 230 V Inductive load cos φ= 0.3 max 1 A Sensing units NTC 15 kOhm at 25 °C Sensing values: 0 °C...
- Page 5 TL ONE IP class Protection class Class II - Dimensions 85 x 85 x 36 mm Weight 90 g The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) Safety Instructions before installation.
- Page 6 TL ONE • The thermostat must be connected to a power supply via an all-pole disconnection switch. • Always connect the thermostat to continuous power supply. • Do not expose the thermostat to moisture, water, dust, and excessive heat. Mounting Instructions Place the thermostat at a suitable height on the wall (typically 80-170cm.).
- Page 7 TL ONE Always install the thermostat at least 50 cm. from windows and doors. Do not place the thermostat in a way that it will be exposed to direct sunlight. Follow the steps below to mount the thermostat: Open the thermostat: •...
- Page 8 TL ONE Connect the thermostat according to the connection diagram. LOAD LOAD Mains Max. Load 220-240V~ 15 (1) A IP31 -10T30 D531 The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector.
- Page 9 TL ONE Installation Guide...
- Page 10 TL ONE Disposal Instruction Installation Guide...
