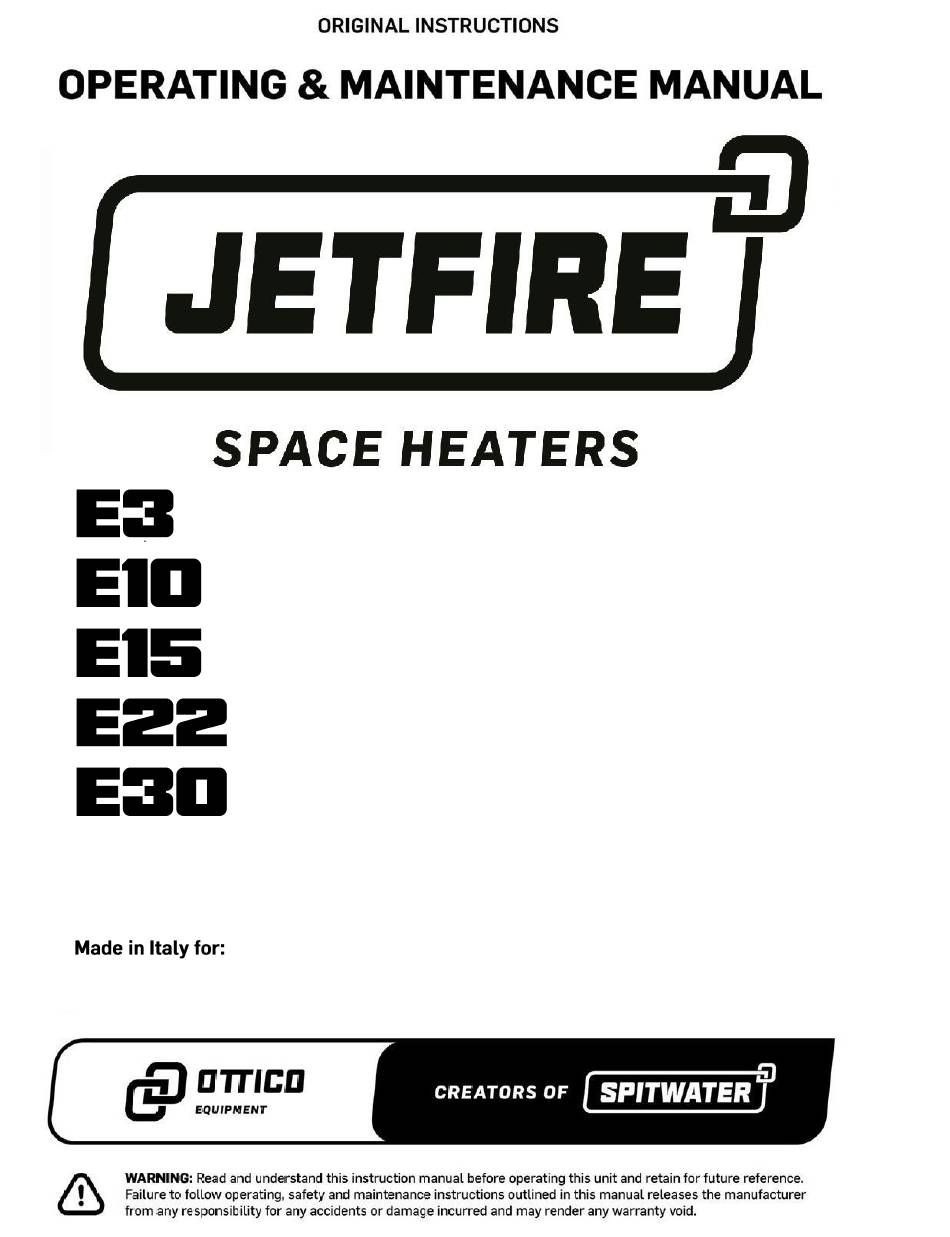

- Page 1 Electric Space Heater Not for domestic use - Space Heating Only Spitwater Australia Pty Ltd T/A Ottico Equipment 953 Metry Street, Albury NSW 2640 Australia spitwater.com.au Diesel/Kerosene Fired Space Heater Not for domestic use - Space Heating Only...
- Page 2 Australia’s policy of continual improvement. The JETFIRE range of heaters should only be used in the manner and purpose for which they were intended and in accordance with the recommendations and safety precautions detailed in this manual and in operating instructions and stickers on the unit itself.
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION - Heat power [kW] Phase Power supply Voltage - Frequency [Hz] Control options 14,7 / [kW] 1,5 / 3,0 6,66 / 10,0 10,0 / 15,0 20,0 / 30,0 22,0 Electric current 13,0 13,5 21,0 30,0 43,0 43,0 Air flow rate 1500 2000 3050... -
Page 4: Description Of Symbols
DESCRIPTION OF SYMBOLS The following symbols are used throughout this instruction booklet in order to mark important paragraphs or sections that are due particular attention. Their meaning is listed next to them for your attention. WARNING WARNING These are tips Failure to follow Failure to follow and instructions... -
Page 5: Important Safety Instructions And Precautions
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS GENERAL • This heater must only be operated by authorized persons. • THIS HEATER IS APPROVED FOR INDUSTRIAL USE ONLY. • NOT FOR DOMESTIC USE. Space heating only. • DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IN OPERATION •... - Page 6 1. GENERAL ADVICE The heater must be installed, set up and used in accordance with the applicable regulations and relating to the use of such equipment. Minimum distance from surrounding walls and/or ceiling: 2m. 2. ELECTRICAL CONNECTION • The voltage, hertz rating and number of phases on the data plate must correspond to that of the electrical mains outlet that the unit is being connected to.
-
Page 7: Fuel And Lubricants
• Make sure firefighting equipment is readily available • To avoid burns, be cautious of hot components like the chimney or the Hot Air outlet and its vicinity. • Do not under any circumstances restrict the air inlet or outlet of the unit. Always allow a clearance of 3m in front (air outlet), 1 m above and behind (air inlet) and 600mm on the sides. - Page 8 CONTROL BOARD MOD. 3 kW MOD. 10 kW / 15 kW / 22 kW 3 / 4 Fig. 1 1 ROOM THERMOSTAT 2 OVERHEATING THERMOSTAT MANUAL RESET 3 MAIN SWITCH 4 POWER SWITCH 5 LAMP...
- Page 9 CONTROL BOARD MOD. 30 kW 3 / 4 Fig. 1 1 ROOM THERMOSTAT 4 POWER SWITCH 2 OVERHEATING THERMOSTAT MANUAL RESET 5 LAMP 3 MAIN SWITCH 6 ROOM THERMOSTAT PLUG...
- Page 10 Installation instructions IMPORTANT Warning Before using the space heater, please read the installation must only be performed by carefully all the instructions for use described professional and skilled personnel. below and follow the indications scrupulously. Before switching on the heater, and therefore, The manufacturer cannot be held responsible for before plugging it into the electrical power supply, damage to persons and/or property caused by...
- Page 11 Warning in heating mode, the fan starts while the heating elements heat up. To turn off the machine: • Turn the knob (1) on the room thermostat to the minimum temperature: the heating elements turn off Shutdown and the fan continues running. To stop operation and turn off the machine: •...
- Page 12 Shutdown To stop operation and shut down the machine, turn the knob (3) on the main switch until it reaches position a. Safety thermostat manual reset A temperature-limit thermostat will stop power feeding in case of overheating. If the thermostat releases, Cleaning disconnect fan electricity, wait until the fan has cooled and For the heater to operate efficiently, cleaning operations...
- Page 13 FOOT / HANDLE ASSEMBLY INSTRUCTION MOD. 3 kW MOD. 10 kW / 15 kW / 22 kW...
- Page 14 FOOT / HANDLE ASSEMBLY INSTRUCTION MOD. 30 kW...
- Page 15 NOTES:...
