Summary of Contents for Jetfire IP32

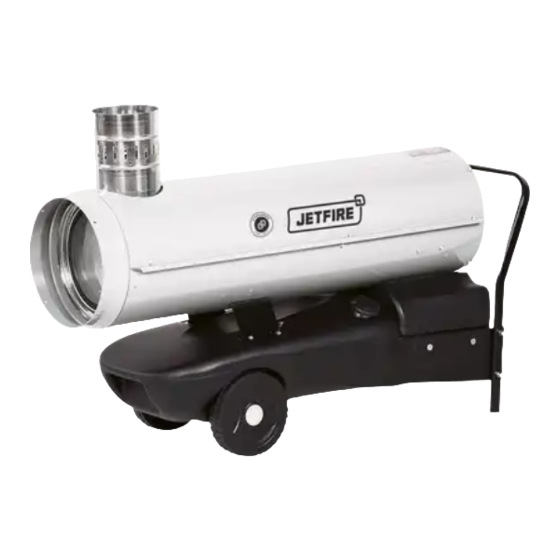

- Page 1 Diesel Indirect Fired Space Heater Not for domestic use - Space heating only Spitwater Australia Pty Ltd T/A Ottico Equipment 953 Metry Street, Albury NSW 2640 Australia spitwater.com.au...
- Page 2 Please note that the information given within this manual may be subject to revision in compliance with Spitwater Australia’s policy of continual improvement. The JETFIRE range of heaters should only be used in the manner and purpose for which they were intended and in accordance with the recommendations and safety precautions detailed in this manual and in operating instructions and stickers on the unit itself.
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS IP 32 Combustion Indirect [kW] 32.0 [kcal/h] 27,534 Max heating output [kW] 34.1 [BTU/h] 116,803 [kW] 28.0 [kcal/h] 24,038 Net heating output [kW] 29.8 [BTU/h] 101,969 Air output 1,150 Fuel consumption [kg/h] Phase Power supply Voltage Plug Frequency [Hz] Power consumption Nozzle... - Page 4 OPERATING DIAGRAM 1 COMBUSTION CHAMBER 6 MOTOR 11 WHEEL 16 CONTROL LAMP 2 BURNER 7 FAN 12 FUEL TANK 17 POWER CORD 3 NOZZLE 8 FUEL FILTER 13 RESET BUTTON WITH CONTROL LAMP 18 INPUT VOLTAGE SWITCH 4 SOLENOID VALVE 9 FUEL CIRCUIT 14 MAIN SWITCH 5 DIESEL PUMP...
-
Page 5: General Recommendations
IP32 IMPORTANT Before using the space heater, carefully read all of the instructions and follow them scrupulously. The manufacturer cannot be held responsible for damage to persons and/or property caused by improper use of the equipment. This instruction manual is an integral part of the equipment and must therefore be stored carefully and passed on with the unit in the event of a change of ownership. -
Page 6: Operation
IP32 Warning Connection to the heater is made by removing NEVER do more than two restarts in the socket cover (15) and inserting the a row: uncombusted diesel fuel may thermostat plug. accumulate in the combustion To start the machine you must: •... -
Page 7: Maintenance
IP32 • Disconnect electrical power by TRANSPORT Warning removing the plug from the Before moving the heater: electrical socket; • Stop the heater as indicated in the • Wait until the heater cools. “STOP” paragraph; • Cut electrical power by removing Every 50 hours of operation: •... - Page 8 ASSEMBLY INSTRUCTIONS...
- Page 10 INSTALLATION GUIDE RECOMMENDED CHIMNEY LAY-OUT DESCRIPTION A) Minimum 1 m B) Minimum 1 m C) As short as possible D) Greater than or equal to diameter of heater smoke outlet E) Minimum 1 m 1) Anti-wind device provided with heater 2) Horizontal crossing with 5°...
-
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM RESET BUTTON (13) CAUSE REMEDY Check correct setting of heater control. If Wrong setting of thermostat, make sure selected room thermostat or Motor does not temperature is higher than room other control start, no ignition temperature Defective thermostat Contact authorised Spitwater service agent or other control Check mains... -
Page 12: Wiring Diagram
WIRING DIAGRAM IP32 AP CONTROL BOX PHOTOCELL ROOM THERMOSTAT PLUG CO CAPACITOR ELECTRIC PILOT MV FAN MOTOR LI1 OVERHEAT THERMOSTAT FUA FUSE EV1 SOLENOID VALVE SWITCH...
