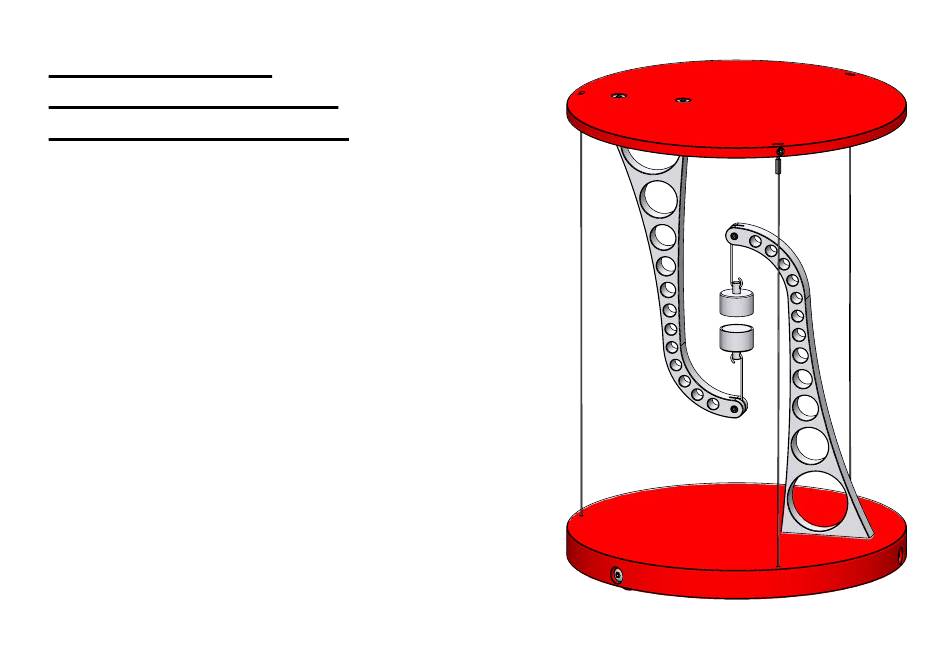

Tensegrity magnet assembly instructions page 1 of 15

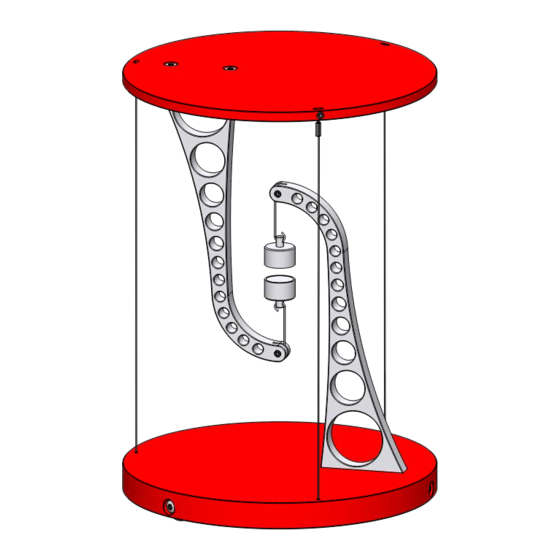

Tensegrity table
with centre magnets
assembly instructions
These instructions are for the centre magnets version of
the Tensegrity table.
Please read all the way through the assembly
instructions to familiarise yourself with the process
before you start and pay close attention to the
alignment of all the parts in the diagrams.
Assembly time should be approximately 15-20 minutes.
Copyright Kontax Engineering Ltd 31/5/23
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kontax Tensegrity table with centre magnets
Summary of Contents for Kontax Tensegrity table with centre magnets
- Page 1 Please read all the way through the assembly instructions to familiarise yourself with the process before you start and pay close attention to the alignment of all the parts in the diagrams. Assembly time should be approximately 15-20 minutes. Copyright Kontax Engineering Ltd 31/5/23...
- Page 2 Short roundhead screw Assembly screw Assembly plate Rubber feet Shuttle Magnet Torx driver 5x 5x 3x 3x 2x 2x 1x 1x 3x 3x 2x 2x 1x 1x (Note, some kits may have 4x rubber feet) Copyright Kontax Engineering Ltd 31/5/23...
- Page 3 Note, some kits have three rubber feet and dimples, some have four rubber feet and dimples Peel the backing off the adhesive rubber feet and stick them over the dimples on the bottom of the base. 3x feet and dimples 4x feet and dimples Copyright Kontax Engineering Ltd 31/5/23...
- Page 4 Tensegrity magnet assembly instructions page 4 of 15 Screw two countersunk screws through the base into the arm and tighten. It might help to have an assistant hold the base and arm together while you screw the screws in. Copyright Kontax Engineering Ltd 31/5/23...
- Page 5 You should be able to screw it in using your fingers, but if not you can use a small cross-point screwdriver. Do not tighten too much or you risk marking the arm. Copyright Kontax Engineering Ltd 31/5/23...
- Page 6 Fit one wire loop through they fit in the the hole in one of the magnets as shown. magnets. Repeat for the second wire loop and magnet. Shown cut away for clarity Copyright Kontax Engineering Ltd 31/5/23...
- Page 7 Repeat for the second magnet. You will need to hold the first magnet in place with your finger when you fit the second magnet into the assembly plate. Copyright Kontax Engineering Ltd 31/5/23...
- Page 8 If the plate is the right way up the screws should fit slightly below the surface. If the plate is the wrong way up the screws will sit above the surface, in which case the plate will need reversing. Copyright Kontax Engineering Ltd 31/5/23...
- Page 9 If it feels tight as you screw it in do not force it. Back the screw off, reposition the loop and try again. Repeat for the other two outer wires. Copyright Kontax Engineering Ltd 31/5/23...
- Page 10 Screw one short roundhead screw into the shuttle a couple of turns. Repeat for the other two shuttles. 2. Fit long roundhead screw 1. Fit shuttle 3. Couple of threads showing 4. Fit short roundhead screw Detail view after fitting screws Copyright Kontax Engineering Ltd 31/5/23...
- Page 11 2. Loop around onto the outer wire. screw The loose wire end can be tucked underneath the straight section for tidiness. Repeat for the other two outer wires. 4. Make sure screw is fully inside pocket Copyright Kontax Engineering Ltd 31/5/23...
- Page 12 If they do you will need to slide them apart, refit the assembly plate and screws, and readjust the outer wires so there is no slack (refer to page11). Copyright Kontax Engineering Ltd 31/5/23...
- Page 13 If the table collapses and the wire loops detach from the arms you should be able to slip them back over the grub screws in the arms and gently bring the magnets back near each other to hold the top plate in place. Copyright Kontax Engineering Ltd 31/5/23...
- Page 14 Tensegrity magnet assembly instructions page 14 of 15 Your Tensegrity table is now fully assembled. If you need help with your table you can email us at: support@stirlingengine.co.uk Copyright Kontax Engineering Ltd 31/5/23...
- Page 15 Our workshop is located in the Thames Valley, United Kingdom and is staffed by a skilled team of 9 designers, machinists and assemblers. We have 4 CNC mills, 3 CNC lathes and 3 CNC mill-turn centres. Copyright Kontax Engineering Ltd 31/5/23...
