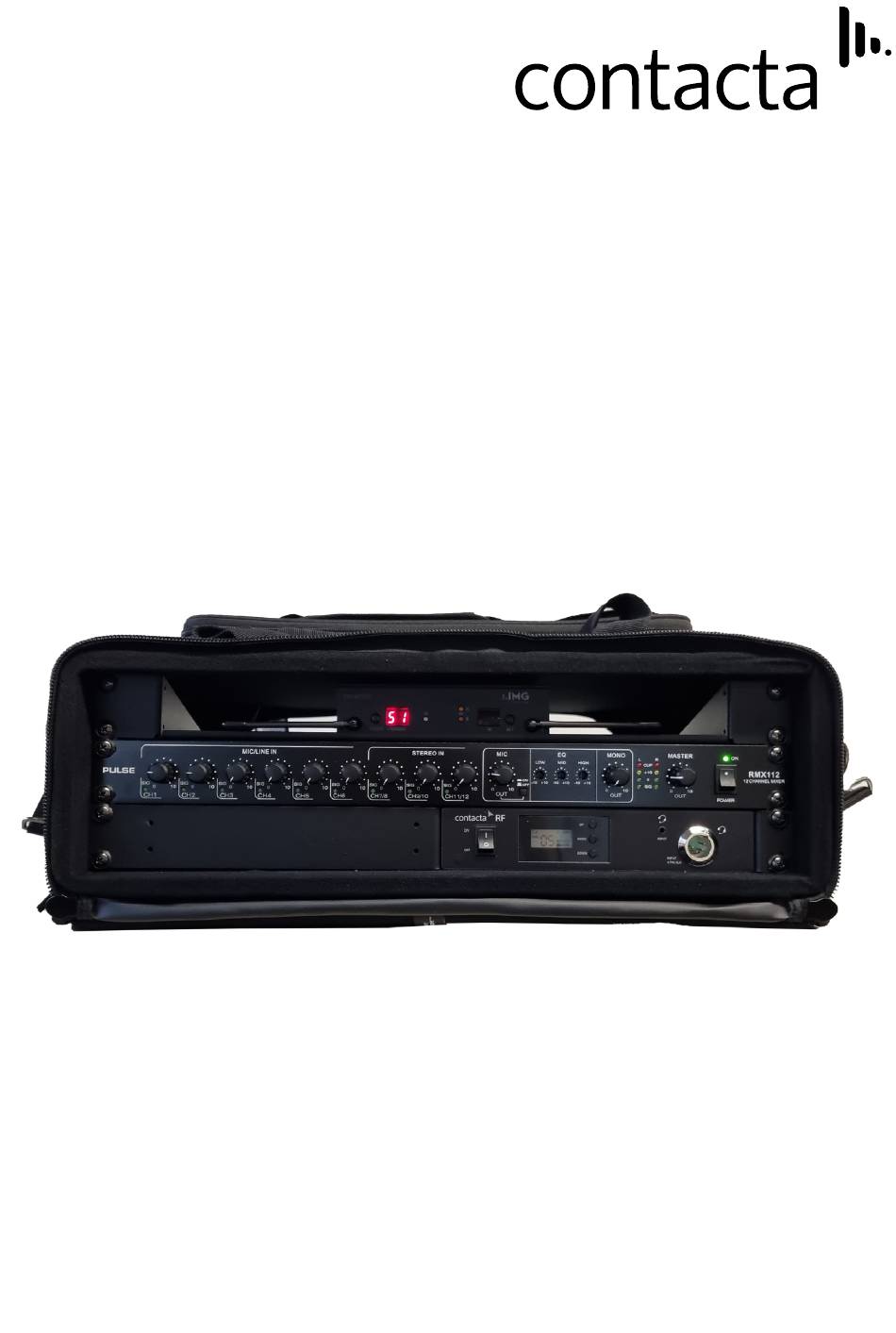

- Page 1 RF-PortableKit Portable Radio Frequency System Quickstart User Guide May 2023...
- Page 2 Contents Product Overview Components Quickstart Safety Contacta has a policy of continuous product development, therefore small specification changes may not be reflected in this manual. Images, labels, packaging, accessories and product colours are subject to change without notice.
- Page 3 Product Overview The Portable Radio Frequency System is an assistive listening solution. It is designed for use by people with hearing devices which are equipped with a telecoil function, along with people who have hearing loss who do not use hearing devices. The system includes a wireless lapel microphone for use by a presenter addressing an audience.
- Page 4 Components Travel Case 2. Boundary Microphone 3. Stationary Radio Frequency Transmitter 4. Transmitter and Receiver Aerials 5. Handheld Microphone 6. Multi-Frequency Beltpack Microphone 7. 12 Channel Microphone Mixer 8. 1 Channel Microphone Receiver 9. 3 x Inductive Neck Hearing Loop 10.
- Page 5 Quickstart Place the Portable Radio Frequency System case on a flat surface near a power socket. 2. Unzip the rear of the case and pull out the mains power cord. Plug it into a suitable wall power socket. 3. Remove the accessories bag from the back of the case. 4.
- Page 6 6. Switch on the Radio Frequency Transmitter, 12 Channel Micro- phone Mixer, and 1 Channel Microphone Receiver. Ensure the dials for Channel 1 and Channel 2 are set to Level 2. Refer to Step 3 in the Radio Frequency Transmitter User Guide (Page 4) for further setup information.
- Page 7 Refer to Step 2.2 of the Portable Radio Frequency Receiver User Guide (Page 5) for more information. 10. Place the neck loop around the neck of the hearing device user or put on headphones if required. 11. Switch on the lapel microphone transmitter and confirm that its number matches what is displayed on the receiver: 12.
- Page 8 of the case. Zip up the front and rear of Portable Radio Frequency System casing and place it in a safe location for next use.
- Page 9 Safety Charging RF Receivers Only use the provided wall plug charger and “USB-A to Micro-USB” charging lead to charge your RF Receivers. Using a different charger or third-party charging equipment may damage your device. Replace Belt-Pack Microphone Batteries with Care The Belt-Pack Microphone requires two AA batteries.
- Page 10 Local dealer: UK & ROW US & Canada +44 (0) 1732 223900 +1 616 392 3400 sales@contacta.co.uk info@contactainc.com www.contacta.co.uk www.contactainc.com...
