AP24 Hardware Installation Guide
Overview

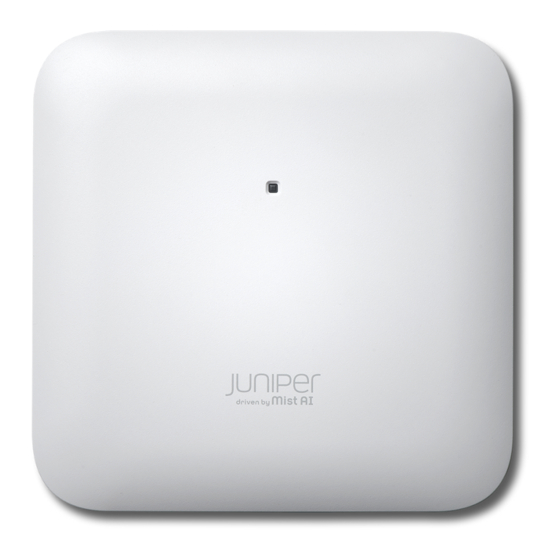

The Mist AP24 contains three IEEE 802.11ax radios that deliver 2x2 MIMO
with two spatial streams when operating in multi-user (MU) or single-user
(SU) mode. The AP24 is capable of operating simultaneously in the 6GHz
band, 5GHz band, and 2.4GHz band or two bands and a dedicated tri-band
scan radio.
AP24 Hardware Installation Guide
Juniper Networks (C) Copyright 2022-2023. All Rights Reserved
Juniper Business Use Only
1
Advertisement
Related Manuals for Juniper Mist AP24
Summary of Contents for Juniper Mist AP24
- Page 1 AP24 Hardware Installation Guide Overview The Mist AP24 contains three IEEE 802.11ax radios that deliver 2x2 MIMO with two spatial streams when operating in multi-user (MU) or single-user (SU) mode. The AP24 is capable of operating simultaneously in the 6GHz band, 5GHz band, and 2.4GHz band or two bands and a dedicated tri-band...
- Page 2 I/O ports Reset Reset to the factory default settings USB2.0 support interface 100/1000/2500/5000BASE-T RJ45 interface that supports Eth0+PoE 802.3at/802.3bt PoE PD Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
- Page 3 In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with a length at least 2 in. (50.8mm). APBR-U that is in the AP24 box includes a set screw and an eyehook. Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
- Page 4 Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
- Page 5 Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
- Page 6 Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
- Page 7 Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
- Page 8 The threaded rod adapter attaches to a rod that is either 1/2"-13, 5/8”-11, or M16-2. Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
-
Page 9: Technical Specifications
Suitable for use in environmental air space in accordance with Section 300-22(C) of the National Electrical Code, and Sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code, Part 1, CSA C22.1. Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved... -
Page 10: Warranty Information
Adapter for channel rail and recessed 9/16” t-rail APBR-ADP-CR9 Adapter for recessed 15/16" t-rail APBR-ADP-RT15 Adapter for recessed 1.5" t-rail APBR-ADP-WS15 Power Supply options 802.3at or 802.3bt PoE power Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved... -
Page 11: Regulatory Compliance Information
LAN connections as defined by the 802.3at Standard. Operations in the 5.15GHz – 5.35GHz band are restricted to indoor usage only. If you need further assistance with purchasing the power source, please contact Juniper Networks, Inc. Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. - Page 12 ● The 5.925 ~ 7.125GHz operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
- Page 13 ● Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or Communications with unmanned aircraft systems. Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
-
Page 14: Industry Canada
être interdite, sauf à bord d’un gros aéronef volant à plus de 3 048 m (10 000 pi) d’altitude. Radiation Exposure Statement: Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved... - Page 15 Devices shall not be used for control of or communications with unmanned aircraft systems. Les dispositifs ne doivent pas être utilisés pour commander des systèmes d’aéronef sans pilote ni pour communiquer avec de tels systèmes. Juniper Business Use Only AP24 Hardware Installation Guide Juniper Networks (C) Copyright 2022-2023. All Rights Reserved...
