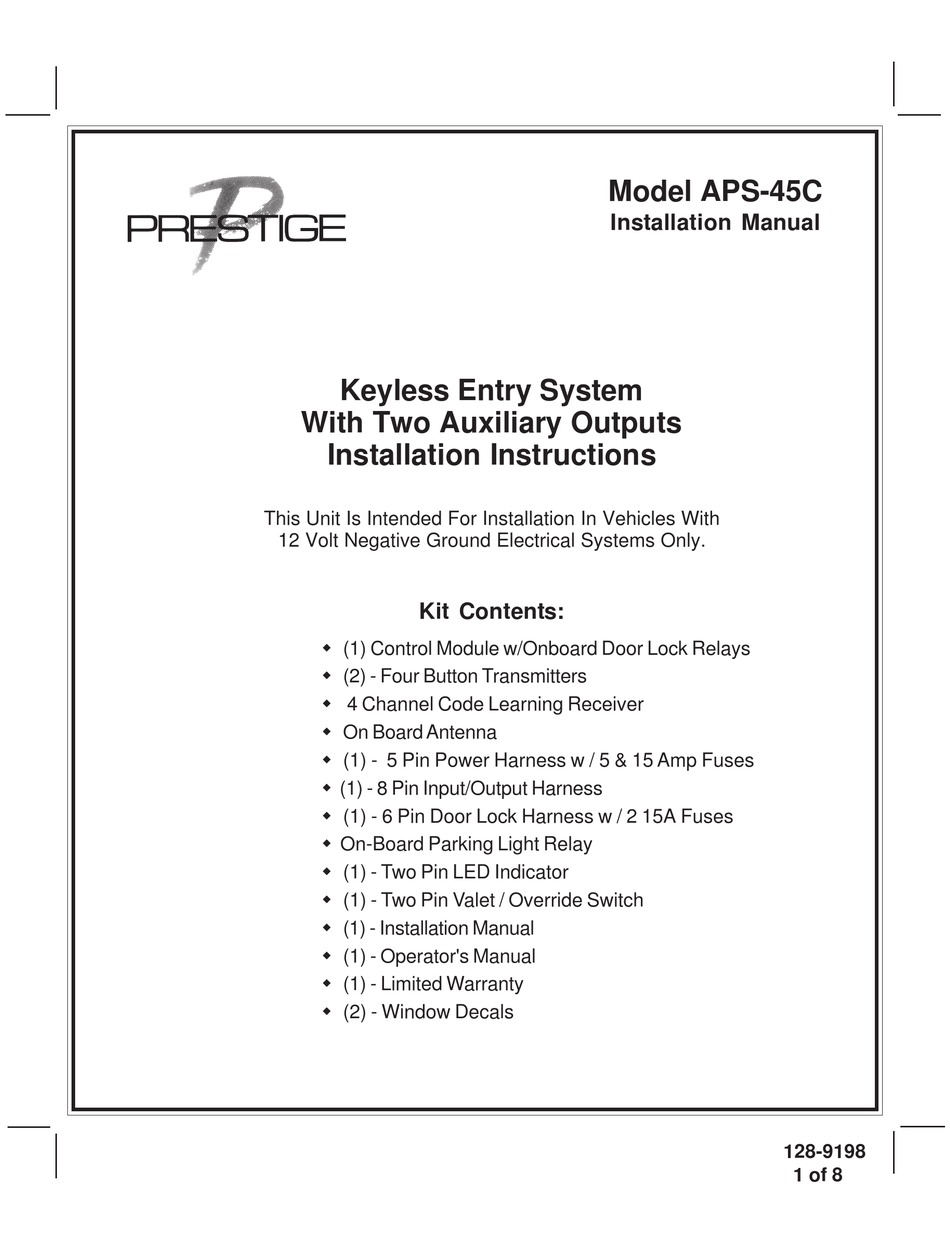

Model APS-45C
Installation Manual
Keyless Entry System
With Two Auxiliary Outputs
Installation Instructions
This Unit Is Intended For Installation In Vehicles With
12 Volt Negative Ground Electrical Systems Only.
Kit Contents:
(1) Control Module w/Onboard Door Lock Relays
(2) - Four Button Transmitters
4 Channel Code Learning Receiver
On Board Antenna
(1) - 5 Pin Power Harness w / 5 & 15 Amp Fuses
(1) - 8 Pin Input/Output Harness
(1) - 6 Pin Door Lock Harness w / 2 15A Fuses
On-Board Parking Light Relay
(1) - Two Pin LED Indicator
(1) - Two Pin Valet / Override Switch
(1) - Installation Manual
(1) - Operator's Manual
(1) - Limited Warranty
(2) - Window Decals
128-9198
1 of 8
Advertisement
Related Manuals for Prestige APS-45C
Summary of Contents for Prestige APS-45C
- Page 1 Model APS-45C Installation Manual Keyless Entry System With Two Auxiliary Outputs Installation Instructions This Unit Is Intended For Installation In Vehicles With 12 Volt Negative Ground Electrical Systems Only. Kit Contents: (1) Control Module w/Onboard Door Lock Relays (2) - Four Button Transmitters ...
-
Page 2: Before Beginning The Installation
This Keyless Entry System is designed to provide a convenient electronic means to gain access to the vehicle by providing RF remote control over the vehicle's power door lock system. The unit also includes outputs to control the vehicle's dome lights, as well as exterior parking lights. - Page 3 "Programming System Features" later on in this manual for the programming procedure. To connect this output to drive a vehicle horn, locate the vehicle's horn wire, almost always a negative switched wire, (typically found among the wires of the steering column), and connect it. BLACK/WHITE Wire: Horn/Siren Output Wire This wire provides a ground output (300 mA).
- Page 4 DOOR LOCK/UNLOCK CONTROL HARNESS P/N 112-4215 6PIN Door Lock Connector w/ two 15A Fuses are arranged as follows: Lock Relay Unlock Relay Blue/White N.O. Contact 87 Orange N.O. Contact 87 Yellow Common Contact 30 White Common Contact 30 Green N.C. Contact 87a Blue N.C.
- Page 5 they cannot be plugged in wrong, please read and follow the instructions for each connection to make certain each component is properly installed. DASH MOUNTED LED P/N 1361286 2PIN White Plug w/2 Wires; Red and Blue The Red and Blue wires in the 2PIN mini white connector control the anode and cathode of the dash mounted LED. Route the twin lead Red and Blue wires from the LED to the control unit and plug the two pin connector into the mating white mini connector shell of the control module.
-
Page 6: Programming Features
PROGRAMMING FEATURES: There are seven (7) Programmable Features on this system. Study the list below, keeping in mind the features and their defaults, (how it comes programmed from the factory), and decide how best to program the UNIT for your particular installation. Programmable Features: Features 1 Chirp... -
Page 7: Completing The Installation
It is important to note that when you first enter the Programming Mode, you are automatically positioned to adjust the First Programmable Feature and that the Valet/Program/Manual Override Switch allows you to toggle from there through each of the six more programmable features. - Page 8 For technical support go to www.prestigecarsecurity.com or call 1 800 225 6074 © 2013 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-9198 128-9198 8 of 8...
