Summary of Contents for MeErgo ErgoChair

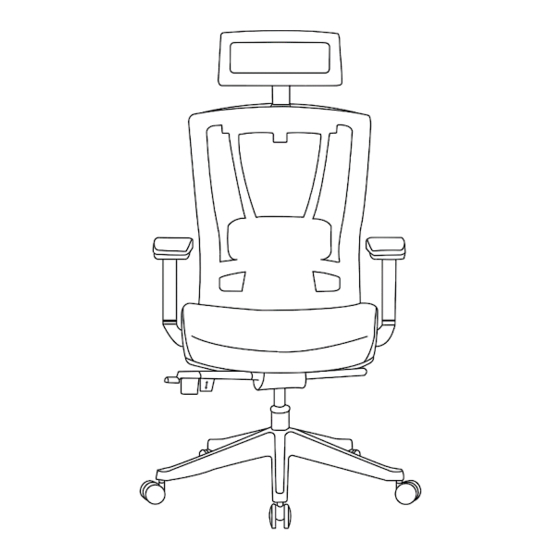

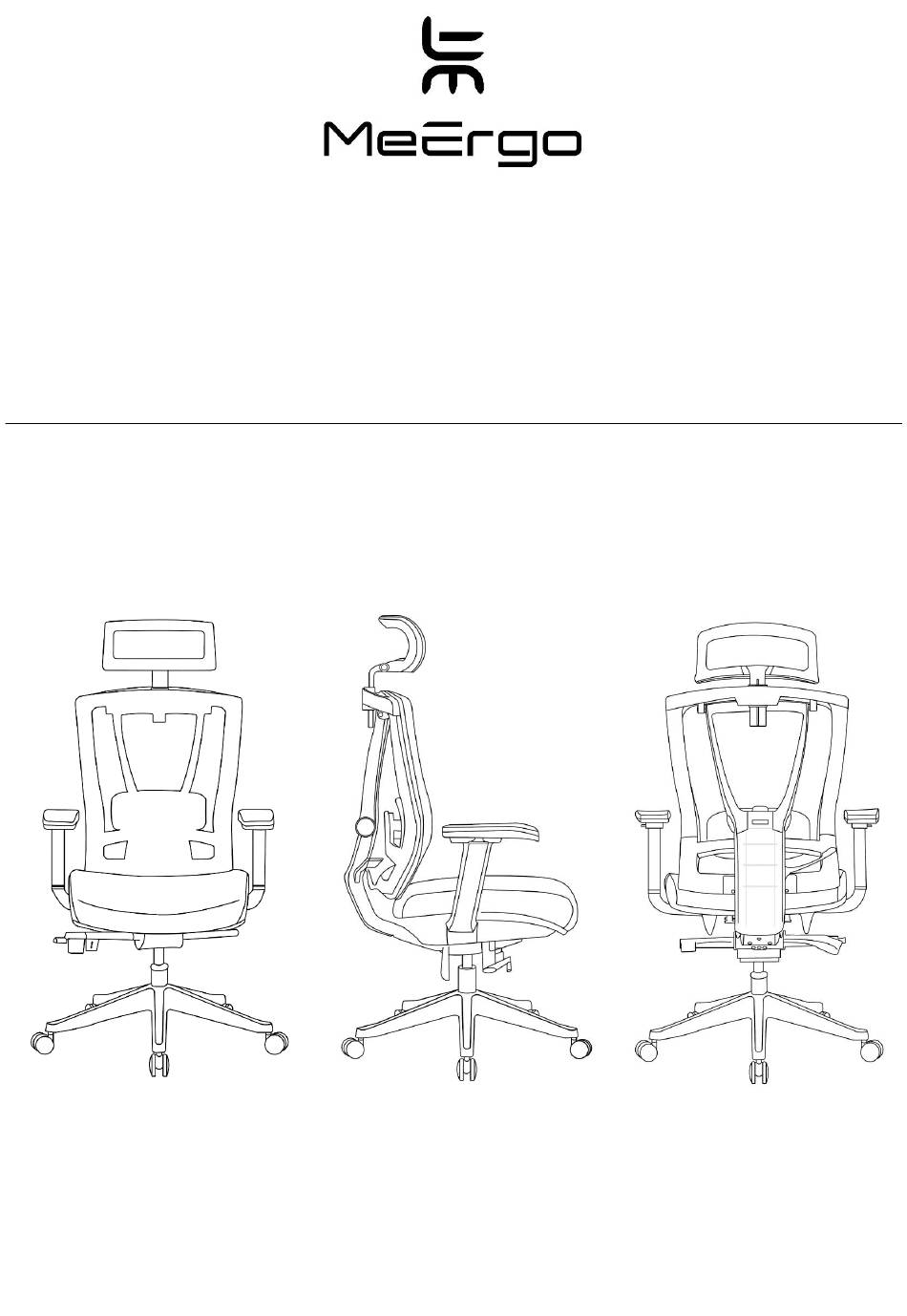

- Page 1 ErgoChair Assembly Instructions WWW.MEERGO.COM.AU...
- Page 2 WARNING Please carefully read and follow this instruction. Failure to follow this instruction may result in serious injury. Any damage or faults caused by assembling or using with not following the instruction may not be covered by warranty and return policy. 1.
- Page 3 List of Parts and Bolt packs...
- Page 4 Put the base F upside down the floor and insert all the casters D into Flip over the base and insert the gas cylinder into the middle hole on the base. the base. Flip over the seat pad and align the holes on the armrest and the Before assembling the mechanism, put the handle up and hold (see bottom of the seat, insert bolts K and washers N, use the Tool M to picture blow), use another hand to push the mechanism forward.
- Page 5 Place the mechanism on the back of the seat pad, make sure to put Assemble the other two bolts as same as step 5. the mechanism on the right direction as shown in the picture below. Align the pre-built holes on the seat and mechanism, insert the bolts L, spring locks P and washers O with the right order shown below in the pre-drilled holes, the tighten them by Tool M.
-
Page 6: Function Guide
Insert the headrest B into the holes on the top of the backrest, put the bolt J into the holts from bottom and tighten them with Tool M. -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Function Guide Headrest Adjustment... - Page 7 Armrest Adjustment Flexible Backrest System...
- Page 8 Backrest Tilt Adjustment and Lock Seat Height Adjustment...
- Page 9 Sitting Space Adjustment Seat Pad Tilt Adjustment...
-
Page 10: Warranty Info
Backrest Tilt Tension Adjustment WARRANTY INFO Every MeErgo products come with limited product warranty depends on different products. Our products come with a guarantee that cannot be excluded under the Australian Consumer Law. For more detailed information about warranty policy please visit:...
