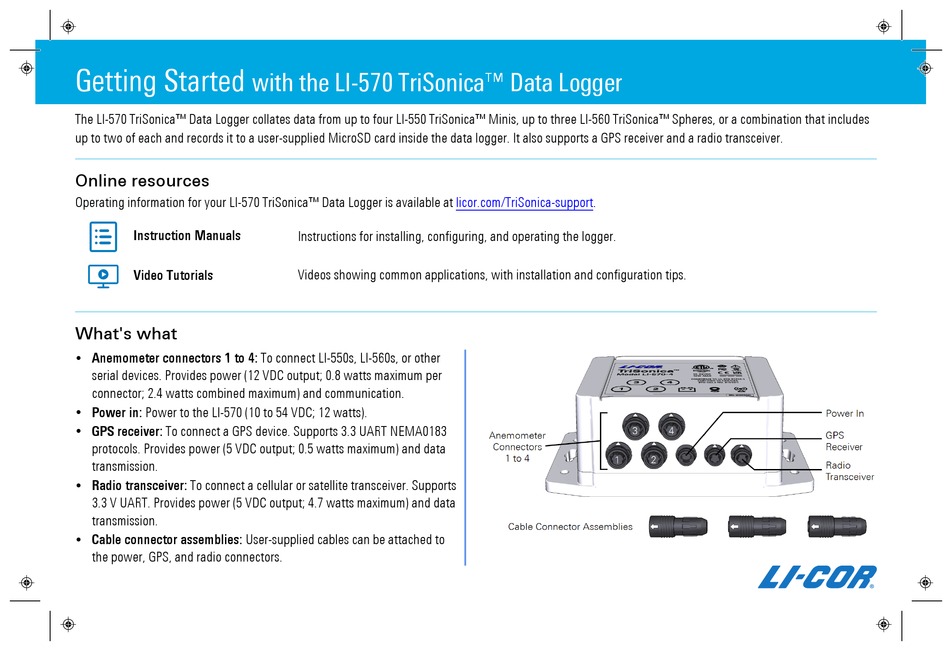

Getting Started
with the LI-570 TriSonica™ Data Logger
The LI-570 TriSonica™ Data Logger collates data from up to four LI-550 TriSonica™ Minis, up to three LI-560 TriSonica™ Spheres, or a combination that includes
up to two of each and records it to a user-supplied MicroSD card inside the data logger. It also supports a GPS receiver and a radio transceiver.
Online resources
Operating information for your LI-570 TriSonica™ Data Logger is available at licor.com/TriSonica-support.
Instruction Manuals
Video Tutorials
What's what
Anemometer connectors 1 to 4: To connect LI-550s, LI-560s, or other
l
serial devices. Provides power (12 VDC output; 0.8 watts maximum per
connector; 2.4 watts combined maximum) and communication.
Power in: Power to the LI-570 (10 to 54 VDC; 12 watts).
l
GPS receiver: To connect a GPS device. Supports 3.3 UART NEMA0183
l
protocols. Provides power (5 VDC output; 0.5 watts maximum) and data
transmission.
Radio transceiver: To connect a cellular or satellite transceiver. Supports
l
3.3 V UART. Provides power (5 VDC output; 4.7 watts maximum) and data
transmission.
Cable connector assemblies: User-supplied cables can be attached to
l
the power, GPS, and radio connectors.
Instructions for installing, configuring, and operating the logger.
Videos showing common applications, with installation and configuration tips.
