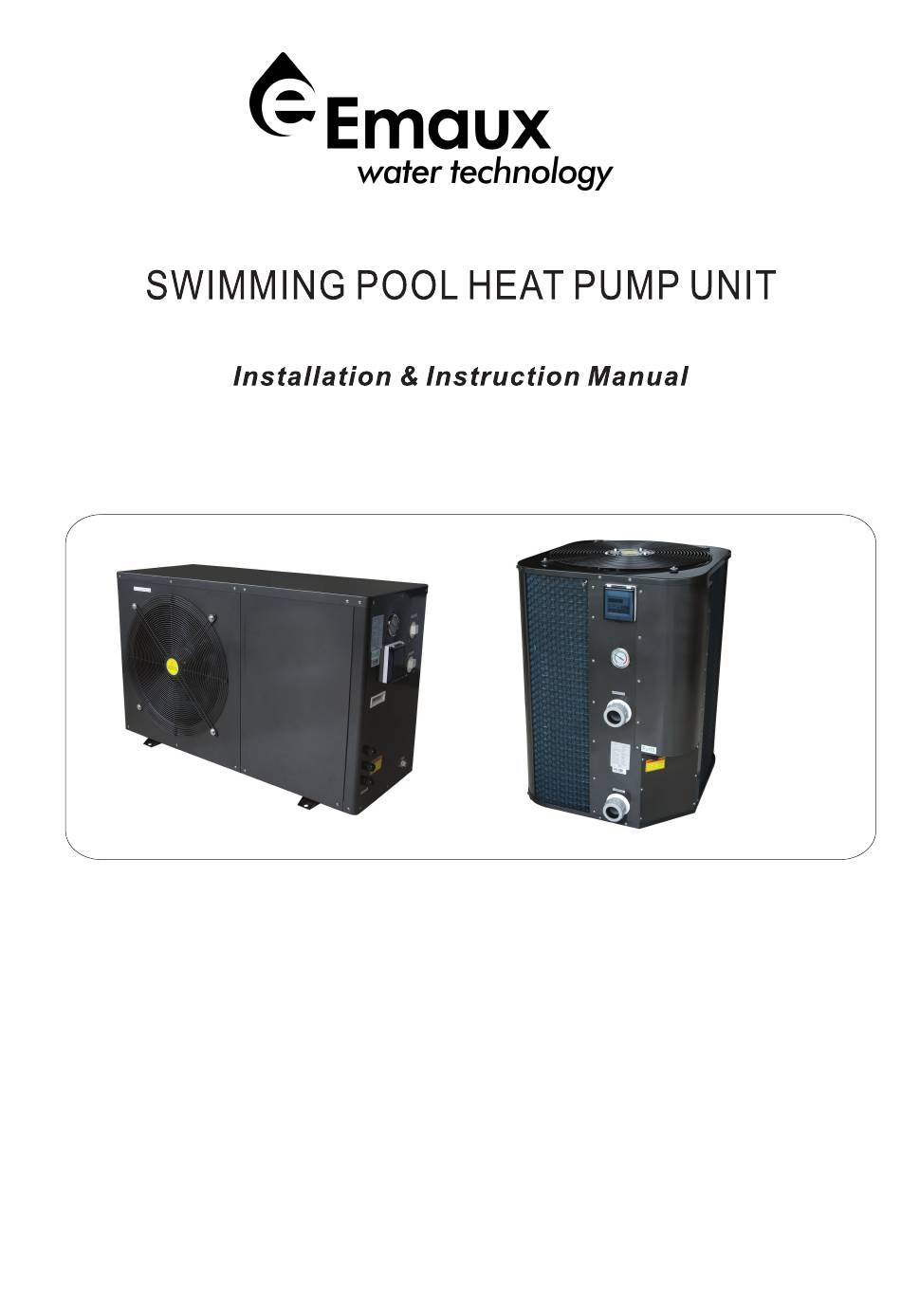

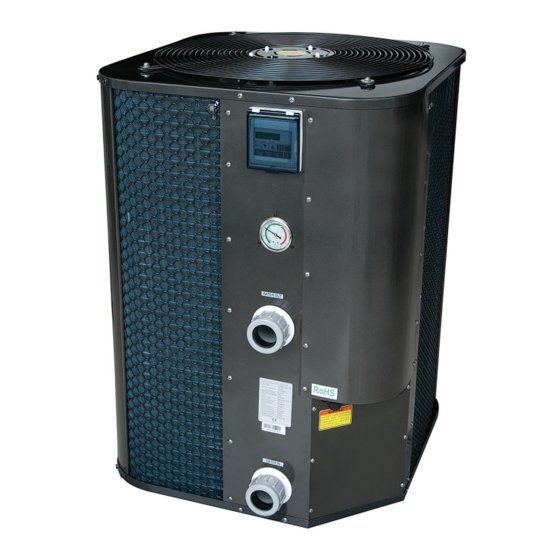

- Page 1 A p p l i c a b l e M o d e l : H P 5 0 A H P 9 0 A H P 3 5 A H P 1 0 5 A H P 1 3 5 A EMHP20113001...
-
Page 2: Table Of Contents
Swimming pool Heat Pump SWIMMING POOL HEAT PUMP UNIT Installation & Instruction Manual Contents 1. PREFACE 2. SPECIFICATION 2.1 Parameter of swimming pool heat pump unit 2.2 Dimension of swimming pool heat pump unit 3. INSTALLATION 3.1 Heat pump location 3.2 How to close to the pool 3.3 Distance from the pool 3.4 Installation of the check-valve... -
Page 3: Preface
Swimming pool Heat Pump 1. Preface * In order to provide our customers with quality, reliab ility and versatility, this product has been made to strict producing standards. This manual includes all necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. -
Page 4: Specification
Swimming pool Heat Pump 2. Specifications 2.1 Parameter of Swimming Pool Heat Pump Unit Model HP3.8B HP5.6B HP7.8B HP9.5B HP12.5B HP14B1 12.5 Heating Capacity K BTU 26.5 32.5 42.5 Heating Input Power Heating Running Current 11.7 13.3 Cooling Capacity K BTU 16.5 26.5 29.5... -
Page 5: Dimension Of Swimming Pool Heat Pump Unit
Swimming pool Heat Pump 2.2 Dimension of swimming pool heat pump unit HP3.8B HP5.6B HP7.8B HP9.5B HP12.5B HP14B1 HP3.8B HP12.5B HP5.3B Model HP9.5B Size HP14B1 (mm) HP7.8B 1010 1110 HP9.5A HP12.5A HP14A HP17A HP21A HP26A HP9.5A Model HP12.5A HP21A Size HP14A HP26A (mm) - Page 6 Swimming pool Heat Pump HP35A HP45A HP50A HP90A 1480 M odel HP90A HP35A HP45A HP50A Dimension (L *w * H) 1448*730*1060 1448*730*1260 1448*730*1260 2150*760*1300 Packing Size (L *w * H) 1630*810*1180 1630*810*1380 1630*810*1380 2275*900*1500 Water connection Net Weight / Gross Weight...
-
Page 7: Installation
Swimming pool Heat Pump 3.Installation The factory only provides the heat pump unit; the other items including an eventual bypass, in the illustration are necessary parts for the water system, provided by users or the installers. Attention: Please follow these steps when installing the heat pump: 1. -
Page 8: Distance From The Pool
Swimming pool Heat Pump 3.3 Distance from the pool Normally, the pool heat pump is installed within a 7.5 meter radius of the pool. The greater the distance from the pool, the greater the heat loss from the piping. Since the piping is buried for the most part, heat loss is minimal for distances of up to 30 meters (15 meters to and from the pump= 30 meters total),unless the soil is wet or the water level is high. -
Page 9: Pool System Set Up
Side connection valve Outlet Power cable inlet Inlet Condensed water draining pipe Water pump Filter Pool water inlet Draining nozzle Discharge water to pool HP35A HP45A HP50A HP90A HP105A Heat Pump Water processor Side connection valve Inlet Power cable inlet... -
Page 10: Electrical Wiring
Swimming pool Heat Pump 3.7 Electrical wiring Note:-Verify the local power supply and the operating voltage of the heat pump. It is recommended to use a separate circuit breaker(slow type-D curve)for the heat pump together with the proper wiring characteristics (see table below). -
Page 11: Guidelines
Swimming pool Heat Pump 4. Guidelines 4.1 Water chemistry Special attention should be paid to the chemical balance of the pool water. The pool water values should always stay within the following limits: Free chlorine(mg/1) TAC(mg/1) Salt(g/1) Important: failure to comply with these limits will invalidate the warranty. Note: exceeding one or several limits can damage the heat pump beyond repair. -
Page 12: Owner Inspection
Swimming pool Heat Pump 4.4 Owner inspection The PRO heat pumps are designed and constructed to provide long performance life when installed and operated properly under normal conditions. Periodic inspection are important to keep your heat pump running safe and efficiently all the years. The following basic guidelines are suggested for your inspection: 1. -
Page 13: Operating Instructions
Swimming pool Heat Pump 5.Operating Instructions electrical heating supply water valve return water valve water pump motor fan fan speed water level ON/OFF Under unlock status,press it for one second to “ON/OFF”. Under other setting status,press it can reture to home page Under lock status,press it for 5 seconds to unlock. - Page 14 Swimming pool Heat Pump Page up and Page down Page up and down,check and modify the parameters You can check and set the parameters with the function key Press “+” and “-” can set the temperature when the unit is running. Timer setting Press it 5 seconds to enter time setting Controller operation...
- Page 15 Swimming pool Heat Pump Timer setting of “ON/OFF” Under home page,press timer key can enter timer setting,you can setting 5 different timer. When the first timer setting is flashing, press timer key to set hour to open the unit.When hour - ”...
-
Page 16: Unit Status Checking
Swimming pool Heat Pump 6.Unit status checking Dispay Meaning dual system Dispay Meaning dual system coil 1 temperature return temp.of system 2 (daul system) return temp.of system1 Exhaust temp. of system 2(daul system) Compressor current of system 2 Exhaust temp. of system 1 expansion valve opening angle of Ambient temperature system... -
Page 17: Factory Parameter
Swimming pool Heat Pump 7.Factory parameter(Only setting by professional Technician) Parameter meaning Range Default Remark -30℃～0℃ -10℃ Freezing protection temp.setting 20min～90min 45min Total working time of compressor after frosting -15℃～-1℃ -3℃ Setting initialization temp. for defrosting 5min～20min 8min Defrosting time setting 1℃～40℃... -
Page 18: Fault Code Table
Swimming pool Heat Pump 8.Fault code table Fault code Fault code Meaning(Dual system) Meaning(Dual system) Er01 Phase error Er23 Refrigeration overcooling protection Er02 Default Phase Water flow switch fault of indoor water Er03 Er25 Level switch failure outler Antifreeze protection of outdoor water Er04 Winter frost protection Er26... -
Page 19: Wiring Diagram
Swimming pool Heat Pump 9. Wiring Diagram Model: HP3.8B HP5.6B HP7.8B HP9.5B... - Page 20 Swimming pool Heat Pump Model:HP12.5B HP14B1 HP17B...
- Page 21 Swimming pool Heat Pump Model: HP21B HP26B...
- Page 22 AC N RED BLK WHI RED BLK WHI IN10 250VAC 2.5mm^2 1 2 3 4 5 6 7 8 pool ground source Direct thermal cycling IP for online 1 phase communica air source hot water 3 phase Single cycle tion Transformer secondary 250VAC 2.5mm^2...
