Operating Instructions
Series SW/TWHD70000 Welding Hose Reels
Low Pressure Model Numbers:
TWHD74050 OLP
SWHD76000 OLPT
TWHD74050 OLPT
SWHD76050 OLPT
D
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
SWHD76005 OLPT
SWHD76100 OLPT

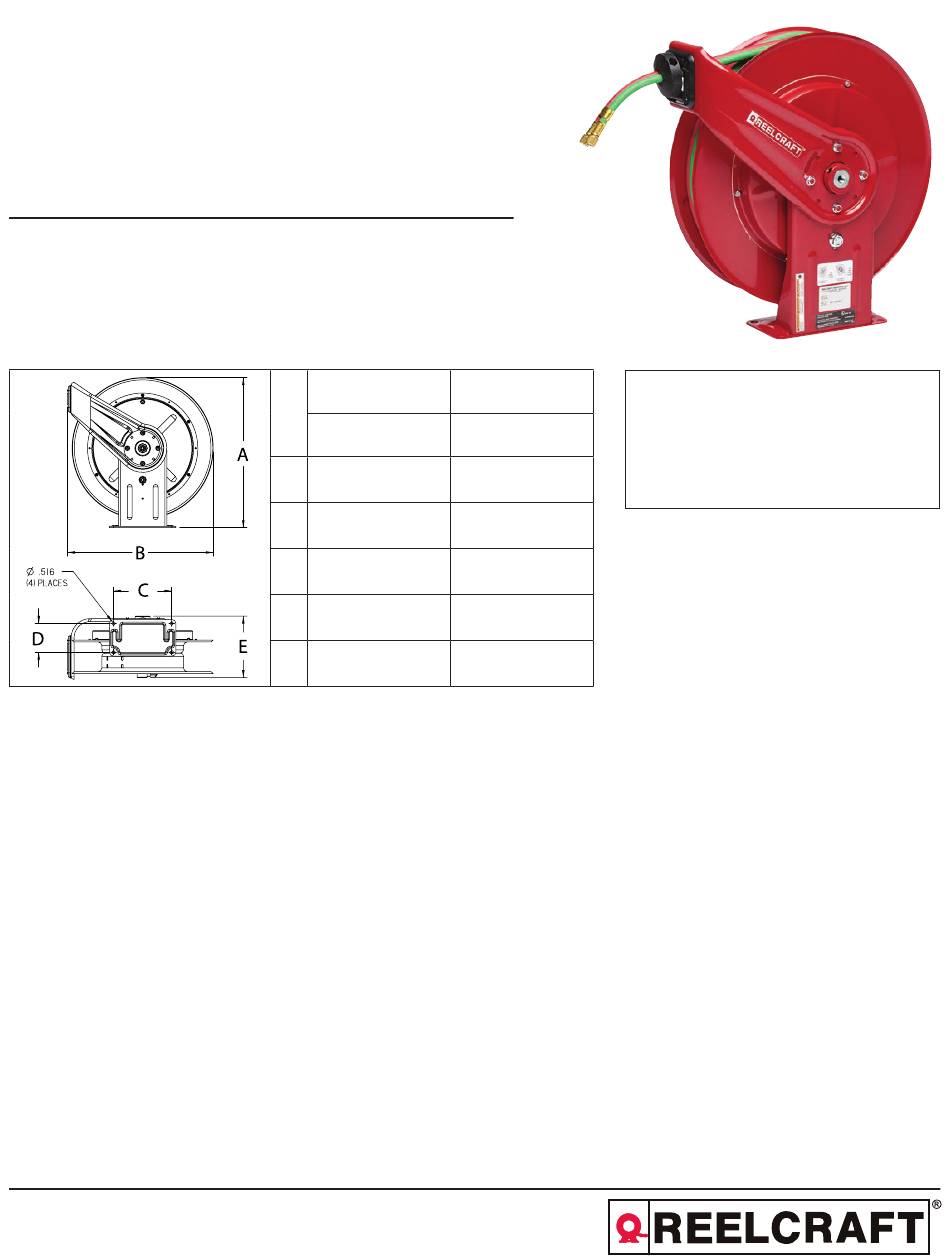

Dimensions
1
in
mm
A
20 1/4"
514
B
19 3/4"
502
C 7 13/16"
198
D
3 7/8"
98
E
7"
178
2
in
mm
20 1/4"
514
19 3/4"
502
7 13/16"
198
3 7/8"
98
8 1/4"
210
• A high tension spring assembly is contained within the reel.
Exercise extreme caution.
• Pull hose from reel by grasping the hose itself, not the control
valve.
• Ensure that reel, hose, and equipment being serviced are
properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
immediately. Do not pull or jerk on hose!
• Treat and respect the hose reel as any other piece of machinery,
observing all common safety practices.
IMPORTANT
Read this manual carefully before
installing, operating or servicing this
equipment.
Form# 1310-1019 Rev: 7/2020
Advertisement
Table of Contents
Related Manuals for Reelcraft Industries TWHD70000 Series
Summary of Contents for Reelcraft Industries TWHD70000 Series
- Page 1 • Treat and respect the hose reel as any other piece of machinery, observing all common safety practices. Form# 1310-1019 Rev: 7/2020 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
- Page 2 Series SW/TWHD70000 Welding Hose Reels IN-SERVICE CAUTION: U-bolt must be placed in the proper location as instructed in figure A below. The reel can “latch out” during use if this • The user is cautioned not to shut off the fuel gas at the instruction is not adhered to.
- Page 3 User servicing of the reel is limited to replacing the input/ output hoses or swivel only. Refer all other repairs to an autho- rized service person or directly to Reelcraft Industries, Inc. Failure to do so can result in personal injury and/or equipment damage and may void the warranty.
- Page 4 Series SW/TWHD70000 Welding Hose Reels Item TWHD74050 TWHD74050 Description Req. OLPT Swivel Assembly S260057-3 260057-1 Spool & Hub Assembly 602726 602726 Drive Spring Assembly...
- Page 5 Series SW/TWHD70000 Welding Hose Reels Item SWHD76000 SWHD76050 SWHD76005 SWHD76100 Description Req. OLPT OLPT OLPT OLPT Swivel Assembly 602844-1 602844-1 602844-1 602844-1 Spool & Hub Assembly 602726 602726 602704 602704 Drive Spring Assembly 260028-1 260028-1 None None Spring Arbor Kit 600621 600621 600621...
