Operating Instructions
Series RT Spring Driven Hose Reels
Medium and High Pressure Model Numbers:
RT602-OMP RT635-OMP RT602-OHP RT635-OHP
RT603-OMP RT650-OMP RT603-OHP RT650-OHP
RT605-OMP RT825-OMP RT605-OHP RT650-OMPSM
RT802-OMP RT835-OMP RT425-OHP
RT803-OMP RT402-OHP RT435-OHP
RT625-OMP RT403-OHP RT625-OHP
A
B
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
reelcraft@reelcraft.com • www.reelcraft.com

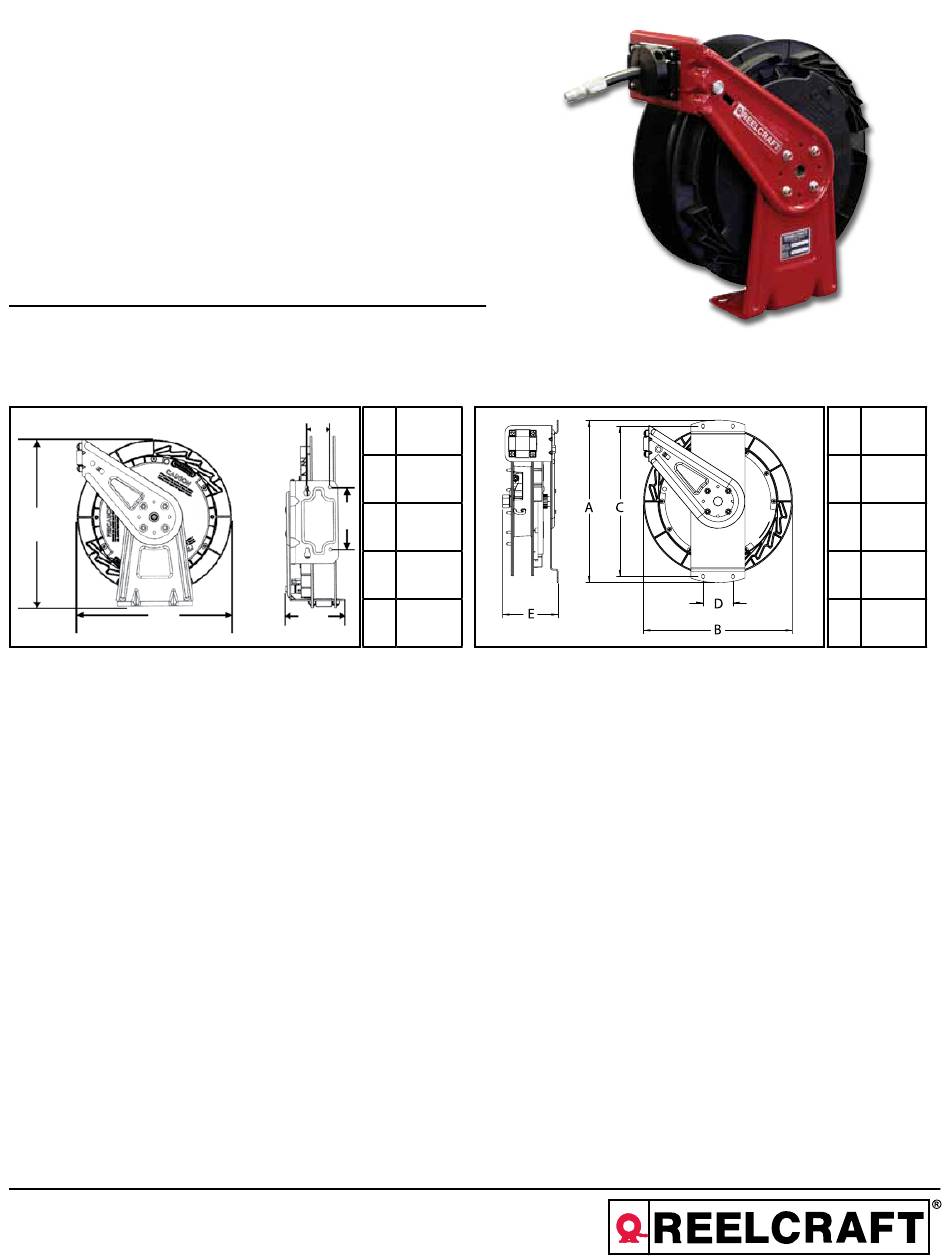

Dimensions
D
A
17 7/8"
B
16 1/2"
C
C
6"
D
2 1/4"
See
E
E
page 6
• A high tension spring assembly is contained within the reel.
• Pull hose from reel by grasping the hose itself, not the control
• Ensure that reel, hose, and equipment being serviced are
properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
• Treat and respect the hose reel as any other piece of machinery,
Exercise extreme caution.
valve.
immediately. Do not pull or jerk on hose!
observing all common safety practices.
A
18"
B
16 7/16"
C
16 11/16"
D
3 5/16"
See
E
page 7
Form# 1121-802B Rev: 3/2012
Advertisement
Table of Contents
Related Manuals for Reelcraft Industries RT635-OMP
Summary of Contents for Reelcraft Industries RT635-OMP
-
Page 1: Operating Instructions
• Before connecting reel to supply line, ensure that pressure does not exceed maximum working pressure rating of reel. • Ensure that reel, hose, and equipment being serviced are properly grounded. Use an ohmmeter to check ground • Remember, even low pressure is very dangerous and can cause continuity. personal injury or death. • If reel ceases to unwind or rewind, remove system pressure • Be aware of machinery and personnel in work area. immediately. Do not pull or jerk on hose! • If a leak occurs in the hose or reel, remove system pressure • Treat and respect the hose reel as any other piece of machinery, observing all common safety practices. immediately. Form# 1121-802B Rev: 3/2012 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 reelcraft@reelcraft.com • www.reelcraft.com... - Page 2 Series RT Spring Driven Hose Reels Mounting the Hose Reel Prior to mounting the hose reel, ensure that the supply line pressure does not exceed the maximum working pressure of the hose reel. Do not exceed the maximum installation height of 16’ unless the reel was specified differently when ordering.
- Page 3 Series RT Spring Driven Hose Reels Adjusting the Hose Bumper Pull out the hose until the latch pawl is engaged. The hose bumper may be adjusted by loosening the slotted screws shown in figure 6. Slide the bumper to the desired position and tighten the screws BEFORE PULLING HOSE to disengage the latch pawl.
- Page 4 Series RT Spring Driven Hose Reels Replacing the Latch Pawl Remove the guide arm by following the procedure for “Removing the Guide Arm”. Remove the retaining nut as shown in figure 9. Replace the latch pawl assembly. Replace and tighten the retaining nut. Replace the guide arm and hose bumper by following the proce- dure for “Positioning the Guide Arm”.
- Page 5 Series RT Spring Driven Hose Reels Replacing the Spool Assembly Attach the reel securely to prevent it from moving. Pull out the hose just until the latch pawl is engaged. Remove the hose bum- per by removing the slotted screws (figure 6). Disengage the latch pawl while maintaining a firm hold on the spool.
- Page 6 Series RT Spring Driven Hose Reels Item RT602- RT603- RT605- RT802- RT803- RT625- RT635- RT650- RT825- RT835- Description Req. 1/4-20 Lock Nut 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 Spool Assembly 600878 600878 602011 600879 600879 600878 600878 602011 600879 600879 U-Bolt 3-117440...
- Page 7 Series RT Spring Driven Hose Reels Item Description Req. RT650-OMPSM 1/4-20 Lock Nut 261650-1 Spool Assembly 600828 U-Bolt 3-117440 Latch Pawl Assembly 600823 Guide Arm Assembly 600826 Nut 1/2” S76-108 Hose Bumper A1-HR1004 Hose Assembly 601013-50 10 Nut 5/16” 261650-2 11 Shaft / Bracket Assembly 600264 12 Spacing Washer 300034 13 Snap Ring 300031 14 Swivel Assembly 602262 “E” Dimensions - See page 1 7 5/16”...
