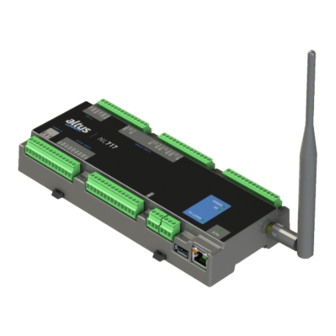

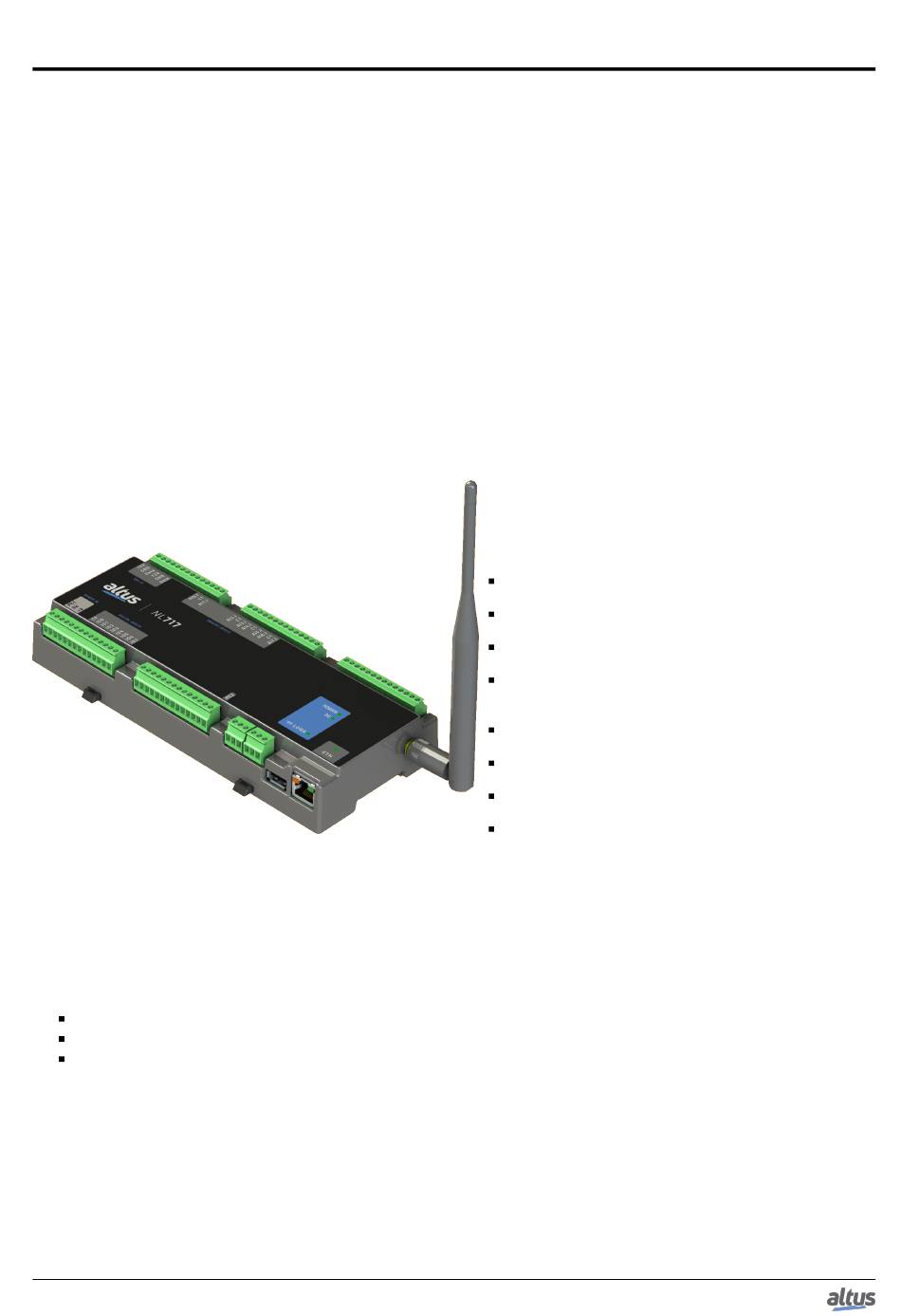

Nexto Logger
Nexto Series
1. Product Description
Nexto Logger is a Datalogger belonging to the Nexto Series product family. It was developed to expand the Series' fields of
activity and provides high-speed processing power in a compact design with digital and analog inputs, SDI-12 communication,
and LoRa long-distance radio integrated into the same equipment.
This product was developed with a focus on monitoring and telemetry applications, in other words, systems that collect
remote data, offering digital and analog inputs, all of them with high precision as required in the hydrological parameter mon-
itoring market, solar energy generation applications, and other areas related to science and monitoring of physical quantities.
In addition to the integrated inputs, it is possible to collect sensor data via SDI-12 network, the data is stored in the Datalog-
ger's internal memory and sent to collection stations via the integrated ethernet network or via the long range radio frequency
infrastructure, LoRa.
Nexto Logger is suitable for data collection in systems that require remote data collection. Its extended power supply
range allows applications in different areas including powering with alternative energy sources such as solar power. It can be
used in applications such as hydrology, sanitation (water and effluents), agribusiness, private and public urban infrastructure,
sensor data collection for data analysis, and other scientific applications as a replacement for traditional analytical methods. In
addition, it is an ideal solution to complement large applications together with the Nexto Series portfolio, extending the range
of applications using the same technology and engineering environment. This is a great advantage for OEMs and integrators
in these application areas where application scalability is required.
2. Ordering Information
2.1. Included Items
The product package has the following items:
Compact NL717 module
Connectors
2dbi Omnidirectional Antenna
Its main features are:
Compact design
DIN rail mount
High-speed 32-bit ARM-based processor
10/100 Mpbs Ethernet interface with protocols like
OPC UA, EtherNet/IP, MODBUS and MQTT
LoRa Long Range Radio
Optoisolated digital inputs
Analog current inputs
Real-time clock (RTC)
1
NL717
CE117100 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nexto Series and is the answer not in the manual?

Questions and answers

Related Manuals for ALTUS Nexto Series

Summary of Contents for ALTUS Nexto Series

  • Page 1 1. Product Description Nexto Logger is a Datalogger belonging to the Nexto Series product family. It was developed to expand the Series’ fields of activity and provides high-speed processing power in a compact design with digital and analog inputs, SDI-12 communication, and LoRa long-distance radio integrated into the same equipment.

  • Page 2: Product Code

    MT8500: MasterTool IEC XE is available in four different versions: LITE, BASIC, PROFESSIONAL and ADVANCED. For more details, please check MasterTool IEC XE User Manual - MU299609. NX92xx: Cable for programming the CPUs of the Nexto Series and Ethernet point-to-point with another device with Ethernet interface communication.

  • Page 3: Product Features

    Nexto Logger NL717 Nexto Series CE117100 Rev. B 4. Product Features 4.1. General Features NL717 Digital Inputs Fast Inputs Max. number of high-speed counters Max. number of external interruptions Current Analog Inputs Ethernet TCP / IP interface Max. number of tasks...
  • Page 4 Nexto Logger NL717 Nexto Series CE117100 Rev. B NL717 RoHS – 2011/65/EU ANATEL (16956-22-14445) Table 3: General Features Notes: For more details, please consult: www.gov.br/anatel. This equipment is not entitled to protection against harmful interference and may not cause interference to properly autho- rized systems.
  • Page 5 Nexto Logger NL717 Nexto Series CE117100 Rev. B 4.2. Memory NL717 Direct representation input variable memory (%I) 2 Kbytes Direct representation output variable memory (%Q) 2 Kbytes Direct representation variable memory (%M) 1 Kbytes Symbolic variable memory 2 Mbytes Maximum amount of memory configurable as retentive or persistent...
  • Page 6 Nexto Logger NL717 Nexto Series CE117100 Rev. B 4.4. Ethernet Ethernet Connector Shielded female RJ45 Auto crossover Maximum cable length 100 m Cable type UTP or ScTP, category 5 Baud rate 10/100 Mbps Physical layer 10/100 BASE-TX Data link layer...

  • Page 7: Power Supply

    Nexto Logger NL717 Nexto Series CE117100 Rev. B SDI-12 Transmission Rate 1200 bps Protocols SDI-12 Master Version 1.4 Max SDI-12 Sensors Table 8: SDI-12 Interface Feature Note: For the correct operation of the SDI-12, the MainTask must be configured with a time lower than or equal to 20 ms.

  • Page 8: Fast Inputs

    Nexto Logger NL717 Nexto Series CE117100 Rev. B 4.9. Fast Inputs Fast Inputs 4 (can be used as high-speed counter, External interrupt or Number of fast inputs normal input) Max. number of high-speed counters Max. number of external in- terrupts...
  • Page 9 Nexto Logger NL717 Nexto Series CE117100 Rev. B Current Input Mode Input ranges Range Engineering Scale Resolution 0 to 20 mA 0 to 30.000 5,12 A 4 to 20 mA 0 to 30.000 5,12 A Precision 0,3 % of full scale @ 25 C...

  • Page 10: Compatibility With Other Products

    5. Compatibility with Other Products To develop an application for Nexto Series CPUs, it is necessary to check the version of MasterTool IEC XE. The following table shows the minimum version required (where the controllers were introduced) and the respective firmware version at that...

  • Page 11: Electrical Installation

    Nexto Logger NL717 Nexto Series CE117100 Rev. B 6.1. Electrical Installation DANGER When executing any installation in an electric panel, certify that the main energy supply is OFF. Figure 1: Electrical Installation...
  • Page 12 Nexto Logger NL717 Nexto Series CE117100 Rev. B Diagram Notes: 1. Protective Earth terminal for power supply. Shall be externally connected to ground. 2. External power supply connection. 3. Typical connection of digital input (sink type). C0 is the common point for the isolated group I00 to I07.

  • Page 13: Physical Dimensions

    Nexto Logger NL717 Nexto Series CE117100 Rev. B 6.2. Physical Dimensions Dimensions in mm. Figure 2: Physical Dimensions...

  • Page 14: Configuration And Usage

    Nexto Logger NL717 Nexto Series CE117100 Rev. B Configuration and Usage The configuration of the Nexto Logger NL717 in a LoRaWAN network is performed through an application for CPUs developed in the MasterTool IEC XE software in conjunction with the LoRa "NextoLora" library. Will be described in this topic the entire routine of creating an application and configuring the NL717 in a LoRa network, from registering the activation keys to using the library to send and receive data through the LoRaWAN network.
  • Page 15 Nexto Logger NL717 Nexto Series CE117100 Rev. B Figure 3: File -> New Project... Next, select the "MasterTool Standard Project" template, indicate the project name and path to be saved, and continue by clicking the "OK" button as illustrated in the figure below.
  • Page 16 Nexto Logger NL717 Nexto Series CE117100 Rev. B Figure 5: Selecting the device With the new project created it’s necessary to add the LoRaWAN interface library. To do this, access the "Library Manager" menu. The figure below illustrates the menu in question.
  • Page 17 Nexto Logger NL717 Nexto Series CE117100 Rev. B Figure 7: Add library In the search bar type "Nexto" and in the results you will find the "LibNextoLora" library as shown in the figure below. Double-click on it to add it to the project.
  • Page 18 Nexto Logger NL717 Nexto Series CE117100 Rev. B Figure 9: LibNextoLora library struct To configure the LibNextoLora library blocks, see the following sections. 7.1. Usage of the LibNextoLora library 7.1.1. Configuration The LibNextoLora library has a main block called LORA_MASTER, this block is responsible for executing the configu- ration and usage routines for the LoRa device.
  • Page 19 Nexto Logger NL717 Nexto Series CE117100 Rev. B The use of this structure is quite simplified and can be seen in the figure below. Besides the access keys, which should be passed via a pointer to the array where they are stored, there is a variable type for each given parameter, in these types are listed the applicable configuration options available.
  • Page 20 Nexto Logger NL717 Nexto Series CE117100 Rev. B 8. FSB8 ADAPTATIVE_DATA_RATE: The Data Rate parameter of LoRa communication indicates the bandwidth at which the message will be sent. The higher the Data Rate, the greater the capacity for sending data, i.e. more data can be sent in a single message.
  • Page 21 Nexto Logger NL717 Nexto Series CE117100 Rev. B Once the configuration structure LORA_RADIO_SET_PARAMETERS has been properly filled in the LORA_CONFIG input and the ENABLE input of the LORA_MASTER block is set to TRUE, the block will run and start the library configuration and join of the LoRa device on the server with the entered keys, the progress of the process can be observed through the LORA_STATE output of the block.
  • Page 22 Nexto Logger NL717 Nexto Series CE117100 Rev. B 7.1.4. Received messages Messages received by the LoRa device can be viewed via the PAYLOAD_RECEIVED output of the block, a data structure of type PYLD_RECEIVED is used to report the received message data, these are: PYLD_COUNTER: Informs the total number of messages received;...
  • Page 23 The table below is only a guide of some relevant documents that can be useful during the use, maintenance, and program- ming of this product. Code Description Language CE114000 Nexto Series – Technical Characteristics English CT114000 Série Nexto – Características Técnicas Portuguese CS114000 Serie Nexto –...
