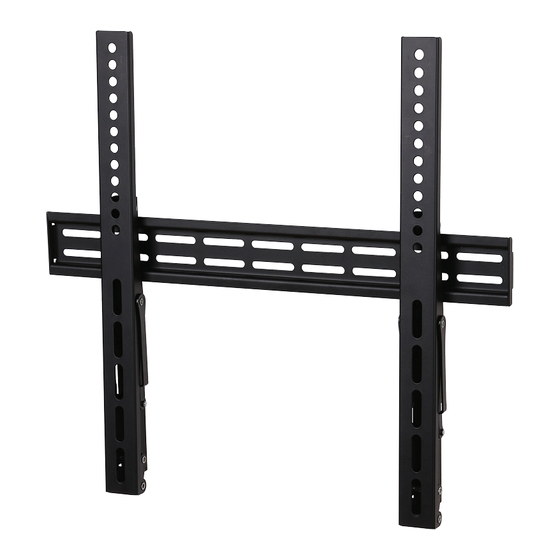

- Page 1 Flat to Wall Tilting TV Mount Instruction Manual STM19...
-
Page 2: Safety Warnings
Safety Warnings WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION • It is the installers’ responsibility to verify that the wall will safely support the total load of the TV and the TV bracket. Never exceed the designated maximum TV load. •... - Page 3 Unpacking Soft pad Wall Template In st ru c ti o n M a n u a l M4 × 15 M4 × 35 M5 × 15 M5 × 30 M6 × 15 M6 × 35 M8 × 20 M8 × 35 M8 ×...
-
Page 4: Installation
Installation 60 mm Ø10.5 mm 60 mm Ø4.5 mm Ensure mounting screws are in the centre of the timber stud. - Page 5 M5-M6 B10 B11 B1 B2 B3 B4 B5 B6 B7 B8 B9 Use spacers provided for mounting TVs with curved/recessed backs, recessed mounting holes, or to allow access to A/V inputs. Place the soft pad as desired to act as cushion between the TV and the bracket.
- Page 6 2 people are required to lift the unit during assembly.
- Page 8 Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate. Currys Group Limited (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative Currys Ireland Limited (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-STM19-211026V3...
