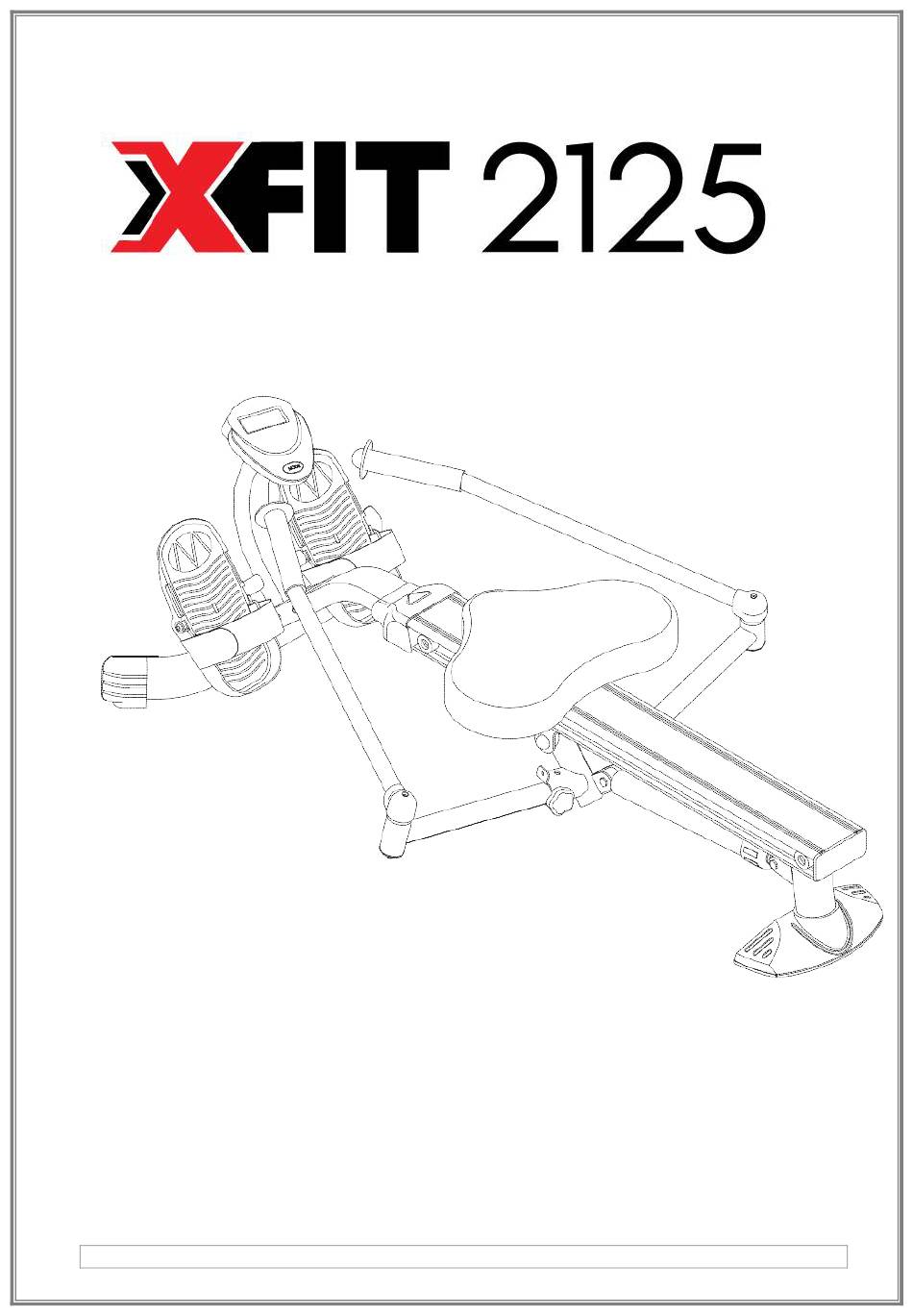

- Page 1 Rowing Machine Owner’s Manual * Product specifications may differ from the photo and are subject to change without notice.
-
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for choosing the X-FIT 2125. We take great pride in producing this quality product and hope it will provide many hours of quality exercise to make you feel better, look better, and enjoy life to its fullest. -
Page 5: Hardware Identification Chart
HARDWARE IDENTIFICATION CHART This chart is provided to help identify the warning, caution, and notice labels on the X-FIT 2125. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels. WARNING LABEL(67) WARNING For consumer use only. Failure to follow all warnings and instructions could result in serious injury or death. - Page 6 HARDWARE IDENTIFICATION CHART This chart is provided to help identify the fasteners used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.
- Page 7 ASSEMBLY INSTRUCTIONS Note: Assembly requires 2 people. STEP 1 Lay the Main Frame Assembly on the floor as shown in the illustration. Now refer to inset drawing A. Make sure the Key Rib in the STABILIZER CAP(5) aligns with the slot in the REAR SUPPORT(4), then press the STABILIZER CAP(5) onto the REAR SUPPORT(4).
- Page 8 ASSEMBLY INSTRUCTIONS STEP 2 Insert the Bracket on FRONT STABILIZER(28) into the FRONT SUPPORT(26). Attach the METER POST(31) to the FRONT SUPPORT(28), then bolt the METER POST(31), FRONT SUPPORT(26), and FRONT STABILIZER(28) together with BUTTON HEAD BOLTS(M8x1.25x15mm)(51) and WASHERS(M8)(59). Please do not tighten any of these bolts until all six bolts are attached. NOTE: Be careful not to damage the EXTENSION WIRE(38) when assembling the METER POST(32).
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Insert the PEDAL SHAFT(32) through holes located on the METER POST(31). Place a PEDAL SPACER(33) and a PEDAL(34) onto each end of the PEDAL SHAFT(32) and slide them toward the METER POST(31). Then secure the PEDALS(34) with BUTTON HEAD BOLTS(M8x1.25x15mm)(51) and LARGE WASHERS (M8)(36) at both ends of the PEDAL SHAFT(32).
- Page 10 ASSEMBLY INSTRUCTIONS STEP 6 Unfold the HANDLEBARS(17, 18) and the EXTENSION ARMS(14) as shown in the illustration. Attach the EXTENSION ARMS(14) to the PIVOT CONNECTOR(10) with the LOCKING KNOBS(13). STEP 7 Install two AA batteries into the METER(37), the batteries are not included. See page 12 for detailed battery installation instructions.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 8 Slide the SEAT ASSEMBLY(42, 43) onto the CENTER BEAM(1). Attach the SEAT STOPPERS(3) to the back end of the CENTER BEAM(1) with BUTTON HEAD BOLTS(M8x1.25x25mm)(53). Also, please verify that the other SEAT STOPPERS(3) at the front end of the CENTER BEAM(1) are assembled at the factory. STEP 9 Press the CENTER BEAM CAP(2) into the back end of the CENTER BEAM(1).
-
Page 12: Operational Instructions
OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON : Seat movement or press the button. POWER OFF : Aut omat ically shuts off after four minutes of inactivity. MODE/RESET BUTTON: Press to select display functions, including SCAN, TIME, TOTAL COUNT, COUNT, and CALORIES. Press and hold for two seconds to reset all functions to zero, except TOTAL COUNT. -
Page 13: Load Adjustment
End of Pedal Strap MAINTENANCE The safety and integrity designed into the X-FIT 2125 can only be maintained when is regularly examined for damage and wear. Special attention should be given to the following: 1. Pull on the HANDLEBARS(17, 18) and verify that the SHOCK(22) provides tension. - Page 14 2. Grasp the Front and Rear Stabilizer to move it. Do not use the Seat to move the X-FIT 2125. The Seat will move and the Seat Carriage may pinch your hand or fingers. 3. To avoid damage to the electronics, remove the batteries before storing the X-FIT 2125 for one year or more.
-
Page 15: Warm-Up And Cool-Down
WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place. -
Page 16: Product Parts Drawing
PRODUCT PARTS DRAWING FRONT BACK... -
Page 17: Part List
PART LIST PART# PART NAME Center Beam Center Beam Cap Seat Stopper Rear Support Stabilizer Cap Stabilizer Pad Threaded Support Plate Handlebar Support Sensor Support Plate Pivot Connector Pivot Bushing Bumper Knob Locking Knob Extension Arm Extension Arm Bushing Large Washer (M12) Left Handlebar Right Handlebar Securing Cap... - Page 19 PART LIST PART# PART NAME Wave Washer (ø20 x ø23.5 x 0.5mm thick) Screw, Round Head (M5 x 0.8 x 12mm) Bolt, Round Head (M6 x 1 x 15mm) Bolt, Button Head (M8 x 1.25 x 15mm) Bolt, Button Head (M8 x 1.25 x 20mm) Bolt, Button Head (M8 x 1.25 x 25mm) Bolt, Button Head (M8 x 1.25 x 50mm) Bolt, Hex Head (M8 x 1.25 x 30mm)
- Page 20 TERMS OF WARRANTY • Warranty period is 2 years for mechanical, electrical / electronic parts and 5 years for the metal frame. • X-TREME STORES S.A. undertakes to repair the machine free of charge in the event of damage due solely to a manufacturing fault.
- Page 23 Koupi Avenue 34, Koropi P.C. 19441 P.O.Box 6201 Tel.: 210 66 20 921 -2 - FAX: 210 66 20 923 E-mail: info@xtr.gr • f/xtrstores • /@xtr.gr Tel for all Greece: 801.11.15.100 www.xtr.gr...
