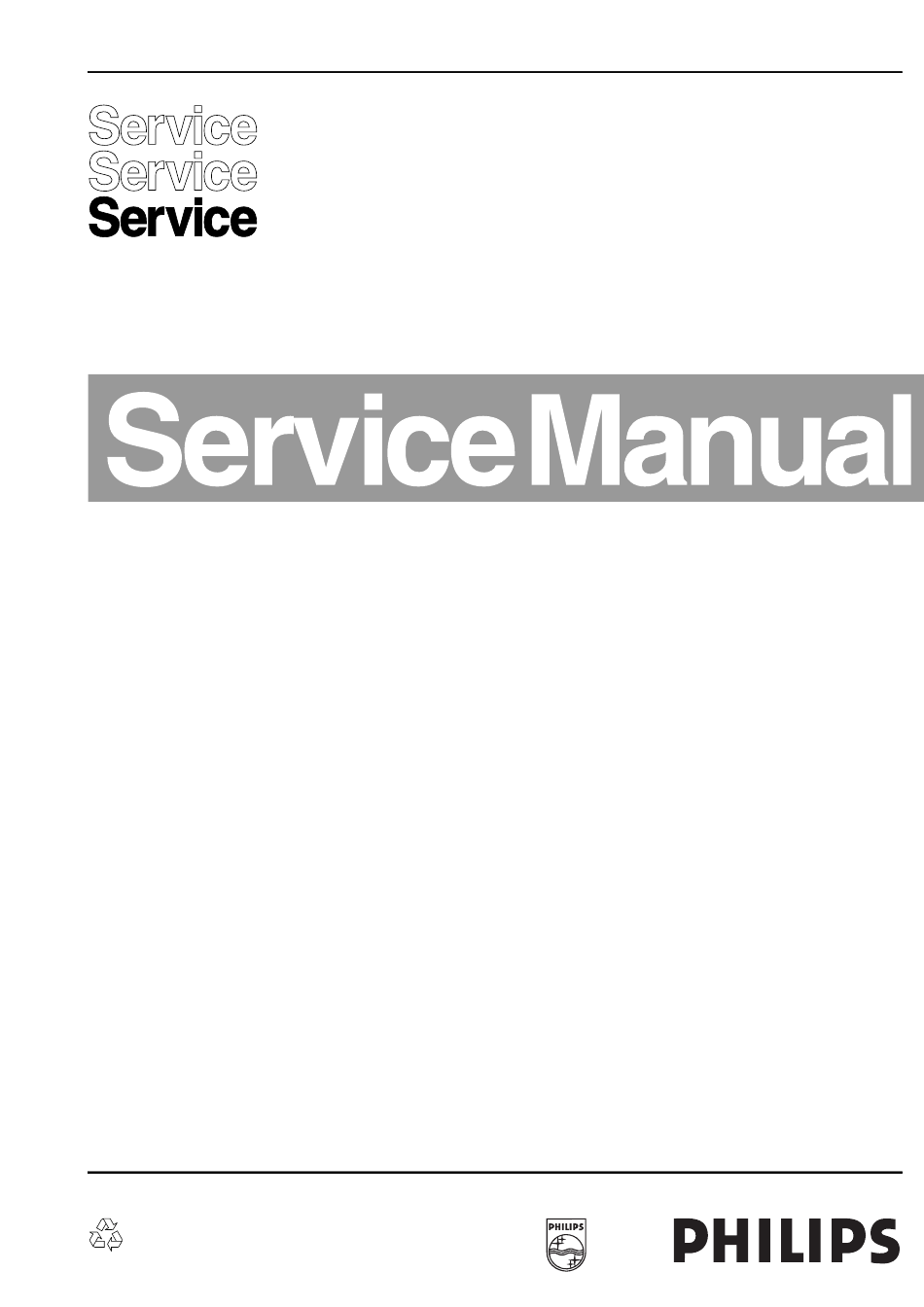

Colour Television
©
Copyright 2002 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by WO 0267 Service PaCE
Supplement on Service Manual EM5E
For DVD Module use Service Manual DVD SD-3
Contents
6. Block- and Wiring Diagrams
2
I
C Overview
7. Electrical Diagram's And PWB's
DVD-Dolby Interf. Power Supply(Diagram MM3) 30
DVD-Eject Button
Amplifier Panel Surround Spk. (Diagram W1) 40
Supply Panel Surround Spk.
Connector Panel Surround Spk. (Diagram W3
Led Panel Surround Spk.
Printed in the Netherlands
Page
2
3
7
17
19
17
18
19
20
21
22
Diagram PWB
(Diagram E)
23
24
(Diagram F)
25
26-27
(Diagram MM1) 28
31-32
(Diagram MM2) 29
31-32
31-32
(Diagram MM4) 33
33
(Diagram O)
33
34
(Diagram P)
35
35
(Diagram R)
36
37
(Diagram U)
38
39
41
(Diagram W2) 42
42
43
43
(Diagram W4) 44
44
45
45
45
46
Subject to modification
Chassis
EM5E-DVD
(3122 785 12560)
(3211 785 11010)
EN 3122 785 12890
AA

Advertisement

Table of Contents
loading

Summary of Contents for Philips EM5E-DVD

  • Page 1: Table Of Contents

    All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips. Published by WO 0267 Service PaCE...
  • Page 2: Technical Specifications, Connections & Chassis Overview

    EN 2 EM5E-DVD Technical Specifications, Connections & Chassis Overview 1. Technical Specifications, Connections & Chassis Overview Technical specifications Standby consumption : 1.1 W TV set + 6.5 W Surround speakers Connections 1.2.1 Rear Connections and Side I/O REAR CONNECTIONS SIDE I/O...
  • Page 3 Technical Specifications, Connections & Chassis Overview EM5E-DVD EN 3 Chassis Overview CRT PANEL TOP CONTROL PANEL SIDE I/O PANEL SMALL SIGNAL BOARD DVD ENGINE EJECT BUTTON DVD INTERFACE PANEL MAINS SWITCH PANEL LARGE SIGNAL PANEL DC-SHIFT I/O 3rd SCART (optional) DAF PANEL CL 26532020_020.eps...
  • Page 4: Safety And Maintenace Instructions, Warnings And Notes

    EN 4 EM5E-DVD Safety and Maintenance Instructions, Warnings, and Notes 2. Safety and Maintenance Instructions, Warnings, and Notes Safety Instructions Warnings Safety regulations require that during a repair: • In order to prevent damage to ICs and transistors, avoid all •...
  • Page 5 Safety and Maintenance Instructions, Warnings, and Notes EM5E-DVD EN 5 • The semiconductors indicated in the circuit diagram and in the parts lists, are interchangeable per position with the semiconductors in the unit, irrespective of the type indication on these semiconductors.
  • Page 6: Directions For Use

    EN 6 EM5E-DVD Directions for Use 3. Directions for Use...
  • Page 7 Directions for Use EM5E-DVD EN 7...
  • Page 8 EN 8 EM5E-DVD Directions for Use...
  • Page 9 Directions for Use EM5E-DVD EN 9...
  • Page 10 EN 10 EM5E-DVD Directions for Use...
  • Page 11 Directions for Use EM5E-DVD EN 11...
  • Page 12 EN 12 EM5E-DVD Directions for Use...
  • Page 13 Directions for Use EM5E-DVD EN 13...
  • Page 14: Mechanical Instructions

    EN 14 EM5E-DVD Mechanical instructions 4. Mechanical instructions Service Positions The following PWB's or modules are added for DVD (see also PWB location drawing): 1. DVD Interface panel. 2. DVD Module. 4.1.1 DVD Interface Panel • For better accessibility of the panel, remove the complete PWB from its bracket.
  • Page 15 SSB shielding en than between the cable relief of the scavem-assy (Auto-scavem board itself is not present in EM5E-DVD), and from there to the DVD-interface. (See figure “Cable routing 1”) •...
  • Page 16: Faultfinding And Repair Tips

    ‘DVD Module SD-3’ (3122 785 11010) and Service Information ‘DVD SD3 Monoboard’ (3122 785 40490). Error Codes Two new error codes are introduced for the EM5E-DVD, Error 29 and 31, see table below. Table 5-1 Error code table. Error Device Description Def.
  • Page 17: Wiring Diagram

    Wiring Diagram, Block Diagrams and Overviews EM5E-DVD 6. Wiring Diagram, Block Diagrams and Overviews Wiring Diagram DEGAUSSING COIL CENTRE TOP CONTROL PANEL SPEAKER AQUADAG 0215 A (LOT) (COMPONENT VIEW) FRAME ROTATION 1940 COIL 1483 BROWN 1010 1435 BLUE 1009 1008...
  • Page 18: Block Diagram Dvd-Dolby Interface Panel

    Wiring Diagram, Block Diagrams and Overviews EM5E-DVD Block Diagram DVD-Dolby Interface Panel BLOCK DIAGRAM DVD INTERFACE BOARD AUDIO VIDEO 7134-A VOUT1P 7120-A +3V3 2140 R_DVD_IN Y_AV3_OUT VOUT1N C_AV3_OUT 7130 R_FRONT_IN MUTE_AV L_AV3_OUT PCM_OUT0 7146* LRCLK R_AV3_OUT SCLK PCM_CLK +3V3 * = FOR DVD-NON DPL...
  • Page 19: Block Diagram Video

    Wiring Diagram, Block Diagrams and Overviews EM5E-DVD Block Diagram Video VIDEO TUNER, IF, I/O PICNIC SIM CONN. SIM CONN. FROM SIMM-CONNECTOR CONN. VIDEOPROC. BLOCK DIAGRAM (FEMALE) (MALE) (HIP) 'CONROL' 1205 1000 CONTROL 7402 CVBS-TXT CVBS-TER-OUT CVBS-TER-OUT 1406 7307 7411 7322...
  • Page 20: Block Diagram Audio

    Wiring Diagram, Block Diagrams and Overviews EM5E-DVD Block Diagram Audio AUDIO AUDIO DEMODULATOR AUDIO AMPLIFIER 1651 18M432 7675, 7668 +5V2 MUTE-SSB ANTI-PLOP 7651 SEE ALSO -16V-19V +16V+19V +5V_AUD CIRCUIT BLOCK DIAGRAM MSP3452G VIDEO 7702 CONN. CONN. 7323 TDA7490 7666 1000 1205...
  • Page 21 Wiring Diagram, Block Diagrams and Overviews EM5E-DVD C IC’s Overview I/O, VIDEO PROC. AUDIO PICNIC FALCONIC +5V2_CON +5V2_CON DEMODULATOR 3044 3069 3064-D5 SDA-F SDA-F 3064-C6 SCL-F SCL-F 3377 3376 3454 3455 3321 3320 3655 3656 3710 3709 SDA-D SCL-D 7001...
  • Page 22: Supply Lines Overview

    Wiring Diagram, Block Diagrams and Overviews EM5E-DVD Supply Lines Overview SUPPLY LINES ROTATING RC5 RECEIVER TUNER I/O 3RD SCART WIRELESS TRANSMITTER IF/IO MAINS SWITCH MAIN SUPPLY +8Vp 3509 CIRCUITRY SIM CONN. WIRELESS DOLBY PANEL (PARTLY) 3510 3473 +11V 5.2V_MP 3500...
  • Page 23: Mains Switch Panel

    Circuit Diagrams and PWB Layouts EM5E-DVD 7. Circuit Diagrams and PWB Layouts Mains Switch Panel 0201 A7 0245 D1 1040 E3 2071 E8 3037 A8 3042 E5 3051 B5 3054 A4 3072 E9 3075 E10 3999 A9 6070 E7 9010 C8...
  • Page 24 Circuit Diagrams and PWB Layouts EM5E-DVD Layout Mains Switch Panel (Top Side) Layout Mains Switch Panel (Bottom Side) 0201 A1 0201 A2 0202 B1 0202 B2 0241 A2 0245 A2 0241 A2 1010 B2 0245 A1 1031 B2 1040 A2...
  • Page 25: Crt Panel

    Circuit Diagrams and PWB Layouts EM5E-DVD CRT Panel 0031 F7 1298-A G12 1298-K H9 2306 C6 2321 E5 2403 H6 2420 A7 3304 A8 3323 B7 3340 E8 3355 A9 3404 G3 3419 A8 5300 B11 6401 H5 9310 A12...
  • Page 26 Circuit Diagrams and PWB Layouts EM5E-DVD Layout CRT Panel (Top Side) 0031 1237 1298 1424 1434 1435 1483 1940 2300 2301 2304 2307 2313 2316 2317 2319 2324 2336 2403 2404 2405 2406 2407 2422 2423 3300 3301 3323 3329...
  • Page 27 Circuit Diagrams and PWB Layouts EM5E-DVD Layout CRT Panel (Bottom Side) 2302 C3 2306 B3 2309 C2 2315 B1 2318 A1 2320 A1 2321 A1 2322 A1 2323 A1 2325 B3 2330 B2 2332 A1 2333 A1 2334 A1 2408 B2...
  • Page 28: Dvd-Dolby Interface Audio

    Circuit Diagrams and PWB Layouts EM5E-DVD DVD Dolby Interface Panel: Audio 0221 E1 4159 F7 0224 E1 5100 F9 0225 E10 5129 B3 DVD-DOLBY INTERFACE - AUDIO 0254 A1 5161 A1 0264 F7 7100 E10 1100 F11 7120-A A10 3138...
  • Page 29: Dvd-Dolby Interface Video

    Circuit Diagrams and PWB Layouts EM5E-DVD DVD Dolby Interface Panel: Video 0239 A8 0240 E1 0255 A1 0266 D1 DVD-DOLBY INTERFACE - VIDEO 2200 B5 2201 D5 2211 E5 +5VSTDBY +5VSTDBY 2216 F5 2220 B8 2232 F2 3230 3231 2233 F2...
  • Page 30 Circuit Diagrams and PWB Layouts EM5E-DVD DVD Dolby Interface Panel: Power Supply 0206 B1 0265 B11 0302 E11 1313 C3 DVD-DOLBY INTERFACE - POWER SUPPLY 2300 A5 2301 A6 2302 B2 2303 B2 2304 A5 2316 C6 +12VSTDBY 9305 2317 D5...
  • Page 31 Circuit Diagrams and PWB Layouts EM5E-DVD Layout DVD Dolby Interface Panel (Top Side) 0206 C1 9029 D2 0221 B6 9030 C4 0224 A6 9031 D2 0225 D5 9032 D2 0239 D3 9033 D3 0240 A4 9034 D3 0254 D5 9036 B3...
  • Page 32 Circuit Diagrams and PWB Layouts EM5E-DVD Layout DVD Dolby Interface Panel (Bottom Side) 2100 C1 3144 B1 7147 B3 2101 D1 3146 B2 7150 A1 2103 D1 3147 B2 7162 A2 2104 D1 3149 A1 7200 B4 2120 A3 3150 A1...
  • Page 33: Side Io Panel

    Circuit Diagrams and PWB Layouts EM5E-DVD DVD Eject Button Side I/O Panel 0267 A1 1110 B2 SIDE IO PANEL DVD EJECT EURO 0240 A4 1256-B A1 2297 E3 3291 B2 3297 E3 6294 E2 SG06 E1 1254 D1 2286 A3...
  • Page 34 Circuit Diagrams and PWB Layouts EM5E-DVD Layout Side I/O Panel (Top Side) Layout Side I/O Panel (Bottom Side) CL 06532012_024.eps CL 06532012_025.eps 040200 040200...
  • Page 35: Top Control Panel

    Circuit Diagrams and PWB Layouts EM5E-DVD Top Control Panel Layout Top Control Panel 0215 A1 1093 B4 2010 B1 3088 C3 3091 A2 3094 B3 3097 C3 4090 C2 4093 A3 6092 B4 1091 B2 1094 C4 3086 A4 3089 C3...
  • Page 36: Wireless Transmittter

    Circuit Diagrams and PWB Layouts EM5E-DVD Wireless Transmitter 1401 F 2 3492 F 2 1401 H 2 3494 I 2 1402 D 1 3495 I 2 WIRELESS TRANSMITTER 1403 H21 3496 I 2 1404 L20 3497 I 4 1405 E15...
  • Page 37 Circuit Diagrams and PWB Layouts EM5E-DVD Layout Wireless Transmitter (Top Side) Layout Wireless Transmitter (Bottom Side) 24 47 24 11 2 4 6 7 2 4 5 8 4 4 3 6 24 18 24 16 3 5 1 1...
  • Page 38: Wireless Receiver

    Circuit Diagrams and PWB Layouts EM5E-DVD Wireless Surround Receiver 1700 E1 4701 A12 1710 E2 5701 H15 1765 I1 5702 I15 WIRELESS SURROUND RECEIVER 1790-1 I16 5703 I15 1790-2 J16 5704 J15 1790-3 K16 5705 F2 1790-4 H16 5706 F4...
  • Page 39 Circuit Diagrams and PWB Layouts EM5E-DVD Layout Wireless Surround Receiver (Top Side) Layout Wireless Surround Receiver (Bottom Side) CL 06532109_012.eps 280900 CL 06532109_011.eps 180900...
  • Page 40 Circuit Diagrams and PWB Layouts EM5E-DVD Amplifier Panel Surround Speakers AMPLIFIER CONNECTOR CONNECTOR SOPS SUPPLY CL 06532109_017.eps 280900...
  • Page 41 Circuit Diagrams and PWB Layouts EM5E-DVD Layout Amplifier Panel Surround Speakers (Top Side) Layout Amplifier Panel Surround Speakers (Bottom Side) CL 06532109_022.EPS 190900 CL 06532109_023.EPS 190900...
  • Page 42 Circuit Diagrams and PWB Layouts EM5E-DVD Supply Panel Surround Speakers Layout Supply Panel Surround Speakers COMPONENT SIDE SOPS SUPPLY COPPER SIDE CL 06532109_018.eps 201000 CL 06532109_004.eps 201000...
  • Page 43 Circuit Diagrams and PWB Layouts EM5E-DVD Connector Panel Surround Speakers Layout Connector Panel Surround Speakers COMPONENT SIDE CONNECTOR COPPER SIDE CL 06532109_019.eps 280900 CL 06532109_003.eps 201000...
  • Page 44 Circuit Diagrams and PWB Layouts EM5E-DVD LED Panel Surround Speakers Personal Notes: CL 06532109_020.eps 280900 Layout LED Panel Surround Speakers CL 06532109_021.eps 201000...
  • Page 45: Alignments

    Alignments EM5E-DVD EN 45 8. Alignments Reprogramming of New Mono Boards. For Alignments of the TV-set see Service Manual ‘EM5E AA’ (3122 785 12560). For Alignments of the DVD Module see Service Manual ‘DVD Module SD-3’ (3122 785 11010) and Service Information ‘DVD SD3 Monoboard’...
  • Page 46: Spare Parts List

    EN 46 EM5E-DVD Spare parts list 10. Spare parts list Large signal panel [A] 2150 5322 126 11583 10nF 10% 50V 0603 2621 2238 586 59812 100nF 50V 2152 4822 121 70162 10nF 5% 400V 2622 4822 124 40255 100µF 20% 63V...
  • Page 47 Spare parts list EM5E-DVD EN 47 2940 4822 124 23432 100µF 20% 10V 3414 4822 051 30331 330Ω 5% 0.062W 3549 5322 117 13039 220k 1% 0.063W 0603 2941 4822 126 14585 100nF 10% 50V 3415 3198 012 31590 15Ω 3W...
  • Page 48 EN 48 EM5E-DVD Spare parts list 3741 2322 704 61243 12k4 1% 0603 5463 4822 526 11411 Bead 83Ω@100MHz</ 6515 4822 130 33657 BZV85-C6V8 3742 4822 051 30563 56k 5% 0.062W 5465 4822 526 11411 Bead 83Ω@100MHz</ 6516 4822 130 11397 BAS316 3743 4822 117 11449 2k2 5% 0.1W 0805...
  • Page 49 Spare parts list EM5E-DVD EN 49 7908 5322 130 60159 BC846B 9990 4822 051 20008 Jumper 0805 2343 2238 586 59812 100nF 50V 7910 9322 166 03682 LD1085V36 9991 4822 051 20008 Jumper 0805 2350 2238 586 59812 100nF 50V...
  • Page 50 EN 50 EM5E-DVD Spare parts list 2568 3198 016 31020 1nF 25V 2748 2238 586 59812 100nF 50V 3041 4822 051 30472 4k7 5% 0.062W 2569 3198 016 31020 1nF 25V 2749 2020 021 91554 10µF 20% 16V 3042 4822 051 30472 4k7 5% 0.062W...
  • Page 51 Spare parts list EM5E-DVD EN 51 3372 4822 051 30471 470Ω 5% 0.062W 3569 4822 051 30101 100Ω 5% 0.062W 3734 4822 117 12917 1Ω 5% 0.062W CASE0603 3373 4822 051 30008 Jumper 0603 3570 4822 051 30101 100Ω 5% 0.062W 3740 4822 051 30102 1k 5% 0.062W...
  • Page 52 EN 52 EM5E-DVD Spare parts list 6319 4822 130 11397 BAS316 0170 4822 256 10562 Photo diode holder 6334 4822 130 11397 BAS316 0201 2422 025 16268 Connector 2p m 6403 9340 552 30115 BA591 0202 2422 025 16268 Connector 2p m...
  • Page 53 Spare parts list EM5E-DVD EN 53 3544 4822 117 11373 100Ω 1% 0805 DC-shift panel [G] 3545 4822 117 11927 75Ω 1% 0.1W 3546 4822 051 10102 1k 2% 0.25W 3999 4822 051 10102 1k 2% 0.25W 2100 3198 023 21040 100nF 25V...
  • Page 54 EN 54 EM5E-DVD Spare parts list 3206 3198 021 56810 680Ω 5% 3207 3198 021 52220 2k2 5% 3208 3198 021 57590 75Ω 5% 3209 3198 021 57590 75Ω 5% 3285 4822 116 52201 75Ω 167mW 2401 4822 124 12056 1000µF 20% 35V 3210 3198 021 52710 270Ω...
  • Page 55 Spare parts list EM5E-DVD EN 55 3448 4822 117 10837 100k 1% 0.1W 3449 4303 308 75451 10k 5% 0.125W Connector Panel Surround 3449 4822 117 10833 10k 1% 0.1W Speakers [W3] 3450 4303 308 75591 2k2 5% 0.125W 3450 4822 117 11449 2k2 5% 0.1W...
