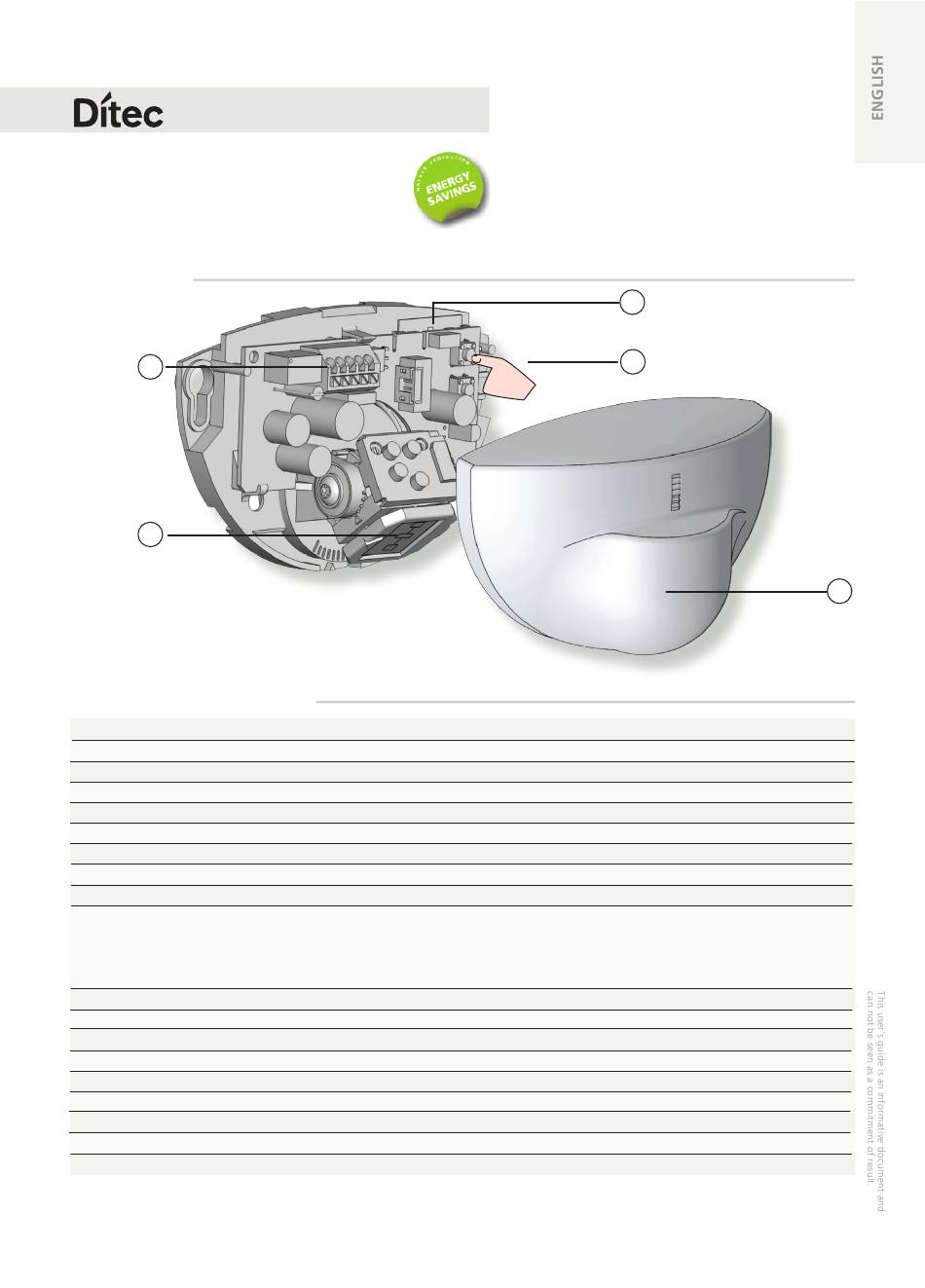

DESCRIPTION
1
2
1.
main connector
2.
wide field antenna
3.
narrow field antenna
4.
push buttons
5.
cover
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage:
Mains frequency:
Max power consumption:
Output:
Max. contact voltage:
Max. contact current:
Max. switching power:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Material:
Weight:
Cable lenght:
Conformity:
* Other use of the device outside of the permitted purpose can not be guaranteed by the manufacturer.
microwave and microprocessor
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
5 cm/s
12V to 24V AC ±10%; 12V to 24V DC +30% / -10%
50 to 60 Hz
< 2 W
relay (free of potential change-over contact)
42V AC/DC
1A (resistive)
30W (DC) / 60VA (AC)
from 1.8 m to 4 m
IP54
from -20 °C to + 55 °C
120 mm (L) x 80 mm (H) x 50 mm (W)
0° to 90° vertical; -30° to +30° lateral
ABS
215 g
2.5 m
RED 2014/53/EU , RoHS 2 2011/65/EU
PASM24W
UNIDIRECTIONAL OPENING SENSOR
FOR AUTOMATIC DOORS*
User's Guide for product version 0600 and higher
See product label for serial number
3
4
Specifications are subject to changes without prior notice.
5
Measured in specific conditions.
