Yamaha HY256-TL-SMF Owner's Manual
Audio interface card
Hide thumbs
Also See for HY256-TL-SMF:
- Owner's manual (22 pages) ,
- Owner's manual (21 pages) ,
- Owner's manual (21 pages)
Related Manuals for Yamaha HY256-TL-SMF
Summary of Contents for Yamaha HY256-TL-SMF

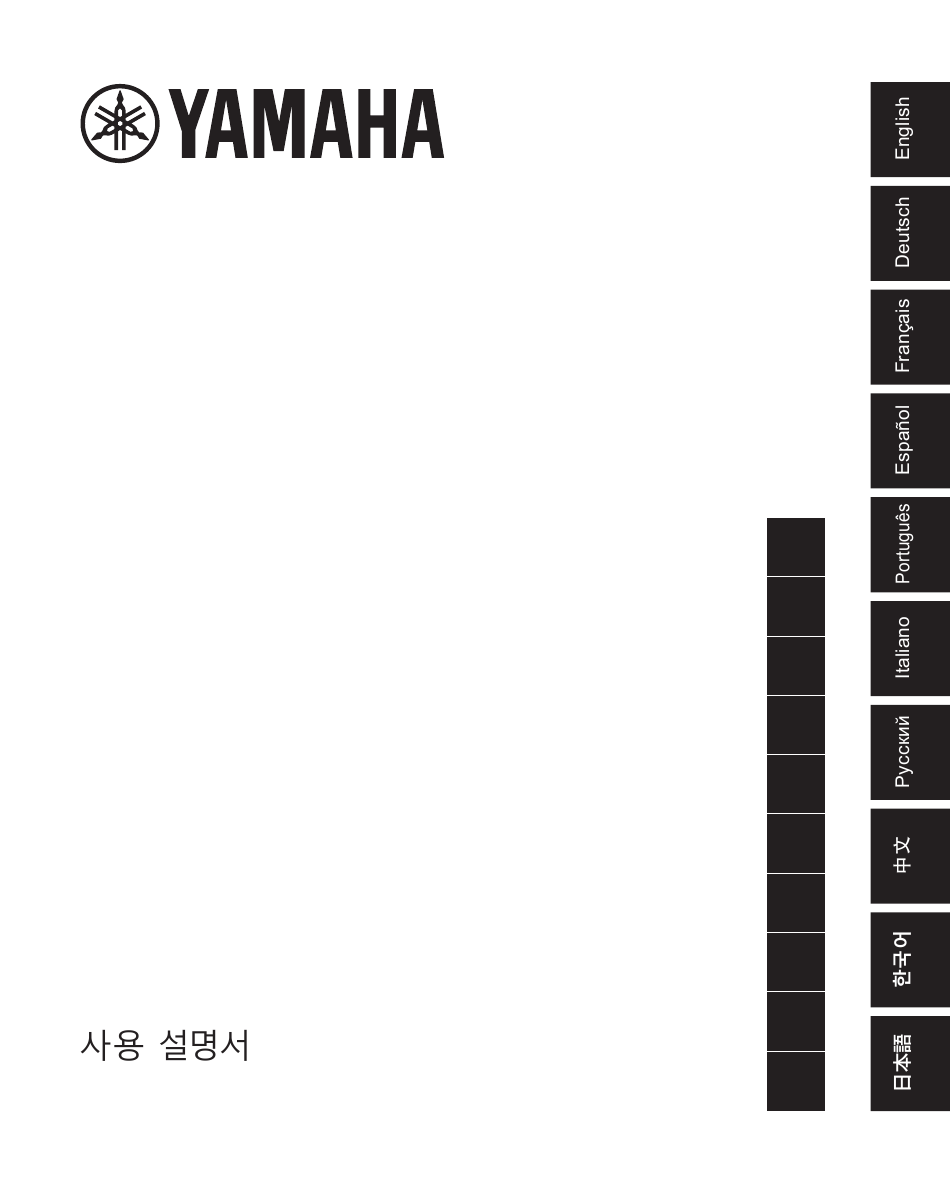

- Page 1 AUDIO INTERFACE CARD TL - SMF HY 256 Owner’s Manual Bedienungsanleitung Mode d’emploi Manual de instrucciones Manual do Proprietário Manuale di istruzioni Руководство пользователя 使用说明书 取扱説明書...
- Page 2 America or its subsidiaries. harmful to the operation of other electronic * This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two...
-
Page 3: Precautions
• Before installing the card in a device, check to make sure that the device is compatible with the card. Also, do not install the card in any Yamaha products not specified by Yamaha for use with the card in order to avoid possible electrical shock, fire, or device damage. -
Page 4: Notice
In the event you look at the laser, it may damage your eyes. Yamaha cannot be held responsible for damage caused by improper use or modifications to the device, or data that is lost or destroyed. - Page 5 • The illustrations as shown in this manual are for instructional purposes only. • The company names and product names in this manual are the trademarks or registered trademarks of their respective companies. European Models Purchaser/User Information specified in EN55103-2:2009. Conforms to Environments: E1, E2, E3 and E4. HY256-TL-SMF Owner’s Manual...
-
Page 6: Table Of Contents
Contents PRECAUTIONS ............3 NOTICE................ 4 Introduction ..............7 Main Features .............7 Installation ..............7 Accessories ..............7 Part Names and Functions........8 Specifications....... (at the end of the book) Dimensions......(at the end of the book) HY256-TL-SMF Owner’s Manual... -
Page 7: Introduction

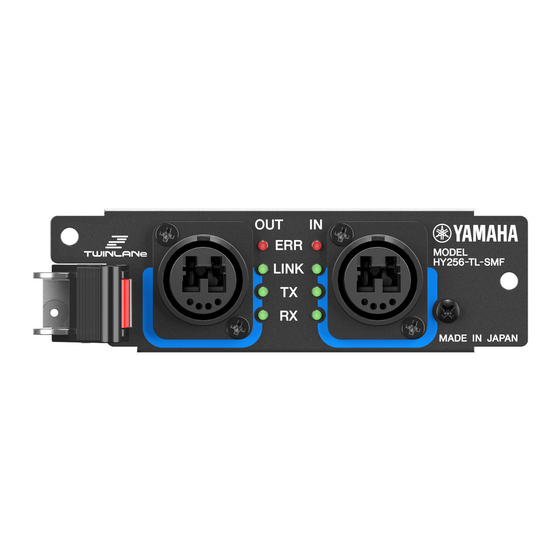

Introduction Thank you for choosing a Yamaha HY256-TL-SMF Audio Interface Card. The HY256-TL-SMF is a digital I/O card for HY card slots, and compatible with Yamaha’s TWINLANe* audio network protocol. To take full advantage of the superior features and performance offered by your HY256-TL-SMF, and to enjoy years of trouble-free use, please read this owner’s manual carefully before using your card. -
Page 8: Part Names And Functions
• Cables of up to 2 km can be used. (node-to-node distance) • Total cable length must be within 6 km. • The HY256-TL-SMF cannot be combined with the HY256-TL in the same TWINLANe network. Cleaning Correct communication might not be possible if debris and/or dust has adhered to the ends of optical fiber cables or the connectors. - Page 9 • A fiber optic cable may be damaged. Replace the cable with another one. If the ERR indicators do not go off after performing these steps, have the card inspected by qualified Yamaha service personnel. HY256-TL-SMF Owner’s Manual...
- Page 10 Green The TWINLANe network communication has been established (lights) properly. 5 TX and RX indicators The appropriate indicator flashes in green when data is transmitted from (TX) or received at (RX) the TWINLANe IN and OUT connectors. HY256-TL-SMF Owner’s Manual...
-
Page 11: Specifications
Specifications General Specifications Sampling Frequency Conditions Min. Max. Units Frequency Fs=44.1 kHz, 48 kHz, -1000 – +1000 Range 88.2 kHz, 96 kHz Temperature Range Conditions Min. Max. Units Temperature Operating Temperature – °C Range Range Storage Temperature – °C Range Digital Input/Output Characteristics Terminal Format... - Page 12 Dimensions Unit: mm Approximate Munsell value of exterior color: N5 * The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.
