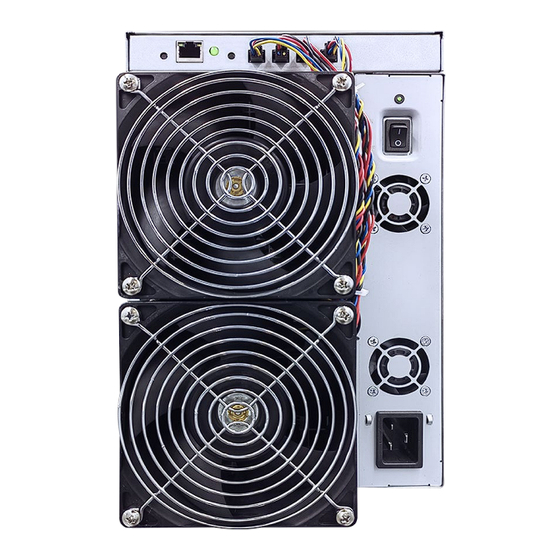

Summary of Contents for Canaan Avalon Made 1346
- Page 1 Avalon Miner 1346 / 1366 User Manual...
- Page 2 Avalon Miner 1346 / 1366 User Manual...
- Page 3 Avalon Miner 1346 / 1366...
- Page 4 26.3J/T±5% 2870W±10% Power Mode2(45℃,55℃] 80TH/s±5% 25.6/T±5% 2050W±10% 95TH/s±5% 24.6J/T±5% 2340W±10% Power Mode4(55℃,60℃] Canaan Kendryte K210 Artificial Intelligence SOC Smart Controller RJ45 Ethernet 10/100M Connection PSU3400 PSU Model 200V~300V AC 50/60Hz 16A Max Power Supply AC Input IEC C19, ≥16A Power Cable Model...
- Page 5 When inspecting, repairing the miners or the power supply, please ensure professional assistance is sought. ● Should there be any abnormal occurrence when using the miners or the accompanied power supply unit, please switch support@canaan.io. the miner off immediately and contact Canaan's technical team:...
-
Page 6: Table Of Contents
CONTENT Chapter 1 Hardware Connection Chapter 2 Button and Light Indicators Chapter 3 Operating Modes Chapter 4 System Settings Chapter 5 Firmware Upgrades Chapter 6 Restoring to Factory Default Chapter 7 Basic Assembly Chapter 8 Warranty Chapter 9 Troubleshooting APPENDIX Appendix I Restoring factory settings Appendix II Checking the firmware version Appendix III Firmware batch upgrade via FMS... -
Page 7: Chapter 1 Hardware Connection
CHAPTER 1 HARDWARE CONNECTION Control panel Network port ① Connect the fans with four 4-pin fan extension cables, which are fan 1, fan 2, fan 3, and fan 4 ② Connection of miner management board Open the upper panel and you would see the miner management boards. The internal interfaces are shown in the photo below:... - Page 8 Connect the PSU communication cable between the PSU and MM board (using the 4PIN connector). ③ Connect the PSU AUX power cable between the PSU and MM board (using the 6PIN connector) ④ ⑤ Connect the JAMLINK cables between the hash boards and MM board (using the 2x7PIN connector).
-
Page 9: Chapter 2 Button And Light Indicators
CHAPTER 2 BUTTON AND LIGHT INDICATORS Buttons RST System reset button: Please note that any system reset will not affect the network connection. FUNC Function button: It can be used to reset the miner back to the factory settings, enter the configuration mode, and switch status while in operation, etc. -
Page 10: Chapter 3 Operating Modes
CHAPTER 3 OPERATING MODES The miner supports three modes: “Idle mode”, “Mining Mode” and “Configuration Mode”. Idle Mode In this mode, the hash board is in a non-working state, and the control board is in a monitoring state, responding to API commands at any time. - Page 11 To set the PC with a static IP address: — Please right click to open network & internet settings. — Head to “change adapter options” to disable WLAN and enable Ethernet. Do access http://192.168.168.168/ on your PC browser to configure the device (Modify static IP，etc.). After configuration, the miner would need to be rebooted, for the settings to take effect.
-
Page 12: Chapter 4 System Settings
CHAPTER 4 SYSTEM SETTINGS Access the miner's built-in web service through your PC browser to enter the miner configuration interface. User Login Default username: root, default password: root Upon login, user would enter the “Overview” page. Network Setting Click the in the configuration menu and set it to DHCP (dynamic acquisition) or IP(Static). - Page 13 Mining pool setting The below image shows the factory settings. There are three modes here: Normal, High-performance, and Ultra High- performance mode. To prevent damage to the miner when operating in high- performance mode and above, please ensure a suitable power supply output is used. Note: After pressing the button, please remember to restart the miner for your mining pool confi...
-
Page 14: Chapter 5 Firmware Upgrades
CHAPTER 5 FIRMWARE UPGRADES The upgrade package file's format is *. aup, which can be downloaded through Canaan's official website or obtained from our customer service team. Click on the menu and select Firmware to upgrade. The firmware upgrade of this device can be carried out using FMS software (See Appendix III). -
Page 15: Chapter 6 Restoring To Factory Default
CHAPTER 6 RESTORING TO FACTORY DEFAULT To reset the miner to factory configurations, press the FUNC button for five to ten seconds when the power is on, and the system will automatically clear the saved configurations, including network, mining pool, password, and other information. -
Page 16: Chapter 7 Basic Assembly
CHAPTER 7 BASIC ASSEMBLY 1．The assembled hash components and chassis shell are shown in the figure: 2. Install the power supply as shown in the figure, tighten the four screws, and the screw tightening torque is recommended 6kgf.cm:... - Page 17 3. Position the chassis vertically, push the three hash board components into the rails of the chassis, and pay attention to the assembly direction of the hash board components, as shown in the figure: 4. Assemble the hash component in place as shown in the figure： 5.
- Page 18 6. Assemble the MM board according to the direction shown, pay attention to the position of the positioning pin, the screw tightening torque is recommended 3kgf.cm, and connect the 4Pin power signal line; Connect the power supply to the control board with a 6Pin cable, as shown in the figure: 7.
- Page 19 9. Put the upper shell, use flat head screws to fix the upper shell, the screw tightening torque is recommended 3kgf.cm, as shown in the figure:...
-
Page 20: Chapter 8 Warranty
In the unfortunate event that any of the above scenario occur, or should any faults occur out of the warranty period, Canaan would provide a quotation for the necessary repair work to be undertaken. Alternatively, should users wish to repair the miner by themselves, they can contact our after-sales personnel to purchase the replacement parts. -
Page 21: Chapter 9 Troubleshooting
CHAPTER 9 TROUBLE SHOOTING Boot Failure Failures ● ✕ The indicator lamp does not light up Possible causes: ● ★ Cable of the power supply within the control board may be disconnected. ★ AC power input may be disconnected. ★ Power module may be faulty. ★... - Page 22 Trouble shooting guide ● √ If you are unable to use the PC to connect the miner to the network, do try resetting the miner to factory defaults, after confirming the following: ( i) Network environment is normal, ( ii) Network cable is firmly connected, and ( iii) Miner is functioning normally.
- Page 23 · Item 5: Power supplied to Hash board, sampled by PSU Item 6: Voltage setting command to PSU from MM board · Item 7: Active power value, estimated by MM board · Should all items in the PS field of the power supply reflect a 0, it is likely that the connection between the control panel and power supply has failed.
-
Page 24: Appendix
APPENDIX Appendix I Restoring factory settings Method 1: Steps Remark Ensure the miner is powered off Keep pressing FUNC button Note: Ensure the FUNC button is constantly pressed Power on the miner Keep FUNC button pressed until the red indicator lamp flashes Method 2: Steps... -
Page 25: Appendix Ii Checking The Firmware Version
Appendix II Checking the firmware version There are 2 methods to check the firmware version • Check the version from the background: Click in menu, you can find the firmware revision. • Check from FMS’overview page: Find the firmware version directly from the Ver column on the right of FMS... -
Page 26: Appendix Iii Firmware Batch Upgrade Via Fms
ppendix III Firmware batch upgrade via FMS • Startup FMS, select the corresponding miner in the main page, and click the button, as per the below image: • In the popup dialog box, select the firmware file to upgrade (.aup), and click , as per the below image:... - Page 27 • You can view the update progress via the bar on the right. . Upon completion of the upgrade, a notification displaying “All upgrades were successful” would indicate that the firmware has been successfully updated. Should the upgrade fail, all IP addresses of the failed miners would be reflected.
-
Page 28: Appendix Iv Log Parameters
Appendix IV Log parameters Name Field Remarks When Power-on time of the MM board Total running time of miner after startup Elapsed (unit: seconds) Firmware version Unique ID Time taken to disconnect from the mining pool and The odd numbers (items 1, 3, and 5) is the time of disconnection from the pool, and the even numbers time taken to restore the connection after NETFAIL... - Page 29 Name Field Remarks Average hash rate from the time the machine is If the machine runs smoothly for more than 24 powered on and successfully connected to the hours, this value will be close to the 24-hour GHSavg mining pool average hash rate of the mining pool.
- Page 30 Field Name Remarks High-performance mode parameter ATAOPTS1 Frequency ATABD WORKMODE[0] refers to normal mode, while Operating parameter mode WORKMODE WORKMODE[1] refers to high-performance mode. Target power consumption Aging progress bar Before aging, ADJ[1] is displayed. When ADJ[0] is displayed, it indicates aging; when ADJ[2] is displayed, it indicates aging completion.
-
Page 31: Appendix V Led Status
Appendix V LED status 1.LED status transition when power on LED flashing Steps Yellow LED lit Green LED lit Long lasting Approx. 20-30s Duration 2.LED status Remark LED Status The firmware is not running (Power may not be present). To restore the miner to a normal working state after factory reset, it may be necessary to release the FUNC Red led flashing button and restart. -
Page 32: Appendix Vi Power Mode
Appendix VI Power Mode Power mode table Hash rate(THS/S) ±5% Power Efficiency(J/T) ±5% Power(W) ±10% High Performance 27.8 3530 Power Mode_Level0 27.8 3530 Power Mode_Level1 26.9 3180 Power Mode_Level2 26.0 2840 Power Mode_Level3 25.3 2590 Power Mode_Level4 24.3 2310 Power Mode_Level11 28.9 3900 *1 By default, the miner is set to High-performance mode，Test environment: ambient 25℃... - Page 33 After entering the configuration page, click the drop-down menu of Work Mode, select Power Mode and input the level to be set, as shown in the figure: Click the button to save the configuration, as shown in the figure: Save the configuration and click the button to restart, as shown in the figure: After restarting, the Power Mode configuration is complete.
- Page 34 A dialog box for selecting the working mode of the mining machine will pop up, in which is the default tick option, and the machine will restart after ticking, as shown in the figure: Pull down the mode menu, select Power Mode, and enter the level to be set (numbers only), as shown in the figure:...
- Page 35 Click the button, if the setting is successful, it will prompt All success: If the setting fails, it will prompt Some miner failed to Set Power Mode Level: If the format of the input level is wrong, it will prompt Please Input Correct Level: 3.
- Page 36 Enter [{"command":"asset", "parameter":"0,workmode,2"}] in the pop-up commands box, click the button, and if "WORKMODE[2] success" is displayed in the Response, the setting is successful. as the picture shows: (Restart the corresponding mining machine, the setting is complete) After the Power Mode is set successfully, you need to wait for more than ten minutes after the power is turned on, and then set the power consumption level according to this article.
- Page 37 Configure to gear 2 as shown in the figure: After the gear is configured successfully, you can view the four operating frequency points, voltage level and working gear of the current mining machine through the ATAOPTS2 field in the Log. As shown in the figure, the current four frequency points are 428 448 468 488 and the voltage level It is 29, and the working gear is gear 1.
- Page 38 3.2 Send API commands through the command line to set the Power Mode Enter the api format: echo -n "ascset|0,workmode,2" | socat -t 300 stdio tcp: Machine ip: port number (default is 4028),shut-none && echo Example: Input echo -n "ascset|0,workmode,2" | socat -t 300 stdio tcp:10.100.106.24:4028,shut-none && echo The result is as shown in the figure.
-
Page 39: Contact
CONTACT To obtain more information about the installation and operation process, please visit our official website https://www.canaan-creative.com or drop us an email at: support@canaan.io...
Need help?
Do you have a question about the Avalon Made 1346 and is the answer not in the manual?
Questions and answers

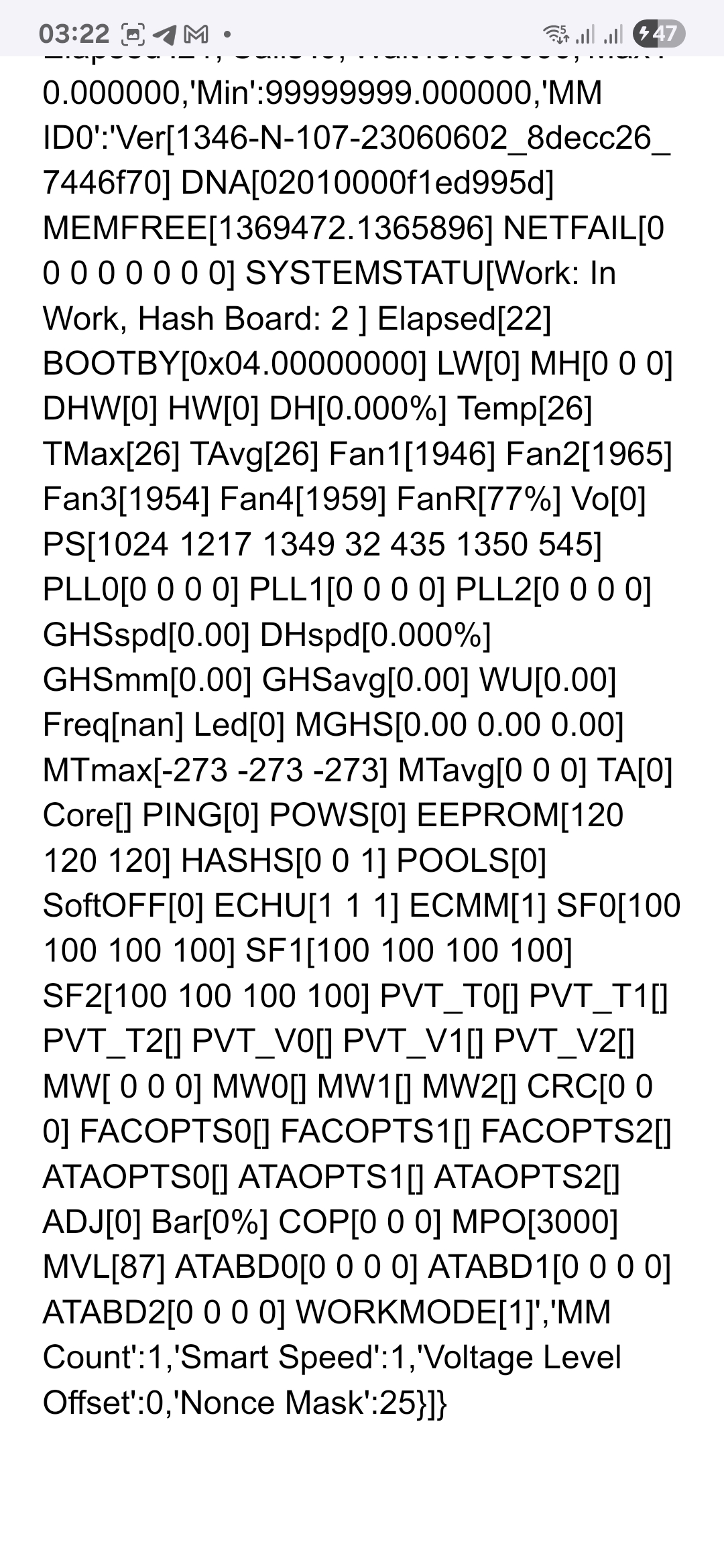

Avalon 1326 Setiap 10 tera turun lagi ke 0 trus startlagi
