This manual contains specific precautions related to worker safety. The hazard alert image denotes safety
related instructions and warnings in this manual. DO NOT install, operate, or perform maintenance on this
collector until you have read and understood the instructions, precautions and warnings contained within this
manual.
English
Master Language
Delta P Plus Control
Installation and Operation Manual
Installation, Operation and Service Manual
IOM AD3425201 (ENG)
Revision 8
Advertisement
Table of Contents
Related Manuals for Donaldson Torit Delta P Plus Control
Summary of Contents for Donaldson Torit Delta P Plus Control
- Page 1 Delta P Plus Control Installation and Operation Manual Installation, Operation and Service Manual This manual contains specific precautions related to worker safety. The hazard alert image denotes safety related instructions and warnings in this manual. DO NOT install, operate, or perform maintenance on this collector until you have read and understood the instructions, precautions and warnings contained within this manual.
-
Page 2: Important Notes
For additional copies of this manual, contact Donaldson Torit. The Safety Alert Symbol indicates a hazardous situation which, if not avoided could result in death or serious injury. -
Page 3: Table Of Contents
Unloading and Positioning ..............................12 Electrical Wiring ................................13 Setpoint Adjustments ................................14 Quick Start Instructions ..............................14 Adjustments ..................................14 Password Protected Settings ............................14 Delta P Plus Control Calibration ............................16 Optional Settings ................................18 Product Information ................................20 Service Notes ...................................20 Donaldson Industrial Air Filtration Warranty ..........................21... -
Page 4: Safety Communication
Donaldson Company, Inc. Safety Communication Improper operation of dust collectors and/or dust control systems may contribute to conditions in a work area or facility which could result in severe personal injury, and product or property damage. All dust collection equipment should be used only for its intended purpose and should be properly selected and sized for its intended use. - Page 5 Delta P Plus Control Combustible Dust Hazards Among other considerations, the current NFPA standards require owners whose processes involve potentially combustible materials to have a current Dust Hazard Analysis, which can serve as the foundation for their process hazard mitigation strategy.
-
Page 6: Product Description

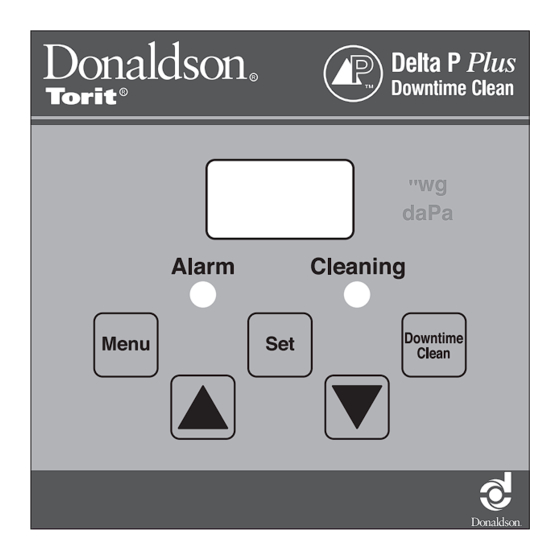

Donaldson Company, Inc. Product Description The Delta P Plus Controller monitors the differential pressure between the clean-air and dirty-air plenums, providing a visual display of the filter condition. When combined with a pulse timer, it manages the pressure drop by turning the cleaning mechanism On and Off at the chosen limits. -
Page 7: Product Service
Delta P Plus Control Product Service During any service activities there is some potential for exposure to the mist in the collector. Most mists present safety and health hazards that require precautions. Wear eye, respiratory, head and other protection equipment suitable for the type of mist when performing any service activities. -
Page 8: Troubleshooting
Delta P Plus Control Fuse blown Check the fuse in the F1 fuse tower. Replace if necessary. Out of calibration Disconnect pressure tubing. See Delta P Plus Control Display on the Delta P Calibration. Plus control does not read zero when at rest... - Page 9 Remove the Program Disable jumper from Terminals 3 and 4 on TB2. Improper wiring Check wiring between the Delta P Plus Control and the Cleaning light is ON, timer board, and between the timer board and solenoid but cleaning system not valve coils.
-
Page 10: Replacement Parts
Keypad Label Printed Circuit Board Plastic Tubing Delta P Control Item Part Number Description Model 7053601 Delta P Plus Control (includes keypad label and printed circuit board) 2334200 Plastic Tubing, Vinyl, 3/16-in ID, 5/16-in OD... -
Page 11: Appendix A - Installation
Delta P Plus Control Appendix A - Installation... -
Page 12: Installation
Request a written inspection report from the Claims Inspector to substantiate all damage claims. Compare the equipment received with the description of product ordered. Report any incomplete shipments to the delivery carrier and your Donaldson Torit representative. Unloading and Positioning Equipment should be lifted only by qualified crane or fork truck operators. -
Page 13: Electrical Wiring
Do not install in classified hazardous atmospheres without an enclosure rated for the application. The Delta P Plus Control is factory set for 115-V. To operate at 230-V, the jumper settings on the printed circuit board must be changed. See Optional Settings. -
Page 14: Setpoint Adjustments
Donaldson Company, Inc. Setpoint Adjustments Quick Start Instructions 1. Press the MENU key, Lo appears. Press the SET key and the current value appears in the display. Use the arrow keys p q to change this value. Press SET again, and the display will blink twice, indicating that the new set point has been accepted. The Lo setting selects the differential pressure drop value used to stop the pulse cleaning cycle, 2.0”... - Page 15 Delta P Plus Control Setting Factory Function Parameters Description Units Range Default ALL - Combines differential pressure (Delta P) based cleaning with downtime cleaning ON/ OFF selectable from keypad. DTC - Filters downtime cleaned only, not Mode Select based on filter Delta P.
-
Page 16: Delta P Plus Control Calibration
1. Turn power to the Delta P Plus Control ON for a minimum of 30-minutes to stabilize the operating temperature. 2. Disconnect the pressure tubing, either leaving it to atmosphere, or connecting the two barbed fittings together with a short length of tubing. - Page 17 Delta P Plus Control high-pressure port dirty-air plenum low-pressure port clean-air plenum Delta P Control Installation...
-
Page 18: Optional Settings
To operate at 230 VAC, remove two jumpers labeled W1 and W3. Reinsert one of the jumpers in position W2. Change from English to Metric (SI) Units 1. Turn power to the Delta P Plus Control ON. 2. Use the Menu key to select PAS. - Page 19 Delta P Plus Control R43 R42 R45 R46 4 2 1 side view autotran CONN 1 BKT1 C13 C19 C7 RA12 analog sensor R1R3 LED 1 LED 2 "wg LED 3 mm wg LED 1-3 Q8 Q6 ADDRESS RA11 Alarm...
-
Page 20: Product Information
Donaldson Company, Inc. Product Information (Process Owner to complete and retain for your records) Model Number _________________________________ Serial Number ___________________________________ Ship Date _____________________________________ Installation Date __________________________________ Filter Type_____________________________________________________________________________________ Collected Dust _________________________________________________________________________________ Dust Properties: Kst _______________Pmax ______________ MIE ____________ MEC __________________ Accessories ___________________________________________________________________________________ Other ________________________________________________________________________________________ _____________________________________________________________________________________________... -
Page 21: Donaldson Industrial Air Filtration Warranty
Delta P Plus Control Donaldson Industrial Air Filtration Warranty Donaldson warrants to the original purchaser only that the Goods will be free from defects in material and manufacture for the applicable time periods stated below: (1) Major structural components for a period of ten (10) years from the date of shipment; (2) Non-Structural, Donaldson-built components and accessories including Donaldson Airlocks, TBI Fans, TRB Fans, Fume Collector products, Donaldson built electrical control components, and Donaldson-built Afterfilter housings for a period of twelve (12) months from date of shipment;... - Page 22 Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts. Important Notice: Many factors beyond the control of Donaldson can affect the use and performance of Donaldson products in a particular application, including the conditions under which the product is used.
