Configuring The Protonode; Retrieve The Sample Configuration File; Change The Configuration File To Meet The Application - MSA ProtoNode FPC-N54 Startup Manual

8

Configuring the ProtoNode

8.1

Retrieve the Sample Configuration File

The configuration of the ProtoNode is provided to the ProtoNode's operating system via a comma-delimited file called
"CONFIG.CSV".
If a custom configuration was ordered, the ProtoNode will be programmed with the relevant device registers in the
Config.csv file for the initial start-up. If not, the product is shipped with a sample config.csv that shows an example of the
drivers ordered.

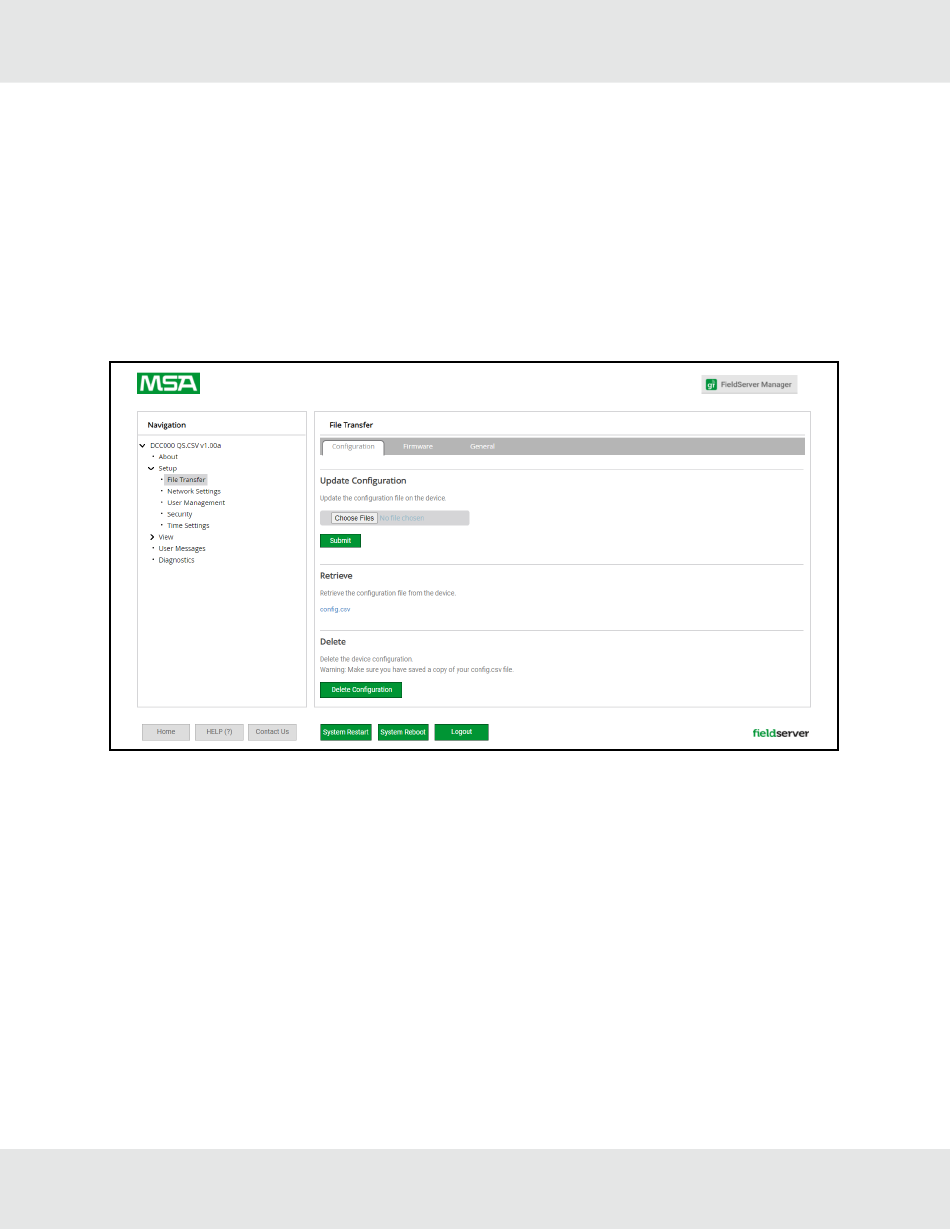

• In the main menu of the FS-GUI screen, go to "Setup", then "File Transfer", and finally "Retrieve".
• Click on "config.csv", and open or save the file.
8.2

Change the Configuration File to Meet the Application

Refer to the FieldServer Configuration Manual in conjunction with the Driver supplements for information on configuring the
ProtoNode.
21 ProtoNode Start-up Guide
