Aire acondicionado doméstico sistema Split
Climatiseur de type Séparé
Condizionatore d'aria per ambienti ad unità Separate
Aparelho de ar condicionado tipo Split
¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY
E S F I P D G DB98-14759A(4)
Split-type Room Air Conditioner
Geteilte raumklimaanlage
INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D'INSTALLATION
MANUALE D'INSTALLZIONE
MANUAL DE INSTALAÇÃO
INSTALLATIONS-HANDBUCH
E°XEIPI¢IO E°KATA™TA™H™
Indoor unit
AQ07P2GE
AQ12P4GB
AQ07S2GE
AQ12P4GE
SH07APG
AQ12S4GB
SH07APGA
AQ12S4GE
SH07ZP2
SH12APG
SH07ZP2A
SH12APGA
SH07AS2
SH12ZP4
SH07AS2A
SH12ZP4A
SH07ZS2
SH12AS4
SH07ZS2A
SH12AS4A
AQ09P2GB
SH12ZS4
AQ09P2GE
SH12ZS4A
AQ09S2GB
AQ09S2GE
SH09APG
SH09APGA
SH09ZP2
SH09ZP2A
SH09AS2
SH09AS2A
SH09ZS2
SH09ZS2A
(Cool and Heat)
(Refrigeración y Calefacción)
(Refroidissement et Chauffage)
(Raffreddamento e Riscaldamento)
(Refrigeração e Aquecimento)
(Kühlen und Wärmen)
(æ‡ÍË Î·È £¤ÚÌ·ÓÛË)
Outdoor unit
UQ07P2GE
UQ12P4GB
UQ07S2GE
UQ12P4GE
SH07APGX
UQ12S4GB
SH07APGAX
UQ12S4GE
SH07ZP2X
SH12APGX
SH07ZP2AX
SH12APGAX
SH07AS2X
SH12ZP4X
SH07AS2AX
SH12ZP4AX
SH07ZS2X
SH12AS4X
SH07ZS2AX
SH12AS4AX
UQ09P2GB
SH12ZS4X
UQ09P2GE
SH12ZS4AX
UQ09S2GB
UQ09S2GE
SH09APGX
SH09APGAX
SH09ZP2X
SH09ZP2AX
SH09AS2X
SH09AS2AX
SH09ZS2X
SH09ZS2AX
Advertisement
Table of Contents
Related Manuals for Samsung AQ07P2GE
Summary of Contents for Samsung AQ07P2GE

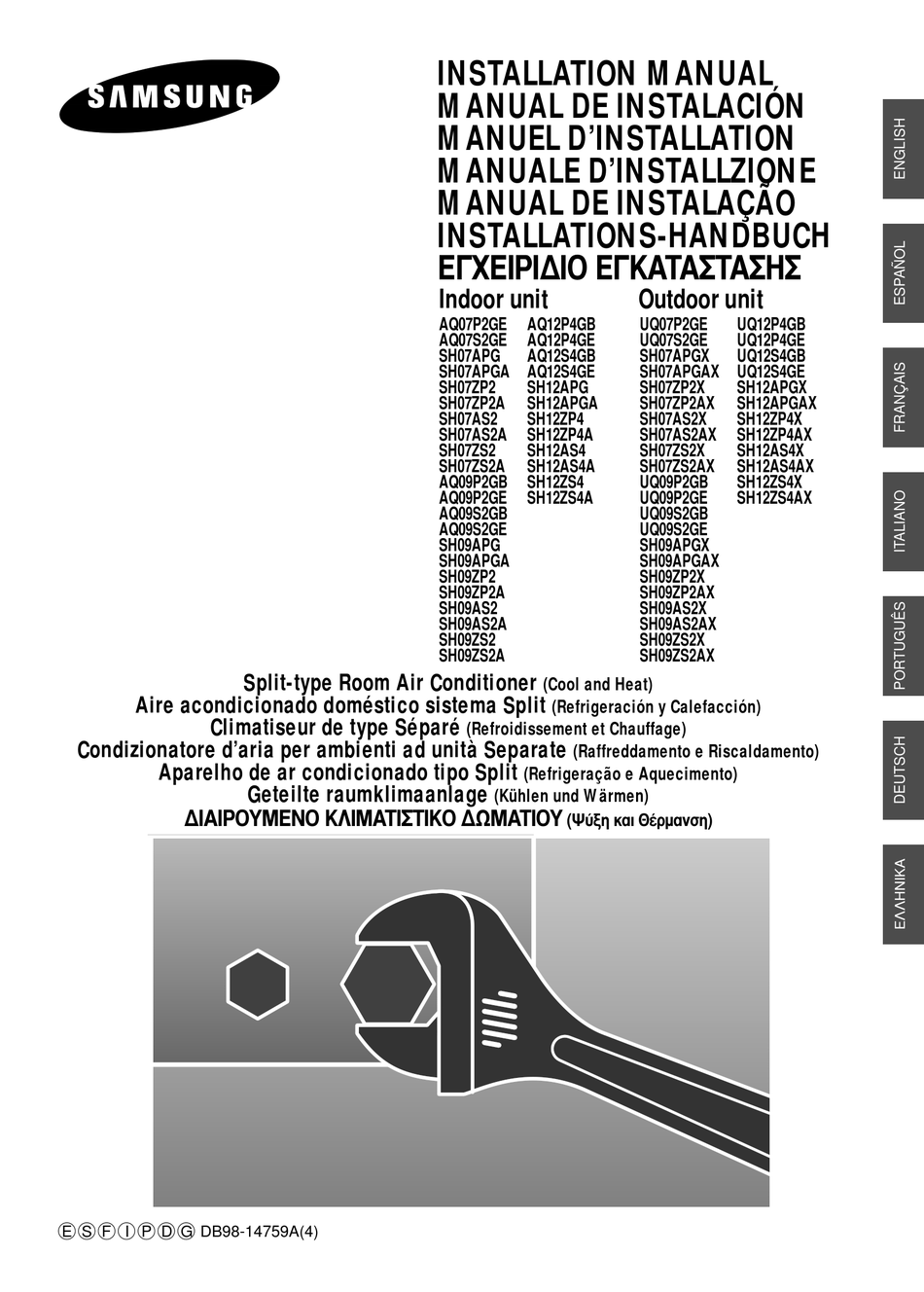

- Page 1 INSTALLATION MANUAL MANUAL DE INSTALACIÓN MANUEL D’INSTALLATION MANUALE D’INSTALLZIONE MANUAL DE INSTALAÇÃO INSTALLATIONS-HANDBUCH E°XEIPI¢IO E°KATA™TA™H™ Indoor unit Outdoor unit AQ07P2GE AQ12P4GB UQ07P2GE UQ12P4GB AQ07S2GE AQ12P4GE UQ07S2GE UQ12P4GE SH07APG AQ12S4GB SH07APGX UQ12S4GB SH07APGA AQ12S4GE SH07APGAX UQ12S4GE SH07ZP2 SH12APG SH07ZP2X SH12APGX SH07ZP2A...
- Page 2 Safety Precautions The following safety precautions must be taken when using your air conditioner. Risk of electric shock. • Can cause injury or death. • Disconnect all WARNING remote electric power supplies before servicing, installing or cleaning. • This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
-
Page 3: Table Of Contents
Contents REPARING THE NSTALLATION Deciding on Where to Install the Air Conditioner ........Air Conditioner and Accessories ..............NSTALLING THE Fixing the Installation Plate ................. Purging the Unit ..................Connecting the Assembly Cable ..............Installing and Connecting the Indoor Unit Drain Hose ........ Installing and Connecting the Outdoor Unit Drain Hose ...... -
Page 4: Preparing The Installation
REPARING THE NSTALLATION Deciding on Where to Install the Air Conditioner When deciding on the location of the air conditioner with the owner, the following restrictions must be taken into account. General Do NOT install the air conditioner in a location where it will come into contact with the following elements: Combustible gases Saline air Machine oil... - Page 5 REPARING THE NSTALLATION Respect the clearances and maximum lengths indicated in the diagram below when installing the unit. 300 mm or more 125 mm 125 mm or more or more Wrap the refrigerant pipes and the drain hose up in the absorbent pad and the vinyl tape, refer to page 13.
-
Page 6: Air Conditioner And Accessories
REPARING THE NSTALLATION Air Conditioner and Accessories The following accessories are supplied with the air conditioner. The quantities are indicated in parentheses. Accessories in the Indoor Unit Case Installation Plate (1) Remote Control (1) Batteries for Owner’s Instruction Installation Manual (1) Remote Control (2) Booklet (1) Accessories in the Outdoor Unit Case... -
Page 7: Installing The Unit
NSTALLING THE Fixing the Installation Plate Before fixing the installation plate to a wall or window frame, you must determine the position of the 65 mm hole through which the cable, piping and hose pass to connect the indoor unit up to the outdoor unit. -
Page 8: Connecting The Assembly Cable
NSTALLING THE Connecting the Assembly Cable The outdoor unit is powered from the indoor unit via the assembly cable. If the outdoor unit is more than five metres away from the indoor unit, the cable must first be extended to a maximum of 15 metres. Extend the assembly cable if necessary. -
Page 9: Installing And Connecting The Indoor Unit Drain Hose
NSTALLING THE Installing and Connecting the Indoor Unit Drain Hose Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation water is correctly drained outside. When passing the drain hose through the 65 mm hole drilled in the wall, check that none of the following situations occur. -
Page 10: Installing And Connecting The Indoor Unit Assembly Piping
NSTALLING THE Installing and Connecting the Indoor Unit Assembly Piping There are two refrigerant pipes of different diameters: A smaller one for the liquid refrigerant A larger one for the gas refrigerant A short length of piping is already fitted to the air conditioner. You must extend this piping using assembly piping (optionally supplied). -
Page 11: Cutting/Extending The Piping
NSTALLING THE Cutting/Extending the Piping 5 metres of piping is supplied with the air conditioner(Optional). This length can if necessary be: Extended to a maximum of 15metres Shortened as required If more than 5 metres of piping is required: The assembly cable must also be extended Refrigerant must be added to the circuit by an approved installer;... -
Page 12: Completing The Installation
OMPLETING THE NSTALLATION Connecting Up and Purging the Circuit The outdoor unit is loaded with sufficient R22/R410A refrigerant for 5 metres of piping. The air in the indoor unit and in the pipe must be purged. If air remains in the refrigeration pipes, it will affect the compressor, reduce to cooling/heating capacity and could lead to a malfunction. -
Page 13: Performing Leak Tests
OMPLETING THE NSTALLATION Performing Leak Tests Before completing the installation (insulation of the cables, hose and piping and fixing of the indoor unit to the installation plate), you must check that there are no gas leaks. To check for gas leaks on the... Then, using a leak detector, check the... -
Page 14: Fixing The Outdoor Unit In Position
OMPLETING THE NSTALLATION Fixing the Outdoor Unit in Position The outdoor unit must be installed on a rigid and stable base to ‘X’ mm avoid any increase in the noise level and vibration, particularly if the outdoor unit is to be installed close to a neighbour. If it is to be installed in a location exposed to strong winds or at a height, the unit must be fixed to an appropriate support (wall or ground). -
Page 15: Explaining Operations To The Owner
OMPLETING THE NSTALLATION Explaining Operations to the Owner Before leaving the premises on which you have installed the air conditioner, you should explain the following operations to the owner, making reference to the appropriate pages in the owner’s instruction booklet. How to start and stop the air conditioner. - Page 16 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: DIESE KLIMAANLAGE IST FABRIZIERT VON: AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O: ELECTRONICS...
