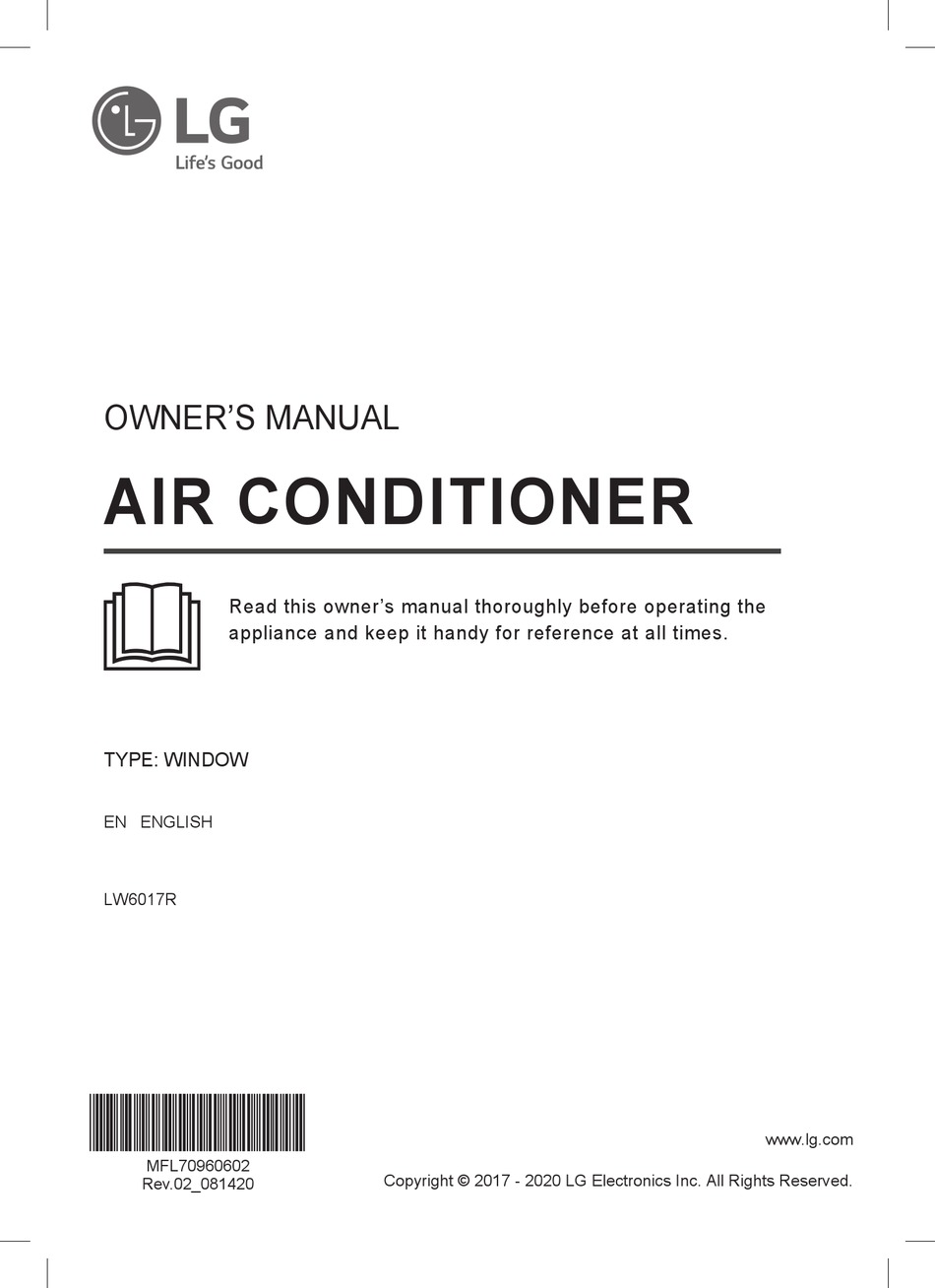

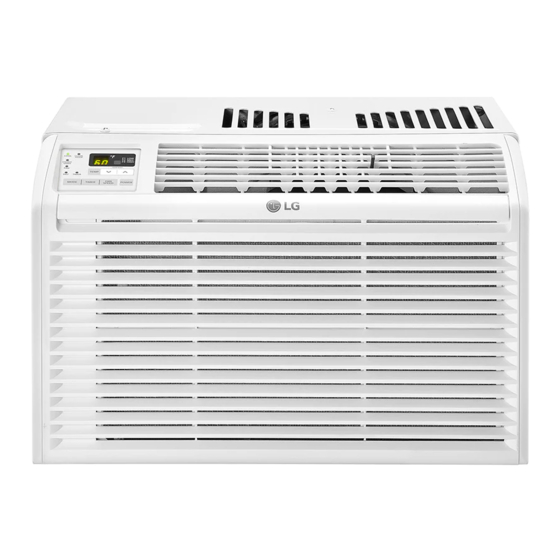

- Page 1 AIR CONDITIONER Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. TYPE: WINDOW EN ENGLISH LW6017R *MFL70960602* www.lg.com MFL70960602 Copyright © 2017 - 2020 LG Electronics Inc. All Rights Reserved. Rev.02_081420...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS 3 SAFETY INSTRUCTIONS 17 MAINTENANCE IMPORTANT SAFETY INSTRUCTIONS Air Filter 8 PRODUCT OVERVIEW 18 TROUBLESHOOTING Exterior Parts Before Calling for Service Interior Parts Normal Sounds You May Hear 9 INSTALLATION 21 WARRANTY Electrical Data 10 Parts Included 11 How to Install the Unit 11 Window Requirements... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 3 EN SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. - Page 4 ● If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics Customer Information Center. ● Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
- Page 5 ● If water enters the product, turn off the power at the main circuit, then unplug the product and call for service. ● If the product has been submerged, contact an LG Electronics Customer Information Center for instructions before resuming use.
- Page 6 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION ● Take care when installing the product that exhaust or condensation does not damage nearby property.
- Page 7 SAFETY INSTRUCTIONS 7 EN REFRIGERANT (FOR R32 ONLY) WARNING ● Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. ● The appliance shall be stored in a room without continuously operating ignition sources (for CAUTION associated with older units.
-
Page 8: Product Overview
PRODUCT OVERVIEW PRODUCT OVERVIEW Exterior Parts Interior Parts Control Panel Evaporator Remote Control Air Guide Air Filter Compressor Front Grille Condenser Cabinet Base Pan Air Outlet Power Cord Horizontal Air Deflector (Vertical Louver) -
Page 9: Installation
INSTALLATION INSTALLATION WARNING Electrical Data ● This appliance should be installed in Power cord may include a current interrupter accordance with the National Electrical device. TEST and RESET buttons are provided Code. on the plug case. The device should be tested on ●... -
Page 10: Parts Included
INSTALLATION Parts Included (Appearance May Vary) Foam strip(2) (Adhesive backed) Right Curtain Foam seal Panel (Non-adhesive) L bracket (3) Upper Guide Left Curtain Panel Type 'A' Screws Type 'B' Screws Type 'C' Screws (14) Tools Needed Phillips-head Adjustable wrench Level Gloves screwdriver Tape measure... -
Page 11: How To Install The Unit
INSTALLATION 11 EN How to Install the Unit NOTE To prevent vibration and noise, make sure the unit is installed securely and firmly. ● All supporting parts should be secured to firm Install the unit out of direct sunlight. wood, masonry, vinyl, fiberglass, or metal. There should be no obstacles, such as a ●... -
Page 12: Preparation Of Chassis
INSTALLATION Preparation of Chassis Cut the window sash seals (Foam-PE) to the proper length. Peel off the backing and attach the adhesive-backed foam to Align holes between the upper guide the underside of the window sash and the and the top of the cabinet and then install it bottom of the window frame. -
Page 13: Unit Installation
INSTALLATION 13 EN Unit Installation To prevent broken glass or damage to CAUTION windows, on vinyl or other similarly constructed windows, attach the L bracket with a type A screw. During the following step, hold unit firmly until window sash is lowered to top channel behind side panel frames. -
Page 14: Operation
OPERATION OPERATION Control Panel and Remote Control Remote Control Power Energy Saver - In this mode the compressor and fan turn off when the set Press to turn the air conditioner ON or OFF. temperature is achieved. Approximately Fan Speed every 3 minutes the fan turns on to allow the unit sensor to accurately determine if Press to set the fan speed to Low (F1),... -
Page 15: Wireless Remote Control
OPERATION 15 EN Wireless Remote Control Temperature Control The thermostat monitors room temperature Inserting Battery to maintain the desired temperature. The thermostat can be set between 60 °F–86 °F (16 °C–30 °C). Press arrows to Push out the cover on the back of the increase or decrease temperature setting. -
Page 16: Additional Features
OPERATION Additional Features Air Direction Adjusting the air direction using the horizontal air deflector control. Using the control tabs, the air flow can be directed to the left, right, straight ahead, or any combination of these directions. Slinger Fan This air conditioner is equipped with a slinger fan. -
Page 17: Maintenance
MAINTENANCE 17 EN MAINTENANCE Cleaning the Air Conditioner ● Wipe the front grille and inlet grille with a cloth dampened in a mild detergent solution. WARNING ● Wash the cabinet with mild soap or detergent and lukewarm water, then polish using liquid Before cleaning or performing maintenance, appliance wax. -
Page 18: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service. Normal Sounds You May Hear High Pitched Chatter Sound of Rushing Air... - Page 19 TROUBLESHOOTING Problem Possible Cause Solutions Make sure the air conditioner plug The air conditioner is unplugged. is pushed completely into the outlet. Check the house fuse/circuit The fuse is blown/circuit breaker breaker box and replace the fuse or is tripped. reset the breaker.
- Page 20 TROUBLESHOOTING Problem Possible Cause Solutions For proper water disposal, make Water drips The air conditioner is not tilted to sure the air conditioner slants indoors. the outside. slightly from the cabinet front to the rear. This is normal for a short period in Water collects in Moisture removed from air and areas with little humidity;...
-
Page 21: Warranty
If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, LG may elect, at our option, to provide for transportation of our choice to and from a LG authorized service center. - Page 22 HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION: Call 1-800-243-0000 or visit our website at www.lg.com. Mail to: LG Customer Information Center (ATTN: CIC) 201 James Record Road, Huntsville, AL 35824...
- Page 23 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
- Page 24 You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending an e-mail to optout@lge.com, with the subject line: “Arbitration Opt Out”...
- Page 25 LG Customer Information Center 1-800-243-0000 Register your product Online! LG Electronics Inc. www.lg.com 111 Sylvan Ave., Englewood Cliffs, NJ 07632...
