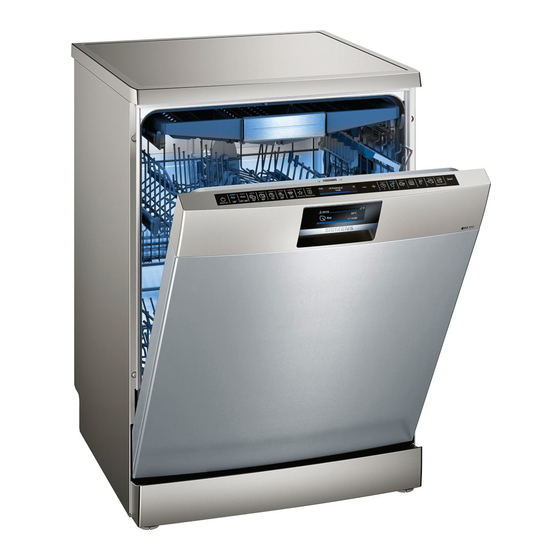

- Page 1 Dishwasher SN27YI03CE Information for Use Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 7 Additional functions .... 21 1.1 General information.... 4 8 Features........ 22 1.2 Intended use...... 4 8.1 Top basket....... 22 1.3 Restriction on user group.. 4 8.2 Etagere ........ 23 1.4 Safe installation ...... - Page 3 13 Tableware ........ 32 20 Customer Service.... 53 13.1 Damage to glass and table- 20.1 Product number (E-Nr.), ware........ 33 production number (FD) and consecutive numbering 13.2 Arrange tableware .... 33 (Z-Nr.) ........ 54 13.3 Removing tableware.... 34 20.2 AQUA-STOP guarantee .. 54 14 Basic operation ....... 34 21 Technical specifications.. 55 14.1 Switching on the appliance ...
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. -
Page 7: Damaged Appliance
Safety en ▶ Do not sit or stand on the appliance door when open. Knives and utensils with sharp points can cause injuries. ▶ Arrange knives and utensils with sharp points in the cutlery bas- ket with the points downwards, on the knife shelf or in the cut- lery drawer. -
Page 8: Risk To Children
en Safety ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. - Page 9 Safety en WARNING ‒ Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. ▶ Keep an eye on children when opening and closing the appli- ance door. WARNING ‒ Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on 3.3 Zeolith drying ▶ the appliance, do not use sponges The appliance features a Zeolith con- with a rough surface or abrasive tainer. Zeolith drying lets you save cleaning agents. -
Page 12: Autoopen Dry
en Installation and connection shortened. Sensor set- Description → "Overview of basic settings", ting Page 37 Standard Optimum setting for a mixed load and heavily soiled table- 4 Installation and con- ware. Saves both en- ergy and water. nection Sensitive Adjusts the pro- To ensure proper operation, connect gramme strength for the appliance to the power and water effective removal of... -
Page 13: Drainage Connection
Installation and connection en over, e.g. by screwing it to the wall or 4.4 Drinking water connec- installing it under a continuous work- tion top that is securely connected to ad- jacent cabinets. Connect your appliance to a drinking Follow the safety instructions. water connection. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 54. The data you need for Customer Service → Page 53. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 30 Bottom basket Bottom basket → Page 23 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 26 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 4 5 6 7 8 9 ON/OFF button and reset Switching on the appliance... -
Page 17: Programmes
Familiarising yourself with your appliance en Display Remote Start If you have activated the function and are controlling the appliance via the Home Connect app, the display lights up on the appliance. WLAN display Home Connect → Page 39 Timer programming Setting timer programming → Page 35 Remote Start → "Remote Start ", Page 40... - Page 18 en Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 19: Information For Test Institutes
Programmes en Programme Programme se- quence Tableware: Particularly gentle and ¡ Delicate tableware, cutlery, tem- improved drying: brilliantShine perature-sensitive plastics and ¡ Pre-Rinse glasses ¡ Cleaning 40 °C Level of soiling: ¡ Intermediate rinse ¡ Lightly adhering fresh food rem- ¡ Final rinse 50 °C nants ¡... -
Page 20: Intelligent
en Programmes The pre-rinse program is saved to tensity or the programme duration this button at the factory. Pre-rinse is depending on your level of satisfac- suitable for all types of tableware. tion. The tableware undergoes intermedi- The programme is suitable for all ate cleaning via cold rinsing. - Page 21 Additional functions en 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme.
-
Page 22: Features
en Features Press in the levers on the right and 8 Features left on the outside of the basket. You can find an overview of the pos- sible features of your appliance and how to use them here. These features depend on the model of your appliance. -
Page 23: Etagere
Features en 8.2 Etagere Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. 8.4 Folding prongs Use the folding prongs to position tableware securely, e.g. plates. If you do not need the cutlery shelf, you can fold it up. -
Page 24: Cutlery Drawer
en Features Push the lever forwards and fold To fold down a side shelf, push the down the prongs . lever forwards and fold down the side shelf . To use the prongs again, fold them back up. To fold down the front prongs, push the lever forwards and fold a The prongs audibly click into posi- down the prongs... -
Page 25: Glasszone
Features en Pull the tab on the glassZone up 8.6 glassZone and forwards . Use the glassZone in the top basket to clean all types of glasses gently yet thoroughly. Set the slider to ON. Clean under running water. Place the glassZone in the top basket and lock in position ... -
Page 26: Before Using For The First Time
en first time Press repeatedly until the first time 9 Before using for the display shows the right value. first time You can change several settings. To save the settings, press first time approx. 3 seconds. 9.1 Performing initial start-up Add detergent → Page 30. Start the Programme with the On initial start-up or after a reset to highest cleaning temperature the factory settings, you will need to... -
Page 27: Setting The Water Softening System
Water softening system en Water hardness Hardness range mmol/l Setting value °E 11 - 12 Medium 1.5 - 1.8 11 - 12 13 - 15 Medium 1.9 - 2.1 13 - 15 16 - 20 Medium 2.2 - 2.9 16 - 20 21 - 26 Hard 3.0 - 3.7... -
Page 28: Switching Off The Water Softening System
en Water softening system Note: Only use special salt for ¡ The water hardness is 0 - 8 °E. dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the basic settings, press penser. -
Page 29: Rinse Aid System
Rinse aid system en Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 16 - 20 °E. -
Page 30: Switching The Rinse Aid System Off
en Detergent Tip: Suitable detergents are available 11.3 Switching the rinse aid online via our website or from Cus- system off tomer Service → Page 53. If you find the rinse aid refill indicator Tabs irritating, e.g. when using combined Tabs are suitable for all cleaning detergents with a rinse aid compon- functions and do not need to be ent, you can switch the rinse aid sys-... -
Page 31: Unsuitable Detergents
Detergent en For better washing and drying results 12.3 Information on deter- and to avoid damage to the appli- gents ance, please additionally use Special salt → Page 27 and Rinse aid Follow the instructions on detergents → Page 29. in everyday use. ¡ Detergents marked as "organic" or Combined detergent "ecological"... - Page 32 en Tableware Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is a The lid clicks into position. enough. Insert the tablets in a hori- a The detergent dispenser will open zontal position.
-
Page 33: Tableware
Tableware en 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 34: Removing Tableware
en operation ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 35: Setting A Programme
operation en The Eco 50° programme is espe- Depending on the setting of the cially environmentally friendly and time display, the end of the pro- ideal for normally soiled tableware. gramme is shown on the display It is the most efficient programme by "Finish in"... -
Page 36: Terminate Programme
en operation Press . a The programme is saved and the appliance switches off. Press to resume the pro- gramme. 14.7 Terminate programme To end a programme early or to switch from a programme that has already started, you will need to can- cel it first. -
Page 37: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Time setting 00:00 - 24:00 Set the current time. - Page 38 en Basic settings Basic setting Selection Description Water connection Cold water Set cold water or hot water connec- Hot water tion. Only set the appliance to hot water if this can be prepared with little energy and a suitable installation is available, e.g.
-
Page 39: Changing Basic Settings
Home Connect en Basic setting Selection Description Remote Start Activate or deactivate Manual → "Remote Start ", Page 40. Permanent This basic setting is not available until after you have connected the device with the Home Connect app. → "Home Connect ", Page 39 Greeting Switch display of the brand name logo on or off when the appliance is switched on. -
Page 40: Home Connect Quick Start
en Home Connect The Home Connect app guides you Setting up Home Connect through the entire login process. Fol- Requirements low the instructions in the Home Con- ¡ The Home Connect app has been nect app to configure the settings. installed on your mobile device. Tips ¡ The appliance is receiving signals ¡... -
Page 41: Data Protection
Cleaning and servicing en Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 42: Tips On Appliance Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.siemens-home.bsh- mend cleaning your appliance at reg- group.com/store or from customer ular intervals. service. -
Page 43: Filter System
Cleaning and servicing en ¡ Make sure that there are no alu- 17.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. ¡ If you have not run Machine Care after 3 washing cycles, the indic- ator for Machine Care will go out automatically. -
Page 44: Cleaning Spray Arms
en Cleaning and servicing Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 45 Cleaning and servicing en Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 46: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website siemens-home.bsh-group.com . WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 47 Troubleshooting en Fault Cause and troubleshooting E:3200 or indicator Remove the filter from the supply hose for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 48 en Troubleshooting Fault Cause and troubleshooting E:6103 lights up. Wa- Not an appliance fault. Siphon connection is still ter is not drained. closed or the wastewater hose is kinked or blocked. Check the connection to the siphon and open if ne- cessary.
- Page 49 Troubleshooting en Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 50 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Filters are inserted incorrectly and/or not engaged. tableware. Insert the filters properly. → "Filter system", Page 43 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 18 Adjust the sensitivity of the sensors.
- Page 51 Troubleshooting en Fault Cause and troubleshooting Removable streaks Tableware has been precleaned too intensely. The are present on sensors chose a weaker programme. Stubborn soiling glasses, glassware cannot be entirely removed. with a metallic appear- Only remove large remnants of food and do not ▶...
-
Page 52: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 53: Protect Appliance From Frost
Customer Service en 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 54: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 55: Technical Specifications
Technical specifications en 21 Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 14 place settings You can find more information about... -
Page 56: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at siemens- Connect functionality conforms to the home.bsh-group.com/uk/ among the essential requirements and other rel- additional documents on the product evant provisions of Directive page for your appliance. - Page 60 Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG *9001779157* 9001779157 (030126) 650 P5...
