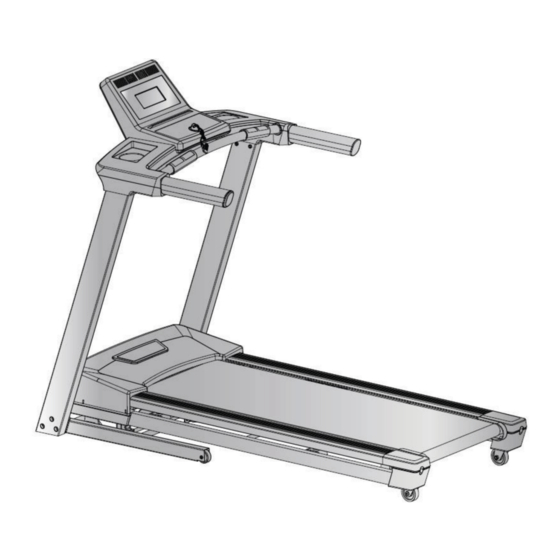

- Page 1 Assembly and Operating Instructions max. 130 kg ~ 60 Min. 74 kg L 173 | B 80 | H 131 DFTM40.01.05 Art.nr.: DF-TM40 TF TF DARWIN TM40...
- Page 2 TM40...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Turning on the Treadmill and First Settings Programmes 3.4.1 MANUAL (Manual Programme) 3.4.2 PROGRAM (Pre-Set Programmes) 3.4.3 USER PROGRAM (User-Defined Programmes) 3.4.4 HRC –... - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT TM40...
- Page 5 Darwin fitness equipment. With Darwin fitness equipment we offer first class home sports equipment at a great price point. Darwin exercise bikes and strength machines are easy to use, have a space-saving design and look really good. With our equipment we want to support you in reaching your athletic goals, no matter if you want to lose weight or train for the national triathlon.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD display of: time speed distance calories incline heart rate Motor output: 2 HP continuous output (DC motor) Speed range: 1 - 16 km/h (0.1 km/h steps) Speed quick keys: Incline range: 1 - 10 % (in 0.5 % steps) Incline quick keys: Total number of training programmes: Manual programmes:... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly. -
Page 12: Scope Of Delivery
Scope of Delivery WARNING ⚠ Around the treadmill there is a strap that prevents the treadmill from opening during transport. This strap must be removed before assembly. The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. - Page 13 Main frame Handle bar set Handle bar post Handle bar post (right) (left) Audio cabel Safety key Electric cable Computer Tools...
-
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Then tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the left and right handle bar post Connect the middle computer cable (82) and the lower computer cable (83). - Page 15 Step 2: Assembly of the handle bar set Connect the upper computer cable (81) and the middle computer cable (82). NOTICE Please be careful not to jam the cables. This can result in damage to your treadmill. Put the handle bar set (4) on the left and the right handle bar post (2 and 3). Mount the handle bar set (4) on the left and the right handle bar post (2 and 3) with four hex bolts (7), four spring washers (8) and four flat washers (9) using the supplied wrench.
- Page 16 Step 3: Assembly of the computer (1/2) Connect the upper computer cable (81) and the two handle pulse cables (63) with their counterparts (see figure). NOTE: Please be careful not to jam the cables. This can result in damage to your treadmill. Put the computer (78) on the handle bar set (4).
- Page 17 Step 4: Assembly of the computer (2/2) Finally, mount the remaining two screws (20) with the supllied allen wrench.
- Page 18 Step 5: Alignment of the feet If the floor is uneven, you can stabilize the treadmill by turning the two setting screws under the main frame. ⚠ WARNING The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly.
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit. -
Page 20: Console Display
Console Display TM40... - Page 21 The current incline level is displayed here. Your covered or remaining distance is displayed here. The time you have already trained or the remaining time is displayed here. The elapsed or remaining time is displayed here. Your burned calories are displayed here. Your current speed is displayed here.
-
Page 22: Button Functions
Button Functions TM40... - Page 23 By pressing the COOL DOWN button during a training session the cool down programme will start directly. The speed of the belt will slowly decrease to a full stand still within 2 or 3 minutes. Button to choose between the different programmes. Button to enter a programme or confirm the selected value.
-
Page 24: Turning On The Treadmill And First Settings
Turning on the Treadmill and First Settings Set the on/off switch on the back of the treadmill‘s motor cover to “I”. Then place the safety key into the provided slot at the front of the computer and attach the clip to your clothes. Now you are able to setup your user profile by entering personal information: gender, age, weight and height. -
Page 25: Programmes
Programmes 3.4.1 MANUAL (Manual Programme) With the manual programme you can set the preferred speed and incline level during the entire workout. Select the manual programme by pressing the PROGRAM button until MANUAL is displayed on screen. Then press the ENTER button to confirm. Set the desired training duration by pressing the INCLINE buttons or the SPEED - + buttons. -
Page 26: Program (Pre-Set Programmes)
3.4.2 PROGRAM (Pre-Set Programmes) There are 24 preset programmes. For the programmes 1 to 12, the speed and incline will be automatically adjusted according to the selected programme. For the programmes 13 to 18 the computer will only change the speed, you are able to set your incline level manually. For the programmes 19 to 24 only the incline level will be changed automatically and you can set your preferred speed during the training session. - Page 28 TM40...
-
Page 30: User Program (User-Defined Programmes)
3.4.3 USER PROGRAM (User-Defined Programmes) You are able to create and save four (U1-U4) programmes. Each programme is divided into 10 segments. For each segment the speed and Incline level can be set. Select the user programme by pressing the PROGRAM button until USER PROGRAM is displayed on the screen. Then press the ENTER button to confirm. -
Page 31: Hrc - Thr Heart Rate-Controlled Programme
3.4.4 HRC – THR Heart Rate-Controlled Programme ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. With the heart rate-controlled programme you can exercise using your hear rate. -
Page 32: Storage And Transport
STORAGE AND TRANSPORT General Instructions ड ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠... -
Page 33: Folding Up The Treadmill
4.3.1 Folding Up the Treadmill ⚠ WARNING Do not connect the equipment to the power supply when it is folded up. Try not to operate the equipment when it is folded up. The running surface must have come to a complete stop before folding. ⚠... -
Page 34: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 35: Care And Maintenance
Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. -
Page 36: Re-Tensioning The Running Mat
5.3.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment. -
Page 37: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Display console... -
Page 38: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 39: Ordering Spare Parts
It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Darwin / treadmill Model Name: TM40 Article Number: DF-TM40... -
Page 40: Parts List
Parts List Name Supplier Parts No. Specification Qty. Bezeichnung (ENG) Hrst. Teilenummer Spezifikation Anz. Main frame 260D8-3-1000-J0 Left handlebar post 260D1-3-1300-J0 Right handlebar post 260D1-3-1400-J1 Handlebar set 260D8-3-1500-B70 Base tube 260D1-3-1600-J1 Connecting tube 260D1-3-1900-J0 Hex bolt 50108-5-0020-F0 M8x1.25x20L Spring washer 55108-2-1520-FA D15.4xD8.2x2T Flat washer... - Page 41 Allen screw 54008-5-0016-U0 M8*1.25*16L Allen bolt 50308-5-0040-F3 M8*1.25*40 Front roller 260D1-3-1100-01 D17*D46*599.5L Rear roller 260D1-3-1200-00 D17*D46*605L Elastic belt 58004-6-1102-01 PJ8/470/185J Allen screw 54008-5-0075-F0 M8*1.25*75L Upper cover(left) 26000-6-1576-B0 328.4*285.9*106.6 Upper cover(right) 26000-6-1586-B0 328.4*285.9*106.6 Lower cover(left) 26000-6-1577-B0 449.1*318.8*122.2 Lower cover(right) 26000-6-1587-B0 397.1*318.8*122.2 Lower handle pulse sensor 26000-6-1573-B0 Bolt...
- Page 42 Bushing 58002-6-1104-UC0 D28*D10*9.2 Plastic washer 55110-1-2404-BF D10*D24*0.4T Incline motor 26100-6-1975-00 JS11-B Flat washer 55110-1-2020-FA D20xD11x2T Spring washer 55110-2-1730-FA D17.8*D10.2*3.0T Nylon nut 55210-1-2010-FA M10x1.5x10T Allen bolt 54010-5-0065-F4 M10*1.5*65L Allen bolt 54010-5-0050-F4 M10*1.5*50L Flat washer 55110-1-3030-FA D30*D10*3.0T Rear cover(Left) 26000-6-2406-B0 160*117.3*114 Rear cover(right) 26000-6-2407-B0 160*117.3*114 Computer...
- Page 43 Oval end cap 260D1-6-1588-B0 71.2*46*21.6 screw 51004-2-0010-N0 ST4*1.41*10L 102L Inside cover for handrail (L) 260D1-6-1596-B0 62.6*56*44.7 102R Inside cover for handrail (R) 260D1-6-1597-B0 62.6*56*44.7 103L Side cover for handrail (L) 260D1-6-1594-B0 56*33*45.3 103R Side cover for handrail (R) 260D1-6-1595-B0 56*33*45.3...
-
Page 44: Exploded Drawing
Exploded Drawing TM40... -
Page 45: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 46 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 47: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 48 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.de for home fitness equipment with currently 80 www.sport-tiedje.de/blog stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 49 Notes...
- Page 50 Notes TM40...
- Page 52 TF TF DARWIN TM40...
