Darwin TM 40 Assembly And Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Assembly and
Operating Instructions
DFTM40.01.03
DF-TM40
DARWIN
TM 40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM 40 and is the answer not in the manual?

Questions and answers

Related Manuals for Darwin TM 40

Summary of Contents for Darwin TM 40

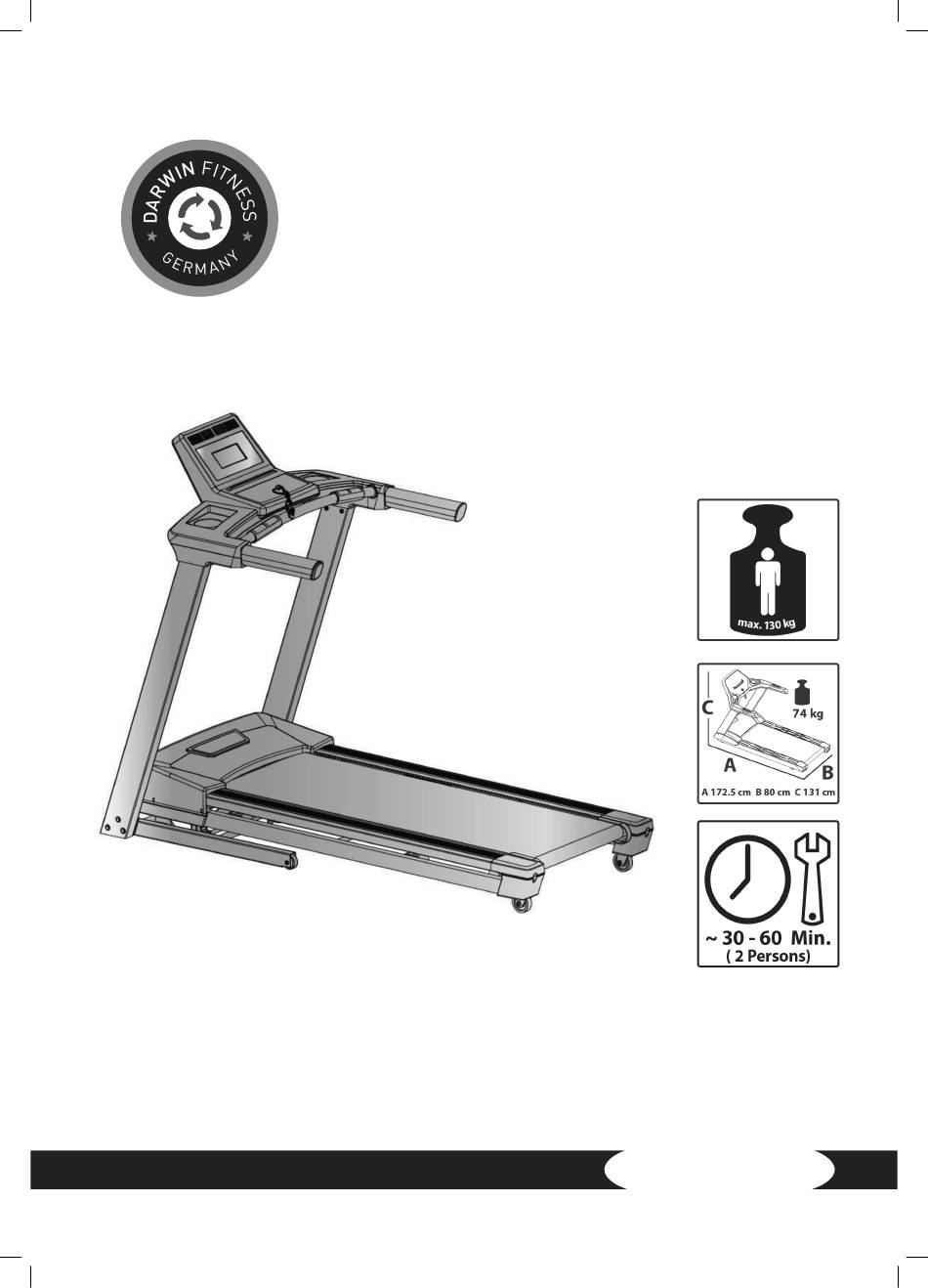

  • Page 1 Assembly and Operating Instructions DFTM40.01.03 DF-TM40 DARWIN TM 40...
  • Page 2 TM 40...

  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Turning on the Treadmill and First Settings Programmes 3.4.1 MANUAL (Manual Programme) 3.4.2 PROGRAM (Pre-Set Programmes) 3.4.3 USER PROGRAM (User-Defined Programmes) 3.4.4 HRC –...
  • Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT TM 40...
  • Page 5 With Darwin® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! L NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. TM 40...

  • Page 7: General Information

    GENERAL INFORMATION Technical Data LCD display of: time speed distance calories incline heart rate Motor output: 2 HP continuous output (DC motor) Speed range: 1 - 16 km/h (0.1 km/h steps) Speed quick keys: 6 Incline range: 1 - 10 % (in 0.5 % steps) Incline quick keys: 6 Total number of training programmes: Manual programmes:...

  • Page 8: Personal Safety

    Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ड ATTENTION Do not insert any objects of any kind into the openings of the device. TM 40...

  • Page 9: Electrical Safety

    Electrical Safety ⚠ DANGER In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠...

  • Page 10: Set-Up Place

    10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. TM 40...

  • Page 11: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly.

  • Page 12: Scope Of Delivery

    In the event of complaints, the contractual partner must be contacted directly. ⚠ CAUTION If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. TM 40...
  • Page 13 Main frame Main frame Handle bar set Handle bar set Handle bar post Handle bar post Handle bar post Handle bar post (right) (right) (left) (left) Audio cabel Audio cabel Safety key Safety key Electric cable Electric cable Computer Computer Tools Tools...

  • Page 14: Assembly

    Please be careful not to jam the cables. This can result in damage to your treadmill. Mount the left and the right handle bar post (2 and 3) on the main frame (1) with six allen screws (10) using the supplied allen wrench. TM 40...
  • Page 15 Step 2: Assembly of the handle bar set Connect the upper computer cable (81) and the middle computer cable (82). L NOTICE Please be careful not to jam the cables. This can result in damage to your treadmill. Put the handle bar set (4) on the left and the right handle bar post (2 and 3). Mount the handle bar set (4) on the left and the right handle bar post (2 and 3) with four hex bolts (7), four spring washers (8) and four flat washers (9) using the supplied wrench.
  • Page 16 Please be careful not to jam the cables. This can result in damage to your treadmill. Put the computer (78) on the handle bar set (4). Mount the computer (78) on the handle bar set (4) with four bolts (56) using the supllied allen wrench. TM 40...
  • Page 17 Step 4: Assembly of the computer (2/2) Finally, mount the remaining two screws (20) with the supllied allen wrench.
  • Page 18 The device must not be connected to a multiple socket, otherwise it cannot be guaranteed that the device will be supplied with sufficient power. Technical errors can result. Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical safety. TM 40...

  • Page 19: Operating Instructions

    OPERATING INSTRUCTIONS L NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY ⚠ WARNING For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit.

  • Page 20: Console Display

    Console Display TM 40...
  • Page 21 The current incline level is displayed here. Your covered or remaining distance is displayed here. The time you have already trained or the remaining time is displayed here. The elapsed or remaining time is displayed here. Your burned calories are displayed here. Your current speed is displayed here.

  • Page 22: Button Functions

    Button Functions TM 40...
  • Page 23 By pressing the COOL DOWN button during a training session the cool down programme will start directly. The speed of the belt will slowly decrease to a full stand still within 2 or 3 minutes. Button to choose between the different programmes. Button to enter a programme or confirm the selected value.

  • Page 24: Turning On The Treadmill And First Settings

    To resume the training press the START key. To quit the training press the STOP button again. Cool Down By pressing the COOL DOWN button during a training session the cool down programme will start directly. The speed of the belt will slowly decrease to a full stand still within 2 or 3 minutes. TM 40...

  • Page 25: Programmes

    Programmes 3.4.1 MANUAL (Manual Programme) With the manual programme you can set the preferred speed and incline level during the entire workout. Select the manual programme by pressing the PROGRAM button until MANUAL is displayed on screen. Then press the ENTER button to confirm. Set the desired training duration by pressing the INCLINE buttons or the SPEED - + buttons.

  • Page 26: Program (Pre-Set Programmes)

    INCLINE buttons or the SPEED - + buttons. The training session is finished when one of the set target values is reached. The computer will now automatically go into cool down programme. Press STOP if you want to cancel the cool down programme. TM 40...
  • Page 28 TM 40...

  • Page 30: User Program (User-Defined Programmes)

    INCLINE buttons or the SPEED - + buttons or by the quick keys on the hand rail. The training session is finished when the set distance has elapsed. The computer will now automatically enter the cool down programme. Press STOP if you want to cancel the cool down programme. TM 40...

  • Page 31: Hrc - Thr Heart Rate-Controlled Programme

    3.4.4 HRC – THR Heart Rate-Controlled Programme WARNING ⚠ Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. With the heart rate-controlled programme you can exercise using your hear rate.

  • Page 32: Storage And Transport

    Do not lift the treadmill by the running mat or the rear transporting wheels. These parts do not lock and are difficult to grab. L NOTICE The treadmill is foldable and thus saves space when it is stored. It also makes it easier to transport. TM 40...

  • Page 33: Folding Up The Treadmill

    4.3.1 Folding Up the Treadmill WARNING ⚠ Do not connect the equipment to the power supply when it is folded up. Try not to operate the equipment when it is folded up. The running surface must have come to a complete stop before folding. CAUTION ⚠...

  • Page 34: Troubleshooting, Care And Maintenance

    WLAN, the room mowers, robot vacuum etc.) Unsuitable chest strap suitable chest strap (see No pulse display recommended accessories) Position of the chest strap incorrect Reposition chest strap and/or moisten electrodes Batteries empty Change batteries TM 40...

  • Page 35: Care And Maintenance

    Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals.

  • Page 36: Re-Tensioning The Running Mat

    Continue turning the belt by hand so that the entire surface between the endless belt and the running plate is lubricated. Wipe off the excess lubricating oil or silicone spray. L NOTICE This maintenance must also be carried out after prolonged non-use of the equipment. TM 40...

  • Page 37: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Display console...

  • Page 38: Recommended Accessories

    Alternatively, you can use the QR code provided. Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap fl oor mat chest strap contact gel silicon spray towels TM 40...

  • Page 39: Ordering Spare Parts

    It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Darwin / treadmill Model Name: TM40 Article Number: DF-TM40...

  • Page 40: Parts List

    D65*24 Buffer 55308-4-0010-BB D20*10L*M8*1.25 Nylon nut 55208-1-2008-FA M8*1.25*8T Metal clip 26000-6-1086-FC0 D27*D4.3*2T Screw 52842-2-0015-F0 ST4.2*15L Motor cover fixing plate 26100-6-1090-00 32*18*18 Cable tie base 26100-6-1089-00 15*10 Screw 50904-2-0015-N0 ST4*1.41*15L Screw 52842-2-0025-F0 ST4.2*25L Motor 260D7-6-1085-01 DC-1.5HP Screw 54904-2-0016-F0 ST4*1.6*16L TM 40...
  • Page 41 Allen screw 54008-5-0016-U0 M8*1.25*16L Allen bolt 50308-5-0040-F3 M8*1.25*40 Front roller 260D1-3-1100-01 D17*D46*599.5L Rear roller 260D1-3-1200-00 D17*D46*605L Elastic belt 58004-6-1102-01 PJ8/470/185J Allen screw 54008-5-0075-F0 M8*1.25*75L Upper cover(left) 26000-6-1576-B0 328.4*285.9*106.6 Upper cover(right) 26000-6-1586-B0 328.4*285.9*106.6 Lower cover(left) 26000-6-1577-B0 449.1*318.8*122.2 Lower cover(right) 26000-6-1587-B0 397.1*318.8*122.2 Lower handle pulse sensor 26000-6-1573-B0 Bolt...
  • Page 42 Grounding wire 2 26100-6-1788-00 100L Live wire 1 26200-6-1789-00 220L Live wire 2 26100-6-1790-01 Neutral wire 1 26100-6-1791-00 100L Neutral wire 2 26100-6-1792-00 190L Magnet ring 26100-6-1079-00 D31*16 Allen spanner 58030-6-1051-N0 M6*130L Spanner 58030-6-1048-C0 145*5.5T Oval end cap 260D1-6-1588-B0 71.2*46*21.6 TM 40...
  • Page 43 screw 51004-2-0010-N0 ST4*1.41*10L 102L Inside cover for handrail (L) 260D1-6-1596-B0 62.6*56*44.7 102R Inside cover for handrail (R) 260D1-6-1597-B0 62.6*56*44.7 103L Side cover for handrail (L) 260D1-6-1594-B0 56*33*45.3 103R Side cover for handrail (R) 260D1-6-1595-B0 56*33*45.3...

  • Page 44: Exploded Drawing

    Exploded Drawing TM 40...

  • Page 45: Warranty

    WARRANTY Training equipment from Darwin® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 46 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. TM 40...

  • Page 47: Contact

    CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
  • Page 48 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! TM 40...
  • Page 50 DARWIN TM 40...
