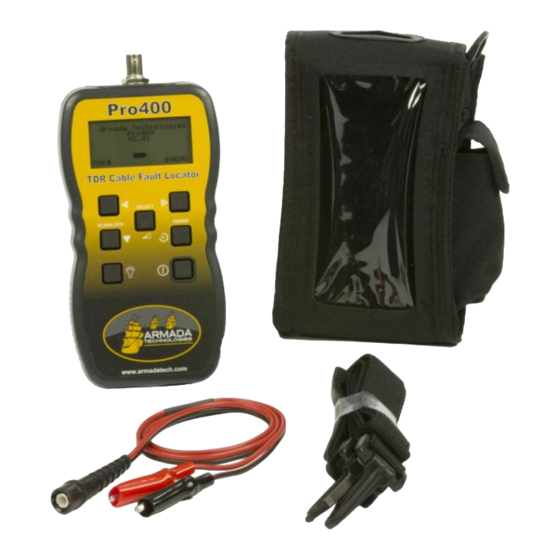

Armada Pro400 TDR Quick Start Manual

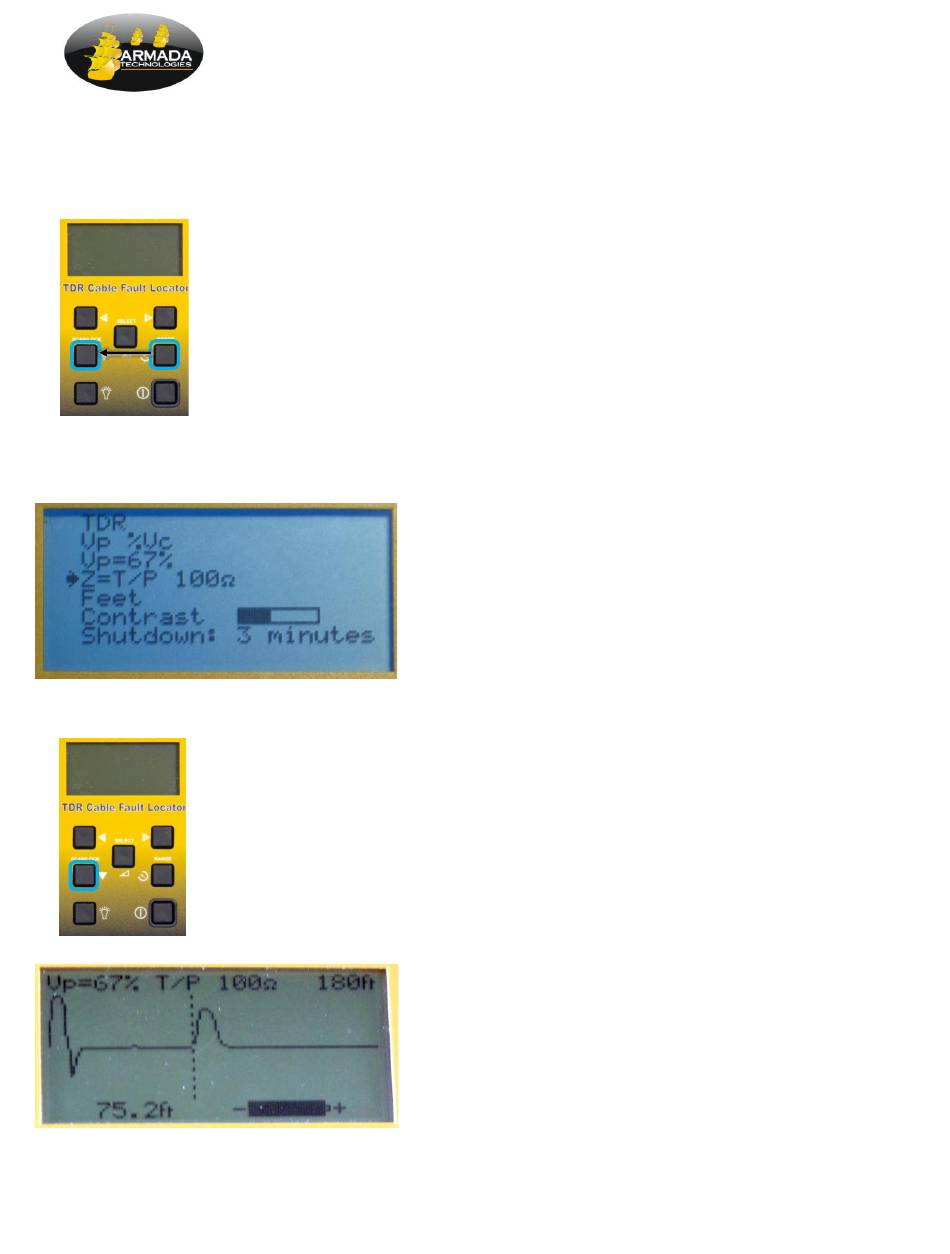

Getting to the Menu list.

Turn the unit on by pressing the Power button.
Select the List Menu by pressing Range and Scan together.
MENU
POWER
In the list use the down arrow ▼key to move down the menu and ◄ and ► keys to select from the
choices.

Launching a scan.

Connect the TDR to a test cable at least 6 feet long, open at one end.
Launch a TDR pulse scan by pressing the Scan/Lock key.
To cause continuous scanning briefly press and hold the Scan key.
FIRE
POWER
8535 Byron Commerce Dr. SW Suite A, Byron Center, MI 49315 USA
QUICK START GUIDE FOR THE Pro400 TDR
•
•
•
•
•
•
•
Adjust the range scale to something close to the cable
length. This shows a 75-foot cable and a 180-foot range.
Observe the upward blip of an open circuit representing the
end of the cable.
Armada Technologies LLC
616-803-1080
APPLICATION NOTE
Select TDR (rather than tone trace)
Select %Vc (Vp as a percent of light speed)
Pick a likely Vp from the chart (e.g., 67)
Select Main 25Ω (solid power wire) or T/P 100Ω
Select Feet (rather than meters)
Choose a battery-saver shutdown time.
Exit the Menu by hitting the Range button.
JUNE 2016
