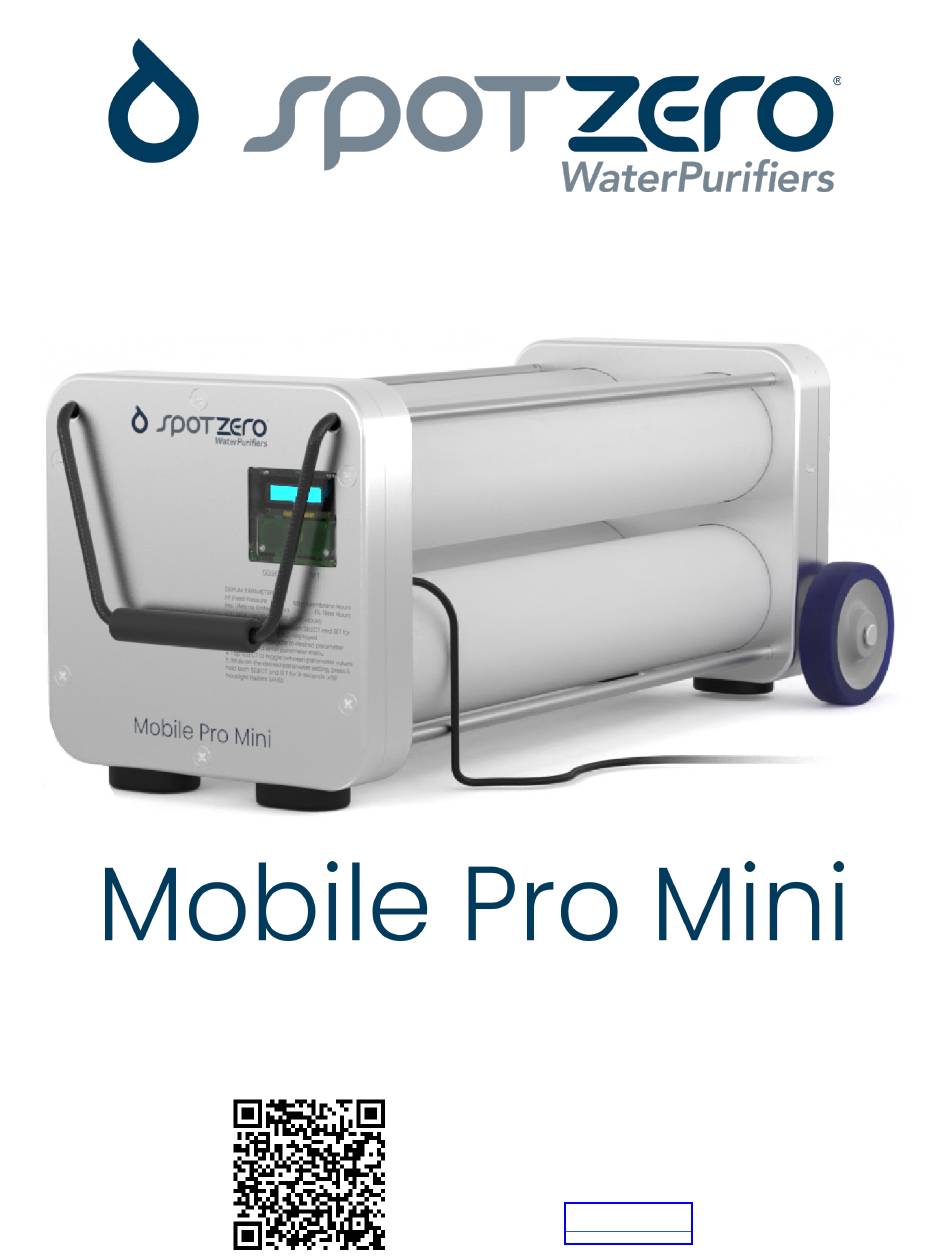

- Page 1 OPERATION MANUAL 100 SW 16th St Fort Lauderdale, FL 33315 Phone: 954-533-5640 www.spotzerowater.com For a Complete Collection of All Support and Service Videos, Please Scan the QR Code or Click HERE...
-
Page 2: Table Of Contents
Winterization of the Spot Zero Mobile Pro Mini ....... . . - Page 3 Manufacturer’s Statements Disclaimer The following manual was written by Spot Zero Reverse Osmosis specifically for the Spot Zero Mobile Pro Mini reverse osmosis system. The information prepared within this manual has been compiled by Spot Zero with the best attempts to make it both comprehensive and accurate but Spot Zero makes no definitive claim or guarantee of the completeness and accuracy of the presented information.
-
Page 4: Introduction
99% of all waterborne contaminants such as heavy metals, bacteria, chlorine and many others. Product water from the Spot Zero Mobile Pro Mini can be used to wash-down a boat, car, RV or airplane as well as fill your vessel’s tank or fill up a glass of the purest water on Earth. -
Page 5: Operating Specifications
Pump and Motor The high pressure pump used on the Spot Zero Mobile Pro Mini require a continuous and non- turbulent flow of water to the system with a minimum feed pressure of 10-psi during operation and not exceeding a temperature of 100°F. -
Page 6: Electrical Requirements
CAN RESULT IN INEFFICIENT SYSTEM OPERATION OR USER INJURY OR DEATH. Plumbing Connections The Spot Zero Mobile Pro Mini has 3 unique plumbing connections that must be made to ensure proper system performance. Please see the specifications and accompanying Figure below for the external plumbing fittings sizes and locations. -
Page 7: Normal Operation
Normal Operation Revision Date: 3/16/2023 Mobile Pro Mini Normal Operation Set Up Attach a feed water hose to the connection port labeled TAP WATER FEED INPUT (Fig. 2, #1). Ensure the hose used is rated with a minimum pressure rating of 150-psi to avoid bursting. -
Page 8: General Use
As with any fluid flow application, there is a linear relationship between fluid pressure and flow rate. The same principle is applicable to the Spot Zero Mobile Pro Mini. Please see the brief description below for best system performance based on specific application. -
Page 9: Sample System Performance
System performance has been thoroughly tested and measured for the Spot Zero Mobile Pro Mini. Performance metrics for the Mobile Pro Mini are shown below in the tables and graphics for a washdown application where the customer is using a proportional nozzle on the product water outlet of the system. -
Page 10: Shutdown Procedure
Mobile Pro Mini Shutdown Procedure Please follow the steps below for proper shutdown of the Spot Zero Mobile Pro Mini. The system is equipped with a built-in flushing cycle and does not require the use of a ball valve. While the system is running (displaying RUNNING on the LCD), stop the flow from the SPOT ZERO OUTPUT using an in-line valve or spray nozzle. -
Page 11: Lcd Display Cycles
Normal Operation Revision Date: 3/16/2023 Mobile Pro Mini LCD Display Cycles The LCD will display a sequence of parameters for 1.5-seconds at a time. The display follows the same continuous sequence unless the operating mode is changed, a fault occurs, flow is interrupted, or the power is disengaged. -
Page 12: Pc Board And Lcd Components
Mobile Pro Mini PC Board and LCD Components The driving component behind the operation of the Spot Zero Mobile Pro Mini is the internal PC Board and accompanying LCD Display. Indication and description of important LCD components can be found below in Figure 4. -
Page 13: Lcd Programming And Navigation
Mobile Pro Mini LCD Programming and Navigation The Spot Zero Mobile Pro Mini is preprogrammed with set recommended maintenance cycles along with programming sequences that a customer can use to monitor system performance more closely. Please see the below information for LCD navigation. -
Page 14: Resetting The Maintenance Hours
Maintenance For a Complete Collection Filter Replacement of Maintenance Videos Each Spot Zero Mobile Pro Mini contains one prefilter that is Scan the QR Code Below or responsible for removing suspended solids, heavy metals, Click HERE and other contaminants before the membranes. The filter (Part #: FI-FW0021) must be replaced every 100 hours of operation or as needed. -
Page 15: Filter Replacement
Maintenance Revision Date: 3/16/2023 Mobile Pro Mini 6. As shown in Figure 7, the filter is located in the top left hole through the inner end plate (#1). 7. Using either pliers or your hand, reach into the housing and firmly grasp the filter. -
Page 16: Maintenance
Maintenance Revision Date: 3/16/2023 Mobile Pro Mini Resetting the Maintenance Hours Unlock the keypad as explained on the previous page. 2. Press the SELECT button to see the first programmable parameter. Continuing to press SELECT will toggle through all parameters and will wrap around back to the beginning. -
Page 17: Membrane Replacement
Membrane Replacement For a Complete Collection of Maintenance Videos Each Spot Zero Mobile Pro Mini contains two RO membranes Scan the QR Code Below or that are responsible for the ultra-filtration of incoming water supply. The membranes (Part #: MM-FW0014) must Click HERE be replaced every 500 hours of operation or as needed. - Page 18 Maintenance Revision Date: 3/16/2023 Mobile Pro Mini 6. As shown in Figure 12, the first membrane is located in the bottom right hole through the inner end plate (Fig. 12, #1). Using either needle nose pliers or your hand, reach into the housing and firmly grasp the membrane by one of the black fins, ensuring not the grasp the product tube in case inspection or reuse is required (Fig.
- Page 19 Maintenance Revision Date: 3/16/2023 Mobile Pro Mini 12. Retrieve the end plate and return to the system top side up as shown in Fig. 16. 13. Align the end plate and push inward toward the system until the external edges of the plate are flush with those of the internal end plate.
-
Page 20: Preparing System For Storage Or Shipment
Spot Zero. To prepare for storage, please follow the steps below. Turn the system on and fill a 5-gallon bucket with the Spot Zero product water that comes out of the Mobile Pro Mini. PRODUCT WATER FROM THE MOBILE UNIT MUST BE USED FOR THE BELOW STEPS, ⚠... -
Page 21: Winterization Of The Spot Zero Mobile Pro Mini
Winterization of the Spot Zero Mobile Pro Mini There are two options for winterizing your Spot Zero Mobile Pro Mini. It is the responsibility of the user to determine the best method for their application and use due diligence for following all required steps. -
Page 22: Recommissioning System After Storage
Maintenance Revision Date: 3/16/2023 Mobile Pro Mini 11. Be sure to remove the hoses from the system and plug the inlets and outlets of the system to ensure that the storage solution does not leak out of the system. THE SYSTEM SHOULD NEVER BE PLUGGED IN FOR ANY OF THE ABOVE STEPS. ONLY AN AUXILIARY PUMP SHOULD BE USED TO CIRCULATE THE SOLUTION. -
Page 23: Troubleshooting
The following table is meant to show any of the circumstances you may experience with your Spot Zero Mobile Pro Mini where the system may not be performing as expected. Please refer to the table below, follow any necessary steps and call Spot Zero if you have any further questions at 954-533-5640. -
Page 24: Temperature Correction Factors For Membrane
Troubleshooting Revision Date: 3/16/2023 Mobile Pro Mini Temperature Correction Factors for Membrane The reverse osmosis process is also heavily dependent on the input water temperature. This is because higher temperature water has a reduced viscosity which makes it easier for the water to permeate the RO membrane. -
Page 25: Lcd Fault Indicators
Mobile Pro Mini LCD Fault Indicators The Mobile Pro Mini is equipped with several safety parameters, performance indicators, and data logging tools. Please see the LCD indications and fault states below along with the corresponding signal to determine how to address the fault. -
Page 26: Lcd Fault Indicators Explained
The feed pressure transducer is located on the underside of the Mobile Pro Mini, in between the two bottom PVC housings on the wheel side of the system (Fig. X #1). The transducer is threaded into the inner aluminum end plate. -
Page 27: Over Current Fault
Troubleshooting Revision Date: 3/16/2023 Mobile Pro Mini Over Current Fault Fault 1 & 2: OVER CURRENT - Cycles message across LCD 3-times, LED flashes RED 3 times Fault 3: OVER CURRENT SEE MANUAL - STAGE 3 FAULT The Over Current fault is a preventative safety fault programmed by Spot Zero. This fault will engage when the motor draws significantly more amperage than when under typical load. -
Page 28: Over Temperature Fault
Troubleshooting Revision Date: 3/16/2023 Mobile Pro Mini Over Temperature Fault Fault 1 & 2: OVER TEMP - Cycles message across LCD 3-times, LED flashes RED 3 times Fault 3: OVER TEMP SEE MANUAL - STAGE 3 FAULT The Over Temp fault is a preventative safety fault programmed by Spot Zero. This fault will engage when the PC board is experiencing performance temperatures beyond those under typical load. -
Page 29: Over Pressure Fault
Troubleshooting Revision Date: 3/16/2023 Mobile Pro Mini Over Pressure Fault OVER PRESSURE- Cycles message across LCD 3-times, LED flashes RED 3 times OVER PRESSURE SEE MANUAL - STAGE 3 FAULT The Over Pressure fault is a preventative safety fault programmed by Spot Zero. This fault will engage when the system experiences pressures beyond standard operating conditions. -
Page 30: Low Feed Pressure Fault
Troubleshooting Revision Date: 3/16/2023 Mobile Pro Mini Low Feed Pressure Fault !LOW FP!- Cycles message across LCD 3-times, LED flashes RED 3 times The !LOW FP! fault stands for Low Feed Pressure and is a preventative safety fault programmed by Spot Zero. This fault will engage when the system experiences pressures below standard operating conditions. -
Page 31: Consumable Items
Mobile Pro Mini Plate Retaining Screws Optional Dockside Pre-Filter The dockside pre-filter assembly is recommended for the Mobile Pro Mini if it will be used with increased chlorine or suspended solids (refer to the Feed Water Parameters Table on Pg. 5) as this will extend the life of your Mobile Pro Mini’s internal prefilter and membranes. -
Page 32: Owner's Limited Warranty
Warranty Revision Date: 3/16/2023 Mobile Pro Mini Owner’s Limited Warranty Spot Zero Reverse Osmosis warrants to the original purchaser/owner, and to subsequent owners during the applicable Limited Warranty Period, Spot Zero’s Water Purification Products, Pumps, Related Accessories and Replacement Parts against failure from defects in material or workmanship arising in the periods specified in the Table of Limited Warranty Periods below. - Page 33 Warranty Revision Date: 3/16/2023 Mobile Pro Mini Section 2 WHAT’S NOT COVERED What does this Limited Warranty not cover? This Warranty Shall Not Apply to: Failures resulting from improper installation or use contrary to instructions. Failures resulting from abuse, misuse, accident, fire, or submergence.
- Page 34 Warranty Revision Date: 3/16/2023 Mobile Pro Mini Section 4 GETTING COVERED WARRANTY SERVICE How does the purchaser/owner get warranty service? Please read the following Warranty Procedure: If the failure of a Spot Zero component is determined to be covered under the Spot Zero warranty and the time in service is determined to be within the warranty time limit, the owner has the following three options: Preferred option: Have a Spot Zero authorized Servicing Dealer, perform the work needed.
