Summary of Contents for sumas SM-30BT

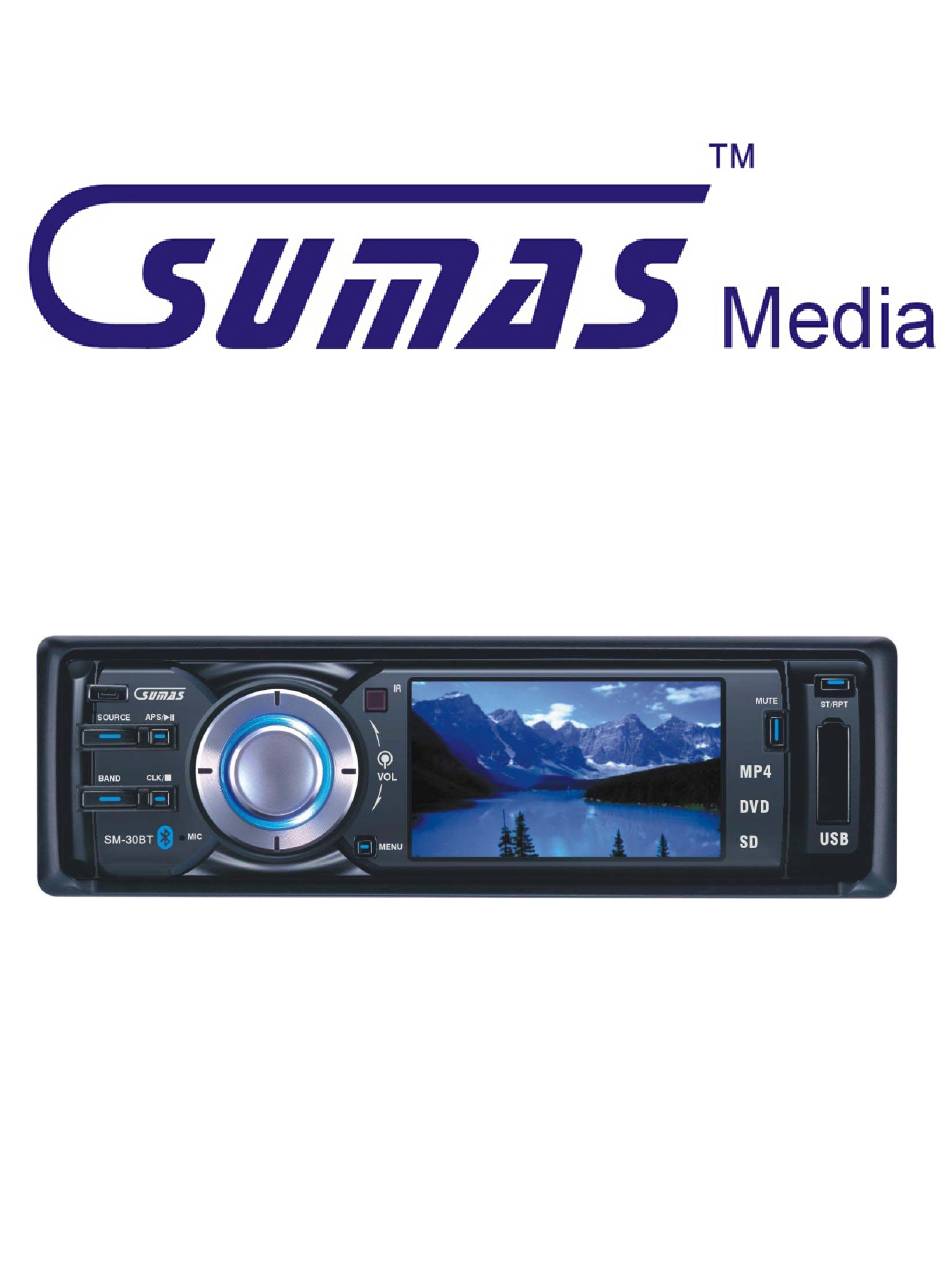

- Page 1 SM-30BT USER OPERATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information …….………………………………………………………… 1 Park/Brake wire ………………………………………………………………….. 1 Installation/Removal ……….………………………………………………….. 2 Playable Disc, DVD Care, MP3 ……….…………………………………….. Maintenance …………………………………………………………………….… Replacing Remote Control Battery ………….…………………………….. Remote Control …………………………………………………………………... 4 Remote Control Functions ……………………………………………………. Front Panel ………………………………………………………………………… Front Panel Functions …………………………………………………………. Basic Setup …..…….……………………………………………………….….. -
Page 3: Safety Information
CAUTION: This unit is a class 1 Laser Product. To prevent direct exposure to Laser system, DO NOT OPEN the unit. The Laser Beam may hurt or damage your eyes. If the unit requires adjustments, please contact Sumas Media. USE THIS PRODUCT SAFELY... -
Page 4: Installation/Removal
Installation Note: Remove the protection screws (A) before installing and operation the unit. Please find the front panel inside carry caddy. Reinstall panel by placing as flipped down position, insert panel left side into front adaptor first, then gently click right side into place. When completed correctly panel should be flip up in place. -
Page 5: Playable Disc, Dvd Care, Mp3
Maintenance Playable discs DVD, Video CD and CD discs that display the logos shown below can be played back on this unit. DVD video disc region numbers: (This unit is for region one ONLY) If you encounter region problems, please call toll free service number on back page, we will help you resolve if. DVD Care If you use an irregular disc it may jam the DVD player or not play, for this reason only use round discs Be sure to check all discs for cracks and scratches before playing, discs in those conditions will not play properly. -
Page 6: Remote Control
Remote Control... -
Page 7: Remote Control Functions
REMOTE CONTROL FUNCTIONS 1. PWR: Power (on/off) SUB-T/REC: Language subtitle (on/off) MUTE: Mute enable/disable sound SRC: To switch between modes 2. BND/RDM: To select different bands (radio mode) To turn on random playing APS/PRG: Automatic scan/program (radio mode) ST/RPT: Stereo/Mono switch (radio mode) Repeat on/off : Play/Pause : Stop Setup: For system settings... -
Page 8: Front Panel
Front Panel Release Button 9. USB Port Menu Button 10. Play/Pause/APS button RDM/Band Select button 11. CLK/ Button Source Button 12. TFT LCD Screen Four Way Directional button 13. Volume Button ST/RPT 14. Disc Slot 15. SD Slot Mute Button 16. -
Page 9: Front Panel Functions
FRONT PANEL FUNCTIONS – Front panel release button 2. Menu – System settings 3. Band/RDM – To toggle change between FM1/FM2/FM3/AM1/AM2 and Random Play 4. Source/Power – To turn the unit on and toggle between Modes DVD/CD/Tuner/USB/SD/AUX/Bluetooth modes 5. Four directional buttons – To change setting using up/down/left/right 6. -
Page 10: Basic Setup
Basic Setup Powering the unit ON/OFF - Press the Source/Power button once to turn the unit on. Press and hold to turn off. Note: When using the remote, just press “PWR” power button once to turn unit on/off. Switching Modes - Press the Source/Power Button on the unit repeatedly to cycle through the Modes. - Page 11 Basic Setup cont. Audio Settings - To change settings, press the Menu or Setup on the remote control, then touch “AUDIO” tab on the screen or press on the remote. Touch the screen on the desired option, then press to change the settings. (Setup between 0-14) Play with these options to get the desired audio output.
-
Page 12: Bluetooth
Basic Operation BLUETOOTH MODE Pairing/link your cell phone Operating “Bluetooth” mode: Select from the main screen by touching the icon or by pressing the “SOURCE” button repeatedly until “Bluetooth” is displayed. Press “Setup” on the screen, then press on/off and press “Connect”. Turn your cell phone’s Bluetooth on;... -
Page 13: Music/Mp3 Mode
Basic Operation cont. Music/MP3-4 CD Mode Inserting a CD: Press the “Release” to open front panel, then insert a Music or MP3 Disc into the disc slot with label facing up. Then push front panel back into place. Unit should automatically switch to “DISC”... -
Page 14: Trouble Shooting
Trouble Shooting Problem Reason/Cause Conclusion/Solution Will not turn on. Incorrect wiring connections. Check all wires are properly connected. Please refer to the wiring diagram Remote control not Insufficient battery power. Replace battery. (page 3)/ Make sure there is functional. Remote sensor blocked. nothing blocking the remote control sensor. -
Page 15: Specification
Specifications General Power Requirements …..12 V DC Load Impedance …………..……. 4Ω-8Ω Tone Control …………………….… ±8dB (Bass 100Hz, Treble 10KHz) Dimensions ……………………….… Approx. 7.36”D x 6.69”W x 2”H Mounting Dimensions …..7.50”D x 6.75”W x 2.25”H Weight …………………….………..…. 4.25lbs DVD Deck Section Disc Play ……………………..…….…. -
Page 16: Accessories
Accessories Fa ceplate Frame Dash Insert Casing Screws Push Pin Wiring Harness Extractors Faceplate Caddy Remote Control Manual Wiring Diagram...
