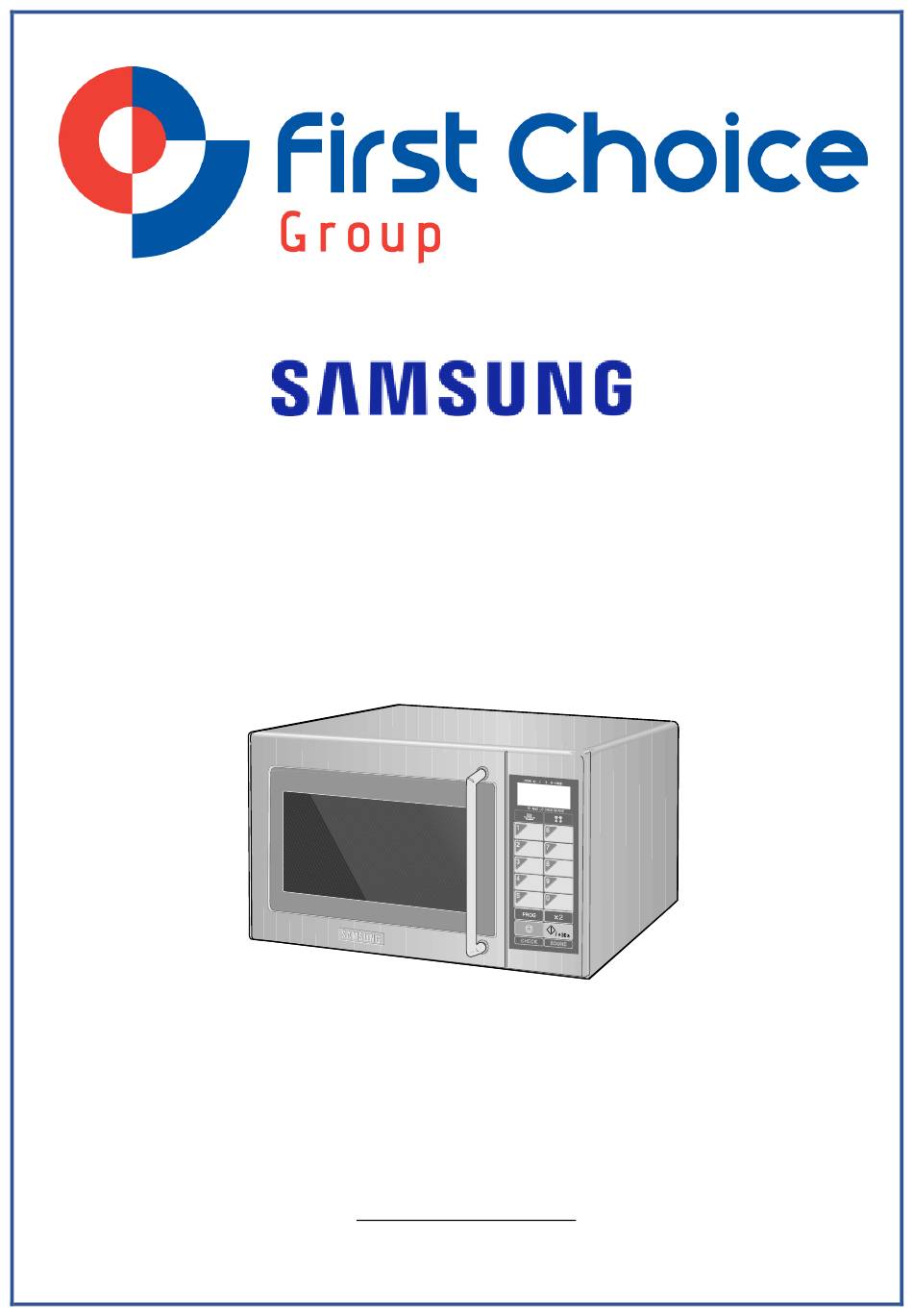

- Page 1 SPARE PARTS DIAGRAM FOR Microwave Oven CM1049 First Choice Group Blakeney Way, Kingswood Lakeside Cannock, Staffs, WS11 8LD TEL: 01543 577778 FAX: 01543504141 Email: enquires@firstchoice-cs.co.uk Web: www.firstchoice-cs.co.uk...
-
Page 2: Table Of Contents
MICROWAVE OVEN CM1049 SERVICE Manual MICROWAVE OVEN CONTENTS 1. Precaution 2. Specifications 3. Operating Instructions 4. Disassembly and Reassembly 5. Alignment and Adjustments 6. Trouble 7. Exploded Views and Parts List 8. PCB Diagrams 9. Schematic Diagrams SESC... - Page 3 PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not operate or allow the oven to be (c) Before turning on microwave power operated with the door open. for any service test or inspection within (b) Make the following safety checks on the microwave generating all ovens to be serviced before activating...
-
Page 4: Precaution
1. Precaution Follow these special safety precautions. Although the microwave oven is completely safe during ordinary use, repair work can be extremely hazardous due to possible exposure to microwave radiation, as well as potentially lethal high voltages and currents. 1-1 Safety precautions ( 11. - Page 5 1-2 Special Servicing Precautions (Continued) 17. When checking the continuity of the witches or transformer, always make sure that the power is OFF, and one of the lead wires is disconnected. 18. Components that are critical for safety are indicated in the circuit diagram by shading, or .
-
Page 6: Specifications
2. Specifications 2-1 Table of Specifications TIMER 30 MINUTES POWER SOURCE 230V 50Hz, AC POWER CONSUMPTION MICROWAVE : 1,450W OUTPUT POWER 1000W (IEC-705 TEST PROCEDURE) OPERATING FREQUENCY 2,450MHz MAGNETRON OM75PH(31)ESS COOLING METHOD COOLING FAN MOTOR OUTSIDE DIMENSIONS 517(W) x 297(H) x 412(D) -
Page 7: Operating Instructions
3. Operating Instructions 3-1 Control Panel 3-2 Features & External Views Door Light Ventilation Holes Safety Interlock Holes Display Handle Control Panel Assy-tray-ceramic Door Latches 517mm 412mm... -
Page 8: Disassembly And Reassembly
4. Disassembly and Reassembly 4-1 Replacement of Magnetron, Motor Assembly and Lamp Thermo S/W Cover Ai Remove the magnetron including the shield case, permanent magnet, choke coils and capacitors (all of which are contained in one assembly). 1. Disconnect all lead wires from the magnetron and lamp. - Page 9 4-3 Replacement of Door Assembly 4-3-1 Removal of Door Assembly Remove hex bolts securing the upper hinge and lower hinge. Then remove the door assembly. Door "A" Door "C" 4-3-2 Removal of Door "C" Insert flat screwdriver into the gap between Door "E"...
- Page 10 4-3-5 Reassembly Test After replacement of the defective component parts of the door, reassemble it and follow the instructions below for proper installation and adjustment so as to prevent an excessive microwave leakage. 1. When mounting the door to the oven, be sure to adjust the door parallel to the bottom line of the oven face plate by moving the upper hinge and lower hinge in the direction necessary for proper alignment.
- Page 11 4-6 Replacement of Control Circuit Board 4-6-1 Removal of Ass'y Control Box 1. Be sure to ground any static electric charge i your body and never touch the touch control circuitry. 2. Disconnect the connectors from the control SCREW circuit board. 3.
-
Page 12: Alignment And Adjustments
5. Alignment and Adjustments PRECAUTION 1. High voltage is present at the high voltage terminals during any cook cycle. 2. It is neither necessary nor advisable to attempt measurement of the high voltage. 3. Before touching any oven components or wiring, always unplug the oven from its power source and discharge the high voltage capacitor. - Page 13 5-4 High Voltage Capacitor 1. Check continuity of the capacitor with the meter set at the highest resistance scale. 2. Once the capacitor is charged, a normal capacitor shows continuity for a short time, and then indicates 9M. 3. A shorted capacitor will show continuous continuity. 4.
- Page 14 5-8 Output Power of Magnetron CAUTION MICROWAVE RADIATION PERSONNEL SHOULD NOT ALLOW EXPOSURE TO MICROWAVE RADIATION FROM MICROWAVE GENERATOR OR OTHER PARTS CONDUCTING MICROWAVE ENERGY. The output power of the magnetron can be measured by performing a water temperature rise test. Equipment needed : * Two 1-liter cylindrical borosilicate glass vessel (Outside diameter 190 mm) * One glass thermometer with mercury column...
- Page 15 5-9 Procedure for Measurement of Microwave Energy Leakage 1) Pour 275±15cc of 20±5° C(68±9° F) water in a beaker which is graduated to 600cc, and place the beaker in the center of the oven. 2) Start to operate the oven and measure the leakage by using a microwave energy survey meter.
- Page 16 6. Troubleshooting PRECAUTION 1. CHECK GROUNDING BEFORE CHECKING FOR TROUBLE. 2. BE CAREFUL OF THE HIGH VOLTAGE CIRCUIT. 3. DISCHARGE THE HIGH VOLTAGE CAPACITOR. 4. WHEN CHECKING THE CONTINUITY OF THE SWITCHES OR TRANSFORMER, DISCONNECT ONE LEAD WIRE FROM THESE PARTS AND THEN CHECK CONTINUITY WITHOUT THE POWER SOURCE ON.
- Page 17 6-1 Electrical Maltunction(continved) SYMPTOM CAUSE CORRECTIONS Oven lamp and fan motor turn on 1. Misadjustment or loose wiring Adjust door and latch switches. of primary latch switch 2. Defective primary latch switch Oven can program but timer 1. Open or loose wiring of Adjust door and interlock does not start.
-
Page 18: Exploded Views And Parts List
7. Exploded Views and Parts List 7-1 Exploded Views MD04 MD08 MD11 MD09 MD05 MM01 MM52 MD06 MM17 MD07 MM07 MD10 MM03 MD01 MM55 MC13 MM05 MM16 MC06 MM06 MB01 MC07 MB03 MM22 MM10 MB05 MB02 MM14 MM28 MB04 MM08 MC02 MB03 MC01... - Page 19 MB04 DE66-90054B LEVER-SWITCH NYLON#66(2021SW),40G,M959/XSA, MB05 DE66-40021B LATCH-BODY NYLON#66(2021SW),40g,M959/XSA, MM01 DE70-00011G PANEL-OUTER C/STEEL,T0.6,W360,L1128,D/GRY,-,- MM03 DE39-00234A WIRE HARNESS-A CM1049,-,-,230V50Hz,-,-,-,-,TCO VI,AMFO MM05 DE96-00010A ASSY NOISE FILTER SN-3WED,250V10A,3W NO-INRUSH TC,-,- MM06 DE96-00108A ASSY-MOTOR FAN SMF-1049,230V50Hz,2500rpm,RE-G50,- MM06 DE31-10177C MOTOR-FAN SMF-1049EA,-,-,230V50Hz,15mm,-,2500rpm,- MM07 DE39-20075H ASSY POWER CORD...
- Page 20 7-3 Control & Door Parts List Code No. Description Specification Q'ty Remark MC01 ASSY CONTROL-BOX -,CM1049,STS+D/GRY,SEMI COMMERCIAL S.N.A MC02 DE34-00097A SWITCH MEMBRANE CM1049,-,-,PET,-,-,-,-,-,-,SEMI COMMERCIAL MC03 CONTROL-PANEL ABS,-,CM1030M,-,-,-,- S.N.A MC06 DE67-40179A WINDOW-DISPLAY SAN,T2.0,-,-,SMOG,-,3RD-W S1,- MC07 RC-CM1020B-01 ASSY PCB PARTS:CM104 MC13 DE94-00393A...
- Page 21 7-4 Standard Parts List Code No. Description Specification Q'ty Remark DE60-10012A SCREW-TAP TITE TH,+,3,M4,L10,SWR10,ZPC2,TOOTH N/F-EAR DE60-10012A SCREW-TAP TITE TH,+,3,M4,L10,SWR10,ZPC2,TOOTH P/C-EAR DE60-10012A SCREW-TAP TITE TH,+,3,M4,L10,SWR10,ZPC2,TOOTH PCB-EAR DE60-10059A SCREW-TAP TH TH,M4,L8,SUS410,CR,-,-,-,-,- C/CEILING DE60-10080B SCREW-WASHER PH,PI5,L10,SWRCH18A,ZP2,2S,-,- DE60-10080B SCREW-WASHER PH,PI5,L10,SWRCH18A,ZP2,2S,-,- TNS-HV DE60-10082H SCREW-A 2S-4X12,TOOTHED,-,-,-,-,-,-,-, B-PLTE DE60-10082H SCREW-A...
- Page 22 8. P.C.B Diagrams 8-1 P.C.B Diagrams...
- Page 23 FUS1 3708-001508 CONNECTOR-FPC/FC/PIC 10P,1.25mm,STRAIGHT,SN DE07-00012A VF DISPLAY HNM-06SS64,CM1020L,67.2x.5.0x10,1/7.50,-,- DSP1 DE47-40024A HOLDER-FUSE FH-51H,7.5A,-,-,-,-,- FUS1 DE61-00095A HOLDER-DIGITRON NYLON#66,-,-,-,-,CM1020L,- DSP1 DE92-00632A ASSY PCB AUTO 230V50Hz,VFD,RC-CM1020B-01,CM1049 0401-001083 DIODE-SWITCHING MM4148,100V,150MA,LL-34,TP D04~07,09,10 0402-001103 DIODE-RECTIFIER 1T4,400V,1A,TS-1,TP D01,02,03,08 0403-001288 DIODE-ZENER ZMM55C5V1,4.8-5.4V,500MW,LL-34,TP ZD1,2,3 0501-000465 TR-SMALL SIGNAL MMBT3904,NPN,350mW,SOT-23,TP,100-300 0504-000130 TR-DIGITAL KSR1105TF,NPN,200MW,4.7K/10K,SOT-23,TP...
-
Page 24: Schematic Diagrams
9. Schematic Diagrams 9-1 Schematic Diagrams MAGNETRON HIGH VOLTAGE DIODE TO CHASSIS PRIMARY SWITCH HIGH VOLTAGE CAPACITOR DOOR SENSING SWITCH MONITOR SWITCH BOTTOM CENTER SYMBOL COLOR ORANGE HIGH VOLTAGE WHITE TRANSFORMER BLACK BLUE POWER RELAY... - Page 25 ELECTRONICS ©Samsung Electronics Co., Ltd. January 2001 Printed in Korea Code No. : DE68-01667A...
