Quick Start
Thank you for purchasing the MSI
motherboard. This
®
MAG X570 TOMAHAWK WIFI
Quick Start section provides demonstration diagrams about how to install your
computer. Some of the installations also provide video demonstrations. Please link to
the URL to watch it with the web browser on your phone or tablet. You may have even
link to the URL by scanning the QR code.

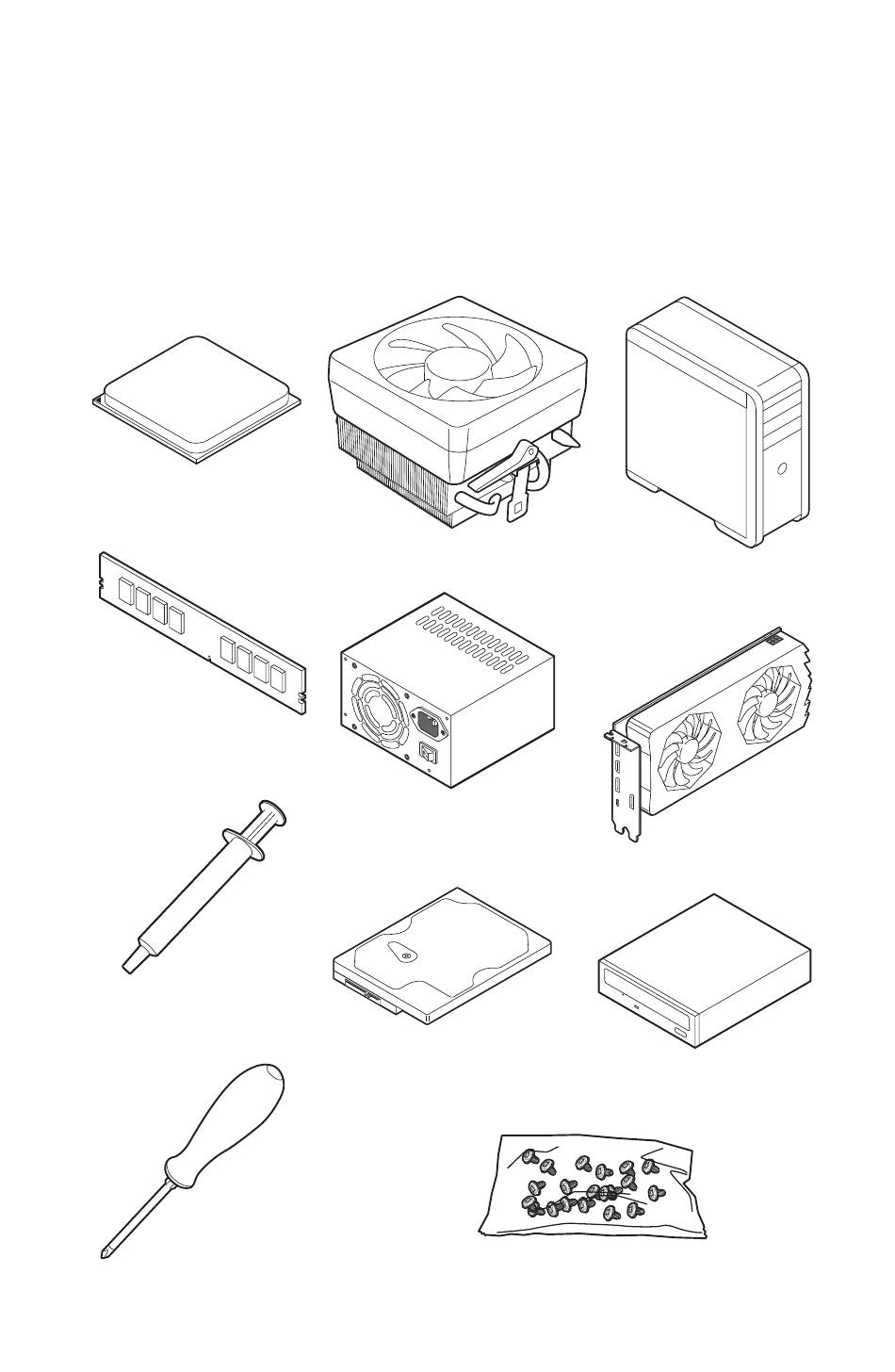

Preparing Tools and Components
AMD
AM4 CPU
®
CPU Fan
Chassis
DDR4 Memory
Power Supply Unit
Graphics Card
Thermal Paste
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
1
Quick Start
Advertisement
Table of Contents
Related Manuals for MSI MAG X570 TOMAHAWK WIFI
Summary of Contents for MSI MAG X570 TOMAHAWK WIFI
-
Page 1: Quick Start
Quick Start Thank you for purchasing the MSI motherboard. This ® MAG X570 TOMAHAWK WIFI Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code. -
Page 2: Safety Information
Safety Information ∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ∙ Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start. -
Page 3: Installing A Processor
Installing a Processor https://youtu.be/Xv89nhFk1vc Quick Start... - Page 4 ⚠ Important If you are installing the screw-type CPU heatsink, please follow the figure below to remove the retention module first and then install the heatsink. Quick Start...
-
Page 5: Installing Ddr4 Memory
Installing DDR4 memory http://youtu.be/T03aDrJPyQs DIMMA1 DIMMA2 DIMMA2 DIMMA2 DIMMB1 DIMMB2 DIMMB2 Quick Start... -
Page 6: Connecting The Front Panel Header
Connecting the Front Panel Header http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch JFP1 Reset Switch Power Switch Reserved No Pin HDD LED - HDD LED HDD LED +... -
Page 7: Installing The Motherboard
Installing the Motherboard Torque: 3 kgf·cm* *3 kgf·cm = 0.3 N·m = 2.6 lbf·in Quick Start... -
Page 8: Connecting The Power Connectors
Connecting the Power Connectors http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR1 CPU_PWR2 Quick Start... -
Page 9: Installing Sata Drives
Installing SATA Drives http://youtu.be/RZsMpqxythc Quick Start... -
Page 10: Installing A Graphics Card
Installing a Graphics Card http://youtu.be/mG0GZpr9w_A Quick Start... -
Page 11: Connecting Peripheral Devices
Connecting Peripheral Devices Quick Start... -
Page 12: Power On
Power On Quick Start... -
Page 13: Table Of Contents
Contents Quick Start ......................1 Preparing Tools and Components ................1 Safety Information ....................2 Installing a Processor ..................... 3 Installing DDR4 memory ..................5 Connecting the Front Panel Header ............... 6 Installing the Motherboard ..................7 Connecting the Power Connectors ................. 8 Installing SATA Drives..................... - Page 14 JCOM1: Serial Port Connector ................40 JBAT1: Clear CMOS (Reset BIOS) Jumper ............41 EZ Debug LED ....................... 41 JRGB1~2: RGB LED connectors ................42 JRAINBOW1~2: Addressable RGB LED connectors ..........43 Installing OS, Drivers & Utilities ................. 44 Installing Windows 10 ..................
-
Page 15: Specifications
∙ Supports non-ECC UDIMM memory ∙ Supports ECC UDIMM memory (non-ECC mode) ∙ Supports un-buffered memory * Please refer www.msi.com for more information on compatible memory. ∙ 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) ▪ 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode ▪... - Page 16 Continued from previous page ∙ 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz* Onboard Graphics * Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors * Maximum shared memory of 2048 MB Multi-GPU ∙...
- Page 17 Continued from previous page ∙ CPU/ System/ Chipset temperature detection Hardware Monitor ∙ CPU/ System/ Chipset fan speed detection ∙ CPU/ System/ Chipset fan speed control ∙ AMD X570 Chipset ® ▪ 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) ▪...
- Page 18 Continued from previous page ∙ 1x 24-pin ATX main power connector ∙ 1x 8-pin ATX 12V power connector ∙ 1x 4-pin ATX 12V power connector ∙ 6x SATA 6Gb/s connectors ∙ 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) ∙...
- Page 19 ∙ Drivers ∙ DRAGON CENTER ∙ CPU-Z MSI GAMING Software ∙ Open Broadcaster Software (OBS) ∙ MSI App Player (BlueStacks) ∙ Google Chrome™ ,Google Toolbar, Google Drive ∙ Norton™ Internet Security Solution ∙ Gaming Mode ∙ Gaming Hotkey ∙ LAN Manager ∙...
- Page 20 Continued from previous page ∙ Storage ▪ Lightning Gen 4 M.2 ▪ Twin Turbo M.2 ∙ LED ▪ Mystic Light 3 ▪ Mystic Light Extension (RGB) ▪ Mystic Light Extension (RAINBOW) ▪ Mystic Light Sync ▪ EZ DEBUG LED ∙ Protection ▪...
-
Page 21: Package Contents
Package contents Please check the contents of your motherboard package. It should contain: Motherboard MAG X570 TOMAHAWK WIFI Cable SATA 6Gb/s cables (2 cables/pack) Wi-Fi antenna M.2 screws (3 pcs./pack) Accessories Case badge Product registration card Application DVD Driver DVD... -
Page 22: Block Diagram
Block Diagram 2 Channel DDR4 Memory Processor 1x M.2 PCI Express Bus 2x USB 3.2 Gen 1 2x USB 3.2 Gen 2 1x M.2 PCIE Front Audio Jacks Realtek 6x SATA 6Gb/s ALC1200 Rear Audio Jacks NUVOTON 6797 P/S2 Mouse/ Keyboard 6x USB 2.0 2x PCIex1 4x USB 3.2 Gen 1... -
Page 23: Rear I/O Panel
Rear I/O Panel USB 3.2 Gen 2 Wi-Fi Antenna 10Gbps Type-A* connectors Audio Ports USB 3.2 Gen 1 2.5Gbps PS/2 5Gbps Type-A Flash BIOS Button Flash BIOS USB 3.2 Gen 2 Port 10Gbps Type-A USB 2.0 Type-A Optical S/PDIF-Out USB 3.2 Gen 2 10Gbps Type-C* *USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/Ryzen™... -
Page 24: Realtek Audio Console
Realtek Audio Console After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience. Application Enhancement Device Selection Main Volume Connector Settings Jack Status ∙ Device Selection - allows you to select a audio output source to change the related options. - Page 25 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Rear I/O Panel...
- Page 26 Installing antennas 1. Screw the antennas tight to the antenna connectors as shown below. 2. Orient the antennas. Rear I/O Panel...
-
Page 27: Overview Of Components
Overview of Components Processor Socket CPU_FAN1 CPU_PWR2 JRGB2 CPU_PWR1 JRAINBOW2 PUMP_FAN1 DIMMB2 DIMMB1 DIMMA2 DIMMA1 ATX_PWR1 JUSB5 M2_1 PCI_E1 SATA▼5▲6 JRTD3 SATA▼3▲4 JCI1 PCI_E2 SATA▼1▲2 M2_2 PCI_E3 JUSB4 JBAT1 JTBT1 JFP2 PCI_E4 JRAINBOW1 JAUD1 JFP1 JRGB1 JTPM1 JUSB3 SYS_FAN1 JUSB2 JUSB1 SYS_FAN2 JCOM1... - Page 28 Component Contents Port Name Port Type Page CPU_FAN1, PUMP_FAN1, Fan Connectors SYS_FAN1~4 CPU_PWR1~2, ATX_PWR1 Power Connectors CPU Socket AM4 CPU Socket DIMMA1/A2/B1/B2 DIMM Slots JAUD1 Front Audio Connector JBAT1 Clear CMOS (Reset BIOS) Jumper JCI1 Chassis Intrusion Connector JCOM1 Serial Port Connector JFP1, JFP2 Front Panel Connectors JRAINBOW1~2...
-
Page 29: Cpu Socket
This motherboard is designed to support overclocking. Before attempting to ∙ overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommended. MSI does not guarantee the damages or risks caused by inadequate ® operation beyond product specifications. -
Page 30: Dimm Slots
It is recommended to use a more efficient memory cooling system for full DIMMs installation or overclocking. The stability and compatibility of installed memory module depend on installed CPU ∙ and devices when overclocking. Please refer www.msi.com for more information on compatible memory. ∙ Overview of Components... -
Page 31: Pci_E1~4: Pcie Expansion Slots
PCIe 3.0 x1 PCIe 3.0 x1 ⚠ Important If you install a large and heavy graphics card, you need to use a tool such as MSI ∙ Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot. -
Page 32: M2_1~2: M.2 Slots (Key M)
M2_1~2: M.2 Slots (Key M) The following table describes the relationship between the M.2 slots and the PCIe bandwidth of the processors. Ryzen™ with Radeon™ Vega 3rd Gen AMD 2nd Gen AMD Slots Graphics and 2nd Gen Ryzen™ Ryzen™ AMD Ryzen™ with M2_1 Radeon™... - Page 33 3. Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD if need, or remove the M.2 standoff if your M.2 SSD length is same as the length of M.2 heatsink. 4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. 5.
-
Page 34: Sata1~6: Sata 6Gb/S Connectors
SATA1~6: SATA 6Gb/s Connectors These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. SATA6 SATA5 SATA4 SATA3 SATA2 SATA1 ⚠ Important Please do not fold the SATA cable at a 90-degree angle. Data loss may result during ∙... -
Page 35: Cpu_Pwr1~2, Atx_Pwr1: Power Connectors
CPU_PWR1~2, ATX_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V CPU_PWR2 Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB... -
Page 36: Cpu_Fan1, Pump_Fan1, Sys_Fan1~4: Fan Connectors
CPU_FAN1, PUMP_FAN1, SYS_FAN1~4: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. You can follow the instruction below to adjust the fan connector to PWM or DC Mode. -
Page 37: Jusb1~2: Usb 2.0 Connectors
JUSB1~2: USB 2.0 Connectors These connectors allow you to connect USB 2.0 ports on the front panel. USB0- USB1- USB0+ USB1+ Ground Ground No Pin ⚠ Important ∙ Note that the VCC and Ground pins must be connected correctly to avoid possible damage. -
Page 38: Jusb5: Usb 3.2 Gen 2 10Gbps Type-C Connector
JUSB5: USB 3.2 Gen 2 10Gbps Type-C Connector This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connector on the front panel. The connector possesses a foolproof design. When you connect the cable, be sure to connect it with the corresponding orientation. USB Type-C Cable JUSB5 USB Type-C port on... -
Page 39: Jtbt1: Thunderbolt Add-On Card Connector
JTBT1: Thunderbolt Add-on Card Connector This connector allows you to connect the add-on Thunderbolt I/O card. JTBT1 FORCE_PWR SCI_EVENT SLP_S3# SLP_S5# Ground JRTD3: Intel RTD3 Connector This connector allows you to connect the RTD3 connector on the add-on Thunderbolt I/O card that supports RTD3. JRTD3 WAKE PWR EN... -
Page 40: Jci1: Chassis Intrusion Connector
JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis intrusion event (default) Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2. -
Page 41: Jbat1: Clear Cmos (Reset Bios) Jumper
JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumper to clear the CMOS memory. Keep Data Clear CMOS/ (default) -
Page 42: Jrgb1~2: Rgb Led Connectors
(12V/G/R/B) with the maximum power rating of 3A (12V). ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI’s software to control the extended LED strip. ∙ Overview of Components... -
Page 43: Jrainbow1~2: Addressable Rgb Led Connectors
(5V). In the case of 20% brightness, the connector supports up to 200 LEDs. ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI’s software to control the extended LED strip. ∙ Overview of Components... -
Page 44: Installing Os, Drivers & Utilities
Installing OS, Drivers & Utilities Please download and update the latest utilities and drivers at www.msi.com Installing Windows ® 1. Power on the computer. 2. Insert the Windows 10 installation disc/USB into your computer. ® 3. Press the Restart button on the computer case. -
Page 45: Bios Setup
BIOS Setup The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS. ⚠ Important ∙ BIOS items are continuously update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be for reference only. -
Page 46: Resetting Bios
Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port. - Page 47 1. Please download the latest BIOS file that matches your motherboard model from the MSI® website. 2. Rename the BIOS file to MSI.ROM, and save it to the root of your USB flash drive (FAT32 format). 3. Connect the power supply to CPU_PWR1 and ATX_PWR1. (No need to install CPU and memory.)
-
Page 48: Ez Mode
EZ Mode At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key. Screenshot A-XMP switch Setup Mode switch... - Page 49 ∙ Information display - click on the CPU, Memory, Storage, Fan Info and Help buttons on left side to display related information. ∙ Function buttons - enable or disable the LAN Option ROM, ErP Ready, Indication LED Control, CSM, AHCI and RGB Light Control by clicking on their respective button. ∙...
-
Page 50: Advanced Mode
Advanced Mode Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup. Screenshot A-XMP switch Setup Mode switch Search Language System information GAME BOOST switch Boot device priority bar BIOS menu BIOS menu selection selection... -
Page 51: Settings
SETTINGS System Status ▶ System Date Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only. <month> The month from Jan. through Dec. <date>... - Page 52 [Gen4] Enables PCIe Gen4 support only. ▶ PCIe SlotX Lanes Configuration PCIe lanes configuration is for MSI M.2 Xpander / MSI M.2 Xpander-Z / Other M.2 PCIe storage card. The options in this item will vary with the installed processor.
- Page 53 ▶ Ipv4 PXE Support [Enabled] When Enabled, the system UEFI network stack will support Ipv4 protocol. This item will appear when Network Stack is Enabled. [Enabled] Enables the Ipv4 PXE boot support. [Disabled] Disables the Ipv4 PXE boot support. ▶ Ipv6 PXE Support [Enabled] When Enabled, the system UEFI network stack will support Ipv6 protocol.
- Page 54 ▶ Legacy USB Support [Enabled] Sets Legacy USB function support. [Auto] The system will automatically detect if any USB device is connected and enable the legacy USB support. [Enabled] Enable the USB support under legacy mode. [Disabled] The USB devices will be unavailable under legacy mode. ▶...
- Page 55 ▶ BIOS UEFI/CSM Mode [CSM] Select CSM (Compatibility Support Module) or UEFI mode to meet the system requirement. [CSM] For the non-UEFI driver add-on devices or non-UEFI mode OS. [UEFI] For the UEFI driver add-on devices and UEFI mode OS. ▶...
-
Page 56: Boot
▶ Resume From S3/S4/S5 by PS/2 Mouse [Disabled] Enables or disables the system wake up by PS/2 mouse. [Enabled] Enables the system to be awakened from S3/ S4/ S5 state when activity of PS/2 mouse is detected. [Disabled] Disables this function. ▶... -
Page 57: Security
▶ Boot Mode Select [LEGACY+UEFI] Sets the system boot mode from legacy or UEFI architecture depending on OS installation requirement. This item will become un-selectable and will be configured automatically by BIOS when BIOS UEFI/CSM Mode sets to UEFI. [UEFI] Enables UEFI BIOS boot mode support only. -
Page 58: Save & Exit
▶ Trusted Computing Sets TPM (Trusted Platform Module) function. ▶ Security Device Support [Disabled] Enables or disables the TPM function to build the endorsement key for accessing the system. ▶ AMD fTPM switch [AMD CPU fTPM] Selects TPM device. This item will appear when Security Device Support is enabled. - Page 59 ⚠ Important Overclocking your PC manually is only recommended for advanced users. ∙ Overclocking is not guaranteed, and if done improperly, it could void your warranty ∙ or severely damage your hardware. ∙ If you are unfamiliar with overclocking, we advise you to use GAME BOOST function for easy overclocking.
- Page 60 ▶ DRAM Frequency [Auto] Sets the DRAM frequency. Please note the overclocking behavior is not guaranteed. ▶ Adjusted DRAM Frequency Shows the adjusted DRAM frequency. Read-only. ▶ FCLK Frequency [Auto] Sets FCLK frequency. Lower FCLK frequency may help you to set higher base clock frequency.
- Page 61 ▶ Memory Changed Detect [Enabled]* Enables or disables the system to issue a warning message during boot when the memory has been replaced. [Enabled] The system will issue a warning message during boot and then you have to load the default settings for new devices. [Disabled] Disables this function and keeps the current BIOS settings.
- Page 62 ▶ Spread Spectrum (optional) This function reduces the EMI (Electromagnetic Interference) generated by modulating clock generator pulses. [Enabled] Enables the spread spectrum function to reduce the EMI (Electromagnetic Interference) problem. [Disabled] Enhances the overclocking ability of CPU Base clock. ⚠ Important ∙...
-
Page 63: M-Flash
M-FLASH provides the way to update BIOS with a USB flash drive. Please download the latest BIOS file that matches your motherboard model from MSI website, save the BIOS file into your USB flash drive. And then follow the steps below to update BIOS. -
Page 64: Oc Profile
OC PROFILE ▶ Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press Enter to enter the sub-menu. ▶ Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Name the current overclocking profile. ▶... -
Page 65: Hardware Monitor
HARDWARE MONITOR Temperature & Speed Fan Manage Setting Buttons Temperature/ Voltage display ▶ Temperature & Speed Shows the current CPU temperature, system temperature and fans' speeds. ▶ Fan Manage ▪ PWM - allows you to select the PWM mode for fan operation. ▪... -
Page 66: Amd Raid Configuration
AMD RAID Configuration The following are the RAID levels supported by RAIDXpert2. RAID 0 (Striping) breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 (Mirroring) provides data redundancy by mirroring data between the hard drives and provides enhanced read performance. -
Page 67: Initializing Disks
Initializing Disks New disks and legacy disks must be initialized before they can be used to create an AMD-RAID array. Initialization writes AMD-RAID configuration information (metadata) to a disk. ⚠ Important ∙ If a disk is part of an AMD-RAID array, the disk cannot be selected for initialization. To initial the disk anyway, delete the AMD-RAID array. -
Page 68: Creating Arrays
Creating Arrays Arrays can be created after the disks are initialized. ⚠ Important For redundant arrays, the Create process is not started until after the operating ∙ system and AMD-RAID OS drivers have been installed and the system has booted to the operating system. -
Page 69: Deleting Arrays
Deleting Arrays ⚠ Important Deleting an array permanently destroys all data that is on the array. This action ∙ cannot be undone and it is very unlikely that the data can be recovered. ∙ Do not delete the first array listed in the Arrays section, if it is the AMD-RAID bootable array. -
Page 70: Installing Raid Driver
2. When prompted, insert the USB flash drive with AMD RAID Drivers and then click Browse. ▪ To make an AMD RAID Drivers USB flash drive. Insert the MSI Driver Disc into the optical drive. Copy all the contents in \\Storage\AMD\ 3. -
Page 71: Troubleshooting
Troubleshooting Lost BIOS password Before sending the motherboard for RMA repair, try to go over troubleshooting ∙ Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below. - Page 72 European Harmonized Standards. disposing of their end-of-life products. The point of contact for regulatory matters is MSI, • Visit the MSI website and locate a nearby distributor MSI-NL Eindhoven 5706 5692 ER Son. for further recycling information. B급 기기 (가정용 방송통신기자재) •...
- Page 73 MSI la Unión Europea al final de su periodo de vida. Usted will comply with the product take back requirements...
- Page 74 Products designed to be operated del suo ciclo di vita. MSI si adeguerà a tale Direttiva at closer proximities, such as tablet computers, comply with applicable EU requirements in typical ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del...
- Page 75 Copyright © 2020 All rights reserved. contact your place of purchase or local distributor. The MSI logo used is a registered trademark of Alternatively, please try the following help resources Micro-Star Int’l Co., Ltd. All other marks and names for further guidance.
