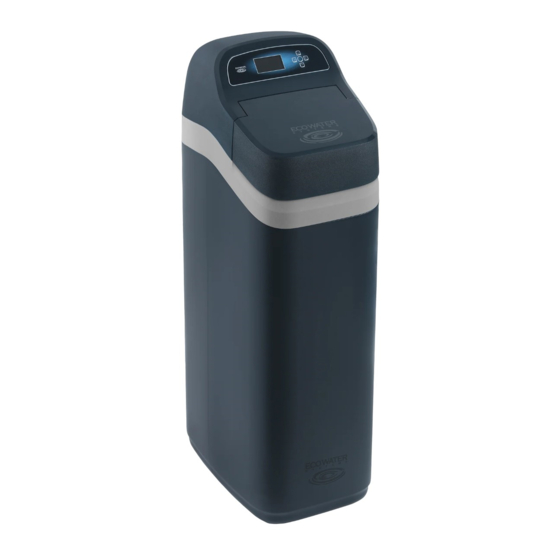

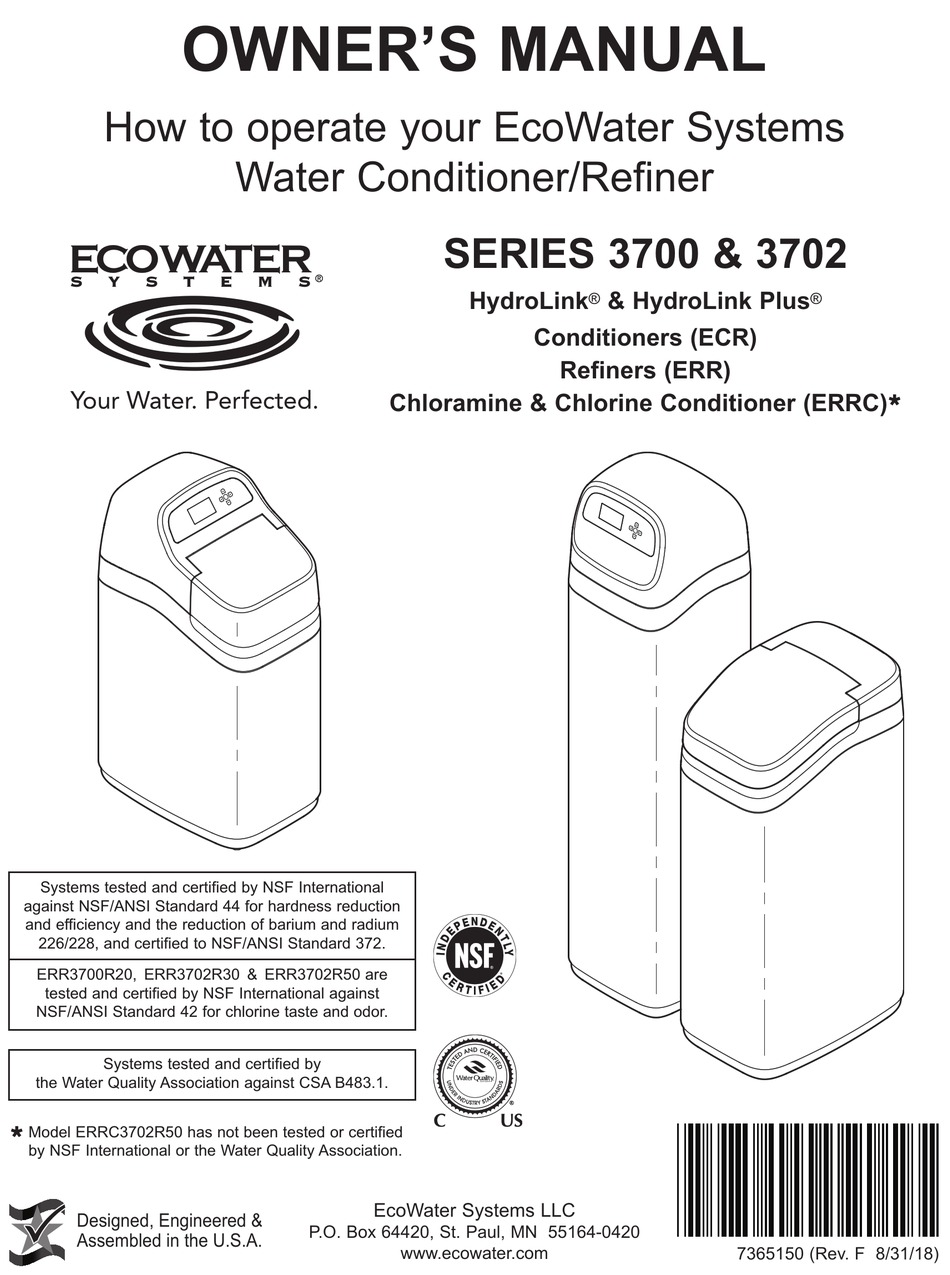

OWNER'S MANUAL
How to operate your EcoWater Systems
Systems tested and certified by NSF International
against NSF/ANSI Standard 44 for hardness reduction
and efficiency and the reduction of barium and radium
226/228, and certified to NSF/ANSI Standard 372.
ERR3700R20, ERR3702R30 & ERR3702R50 are
tested and certified by NSF International against
NSF/ANSI Standard 42 for chlorine taste and odor.
Systems tested and certified by
the Water Quality Association against CSA B483.1.
Ù Model ERRC3702R50 has not been tested or certified
by NSF International or the Water Quality Association.
Designed, Engineered &
Assembled in the U.S.A.
Water Conditioner/Refiner
Chloramine & Chlorine Conditioner (ERRC)
EcoWater Systems LLC
P.O. Box 64420, St. Paul, MN 55164-0420
www.ecowater.com
SERIES 3700 & 3702
HydroLink
& HydroLink Plus
®
Conditioners (ECR)
Refiners (ERR)
®
Ù
7365150 (Rev. F 8/31/18)
