installation ManUal
LX commerciaL soLar Lighting FiXtUre
IMPORTANT NOTES:
• Always install the lighting fixture on the pole before installing the battery.
• The lighting fixture should never be handled with battery installed inside.
• The battery compartment contains a "quick connector" to connect the battery.
INSTALLATION
1. Using the supplied bolts and hardware, fasten the battery com-
partment to the solar module as indicated on the image #1. Orien-
tation of the battery box is critical.
2. Install the lighting fixture on a pole with an outer diameter of:
• 102mm (4in) LX25 & LX50 (square or round sleeve);
• 127mm (5in) LX95 (square sleeve only on the LX95);
3. Use the proper drilling pattern (4in or 5in) at the end of this docu-
ment.
4. Slide the lighting fixture on top of the pole;
5. Use the 1/4"-20 bolt to secure the luminaire to the pole, the drilling
pattern is at the end of this document;
6. Once the light is in place, open the battery box door and insert the
battery.
7. Make a quick connection with the quick connect cable;
8. A green indicator light indicates that the luminaire is functionnal.
9. Close the battery box door, the installation is now complete.
LEARNING DELAY
The light requires a 24-hour delay to operate properly according to it's
program.
STEP 2, 3, 4, 5
Solar Vision inc.
Revision 4.0
STEP 6
www.solar-vision.ca
info@solar-vision.ca

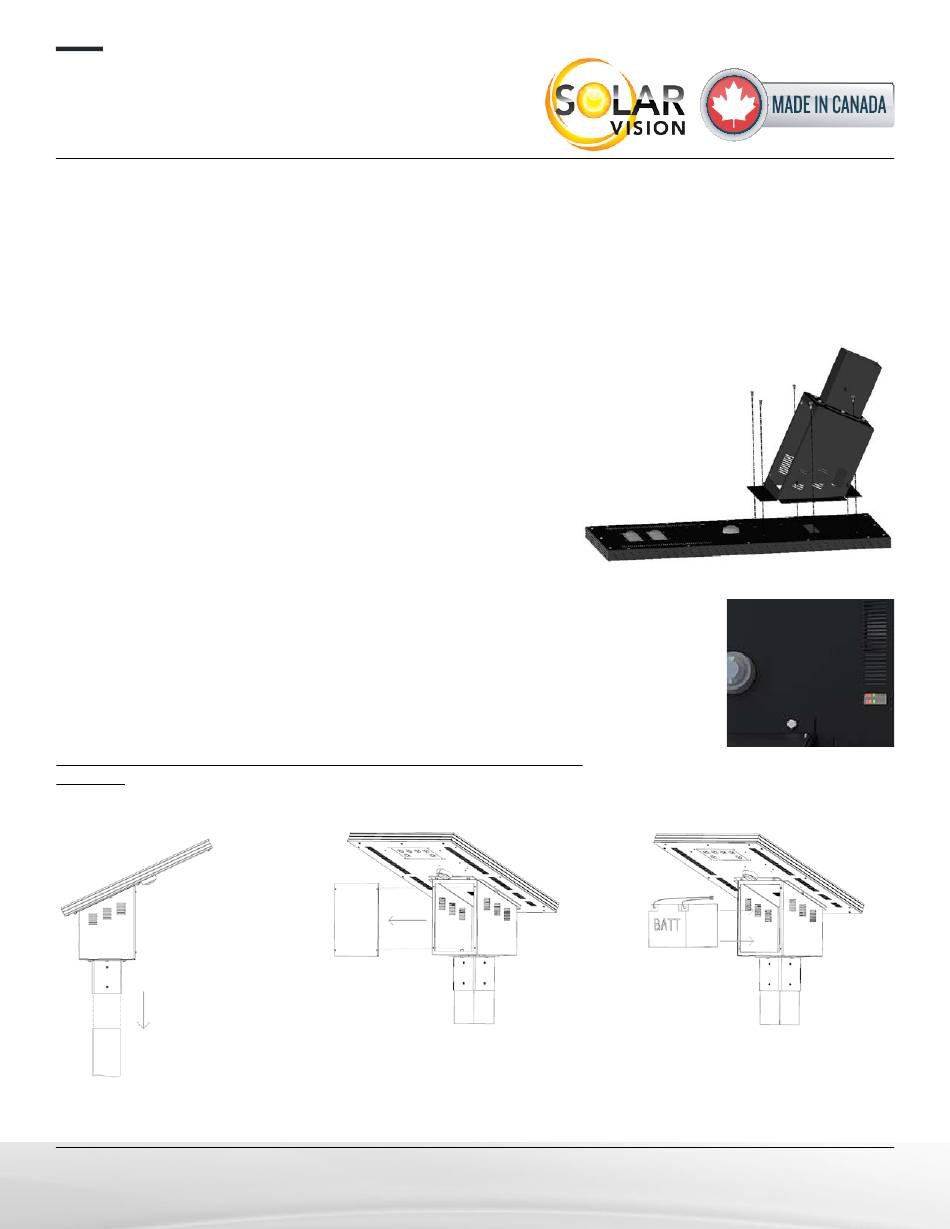

Image #1 (step #1)
Indicator lights
STEP 7
T. 1-819-729-0450
P.1/5
