IMPORTANT NOTES:

• Always install the lighting fixture on the pole before installing the battery.
• The lighting fixture should never be handled with battery installed inside.
• The battery compartment contains a "quick connector" to connect the battery, identified as "BATTERY".
• The battery compartment also contains two additional wires marked "EXTERNAL SOLAR PANEL *OP-
TIONAL* ". These two wires must never be connected to the battery, they are used when an additional
external solar panel is installed.

INSTALLATION

1. Using the supplied 5/16"-18 bolts and hardware,
fasten the battery compartment to the solar module
as indicated on the image #1. Orientation of the battery
box is critical, use the "Door Here" sticker to
confirm orientation.
2. Install the lighting fixture on a pole with an outer diameter of:
• 127mm (5in) LX95 (square sleeve only on the LX95);
3. Slide the lighting fixture on top of the pole;
4. Use the 1/4"-20 bolt to secure the luminaire to the pole, the drilling
pattern is at the end of this document;
5. Once the light is in place, open the battery box door and insert the
battery. The battery is standing up for the LX95;
6. Make a quick connection with the quick connect cable;
7. A green indicator light indicates that the luminaire is functionnal.
8. Close the battery box door, the installation is now complete.

LEARNING DELAY

The light requires a 24-hour delay to operate properly according to it's
program.
STEP 2, 3
Solar Vision inc.
Revision 3.0
STEP 4
www.solar-vision.com info@solar-vision.com

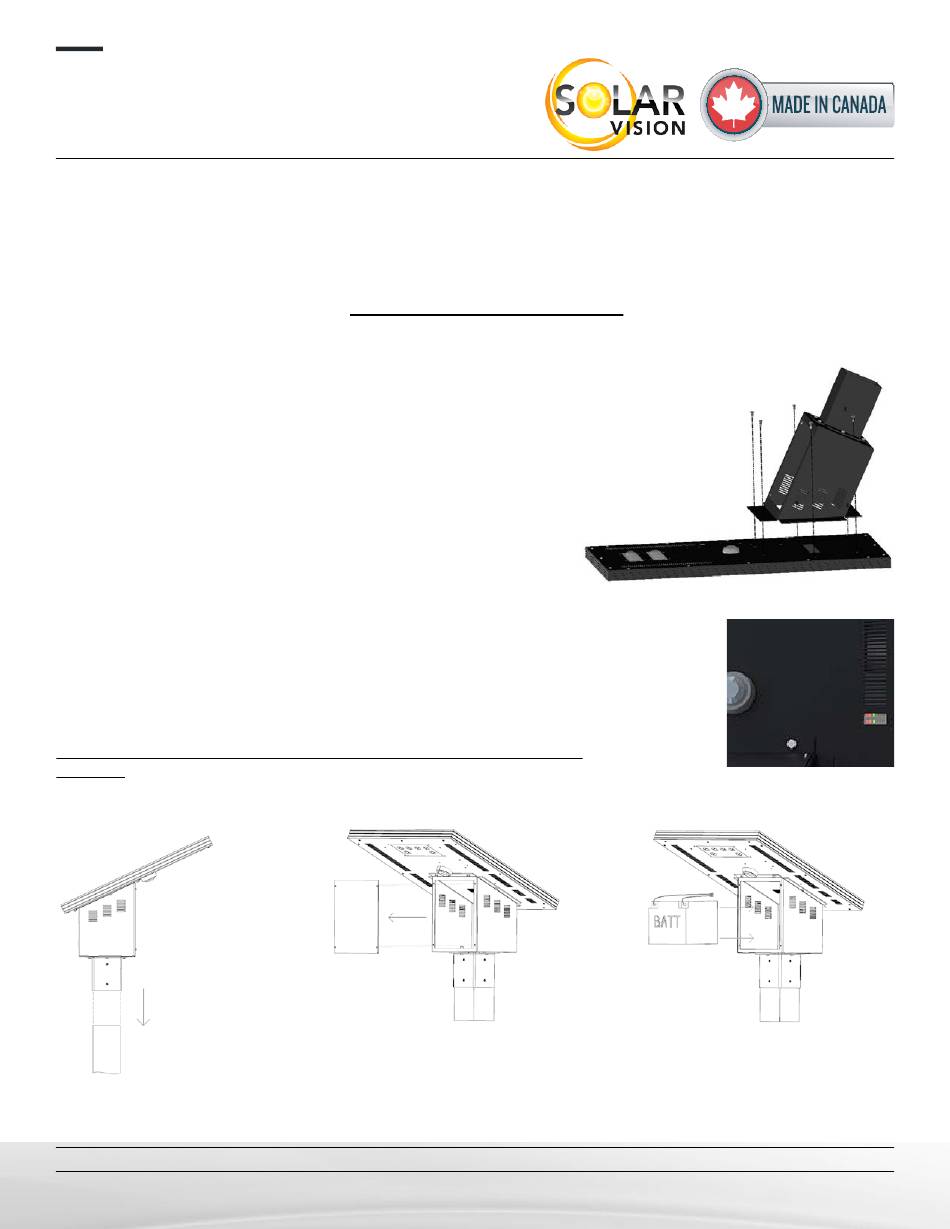

Image #1 (step #1)
